Makita Spare Parts for Circular Saw HS7611J

SKU: Makita HS7611J
€5.29
VAT included

Makita Spare Parts for Circular Saw HS7611J

We have the original Spares MAKITA for Circular Saw HS7611J, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Circular Saw HS7611J All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Makita Spare Parts for Circular Saw HS7611J
  • Makita Spare Parts for Circular Saw HS7611J
  • Makita Spare Parts for Circular Saw HS7611J

Makita Spare Parts for Circular Saw HS7611J

SKU: Makita HS7611J Condition: New
€5.29
VAT included

Makita Spare Parts for Circular Saw HS7611J

We have the original Spares MAKITA for Circular Saw HS7611J, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Circular Saw HS7611J All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 77 spare parts

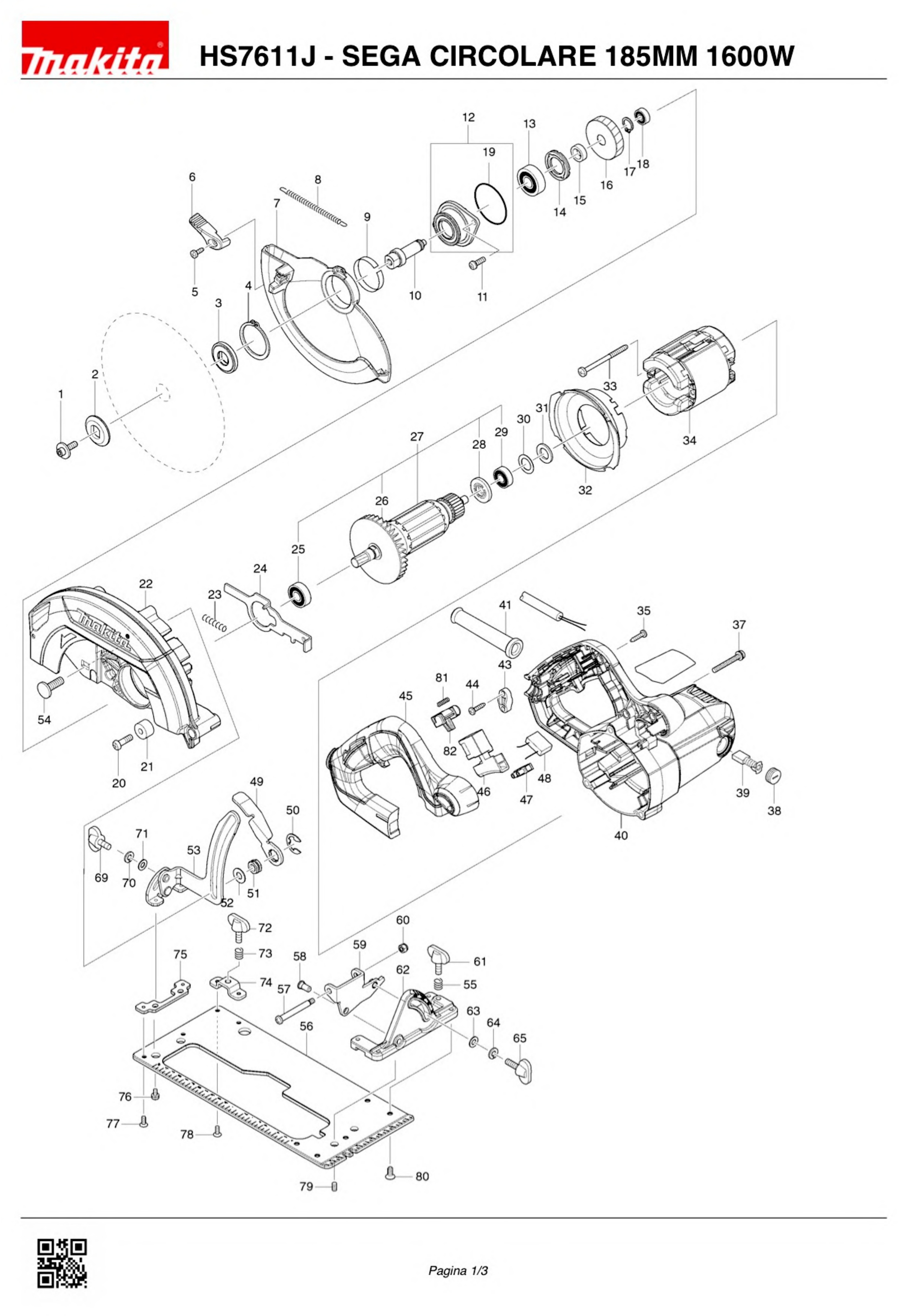

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 266024-8 M6X20 SCREW €2.62
2
photo_cameraImage coming soon 224409-4 EXTERNAL FLANGE 35 BSS611R €2.28
3
photo_cameraImage coming soon 224593-5 INTERNAL FLANGE 35 €2.85
4
photo_cameraImage coming soon 961155-5 RETAINING RING S38 €2.04
5
photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
6
photo_cameraImage coming soon 271444-3 LEVER 37 €1.90
7
photo_cameraImage coming soon 319188-8 SAFETY COVER HS7601 €21.95
8
photo_cameraImage coming soon 231887-1 TENSION SPRING 4 HS7601 €1.27
9
photo_cameraImage coming soon 345391-5 RING THICKNESS MT582 €1.27
10
photo_cameraImage coming soon 326444-9 SHAFT HS7601 €4.62
11
photo_cameraImage coming soon 911226-8 HEAD SCREW CILIND. M5X18 €1.47
12
photo_cameraImage coming soon 135947-0 BEARING BOX €4.62
13
Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
14
photo_cameraImage coming soon 285852-2 RETAINING BEARING 19-33 €1.90
15
Ring 12 for Impact Drill Makita HP1630 257173-2 Ring 12 for Impact Drill Makita HP1630 €1.85
16
photo_cameraImage coming soon 221575-8 GEAR 43 €6.84
17
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
18
photo_cameraImage coming soon 210137-7 BEARING 606ZZ €1.43
19
Ring 44 O-R for Circular Saws Makita 213560-5 Ring 44 O-R for Circular Saws Makita €4.19
20
photo_cameraImage coming soon 265117-8 SCREW 20 X M6X MT582 €1.27
21
photo_cameraImage coming soon 262556-3 RUBBER BUSH 6 X MT582 €1.27
22
photo_cameraImage coming soon 144729-9 HOUSING BLADE €55.55
23
photo_cameraImage coming soon 233117-6 COMPRESSION SPRING 6 X GA7010C €1.32
24
photo_cameraImage coming soon 347284-2 SHAFT LOCK €1.90
25
Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.29
26
Fan 76 for Rotary Hammer Makita HR4001C 241876-8 Fan 76 for Rotary Hammer Makita HR4001C €7.77
27
photo_cameraImage coming soon 515433-1 ARMATURE 220V €55.55
28
photo_cameraImage coming soon 681644-1 INSULATED WASHER for 9227CB €2.74
29
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
30
photo_cameraImage coming soon 253192-6 FLAT WASHER 14 €1.40
31
photo_cameraImage coming soon 261109-5 RUBBER WASHER 13 €1.27
32
photo_cameraImage coming soon 458033-3 DEFLECTOR €1.27
33
photo_cameraImage coming soon 266352-1 SCREW 5X65 MT901 €1.38
34
photo_cameraImage coming soon 594679-2 STATOR 220V-240V €29.52
35
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
37
photo_cameraImage coming soon 265104-7 SCREW M5 X 40 MT240 €1.27
38
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
39
Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
40
photo_cameraImage coming soon 144767-1 HOUSING MOTOR CPL €25.53
41
Cord Guard JN1601 for Angle Grinder Makita 9015B 682540-6 Cord Guard JN1601 for Angle Grinder Makita 9015B €2.72
43
photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
44
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
45
photo_cameraImage coming soon 458087-0 HANDLE COVER €6.84
46
photo_cameraImage coming soon 650245-6 SWITCH SGE115CDY-10 €6.84
47
photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
48
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
49
photo_cameraImage coming soon 346311-2 MT582 LEVER €2.43
52
photo_cameraImage coming soon 941201-0 FLAT WASHER 8 €3.18
53
photo_cameraImage coming soon 161776-5 DEPTH GUIDE €5.37
55
Pin Disc Block Spring for Angle Grinder Makita 9554NB 233376-2 Pin Disc Block Spring for Angle Grinder Makita 9554NB €2.51
56
photo_cameraImage coming soon 346826-9 BASE HS7601 HS7611 €17.13
57
photo_cameraImage coming soon 265118-6 SCREW M5 MT582 €1.27
59
photo_cameraImage coming soon 346827-7 ANGULAR GUIDE X HS7601 €1.90
60
photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €3.18
61
photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
62
photo_cameraImage coming soon 317031-5 CORNER PLATE X HS7601 €6.84
63
photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
64
photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
65
photo_cameraImage coming soon 265708-5 SCREW M6 X 20 X LS1040 €2.69
69
photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
70
photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
71
photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
72
photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
73
Pin Disc Block Spring for Angle Grinder Makita 9554NB 233376-2 Pin Disc Block Spring for Angle Grinder Makita 9554NB €2.51
74
photo_cameraImage coming soon 346847-1 HS7601 SUPPORT €1.27
75
photo_cameraImage coming soon 346846-3 PLATE X HS7601 €1.27
76
photo_cameraImage coming soon 911106-8 SCREW M4X8 €1.31
77
photo_cameraImage coming soon 912107-9 SCREW M4 x 8 €3.76
78
photo_cameraImage coming soon 912107-9 SCREW M4 x 8 €3.76
79
photo_cameraImage coming soon 266436-5 SCREW M5X8 €1.27
80
photo_cameraImage coming soon 912212-2 SCREW 5 X 12 X LC1230 €1.27
81
photo_cameraImage coming soon 231469-9 SPRING 4 X 6811DW €1.40
82
photo_cameraImage coming soon 453284-3 LOCK BUTTON X HS6101 €1.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Circular Saw HS7611J

We have the original Spares MAKITA for Circular Saw HS7611J, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of Circular Saw and the respective parts of the code.
Circular Saw HS7611J

Circular Saw HS7611J
# Part Num. Description
1 266024-8 SCREW M6X20
2 224409-4 EXTERNAL FLANGE 35 BSS611R
3 224593-5 INTERNAL FLANGE 35
4 961155-5 RETAINING RING S38
5 266034-5 SCREW CT 4X16
6 271444-3 LEVER 37
7 319188-8 SAFETY COVER HS7601
8 231887-1 TENSION SPRING 4 HS7601
9 345391-5 THICKNESS RING MT582
10 326444-9 SHAFT HS7601
11 911226-8 CYLINDER HEAD SCREW. M5X18
12 135947-0 BEARING BOX
13 211129-9 BALL BEARING 6201DD NSK
14 285852-2 BEARING CHAIN 19-33
15 257173-2 RING 12 5604R
16 221575-8 GEAR 43
17 961052-5 S12 RETAINING RING
18 210137-7 606ZZ BEARING
19 213560-5 RING 44 X HK0500
20 265117-8 SCREW M6X20 HS7601 / HS6601 / MT582
21 262556-3 RUBBER SLEEVE 6 X MT582
22 144729-9 HOUSING BLADE
23 233117-6 SPRING COMPRESSION 6 X GA7010C
24 347284-2 SHAFT LOCK
25 211131-2 BALL BEARING 6001DD
26 241876-8 FAN 76
27 515433-1 ARMATURE 220V
28 681644-1 INSULATED WASHER X 9227CB
29 210005-4 BALL BEARING 608 DDW
30 253192-6 FLAT WASHER 14
31 261109-5 RUBBER WASHER 13
32 458033-3 DEFLECTOR
33 266352-1 SCREW 5X65 MT901
34 594679-2 STATOR 220V-240V
35 266326-2 SCREW 4X18 X MT601
37 265104-7 SCREW M5 X 40 MT240
38 643750-0 BRUSH HOLDER CAP
39 191963-2 CARBON BRUSH CB-303
40 144767-1 HOUSING MOTOR CPL
41 682540-6 CORD GUARD JN1601
43 687124-5 CABLE CLAMP MT953
44 266326-2 SCREW 4X18 X MT601
45 458087-0 HANDLE COVER
46 650245-6 SWITCH SGE115CDY-10
47 654532-5 CLAMP 1P
48 645200-1 CAPACITOR
49 346311-2 LEVER MT582
50 257953-6 RING E-12 MT582
51 252199-9 NUT M8X13 MT582
52 941201-0 FLAT WASHER 8
53 161776-5 DEPTH GUIDE
54 266396-1 SCREW M8X24 MT582
55 233376-2 SPRING COMPRESSION 8 X MT952
56 346826-9 BASE X HS7601
57 265118-6 SCREW M5 MT582
58 256480-0 PIN 6-7 BSS611R
59 346827-7 ANGULAR GUIDE X HS7601
60 252103-8 LUCK NUT X JR3020
61 265726-3 SCREW M6X15
62 317031-5 CORNER PLATE X HS7601
63 941151-9 WASHER 6 X HM1303
64 942151-2 WASHER 6 4101R
65 265708-5 SCREW M6 X 20 X LS1040
69 265726-3 SCREW M6X15
70 942151-2 WASHER 6 4101R
71 941151-9 WASHER 6 X HM1303
72 265726-3 SCREW M6X15
73 233376-2 SPRING COMP. 8 X MT952
74 346847-1 HS7601 SUPPORT
75 346846-3 PLATE X HS7601
76 911106-8 SCREW M4X8
77 912107-9 SCREW M4X8
78 912107-9 SCREW M4X8
79 266436-5 SCREW M5X8
80 912212-2 SCREW 5 X 12 X LC1230
81 231469-9 SPRING 4 X 6811DW
82 453284-3 LOCK BUTTON X HS6101

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HS7611J
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HS7611J

Diagram Makita HS7611J

Download (214.14KB)
