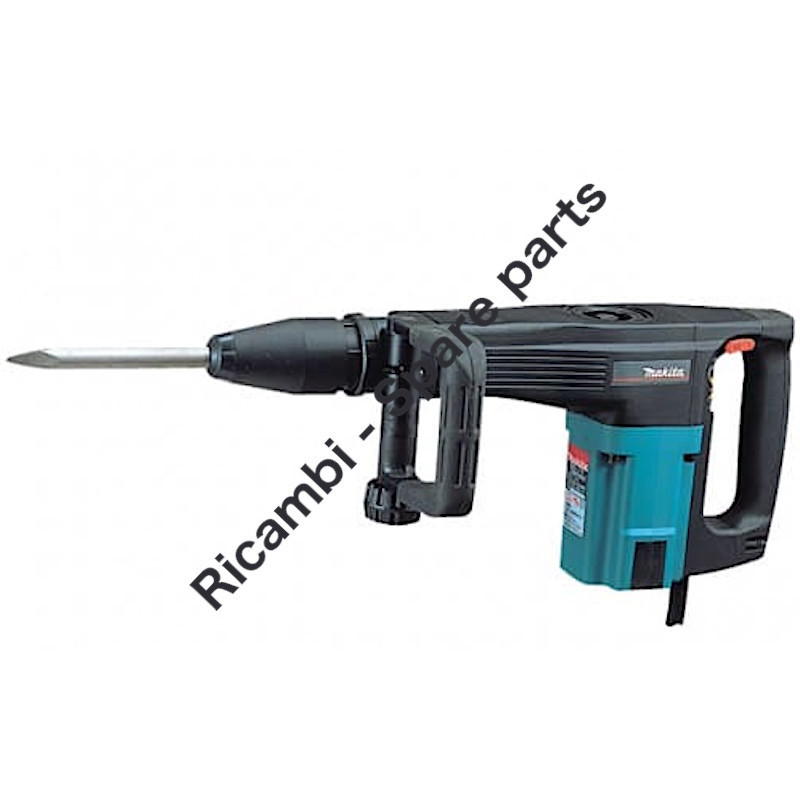

Makita Spare Parts for Hammer HM1100

MAKITA HM1100 - 1050W SDS-MAX Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer HM1100.

Makita Spare Parts for Hammer HM1100
  • New
  • Out-of-Stock
  • Makita Spare Parts for Hammer HM1100
  • Makita HM1100 Drawing
Makita

Makita Spare Parts for Hammer HM1100

SKU: HM1100 Condition: New
€0.12
VAT included

Makita Spare Parts for Hammer HM1100

MAKITA HM1100 - 1050W SDS-MAX Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer HM1100.

settings 86 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Demolition Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
86 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 962154-0 RETAINING RING X HM1100C €1.32
2
 O-Ring 33 for Hammer Makita HM1100C 213479-8 O-Ring 33 for Hammer Makita HM1100C €1.32
3
 photo_cameraImage coming soon 322982-9 TOOL HOLDER X HM1100C €101.25
4
 Roller 8 for Hammer Makita HM1100-HM1100C 322908-1 Roller 8 for Hammer Makita HM1100-HM1100C €3.23
5
 photo_cameraImage coming soon 322882-3 TOOL HOLDER SUPPORT X HM1100C €95.50
6
 photo_cameraImage coming soon 922351-0 SCREW M6 X 30 X HM1100C €1.32
7
 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 216041-8 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 €1.32
8
 photo_cameraImage coming soon 416086-8 SIDE HANDLE SUPPORT X HM1 €7.67
9
 photo_cameraImage coming soon 231972-0 RING SPRING 52 X HM1100C €1.32
10
 SEAL 44 HR2210 / 20/3510 213554-0 SEAL 44 HR2210 / 20/3510 €1.32
11
 photo_cameraImage coming soon 416087-6 CHANGE RING X HM1100C €5.16
12
 photo_cameraImage coming soon 331489-4 STEEL BALL GUIDE HM1100C €10.07
13
 photo_cameraImage coming soon 233167-1 COMPRESSION SPRING 44 X HM1100C €2.03
15
 photo_cameraImage coming soon 416085-0 TOOL HOLDER COVER X HM1100C €8.63
16
 photo_cameraImage coming soon 213270-4 X RING 18 X HM1100C / 4000 €5.16
17
 TOOL HOLDER CAP X HM1100/1100C 286246-4 TOOL HOLDER CAP X HM1100/1100C €3.83
18
 photo_cameraImage coming soon 213269-9 X RING 17 X HM1100C2400 €6.00
19
 photo_cameraImage coming soon 213311-6 O RING 19 X HM1100C €2.65
20
 photo_cameraImage coming soon 323845-2 IMPACT BOLT X HM1100C €11.29
21
 photo_cameraImage coming soon 331487-8 IMPACT BOLT GUIDE X HM1100C €11.29
22
 photo_cameraImage coming soon 421570-0 RING 36 X HM1100C €2.03
23
 photo_cameraImage coming soon 213391-2 RING 25 X HM1100C €11.29
24
 photo_cameraImage coming soon 331488-6 SLEEVE GUIDE X HM1100C €12.96
25
 SEAL 44 HR2210 / 20/3510 213554-0 SEAL 44 HR2210 / 20/3510 €1.32
26
 photo_cameraImage coming soon 415698-4 HOUSING COVER ASSY X HM P20 €27.38
27
 photo_cameraImage coming soon 322757-6 CYLINDER LINER 34 X HM1100C €125.15
29
 photo_cameraImage coming soon 213614-8 O-RING 50 X HM1100C €2.03
30
 photo_cameraImage coming soon 331486-0 SLEEVE 39 X HM1100C €46.06
31
 photo_cameraImage coming soon 233190-6 COMPRESSION SPRING 39 X HM1100 / C €2.65
32
 photo_cameraImage coming soon 267156-4 FLAT WASHER €2.03
33
 photo_cameraImage coming soon 231971-2 RING SPRING 36 X HM1100C €1.32
34
 photo_cameraImage coming soon 322907-3 STRIKER X HM1100C €14.64
35
 photo_cameraImage coming soon 213429-3 O-RING 27 X HM1100C €2.03
36
 photo_cameraImage coming soon 316672-4 BARREL X HM1100C €51.58
37
 photo_cameraImage coming soon 922341-3 SCREW M6X25 €1.32
38
 photo_cameraImage coming soon 213606-7 O-RING 48 HR3850 / B / HR2510 €3.11
39
 photo_cameraImage coming soon 213429-3 O-RING 27 X HM1100C €2.03
40
 photo_cameraImage coming soon 256165-8 PIN 8 HM0810 €5.16
41
 Piston fo Demolition Hammer Makita HM1100C 415773-6 Piston fo Demolition Hammer Makita HM1100C €7.67
42
 RING 28 X HM1100C 213415-4 RING 28 X HM1100C €1.32
43
 Conrod fo Demolition Hammer Makita HM1100C 415689-5 Conrod fo Demolition Hammer Makita HM1100C €19.42
44
 photo_cameraImage coming soon 415699-2 SWITCH BOX X HM1100C €7.25
45
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
46
 photo_cameraImage coming soon 417446-7 Control bracket €19.42
47
 photo_cameraImage coming soon 415692-6 STOPPER HM1100 €2.65
48
 photo_cameraImage coming soon 421507-7 HANDLE X HM1100C €46.06
49
 photo_cameraImage coming soon 266135-9 HEX SOCKET HEAD BOLT M6X9O X HM1100C €3.11
50
 photo_cameraImage coming soon 922371-4 HEX SCREW M6x50 €1.32
51
 photo_cameraImage coming soon 415691-8 SWITCH LEVER X HM1100C €3.11
52
 photo_cameraImage coming soon 213107-5 O-RING 12 JR3000 / V €1.32
53
 photo_cameraImage coming soon 651481-7 SWITCH X HM1100C €33.57
54
 photo_cameraImage coming soon 211033-2 BEARING 608LB €10.07
55
 photo_cameraImage coming soon 681643-3 INSULATING WASHER X HM1100 Makita €2.65
57
 Fan 76 for Rotary Hammer Makita HR4001C 241876-8 Fan 76 for Rotary Hammer Makita HR4001C €7.67
58
 Oil Seal 14 for Rotary Hammer Makita HR3850 213160-1 Oil Seal 14 for Rotary Hammer Makita HR3850 €14.64
59
 Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.63
61
 photo_cameraImage coming soon 134875-6 CRANK HOUSING X HM1100C €105.80
62
 photo_cameraImage coming soon 213707-1 SEAL 65 X HR1800 €3.83
63
 photo_cameraImage coming soon 210054-1 BEARING HM1100C €7.67
64
 Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.32
65
 photo_cameraImage coming soon 212259-9 NEEDLE BEARING 2116 X HM1100C €29.04
66
 photo_cameraImage coming soon 153249-2 CRANK SHAFT €63.33
67
 photo_cameraImage coming soon 216116-3 INNER SLEEVE 812 HM1100C €11.29
68
 photo_cameraImage coming soon 415690-0 CRANK CAP X HM1100C €10.07
69
 Knob Handle M8 X for Hammer Makita HM1100-HM1100C 252640-2 Knob Handle M8 X for Hammer Makita HM1100-HM1100C €7.67
70
 Side Handle Ring for Demolition Hamme Makita HM1202C 417002-3 Side Handle Ring for Demolition Hamme Makita HM1202C €2.65
71
 photo_cameraImage coming soon 152620-7 HANDLE SUPPORT 60 €22.06
72
 Side Handle Ring for Demolition Hamme Makita HM1202C 417002-3 Side Handle Ring for Demolition Hamme Makita HM1202C €2.65
73
 photo_cameraImage coming soon 265439-6 SCREW M8X150 X HM1100C €2.65
74
 Side Handle for Demolition Hamme Makita HM1202C 417003-1 Side Handle for Demolition Hamme Makita HM1202C €17.02
75
 photo_cameraImage coming soon 415693-4 BAFFLE PLATE X HM1100C €3.83
76
 photo_cameraImage coming soon 632678-7 SUPPORT X HM1100C €7.67
77
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
78
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €1.32
79
 photo_cameraImage coming soon 416167-8 Fixed rod €2.93
80
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €2.65
82
 photo_cameraImage coming soon 266021-4 SCREW 5X20 €1.32
83
 photo_cameraImage coming soon 415700-3 REAR COVER X HM1100C €5.16
84
 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.03
85
 Carbon Brush Set CB 304 for Demolition Hammer Makita HM0860C 191961-6 Carbon Brush Set CB 304 for Demolition Hammer Makita HM0860C €14.64
86
 photo_cameraImage coming soon 922364-1 SCREW M6X40 €1.32
88
 photo_cameraImage coming soon 152662-1 MOTOR HOUSING X HM1100C €57.57
89
 photo_cameraImage coming soon 263014-2 RUBBER PIN 4 €1.32
90
 photo_cameraImage coming soon 639009-1 Terrain 220V €33.57
91
 photo_cameraImage coming soon 265345-5 SCREW M5X20 X HM1100C €2.65
92
 Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.03
93
 photo_cameraImage coming soon 213385-7 O-RING 24 X HR2400 €4.44
94
 photo_cameraImage coming soon 134909-5 SIDE HANDLE ASSY HM1200 / 1100 €34.95
999
 photo_cameraImage coming soon 193243-2 SERVICE KIT HM1100 / C €41.48

Shipping and delivery information will be available shortly.

Makita Spare Parts for Hammer HM1100

MAKITA HM1100 - 1050W SDS-MAX Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer HM1100.

In the following table, look for the model of Hammer and the respective parts of the code.
Makita HM1100

Rotary Hammer Makita HM1100 Pag.1
# Part Num. Description
1 962154-0 RETAINING RING X HM1100C
2 213479-8 RING 33 X HM1100C
3 322982-9 TOOL HOLDER X HM1100C
4 322908-1 KEY 8 X HM1100C
5 322882-3 TOOL HOLDER SUPPORT X HM1100C
6 922351-0 SCREW M6 X 30 X HM1100C
7 216041-8 STEEL BALL 5.6
8 416086-8 SIDE GRIP SUPPORT X HM1
9 231972-0 RING 52 X HM1100C
10 213554-0 GASKET 44 HR2210/20/3510
11 416087-6 CHANGE RING X HM1100C
12 331489-4 GUIDE RING ACC. HM1100C
13 233167-1 SPRING 44 X HM1100C
15 416085-0 TOOL HOLDER COVER X HM1100C
16 213270-4 RING 18 X HM1100C/4000
17 286246-4 TOOL HOLDER CAP X HM1100/CP05
18 213269-9 RING 17 X HM1100C2400
19 213311-6 RING 19 X HM1100C
20 323845-2 STRIKER X HM1100C
21 331487-8 STRIKER GUIDE X HM1100C
22 421570-0 RING 36 X HM1100C
23 213391-2 RING 25 X HM1100C
24 331488-6 GUIDE SLEEVE X HM1100C
25 213554-0 GASKET 44 HR2210/20/3510
26 415698-4 HOUSING COVER COMPLETE X HM
27 322757-6 CYLINDER X HM1100C
29 213614-8 RING 50 X HM1100C
30 331486-0 SLEEVE 39 X HM1100C
31 233190-6 COMPRESSION SPRING 39 X HM1100/C
32 267156-4 FLEXIBLE WASHER
33 231971-2 RETAINING RING 36 X HM1100C
34 322907-3 PISTON X HM1100C
35 213429-3 RING 27 X HM1100C
36 316672-4 CYLINDER COVER X HM1100C
37 922341-3 SCREW M6X25
38 213606-7 GASKET 48 HR3850/B/HR2510
39 213429-3 RING 27 X HM1100C
40 256165-8 PIN 8 HM0810
41 415773-6 PISTON X HM1100C
42 213415-4 RING 28 X HM1100C
43 415689-5 ROD X HM1100C
44 415699-2 SWITCH SEAT X HM1100C
45 263002-9 RUBBER PIN 4
46 417446-7 HANDLE COVER HM1100-1130
47 415692-6 CLIP X HM1100
48 421507-7 HANDLE X HM1100C
49 266135-9 SCREW M6X90 X HM1100C
50 922371-4 HEX SOCKET HEAD SCREW M6X50
51 415691-8 SWITCH LEVER X HM1100C
52 213107-5 GASKET 12 JR3000/V
53 651481-7 SWITCH X HM1100C
54 211033-2 BEARING 608SS (LLB) HR2010
55 681643-3 INSULATING WASHER X HM1100
57 241876-8 FAN 76
58 213160-1 OIL SEAL 14 XHR3850/B
59 211129-9 BALL BEARING 6201DD NSK
61 134875-6 CRANK HOUSING X HM1100C
62 213707-1 GASKET 65 X HR1800
63 210054-1 BEARING X HM1100C
64 962105-3 RETAINING RING R26
65 212259-9 ROLLER BEARING X HM1100C
66 153249-2 ECCENTRIC GEAR
67 216116-3 INNER SLEEVE 812 HM1100C
68 415690-0 COVER X HM1100C
69 252640-2 HANDLE KNOB M8 X
70 417002-3 HANDLE RING HM1202C
71 152620-7 HANDLE SUPPORT 60
72 417002-3 HANDLE RING HM1202C
73 265439-6 SCREW M8X150 X HM1100C
74 417003-1 SIDE HANDLE X HM1202C
75 415693-4 DEFLECTOR X HM1100C
76 632678-7 COMPLETE HOLDER X HM1100C
77 265995-6 SCREW M4X18 X 6408/6221DW
78 687063-9 STRAIN RELIEF X 4304T
79 416167-8 FIXING ROD X HM1100
80 682560-0 CABLE SLEEVE X HM1202C/9079S
82 266021-4 SCREW 5X20
83 415700-3 REAR COVER X HM1100C
84 643750-0 BRUSH HOLDER CAP
85 191961-6 CARBON BRUSHES CB 304 X HM1100C
86 922364-1 SCREW M6X40
88 152662-1 COMPLETE MOTOR HOUSING X
89 263014-2 RUBBER PIN 4
90 639009-1 STATOR X HM1100
91 265345-5 SCREW M5X20 X HM1100C
92 645006-7 CAPACITOR X LS1013
93 213385-7 RING 24 X HR2400
94 134909-5 GRIP CPL HM12001100/
999 193243-2 MAINTENANCE KIT HM1100/C
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HM1100

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Demolition Hammer
MORE INFO:
[email protected]

Specific References

New

Download

Makita HM1100 Drawing

Makita HM1100 Drawing

Download (575.53KB)

You might also like

Carbon Brush Holder Cap for Hammer Makita HR1820
Makita SKU: 643600-9
Carbon Brush Holder Cap for Hammer Makita HR1820
Carbon Brush Holder Cap for Hammer Makita HR1820 Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HR1820 - HR2010 - HR2510 - Rotary Hammer HR3520 - Demolition Hammer HM0810 - HM0810B - HM0810T - Polisher 9207SPB - 9207SPC -...
AVAILABLE €2.02
Details
Needle Bearing for Demolition Hammer Makita HM0810
Makita SKU: 212108-0
Needle Bearing for Demolition Hammer Makita HM0810
Needle Bearing for Demolition Hammer Makita HM0810 Genuine spare Makita, Needles Bearing NK1212 for Demolition Hammer 8035NB - BFL301FZ - BFL301RZ - BFL400F - BFL401FZ - BFL402FZ - BFL402RZ - DFL301RZ - DFL402FZ - HM0810 - HM0810B -...
AVAILABLE €20.01
Details
Switch for Demolition Hammer Makita HM0810T
Makita SKU: 651038-4
Switch for Demolition Hammer Makita HM0810T
Switch for Demolition Hammer Makita HM0810T Genuine spare Makita, Switch for Demolition Hammers HM0810T - HM0810 - HM0810B Part for the following products: - HM0810T - DEMOLITION HAMMER 5,3KG 900W -...
AVAILABLE €28.43
Details
Conrod for Demolition Hammer Makita HM0810T
Makita SKU: 312956-8
Conrod for Demolition Hammer Makita HM0810T
Conrod for Demolition Hammer Makita HM0810T Genuine spare Makita, Connection Rod for Demolition Hammers HM0810T - HM0810 - HM0810B Part for the following products: - HM0810 - DEMOLITON...
AVAILABLE €9.91
Details
Service Pack for Demolition Hammer Makita HM0810/B/T
Makita SKU: 193242-4
Service Pack for Demolition Hammer Makita HM0810/B/T
Service Pack for Demolition Hammer Makita HM0810/B/T Genuine spare Makita, Service Pack for Demolition Hammers HM0810T - HM0810 - HM0810B Part for the following article: - HM0810T - DEMOLITION HAMMER 5,3KG 900W - HM0810 - DEMOLITION...
AVAILABLE €62.00
Details
Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T
Makita SKU: 181038-5
Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T
Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T Genuine spare part Makita, Carbon Brushes CB-105 for Demolition Hammers HM0810T - HM0810 - HM0810B. Part for the following products: - 8035NB - ROTARY HAMMER - HK1800 -...
AVAILABLE €13.28
Details
Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T
Makita SKU: 216004-4
Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T
Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T  Genuine spare Makita, Steel Ball 7,9 mm Diameter for Bench Saw 2712 - LF1000 - Hammer HR3850 - Hammers HM1400-HM1810 - Circular Saws 5104S-5143R - Hammer HR3850B. Part for the...
AVAILABLE €1.50
Details
Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810 Sale
Makita SKU: 213260-7
Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810
Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810 Genuine spare part Makita, Oil Seal 17 mm 17x30x6 for Demolition Hammers HM0810 - HM0810B - HM0810T Part for the following products - Demolition Hammer 5,3Kg 900W Makita...
AVAILABLE €6.76
Details
Crank Cap for Demolition Hammer Makita HM0810T
Makita SKU: 411709-3
Crank Cap for Demolition Hammer Makita HM0810T
Crank Cap for Demolition Hammer Makita HM0810T Genuine replacement part Makita, Crank Cap for Demolition Hammers HM0810T - HM0810 - HM0810B. Part for the following products: - HM0810 -...
Usually Ships in: 7/10 Business Days Approx. €13.26
Details
Motor Housing for Demolition Hammer Makita HM0810T
Makita SKU: 159634-7
Motor Housing for Demolition Hammer Makita HM0810T
Motor Housing for Demolition Hammer Makita HM0810T Genuine replacement part Makita, Motor Housing for Demolition Hammers HM0810T - HM0810 - HM0810B. Part for the following products: - HM0810 - DEMOLITON HAMMER 5,3KG 900W - HM0810B -...
on 7/10 Business Days Approx. €88.86
Details
Tool Holder Ass'y for Demolition Hammer Makita HM0810T
Makita SKU: 125070-9
Tool Holder Ass'y for Demolition Hammer Makita HM0810T
Tool Holder Ass'y for Demolition Hammer Makita HM0810T Genuine spare Makita, Tool Holder Ass'y for Demolition Hammers HM0810T.  Part for the following products: -  HM0810T - DEMOLITION HAMMER 5,3KG 900W - Codice : 125070-9
on 7/10 Business Days Approx. €96.17
Details
Comments (0)
No customer reviews for the moment.
