Makita Spare Parts for Angle Grinder M9502R

Makita Genuine spare parts or replacement parts for to repair Angle Grinder M9502R 570w 115mm

Fix Your Angle Grinder M9502R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

New
Out-of-Stock

Makita Spare Parts for Angle Grinder M9502R

SKU: M9502R Condition: New

€0.12

VAT included

Makita Spare Parts for Angle Grinder M9502R

43 Spare parts

1 exploded view

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS

MORE INFO:: [email protected]

Machine Type: Grinder

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

43 spare parts

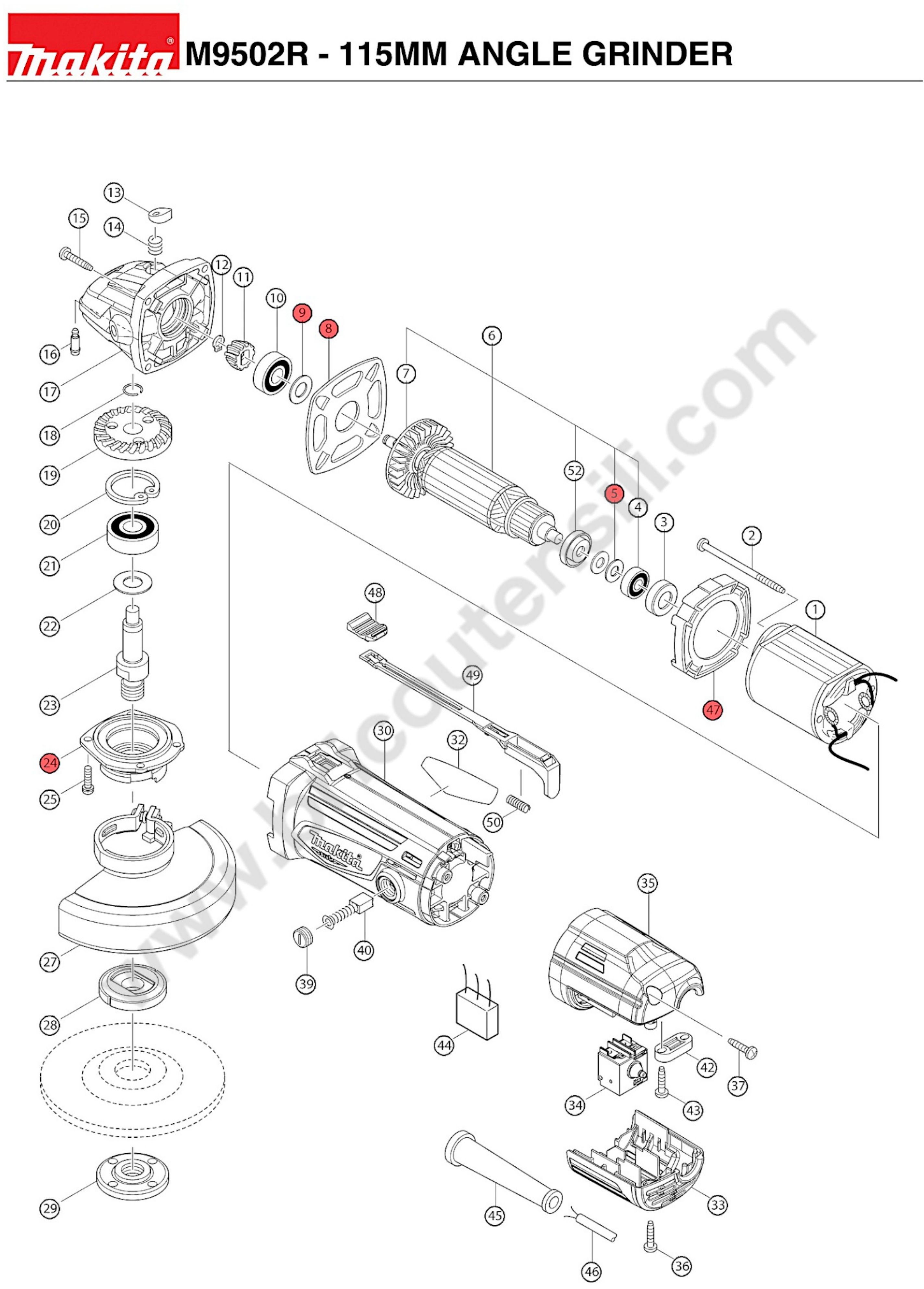

Page 1 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	593898-7 STATOR 220-240V	€29.04
2	Image coming soon	266325-4 SCREW M 4 TO 70 PER MT952	€1.32
3	Image coming soon	421808-3 RING RUBBER 19 MT952	€1.32
4	Image coming soon	210062-2 BEARING 607ZZ X MT601	€2.03
5	Image coming soon	267245-5 WASHER 7 X MT952	€1.24
6	Image coming soon	510173-6 ARMATURE MT962	€33.57
7	Image coming soon	240059-7 FAN 50 X MT952	€1.32
8	Image coming soon	285704-7 RETAINING BEARING 69 X MT952	€1.32
9	Image coming soon	267256-0 WASHER 10 X MT952	€1.32
10		211480-7 Ball Bearing 6000 ZZ for CUT-OFF Machine Makita 2414EN	€2.03
11	Image coming soon	227451-4 GEAR 11 X MT952	€5.16
12	Image coming soon	961022-4 RETAINING RING S-6	€1.32
13		417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB	€1.32
14		233376-2 Pin Disc Block Spring for Angle Grinder Makita 9554NB	€1.32
15	Image coming soon	265B46-7 SCREW 4X22	€1.32
16		256486-8 Pin Disc Block for Angle Grinder Makita 9554NB	€1.32
17	Image coming soon	140433-8 GEAR HOUSING MT962	€14.64
18		233950-6 Ring 11 for Angle Grinder Makita GA4530	€1.32
19	Image coming soon	227452-2 GEAR 36 X MT952	€5.16
20		962151-6 Retaining Ring R32 for Powertools Makita	€1.32
21		211129-9 Bearing 6201DD NSK for Powertools Makita	€8.63
22	Image coming soon	267238-2 WASHER 12 MT952	€1.32
23	Image coming soon	325978-9 POST MT962	€5.16
24	Image coming soon	318374-8 BEARING BOX	€3.61
25	Image coming soon	265100-5 SCREW M4 X 16 X MT952	€1.32
27		123098-1 Disc Protection for Angle Grinder Makita 9554NB	€7.67
28		224490-5 Inner Flange 42 for Angle Grinder Makita 9524NB	€2.65
29		224554-5 Upper Flange for Angle Grinders Makita 115-125 mm	€6.00
30	Image coming soon	143511-3 MOTOR HOUSING	€14.64
33	Image coming soon	456383-0 REAR COVER LOWER	€3.83
34		650769-2 SWITCH	€22.06
35	Image coming soon	456382-2 REAR COVER UPPER	€5.16
36		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
37		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
39	Image coming soon	643987-9 PLUG BRUSH 5-8 MT952	€1.32
40	Image coming soon	195010-1 CARBON BRUSHES CB-411	€2.45
42	Image coming soon	687124-5 CORD CLAMP MT953	€1.32
43		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
44	Image coming soon	645219-0 CAPACITOR	€2.03
45	Image coming soon	682502-4 CABLE SLEEVE 8/85	€2.65
47	Image coming soon	418015-7 BAFFLE MT952	€1.32
48	Image coming soon	418016-5 KEY SWITCH X MT952	€1.32
49	Image coming soon	456384-8 SWITCH LEVER	€2.65
50		233121-5 Lever Switch Spring for Angle Grinder Makita 9554NB	€1.32
52		681636-0 Armature Washer for Angle Grinder Makita GA4530	€2.03

Shipping and delivery information will be available shortly.

Makita Spare Parts for Angle Grinder M9502R

In the following table, look for the model of the Angle Grinder and the respective parts of the code.

Makita Angle Grinder M9502R
#	Part Num.	Description
1	593898-7	STATOR 220-240V
2	266325-4	SCREW M4X70
3	421808-3	RUBBER RING 19
4	210062-2	BALL BEARING 607ZZ
5	267245-5	WASHER 7
6	510173-6	ARMATURE MT962
7	240059-7	FAN 50
8	285704-7	BEARING RETAINER 69
9	267256-0	WASHER 10
10	211480-7	BALL BEARING 6000ZZ
11	227451-4	SPIRAL BEVEL GEAR 11
12	961022-4	RETAINING RING S-6
13	417771-6	BUTTON
14	233376-2	COMPRESSION SPRING 8
15	265B46-7	SCREW 4X22
16	256486-8	LOCK PIN
17	140433-8	GEAR HOUSING MT962
18	233950-6	RING 11
19	227452-2	SPIRAL BEVEL GEAR 36
20	962151-6	RETAINING RING R32
21	211129-9	BALL BEARING 6201DD
22	267238-2	WASHER 12
23	325978-9	SPINDLE MT962
24	318374-8	BEARING BOX
25	265100-5	SCREW M4X16
27	123098-1	WHEEL GUARD 115AK
28	224490-5	INNER FLANGE 42
29	224554-5	LOCK NUT 14-45
30	143511-3	MOTOR HOUSING
32	851S80-1	xxxxxx
33	456383-0	REAR COVER LOWER
34	650769-2	SWITCH
35	456382-2	REAR COVER UPPER
36	265995-6	SCREW M4X18
37	265995-6	SCREW M4X18
39	643987-9	BRUSH HOLDER CAP
40	195010-1	CARBON BRUSHES CB-411
42	687124-5	STRAIN RELIEF
43	265995-6	SCREW M4X18
44	645219-0	CAPACITOR
45	682502-4	CORD GUARD
46	695556-2	xxxxxx
47	418015-7	BAFFLE PLATE
48	418016-5	SWITCH BUTTON
49	456384-8	SWITCH LEVER
50	233121-5	COMPRESSION SPRING 4
52	681636-0	INSULATION WASHER

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference M9502R

Data sheet

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
Machine Type: Grinder
MORE INFO:: [email protected]

Specific References

Condition New

Download

Makita M9502R Drawing

Download (450.18KB)
