Makita Genuine spare parts or replacement parts for to repair Angle Grinder M9001 2000w 230mm
Fix Your Angle Grinder M9001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Genuine spare parts or replacement parts for to repair Angle Grinder M9001 2000w 230mm
Fix Your Angle Grinder M9001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Shipping and delivery information will be available shortly.
Makita Genuine spare parts or replacement parts for to repair Angle Grinder M9001 2000w 230mm
Fix Your Angle Grinder M9001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

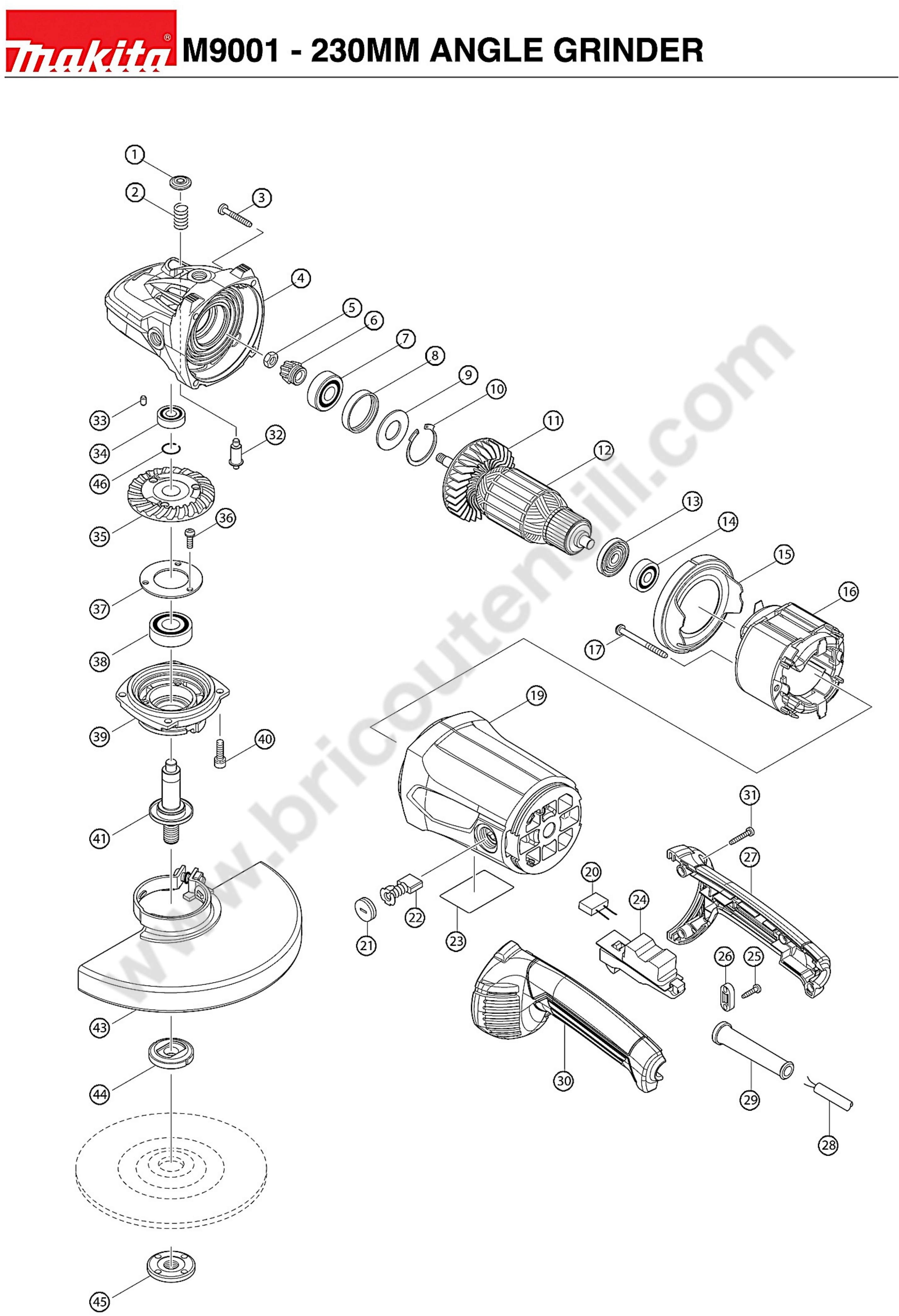

In the following table, look for the model of the Angle Grinder and the respective parts of the code.![]()
| Makita Angle Grinder M9001 | ||
| # | Part Num. | Description |
| 1 | 419133-4 | PLUG PIN FOR GA9020 |
| 2 | 233292-8 | COMPRESSION SPRING 12 |
| 3 | 266373-3 | SCREW 5X35 FOR GA9020 |
| 4 | 142753-6 | GEAR HOUSING |
| 5 | 252194-9 | NUT M8 FOR GA9020 |
| 6 | 227490-4 | GEAR 12 FOR GA9020 |
| 7 | 210104-2 | xxxxxx |
| 8 | 262085-6 | RUBBER RING 38 9079S |
| 9 | 267299-2 | WASHER 20 FOR GA9020 |
| 10 | 962211-4 | RETAINING RING R42 |
| 11 | 240081-4 | FAN 80 FOR GA9020 |
| 12 | 516948-1 | ARMATURE MT901 |
| 13 | 681630-2 | WASHER X 9029-9029SF. |
| 14 | 210070-3 | BALL BEARING 6200ZZ X MT240 |
| 15 | 419135-0 | BAFFLE PLATE FOR GA9020 |
| 16 | 596279-4 | STATOR MT901 |
| 17 | 266352-1 | SCREW 5X65 MT901 |
| 19 | 143118-5 | MOTOR HOUSING X M9001 |
| 20 | 645240-9 | CAPACITOR MT430 |
| 21 | 643710-2 | BRUSH HOLDER CAP XHM1500 |
| 22 | 194992-4 | CARBON BRUSHES CB-204(201,202) |
| 23 | 850W54-3 | xxxxxx |
| 24 | 651183-5 | SWITCH HY44B |
| 25 | 265995-6 | SCREW M4X18 |
| 26 | 687124-5 | STRAIN RELIEF MT953 |
| 27 | 188895-2 | GRIP MT903 |
| 28 | 665852-2 | xxxxxx |
| 29 | 682505-8 | CORD GUARD 10/90 |
| 30 | 188895-2 | GRIP MT903 |
| 31 | 266374-1 | SCREW 4X25 FOR GA9020 |
| 32 | 256491-5 | PIN 5 FOR GA9020 |
| 33 | 263002-9 | RUBBER PIN 4 |
| 34 | 211480-7 | BALL BEARING 6000ZZ |
| 35 | 227491-2 | GEAR 53A FOR GA9020 |
| 36 | 265120-9 | SCREW M5X16 FOR GA9020 |
| 37 | 285724-1 | BEARING RETAINER 50 GA9020 |
| 38 | 211285-5 | BALL BEARING 6203DDW FOR GA9020 |
| 39 | 318617-8 | BEARING BOX MT903 |
| 40 | 265541-5 | SCREW M6X22 FOR GA9020 |
| 41 | 158209-9 | SPINDLE MT901 |
| 43 | 122892-8 | WHEEL GUARD |
| 44 | 224490-5 | INNER FLANGE 42 |
| 45 | 224543-0 | LOCK NUT 9047F 9049F 9049SF |
| 46 | 233946-7 | RETAINING RING 15 X MT903 |
