Makita

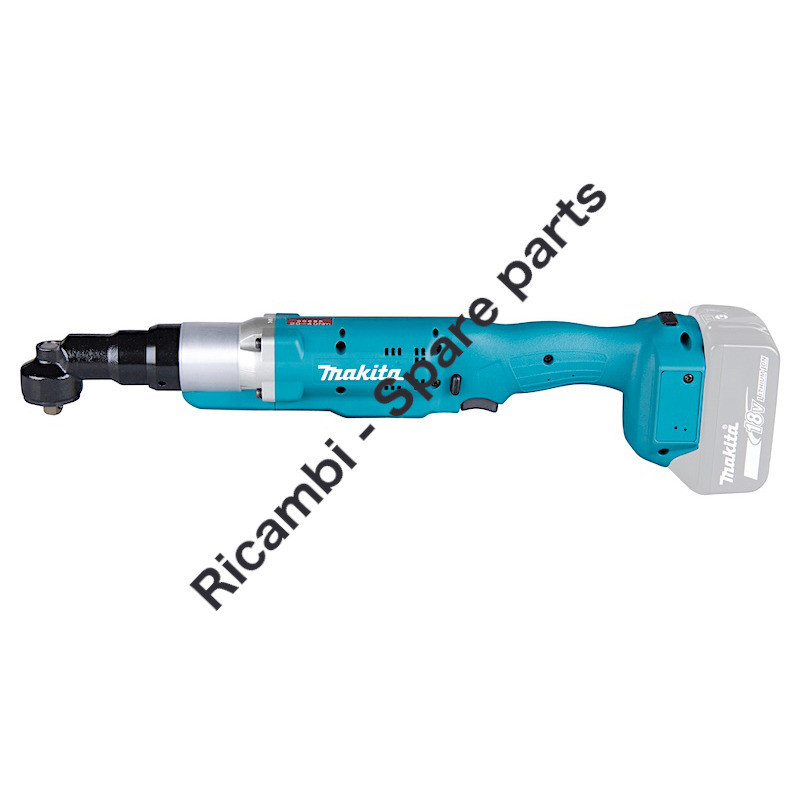

Makita Spare Parts for Angle Screwdriver DFL404FZ

SKU: DFL404FZ
€0.12
VAT included

Makita Spare Parts for Angle Screwdriver DFL404FZ

Genuine spare parts or replacements parts for to repair Angle Screwdriver DFL404FZ  - 50 - 310 g/min 20,0 – 40,0 Nm

Fix Your Angle Screwdriver DFL404FZ. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Makita Spare Parts for Angle Screwdriver DFL404FZ
  • New
  • Out-of-Stock
  • Makita Spare Parts for Angle Screwdriver DFL404FZ
  • Makita DFL404FZ Drawing
Makita

Makita Spare Parts for Angle Screwdriver DFL404FZ

SKU: DFL404FZ Condition: New
€0.12
VAT included

Makita Spare Parts for Angle Screwdriver DFL404FZ

Genuine spare parts or replacements parts for to repair Angle Screwdriver DFL404FZ  - 50 - 310 g/min 20,0 – 40,0 Nm

Fix Your Angle Screwdriver DFL404FZ. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 66 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Screwdriver
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
66 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 347C16-5 PLATE T €4.11
3-4
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €1.32
3-2
 photo_cameraImage coming soon 931002-4 HEX. NUT M3 €1.45 Not available for order
4
 photo_cameraImage coming soon 141U54-5 ANGLE HEAD COMPLETE €214.74
5
 photo_cameraImage coming soon 253777-8 FLAT WASHER 8 €1.32
6
 photo_cameraImage coming soon 141W62-8 SPINDLE A COMPLETE €113.52
7
 photo_cameraImage coming soon 285739-8 BEARING RETAINER 20-34 €29.04
8
 photo_cameraImage coming soon 227B36-8 SPIRAL BEVEL GEAR 9 €42.36
9
 photo_cameraImage coming soon 212222-2 BEARING ROLLER 1612 €17.02
11
 photo_cameraImage coming soon 211288-9 BALL BEARING 6901DDW €8.63
12
 photo_cameraImage coming soon 285058-2 RETAINER €17.18
13
 photo_cameraImage coming soon 961082-6 RING RIT. WR12 BHR261D €1.32
14
 photo_cameraImage coming soon 327D14-1 LOCK SLEEVE €26.51
15
 photo_cameraImage coming soon 231988-5 RING SPRING 34 €1.92
16
 photo_cameraImage coming soon 227B37-6 INTERNAL GEAR 50 €8.09
17
 Makita Power Tools Ext DIN471 Circlip-14 961054-1 Makita Power Tools Ext DIN471 Circlip-14 €1.32
18
 photo_cameraImage coming soon 253837-6 FLAT WASHER 14 €1.32
19
 photo_cameraImage coming soon 310148-3 CARRIER €70.77
20
 photo_cameraImage coming soon 256104-8 PIN 3 X 4602DW €1.32
21
 photo_cameraImage coming soon 227B35-0 SPUR GEAR 14 €3.90
22
 photo_cameraImage coming soon 413X25-3 LED LENS €5.08
23
 photo_cameraImage coming soon 312E87-3 CLUTCH CASE €52.16
24
 photo_cameraImage coming soon 265145-3 + PAN HEAD SCREW M4X22 €1.32
25
 photo_cameraImage coming soon 211283-9 BALL BEARING 6803ZZ €11.29
26
 photo_cameraImage coming soon 267283-7 FLAT WASHER 21 €1.32
27
 photo_cameraImage coming soon 227137-0 SPUR GEAR 21 €27.11
28
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.67
29
 photo_cameraImage coming soon 961026-6 RETAINING RING S10- €1.32
30
 Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.32
31
 photo_cameraImage coming soon 232657-1 COMPRESSION SPRING 4 €0.66
32
 photo_cameraImage coming soon 122H30-0 CLUTCH ASSEMBLY XR €105.41
33
 photo_cameraImage coming soon 324834-0 LOCK NUT M12 €11.29
34
 photo_cameraImage coming soon 158408-3 ADJUST RING COMPLETE €6.00
35
 photo_cameraImage coming soon 267276-4 FLAT WASHER 18 €1.32
36
 photo_cameraImage coming soon 216018-3 STEEL BALL 5 HP2030 €1.32
37
 photo_cameraImage coming soon 327645-2 SPINDLE R €33.57
38
 photo_cameraImage coming soon 233357-6 COMPRESSION SPRING 19B €4.44
39
 photo_cameraImage coming soon 216024-8 STEEL BALL X BFL080FZ €1.32
40
 photo_cameraImage coming soon 223202-3 CAM G €16.31
41
 photo_cameraImage coming soon 223206-5 CAM I €18.90
42
 photo_cameraImage coming soon 216024-8 STEEL BALL X BFL080FZ €1.32
44
 photo_cameraImage coming soon 211375-4 BALL BEARING 6805LLB 6221D €29.04
45
 photo_cameraImage coming soon 413X29-5 GEAR CASE €11.49
46
 photo_cameraImage coming soon 227048-9 INTERNAL GEAR 47 €7.67
49
 photo_cameraImage coming soon 227924-7 SPUR GEAR 15 €2.03
50
 photo_cameraImage coming soon 267774-8 LOCK WASHER €2.65
51
 photo_cameraImage coming soon 418003-4 MOTOR BRACKET €3.83
52
 photo_cameraImage coming soon 413X27-9 LENS €2.57
53
 photo_cameraImage coming soon 620N72-9 INDICATION CIRCUIT €15.70
54
 photo_cameraImage coming soon 413X26-1 COVER €9.38
55
 photo_cameraImage coming soon 911013-5 SCREW M3X10 €1.32
56
 photo_cameraImage coming soon 233025-1 SPRING 2 X 6702DW €1.32
57
 photo_cameraImage coming soon 141U53-7 SWITCH LEVER COMPLETE €18.98
58
 photo_cameraImage coming soon 620B16-7 SENSOR CIRCUIT €10.07
59
 photo_cameraImage coming soon 266490-9 SCREW 2X6 €1.32
60
 photo_cameraImage coming soon 266490-9 SCREW 2X6 €1.32
61
 photo_cameraImage coming soon 652069-6 M3x6 SCREW €1.32
62
 photo_cameraImage coming soon 629C57-6 STATOR €60.96
63
 photo_cameraImage coming soon 619836-2 ROTOR €108.73
64
 photo_cameraImage coming soon 620E65-2 CONTROLLER €232.45
65
 photo_cameraImage coming soon 459492-4 F/R CHANGE LEVER €5.16
66
 photo_cameraImage coming soon 651082-1 SWITCH C3JW-1B-S €33.57
67
 photo_cameraImage coming soon 620621-8 BUZZER CIRCUIT €12.96
68
 photo_cameraImage coming soon 424827-8 USB COVER €7.67
69
 photo_cameraImage coming soon 620B15-9 USB CIRCUIT €14.64
71
 photo_cameraImage coming soon 251581-9 PAN HEAD SCREW M3X20 €1.32
72
 photo_cameraImage coming soon 911013-5 SCREW M3X10 €1.32
74
 photo_cameraImage coming soon 643874-2 TERMINAL €5.16
76
 photo_cameraImage coming soon 1915K2-5 GEAR ASSEMBLY T €171.79

Shipping and delivery information will be available shortly.

Makita Spare Parts for Angle Screwdriver DFL404FZ

Genuine spare parts or replacements parts for to repair Angle Screwdriver DFL404FZ  - 50 - 310 g/min 20,0 – 40,0 Nm

Fix Your Angle Screwdriver DFL404FZ. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the angle grinder and theirs spare parts codes.
Makita DFL404FZ

Makita Angle Screwdriver DFL404FZ
# Part Num. Description
1 8144F2-4 DFL404F NAME PLATE
2 347C16-5 PLATE T
3 1830J7-2 HOUSING SET
3-1 812G71-5 CAUTION LABEL
3-2 931002-4 HEX. NUT M3
3-3 819F96-4 CAUTION LABEL
3-4 263005-3 RUBBER PIN 6
4 141U54-5 ANGLE HEAD COMPLETE
5 253777-8 FLAT WASHER 8
6 141W62-8 SPINDLE A COMPLETE
7 285739-8 BEARING RETAINER 20-34
8 227B36-8 SPIRAL BEVEL GEAR 9
9 212222-2 NEEDLE BEARING 1612
10 267063-1 FLAT WASHER 18
11 211288-9 BALL BEARING 6901DDW
12 285058-2 RETAINER
13 961082-6 RETAINING RING WR12
14 327D14-1 LOCK SLEEVE
15 231988-5 RING SPRING 34
16 227B37-6 INTERNAL GEAR 50
17 961054-1 RETAINING RING S-14
18 253837-6 FLAT WASHER 14
19 310148-3 CARRIER
20 256104-8 PIN 3
21 227B35-0 SPUR GEAR 14
22 413X25-3 LED LENS
23 312E87-3 CLUTCH CASE
24 265145-3 + PAN HEAD SCREW M4X22
25 211283-9 BALL BEARING 6803ZZ
26 267283-7 FLAT WASHER 21
27 227137-0 SPUR GEAR 21
28 211088-7 BALL BEARING 6000DDW
29 961026-6 RETAINING RING S10-
30 962105-3 RETAINING RING R-26
31 232657-1 COMPRESSION SPRING 4
32 122H30-0 CLUTCH ASSEMBLY XR
33 324834-0 LOCK NUT M12
34 158408-3 ADJUST RING COMPLETE
35 267276-4 FLAT WASHER 18
36 216018-3 STEEL BALL 5.0
37 327645-2 SPINDLE R
38 233357-6 COMPRESSION SPRING 19B
39 216024-8 STEEL BALL 4
40 223202-3 CAM G
41 223206-5 CAM I
42 216024-8 STEEL BALL 4
43 141U56-1 CARRIER COMPLETE
44 211375-4 BALL BEARING 6805LLB
45 413X29-5 GEAR CASE
46 227048-9 INTERNAL GEAR 47
47 227B39-2 SPUR GEAR 16
48 141U55-3 SPUR GEAR 13 COMPLETE
49 227924-7 SPUR GEAR 15
50 267774-8 LOCK WASHER
51 418003-4 MOTOR BRACKET
52 413X27-9 LENS
53 620N72-9 INDICATION CIRCUIT
54 413X26-1 COVER
55 911013-5 PAN HEAD SCREW M3X10
56 233025-1 COMPRESSION SPRING 2
57 141U53-7 SWITCH LEVER COMPLETE
58 620B16-7 SENSOR CIRCUIT
59 266490-9 TAPPING SCREW PT 2X6
60 266490-9 TAPPING SCREW PT 2X6
61 652069-6 FLAT HEAD SCREW M3X6
62 629C57-6 STATOR
63 619836-2 ROTOR
64 620E65-2 CONTROLLER
65 459492-4 F/R CHANGE LEVER
66 651082-1 SWITCH C3JW-1B-S
67 620621-8 BUZZER CIRCUIT
68 424827-8 USB COVER
69 620B15-9 USB CIRCUIT
71 251581-9 PAN HEAD SCREW M3X20
72 911013-5 PAN HEAD SCREW M3X10
73 413J95-8 COVER
74 643874-2 TERMINAL
75 8144F3-2 DFL404F SERIAL NO. LABEL
76 1915K2-5 GEAR ASSEMBLY T
A01 xxxxxx 18V LI-ION BATTERY
A02 xxxxxx BATTERY CHARGER
C01 8204H6-0 DFL404F CARTON
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DFL404FZ

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Screwdriver
MORE INFO:
[email protected]

Specific References

New

Download

Makita DFL404FZ Drawing

Makita DFL404FZ Drawing

Download (882.33KB)

You might also like

Switch for Angle Grinder Makita 710 W 9554HN/NB
Makita SKU: 651947-7
Switch for Angle Grinder Makita 710 W 9554HN/NB
Switch for Angle Grinder Makita 710 W 9554HN/NB Original spare part Makita, Switch for Angle Grinders 9527PB/PBK - 9528PB/PBK - 9554HN/HNG/NB - 9555NB - 9557HN/HNG/HP/NB/PB - 9558HN/HNG/HP/NB/PB - GD0600. Part for the following...
AVAILABLE €14.96
Details
Armature for Angle Grinder Makita 9553-9554-9555
Makita SKU: 515619-7
Armature for Angle Grinder Makita 9553-9554-9555
Armature for Angle Grinder Makita 9553-9554-9555 Original spare part Makita, 230V Armature for Angle Grinders 9553NB - 9554HN - 9554HNG - 9554NB - 9555NB Part for the following products: - Angle Grinder Makita 9553NB  - Angle Grinder...
AVAILABLE €23.90
Details
Armature for Angle Grinder Makita 9556-9557-9558
Makita SKU: 515613-9
Armature for Angle Grinder Makita 9556-9557-9558
Armature for Angle Grinder Makita 9556-9557-9558 Genuine spare part Makita, Armature 220-240 V for Angle Grinder 9557HN - HNG - HNRG - 9557HP - NB - PB - 9558HN - HNRG - HP - HPG - NB -PB. Part for the following products: - 9557HN...
Usually Ships in: 7/10 Business Days Approx. €29.60
Details
Stator for Angle Grinder Makita 9554-9555
Makita SKU: 621713-6
Stator for Angle Grinder Makita 9554-9555
Stator for Angle Grinder Makita 9554-9555 Original replacement part Makita, 230V Stator (Fields)  for Angle Grinders 9554HN - 9554HNG - 9554NB - 9555NB. Part for the following products: - 9554HN - ANGLE GRINDER 115MM 710W - 9554HNG -...
AVAILABLE €19.59
Details
Stator for Angle Grinder Makita 9557-9558
Makita SKU: 621708-9
Stator for Angle Grinder Makita 9557-9558
Stator for Angle Grinder Makita 9557-9558 Original spare part Makita for Angle Grinder with max 115 - 125 mm disc and compatible. For Angle Grinder Makita 840W : 9557HN - 9557HNG - 9557HP - 9557NB - 9557PB - 9558HN - 9558HPG - 9558HP...
AVAILABLE €20.90
Details
Carbon Brushes Makita for Angle Grinders 9554-9555-9557
Makita SKU: 194074-2
Carbon Brushes Makita for Angle Grinders 9554-9555-9557
Carbon Brushes Makita for Angle Grinders 9554-9555-9557 Genuine spare part Makita,  Carbon Brushe Set CB-325 for Angle Grinders 9554HN - 9554HNG - 9554NB - 9555NB - 9557HN - 9557HNG - 9557HP - 9557NB - 9557PB. Part for the following...
AVAILABLE €4.19
Details
Inner Flange for Angle Grinder Makita 115-125 mm
Makita SKU: 224415-9
Inner Flange for Angle Grinder Makita 115-125 mm
Inner Flange for Angle Grinder Makita 115-125 mm Genuine replacement part Makita, inner tighten flange for Angle Grinder with disk max 180-230 mm. For the following items: - ANGLE GRINDER 125 MM - 9005B - ANGLE GRINDER 150 MM - 9006B...
AVAILABLE €2.93
Details
Switch Lever for Angle Grinder Makita 9554-9555
Makita SKU: 418796-3
Switch Lever for Angle Grinder Makita 9554-9555
Switch Lever for Angle Grinder Makita 9554-9555 Original spare Makita, Switch Lever for Angle Grinder 9554HN - 9554HNG - 9554NB - 9555NB. Parts for the following products: - Angle Grinder 9554NB - Angle Grinder 9554HN - Angle Grinder...
AVAILABLE €6.55
Details
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Makita SKU: 194074-2
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB Original spare part Makita for Angle Grinder, Carbon Brushes for 9554HN - 9554HNG - 9554NB - 9555NB - 9555NB - 9557HN - 9558HN - 9564H Part for the following products: - ANGLE...
AVAILABLE €4.19
Details
Gears Box for Angle Grinder Makita 9554NB
Makita SKU: 317814-3
Gears Box for Angle Grinder Makita 9554NB
Gears Box for Angle Grinder Makita 9554NB Genuine spare part Makita, Gears Box for Angle Grinders with disk mm 115-125. Parts for the following products: - ANGLE GRINDER 115MM 710W - 9554HN - ANGLE GRINDER 115MM 710W - 9554NB - ANGLE...
AVAILABLE €11.60
Details
Pin Disc Block for Angle Grinder Makita 9554NB
Makita SKU: 256486-8
Pin Disc Block for Angle Grinder Makita 9554NB
Pin Disc Block for Angle Grinder Makita 9554NB Genuine spare part Makita, Pin Disc Block for Angle Grinders with disk mm 115-125. Part for the following products: - ANGLE GRINDER 115MM 710W - 9554HN - ANGLE GRINDER 115MM 710W -...
AVAILABLE €3.35
Details
Button Pin Disc Block for Angle Grinder Makita 9554NB
Makita SKU: 417771-6
Button Pin Disc Block for Angle Grinder Makita 9554NB
Button Pin Disc Block for Angle Grinder Makita 9554NB Genuine spare part Makita, Button Pin Disc Block for Angle Grinders with disk mm 115-125. Part for the following products: - ANGLE GRINDER 115MM 710W - 9554HN - ANGLE GRINDER...
AVAILABLE €3.18
Details
Pin Disc Block Spring for Angle Grinder Makita 9554NB
Makita SKU: 233376-2
Pin Disc Block Spring for Angle Grinder Makita 9554NB
Pin Disc Block Spring for Angle Grinder Makita 9554NB Genuine spare Makita, Pin Disc Block Spring 8 mm for Angle Grinders with disk mm 115-125. Parts for the following products: - ANGLE GRINDER 115MM 710W - 9554HN - ANGLE GRINDER...
AVAILABLE €2.51
Details
Switch Lever for Angle Grinder Makita 9557NB
Makita SKU: 418728-0
Switch Lever for Angle Grinder Makita 9557NB
Switch Lever for Angle Grinder Makita 9557NB Original spare Makita, Switch Lever for Angle Grinder 9557NB - 9557HN - 9557HNG - 9558HN. Parts for the following products: - Angle Grinder 115MM 840W-9557HN - Angle Grinder 115MM...
AVAILABLE €4.90
Details
Disc Protection for Angle Grinder Makita 9554NB
Makita SKU: 123098-1
Disc Protection for Angle Grinder Makita 9554NB
Disc Protection for Angle Grinder Makita 9554NB Genuine part Makita, Disc Protection for Angle Grinders with 115 mm disc, 9554HN - 9554HNG - 9554NB - 9557HN - GA4530 - GA4534 - M9502R - MT952 - MT962. Parts for the following...
AVAILABLE €9.00
Details
Lever Switch Spring for Angle Grinder Makita 9554NB
Makita SKU: 233121-5
Lever Switch Spring for Angle Grinder Makita 9554NB
Lever Switch Spring for Angle Grinder Makita 9554NB Genuine part Makita, Lever Switch Compression Spring for Angle Grinders 9554NB - 9554HNG - 9554HN - GA4530 - GA4530R - Metal Shears JS1000 - JS1601 - JS1602 - Plate Joiner PJ7000....
AVAILABLE €1.30
Details
Upper Flange for Angle Grinders Makita 115-125 mm
Makita SKU: 224554-5
Upper Flange for Angle Grinders Makita 115-125 mm
Upper Flange for Angle Grinders Makita 115-125 mm Genuine part Makita, Upper Disk Flange for Angle Grinders with disk max 115-125 mm and compatible. Parts for the following products: - 9015B - ANGLE GRINDER 125MM 1050W - 9016B -...
AVAILABLE €6.00
Details
Ball Bearing Protection for Angle Grinder Makita GA4530
Makita SKU: 421868-5
Ball Bearing Protection for Angle Grinder Makita GA4530
Ball Bearing Protection for Angle Grinder Makita GA4530 Genuine part Makita, Rubber Ring Ball Bearing Protection for Angle Grinder GA4530 - GA4530R - GA4534 - GA5034 - 9554HN - 9554HNG - 9554NB - 9555NB. Parts for the following...
AVAILABLE €2.00
Details
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Makita SKU: 210033-9
Bearing 696ZZ FOR Angle Grinder Makita GA4530
Bearing 696ZZ FOR Angle Grinder Makita GA4530 Genuine part Makita, Bearing 696ZZ for Angle Grinders GA4530 - 9554HN - 9554NB - 9555NB - 9557HN - 9558HN - Band Saw 2107FK. Parts for the following products: - 2107FK - BAND SAW - 9554HN...
AVAILABLE €3.35
Details
Capacitor for Angle Grinder Makita 9554NB
Makita SKU: 645233-6
Capacitor for Angle Grinder Makita 9554NB
Capacitor for Angle Grinder Makita 9554NB Genuine part Makita, Suppression Capacitor for Angle Grinder 9554HN - 9554NB - 9555NB - 9557HN - 9557HP - 9557NB - 9557PB - 9558HN - 9558HP - 9558NB - 9558PB. Part for the following...
AVAILABLE €3.35
Details
Armature Protection Washer for Angle Grinder Makita 9554NB
Makita SKU: 681667-9
Armature Protection Washer for Angle Grinder Makita 9554NB
Armature Protection Washer for Angle Grinder Makita 9554NB Genuine spare Makita, Armature Protection Washer for Angle Grinders 9554NB - 9555NB - 9557NB - 9558NB - Maktec MT952 - MT953 Parts for the following products: - 9554NB - ANGLE...
AVAILABLE €2.00
Details
Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB
Makita SKU: 254011-9
Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB
Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB Genuine spare part Makita, Woodruf Key mm 4x7,95x4,97 for Angle Grinders Disc Spindle 9554HN - 9554HNG - 9554NB - 9555NB - 9557HN - 9557HNG Parts for the following products: -...
AVAILABLE €1.38
Details
Wave Washer 12 for Angle Grinders Makita 9554HN/NB
Makita SKU: 267794-2
Wave Washer 12 for Angle Grinders Makita 9554HN/NB
Wave Washer 12 for Angle Grinders Makita 9554HN/NB Original spare part Makita, Wave Washer 12 for Angle Grinders 9554HN - 9554NB - 9557HN - 9558HN. Part for the following products: - 9554HN - ANGLE GRINDER 115MM 710W - 9554HNG - ANGLE...
AVAILABLE €1.32
Details
Comments (0)
No customer reviews for the moment.
