Makita

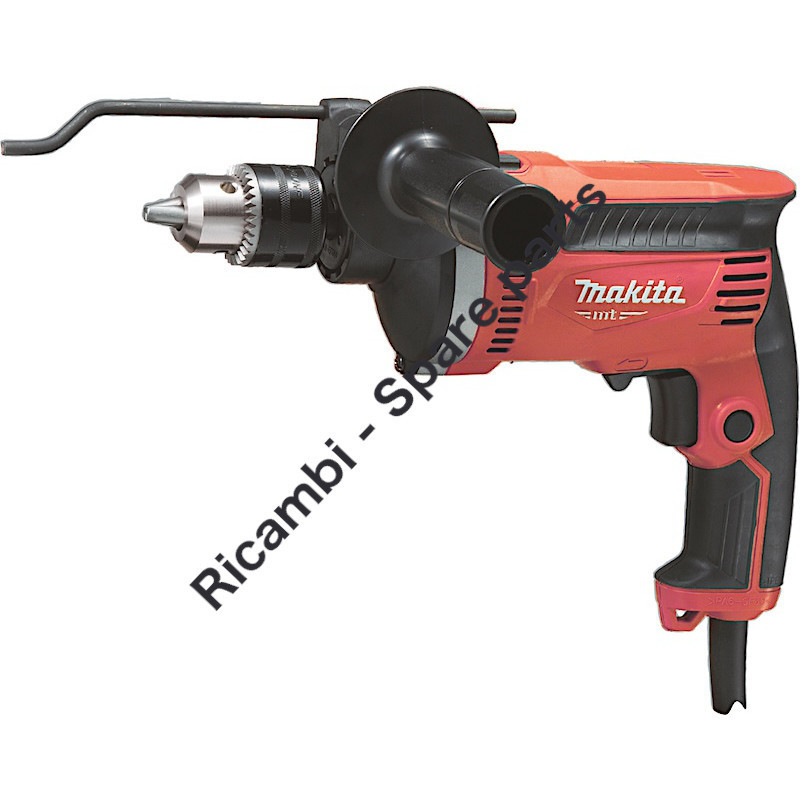

Makita Spare Parts for Hammer Drill M8100

SKU: Makita M8100
€0.12
VAT included

Makita Spare Parts for Hammer Drill M8100 - 710w

Makita original replacement parts for to replace broken parts for to fix Hammer Drill M8100 - 710w

Makita Spare Parts for Hammer Drill M8100
  • New
  • Out-of-Stock
  • Makita Spare Parts for Hammer Drill M8100
  • Makita M8100 Drawing
Makita

Makita Spare Parts for Hammer Drill M8100

SKU: Makita M8100 Condition: New
€0.12
VAT included

Makita Spare Parts for Hammer Drill M8100 - 710w

Makita original replacement parts for to replace broken parts for to fix Hammer Drill M8100 - 710w

settings 42 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

Machine Type: Drill
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Chuck for Percussion Drills Makita HP1630 763161-4 Chuck for Percussion Drills Makita HP1630 €10.47
2
 photo_cameraImage coming soon 417822-5 HOLDER HANDLE MT811 €1.32
3
 photo_cameraImage coming soon 152489-9 GRIP 36 COMP 8413D-43D/HP203 €2.85
4
 photo_cameraImage coming soon 265495-6 SCREW M8 FOR 110 FOR MT811 €1.32
6
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €1.32
7
 photo_cameraImage coming soon 451907-7 GEAR BOX MT814-815 €3.11
8
 photo_cameraImage coming soon 327376-3 SPINDLE €5.16
9
 photo_cameraImage coming soon 233330-6 SPRING COMP.16 FOR MT811 €1.32
10
 photo_cameraImage coming soon 210241-2 * BALL BEARING 6202DDW €2.65
11
 photo_cameraImage coming soon 257246-1 RING 19 MT811 €1.32
12
 photo_cameraImage coming soon 962153-2 RETAINING RING R35 €2.03
13
 Ring 12 for Impact Drill Makita HP1630 257173-2 Ring 12 for Impact Drill Makita HP1630 €1.32
14
 photo_cameraImage coming soon 227806-3 GEAR 37 (FOR HP1630&1631 ONLY) €10.07
15
 photo_cameraImage coming soon 233938-6 CIRCLIP 12 FOR HP1630 €1.32
16
 photo_cameraImage coming soon 216040-0 BALL 3.5 €1.32
17
 photo_cameraImage coming soon 256251-5 PIN 4 HP1500 €1.32
18
 photo_cameraImage coming soon 424112-9 SEAL HP1630 €1.32
19
 photo_cameraImage coming soon 140M11-2 GEAR HOUSING COVER €17.02
20
 photo_cameraImage coming soon 417819-4 LEVER FOR MT811 €1.32
21
 photo_cameraImage coming soon 453921-9 LEVER HOLDER X M8100 €1.24
22
 photo_cameraImage coming soon 345944-0 PLATE CHANGE HP1630 €1.32
23
 photo_cameraImage coming soon 211031-6 BEARING 608 €5.16
24
 photo_cameraImage coming soon 241869-5 FAN 55 €6.00
25
 photo_cameraImage coming soon 510164-7 ARMATURE MT814 €41.48
26
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.03
27
 photo_cameraImage coming soon 210062-2 BEARING 607ZZ X MT601 €2.03
28
 photo_cameraImage coming soon 421808-3 RING RUBBER 19 MT952 €1.32
29
 photo_cameraImage coming soon 450620-4 STATOR HP1630 €1.32
30
 photo_cameraImage coming soon 266415-3 SCREW 4FOR55 HR2230 €1.27
31
 photo_cameraImage coming soon 344871-8 RETAINING X GD0800C €1.32
32
 photo_cameraImage coming soon 417237-6 COVER INSULATION FOR GD0800C €2.03
33
 photo_cameraImage coming soon 626644-4 STATOR FOR HP1630 €29.04
34
 photo_cameraImage coming soon 458780-6 MOTOR HOUSING €19.42
36
 photo_cameraImage coming soon 141709-6 HANDLE COVER M8100 €7.25
37
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
38
 Brushe Holder for Drill Makita 6413 643566-3 Brushe Holder for Drill Makita 6413 €1.32
39
 photo_cameraImage coming soon 194973-8 SET SPAZZOLE IN CARBONIO CB-85 €3.01
40
 Capacitor for Die Grinder Makita GD0801C 645089-7 Capacitor for Die Grinder Makita GD0801C €1.32
41
 Switch for Percussion Drills Makita HP1630-HP1631 650586-0 Switch for Percussion Drills Makita HP1630-HP1631 €22.06
42
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
43
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.32
44
 photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €2.65
46
 photo_cameraImage coming soon 345280-4 WASHER HEXAGON €1.32

Shipping and delivery information will be available shortly.

Makita Spare Parts for Hammer Drill M8100 - 710w

Makita original replacement parts for to replace broken parts for to fix Hammer Drill M8100 - 710w

In the following table, look for the model of the Drill and the respective parts of the code.
Hammer Drill M8100

Makita Hammer Drill M8100
# Part Num. Description
1 763161-4 KEYLESS DRILL CHUCK 13MM X MT811
2 417822-5 GRIP BASE MT811
3 152489-9 GRIP 36 X HP1500
4 265495-6 SCREW M8 X 110 X MT811
6 266361-0 SCREW 4 X 30 X 9554NB
7 451907-7 GEAR HOUSING MT814-815
8 327376-3 SPINDLE
9 233330-6 COMPRESSION SPRING 16 X MT811
10 210241-2 BALL BEARING 6202DDW
11 257246-1 RING 19 MT811
12 962153-2 RETAINING RING R35
13 257173-2 RING 12 5604R
14 227806-3 GEAR 37 (FOR HP1630&1631 ONLY)
15 233938-6 RETAINING RING 12 X HP1630
16 216040-0 STEEL BALL 3.5
17 256251-5 PIN 4 HP1500
18 424112-9 SEAL HR1630
19 140M11-2 GEAR HOUSING COVER
20 417819-4 CHANGE LEVER X MT811
21 453921-9 LEVER HOLDER X M8100
22 345944-0 CHANGE PLATE HP1630
23 211031-6 BEARING 608LLB
24 241869-5 FAN 55
25 510164-7 ARMATURE MT814
26 681636-0 INSULATING WASHER
27 210062-2 BEARING 607ZZ X MT601
28 421808-3 RUBBER RING 19 MT952
29 450620-4 BAFFLE PLATE HP1630
30 266415-3 SCREW 4X55 HR2230
31 344871-8 RETAINER X GD0800C
32 417237-6 INSULATION COVER X GD0800C
33 626644-4 STATOR FOR HP1630
34 458780-6 MOTOR HOUSING
35 850X46-8 xxxxxx
36 141709-6 HANDLE COVER M8100
37 265995-6 SCREW M4X18
38 643566-3 BRUSH HOLDER 5X8
39 194973-8 CARBON BRUSHES CB-85
40 645089-7 CAPACITOR
41 650586-0 SWITCH DGQ-1104H X6413
42 265995-6 SCREW M4X18
43 687124-5 STRAIN RELIEF MT953
44 682502-4 CABLE SLEEVE 8/85 6408
45 665383-1 xxxxxx
46 345280-4 WASHER X HP2051F
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita M8100

Data sheet

Machine Type
Drill

Specific References

New

Download

Makita M8100 Drawing

Makita M8100 Drawing

Download (418.46KB)
