Makita

Makita Spare Parts for Jigsaw 4329

SKU: Makita 4329
€12.95
VAT included

Makita Spare Parts for Jigsaw 4329

We have the original Makita Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Jigsaw 4329. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Jigsaw 4329
  • Makita Spare Parts for Jigsaw 4329
  • Makita Spare Parts for Jigsaw 4329
Makita

Makita Spare Parts for Jigsaw 4329

SKU: Makita 4329 Condition: New
€12.95
VAT included

Makita Spare Parts for Jigsaw 4329

We have the original Makita Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Jigsaw 4329. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

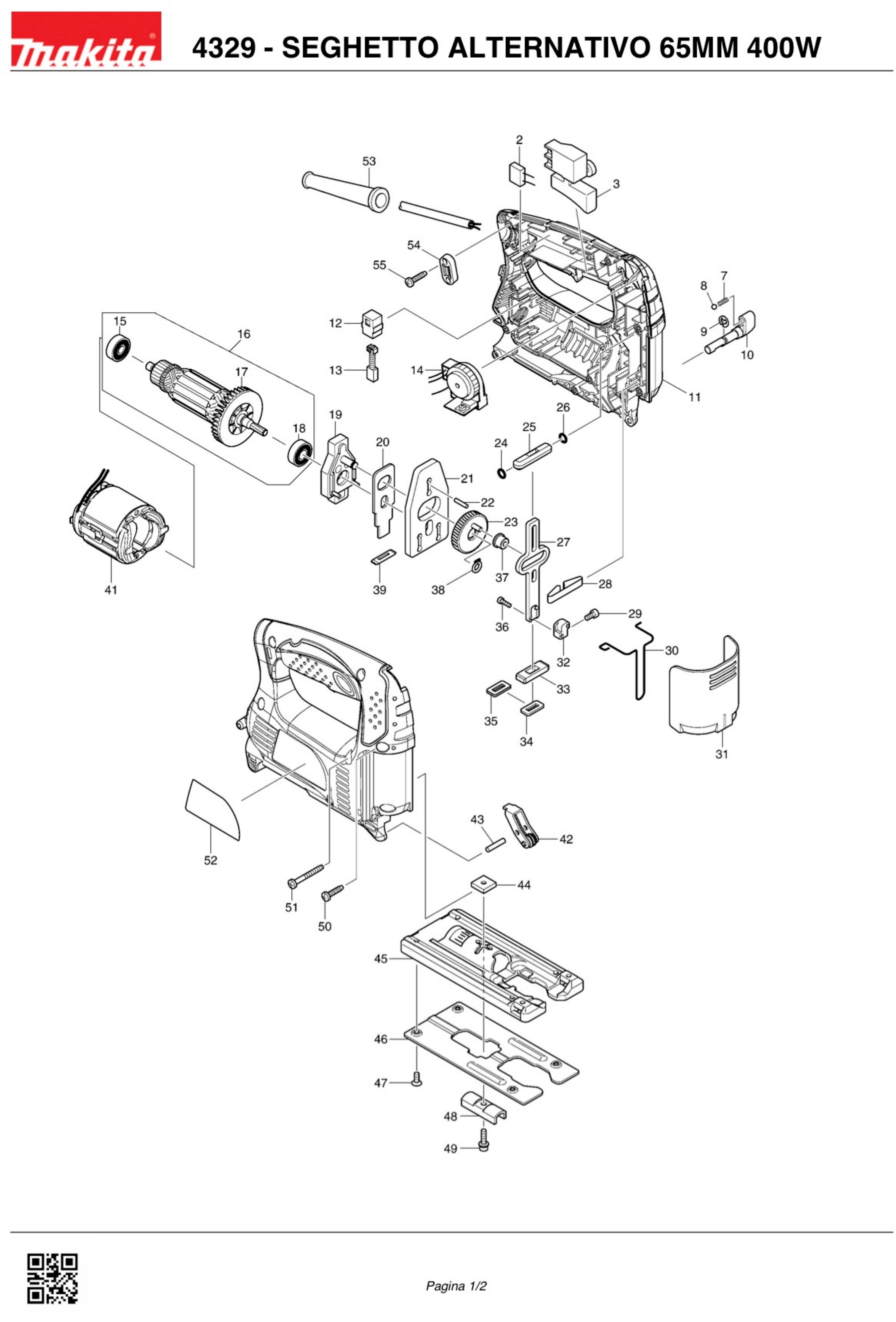

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 645239-4 CAPACITOR 4326 €2.44
3
 Switch for Sanders Makita BO4901-5041 651286-5 Switch for Sanders Makita BO4901-5041 €9.56
7
 photo_cameraImage coming soon 233151-6 SPRING 4 X X 4304T 4305T €1.26
8
 photo_cameraImage coming soon 216008-6 BALL 4 €1.47
9
 photo_cameraImage coming soon 961011-9 RETAINING RING E4 €1.44
10
 photo_cameraImage coming soon 272239-7 LEVER X 4324 €4.77
11
 photo_cameraImage coming soon 188338-4 MOTOR CASING X 4329 €24.03
12
 photo_cameraImage coming soon 643562-1 BRUSH MT601 €1.36
13
 Carbon Brushes Makita for Sanders BO4540-4550-4553-4554 191627-8 Carbon Brushes Makita for Sanders BO4540-4550-4553-4554 €9.91
14
 photo_cameraImage coming soon 620411-9 REGULATOR FOR 4327 €17.88
15
 photo_cameraImage coming soon 210025-8 BEARING 4324 €4.43
16
 photo_cameraImage coming soon 515718-5 ARMATURE 4326 €38.12
17
 photo_cameraImage coming soon 241881-5 FAN 52 6408 €7.85
18
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.16
19
 photo_cameraImage coming soon 152600-3 BOX INPUT. COMPL. 4324 €10.16
20
 photo_cameraImage coming soon 344683-9 OSC X 4324 €2.53
21
 photo_cameraImage coming soon 344614-8 PLATE 4322 €6.40
23
 photo_cameraImage coming soon 153260-4 GEAR X 4324 €11.46
25
 photo_cameraImage coming soon 313082-6 GUIDE SLED 4322 €1.79
27
 photo_cameraImage coming soon 344613-0 SLED 4322 €3.31
29
 photo_cameraImage coming soon 922107-1 BOLT M4X8 €1.35
30
 photo_cameraImage coming soon 323748-0 4322 PROTECTION €1.79
31
 photo_cameraImage coming soon 416476-5 4322 DUST COVER €2.67
32
 photo_cameraImage coming soon 313140-8 CLAMP BLADE 4326 €4.63
36
 photo_cameraImage coming soon 266177-3 BOLT M3x10 6914DW €1.35
38
 photo_cameraImage coming soon 961002-0 RETAINING RING S6 €1.26
41
 photo_cameraImage coming soon 633658-6 STATOR 4326 €12.94
42
 Complete Blade Guide for Jigsaw Makita 4329 158392-2 Complete Blade Guide for Jigsaw Makita 4329 €3.35
43
 photo_cameraImage coming soon 256117-9 PIN X 4324 €1.40
44
 photo_cameraImage coming soon 343540-8 CLAMP 4320 €2.29
45
 photo_cameraImage coming soon 317796-9 BASE FOR 4329 €6.27
46
 photo_cameraImage coming soon 345441-6 BASIC PLATE X 4329 €2.16
47
 photo_cameraImage coming soon 912107-9 SCREW M4 x 8 €3.76
49
 photo_cameraImage coming soon 922128-3 BOLT M4x16 4300BA €1.44
50
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
51
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
53
 photo_cameraImage coming soon 682569-2 CORD ARMOR MT601 €2.77
54
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
55
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Jigsaw 4329

Fix Your Jigsaw 4329. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of jackhammers and the respective parts of the code.
Makita 4329

Jigsaw 4329
# Part Num. Description
2 645239-4 CAPACITOR 4326
3 651286-5 SWITCH
7 233151-6 SPRING 4 X 4304T X 4305T
8 216008-6 STEEL BALL 4
9 961011-9 RETAINER RING E4
10 272239-7 LEVER X 4324
11 188338-4 MOTOR CASING X 4329
12 643562-1 BRUSH HOLDER MT601
13 191627-8 CARBON BRUSH CB-64 (56.57)
14 620411-9 REGULATOR FOR 4327
15 210025-8 BEARING X 4324
16 515718-5 ARMATURE X 4326
17 241881-5 FAN 52 X 6408
18 210005-4 BALL BEARING 608 DDW
19 152600-3 GEAR BOX CPL 4324
20 344683-9 PUSH PLATE X 4324
21 344614-8 PLATE 4322
22 256254-9 PIN X 4322
23 153260-4 GEAR X 4324
24 213038-8 GASKET 4322
25 313082-6 SLIDE GUIDE 4322
26 213038-8 GASKET 4322
27 344613-0 SLIDER 4322
28 232183-0 BAND SPRING X 4324
29 922107-1 BOLT M4X8
30 323748-0 PROTECTION 4322
31 416476-5 DUST COVER 4322
32 313140-8 BLADE CLAMP 4326
33 313086-8 CURSOR SUPPORT X 4324
34 423307-1 URETANE SPONGE X 4322
35 344686-3 SAFETY PLATE 4324
36 266177-3 M3X10 6914DW BOLT
37 257683-9 SLEEVE X 4322
38 961002-0 RETAINING RING S6
39 416703-0 DUST COVER X 4324
41 633658-6 STATOR X 4326
42 158392-2 BLADE GUIDE X 4329
43 256117-9 PIN X 4324
44 343540-8 CLAMP X 4320
45 317796-9 BASE FOR 4329
46 345441-6 BASIC PLATE X 4329
47 912107-9 SCREW M4X8
48 344685-5 STATIONARY BASE PLATE X 4324
49 922128-3 M4X16 4300BA BOLT
50 265995-6 SCREW M4X18 X 6408 / 6221DW
51 266048-4 SCREW M 4 X 40 X 4334D
52 863970-2 LABEL MOD. 4329
53 682569-2 CORD GUARD CMT601
54 687124-5 STRAIN RELIEF MT953
55 265995-6 SCREW M4X18 X 6408 / 6221DW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 4329
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita 4329

Diagram Makita 4329

Download (253.59KB)
