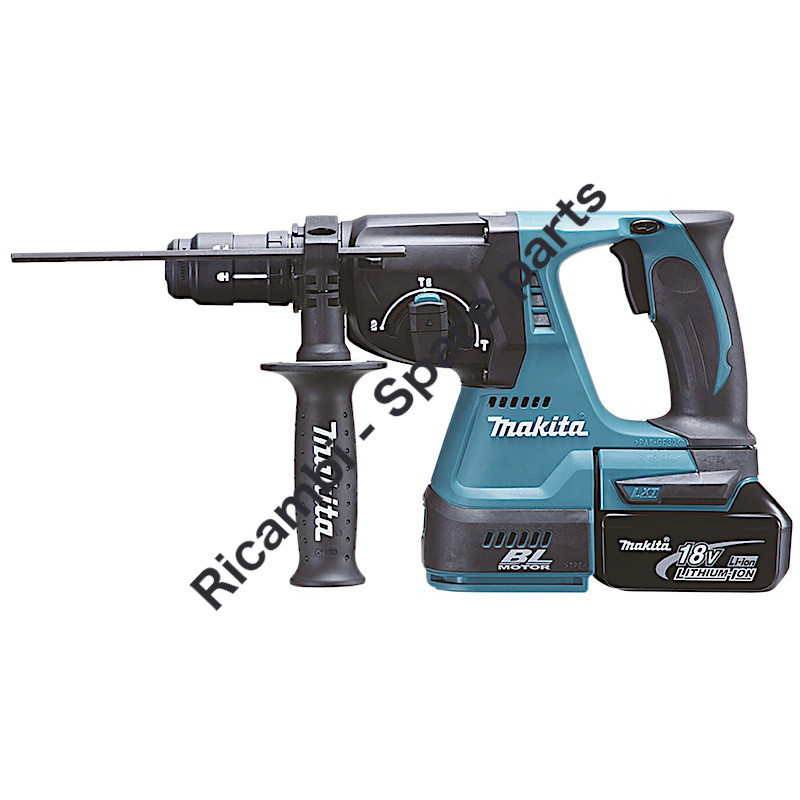

Makita Rotary Hammer DHR243 Spare Parts

SKU: Makita DHR243
€0.12
VAT included

Makita Spare Parts for Rotary Hammer DHR243

MAKITA repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer HR243.

Makita Rotary Hammer DHR243 Spare Parts
  • New
  • Out-of-Stock
  • Makita Rotary Hammer DHR243 Spare Parts
  • Makita DHR243 Drawing
Makita

Makita Rotary Hammer DHR243 Spare Parts

SKU: Makita DHR243 Condition: New
€0.12
VAT included

Makita Spare Parts for Rotary Hammer DHR243

MAKITA repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer HR243.

settings 103 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
103 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 SDS-PLUS Quick Keyless Chuck for Hammers Makita HR2610T-2611FT-2800 194080-7 SDS-PLUS Quick Keyless Chuck for Hammers Makita HR2610T-2611FT-2800 €73.92
11
 photo_cameraImage coming soon 266745-2 SCREW M8X90 BHR242RFE €2.03
12
 photo_cameraImage coming soon 453129-5 GRIP BASE BHR242RFE €2.65
13
 photo_cameraImage coming soon 158057-6 HANDLE 36 CPL HR2230 €10.07
14
 photo_cameraImage coming soon 266351-3 SCREW 4 X 35 X 9557PB €1.32
15
 photo_cameraImage coming soon 144354-6 GEAR BOX BHR242RFE €12.94
16
 photo_cameraImage coming soon 331890-3 SLEEVE HR2601 €1.55
17
 photo_cameraImage coming soon 211294-4 BALL BEARING 6806LLU HR2601 €14.64
18
 photo_cameraImage coming soon 454112-5 LOCK BUTTON BHR242RFE-243 €1.32
19
 Compression Spring 3 for Rotary Hammer Makita BHR243 234264-6 Compression Spring 3 for Rotary Hammer Makita BHR243 €1.32
20
 Change Lever Cover for Rotary Hammer Makita DHR242RMJ 453131-8 Change Lever Cover for Rotary Hammer Makita DHR242RMJ €1.32
21
 Change Lever for Cordless Rotary Hammer Makita DHR242RMJ 453125-3 Change Lever for Cordless Rotary Hammer Makita DHR242RMJ €2.03
22
 O-Ring 21 for Rotary Hammer Makita HR260 213381-5 O-Ring 21 for Rotary Hammer Makita HR260 €2.03
23
 Thin Washer 6 for Rotary Hammer Makita HR2611F 253308-3 Thin Washer 6 for Rotary Hammer Makita HR2611F €1.32
24
 Compression Spring 5 for Rotary Hammer Makita DHR242RMJ 234147-0 Compression Spring 5 for Rotary Hammer Makita DHR242RMJ €1.32
25
 Push Corn for Cordless Rotary Hammer Makita DHR242RMJ 326850-8 Push Corn for Cordless Rotary Hammer Makita DHR242RMJ €1.32
26
 photo_cameraImage coming soon 233360-7 COMPRESSION SPRING 4 X MT952 €1.32
27
 photo_cameraImage coming soon 346537-6 LOCK PLATE BHR242RFE €2.65
29
 photo_cameraImage coming soon 216019-1 STEEL BALL 3 X 6960DW €1.32
30
 photo_cameraImage coming soon 140266-1 TOOL HOLDER HR2611FT €41.46
31
 Flange for Hammers Makita HR2600-HR2601 332139-4 Flange for Hammers Makita HR2600-HR2601 €7.67
32
 Gear 51 for Hammer Makita HR2600 227360-7 Gear 51 for Hammer Makita HR2600 €4.44
35
 photo_cameraImage coming soon 234148-8 COMPRESSION SPRING 31 HR2601 €2.03
36
 photo_cameraImage coming soon 267153-0 WASHER 30 HR2601 €1.32
37
 photo_cameraImage coming soon 257932-4 WASHER RETAINING 30 HR2601 €3.83
38
 photo_cameraImage coming soon 267153-0 WASHER 30 HR2601 €1.32
39
 photo_cameraImage coming soon 325783-4 SOCKET 9B HR2601 €2.03
40
 photo_cameraImage coming soon 325791-5 SWING B HR2611FT €2.65
41
 photo_cameraImage coming soon 325792-3 WASHER 10 HR2601 €2.03
42
 photo_cameraImage coming soon 234149-6 COMPRESSION SPRING 20 HR2601 €1.32
43
 photo_cameraImage coming soon 325793-1 RING HOLDER B HR2601 €3.11
44
 photo_cameraImage coming soon 213073-6 9 RING HR2020 €2.03
45
 photo_cameraImage coming soon 233979-2 CIRCLIP 28 HR2601 €1.32
46
 photo_cameraImage coming soon 326139-4 STRIKER BHR242RFE €5.16
47
 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 213258-4 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 €5.16
48
 Piston Cylinder for Rotary Hammer Makita DHR242RMJ 310345-1 Piston Cylinder for Rotary Hammer Makita DHR242RMJ €12.94
49
 photo_cameraImage coming soon 346036-8 PLATE PIN BHR261D €1.32
50
 photo_cameraImage coming soon 324215-8 PISTON PIN X X HR2020 €3.11
51
 photo_cameraImage coming soon 234098-7 COMPRESSION SPRING 14 BHR261D €1.32
52
 photo_cameraImage coming soon 267447-3 WASHER 14 HR2601 €1.32
53
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €7.67
54
 photo_cameraImage coming soon 257336-0 RETAINING RING EXT U-6 €1.32
55
 photo_cameraImage coming soon 253186-1 FLAT WASHER 7 X 420S €1.32
56
 photo_cameraImage coming soon 227231-8 GEAR 10 HR2611FT €33.56
57
 photo_cameraImage coming soon 326849-3 CLUTCH CAM TO HR2611FT €7.67
58
 photo_cameraImage coming soon 326140-9 SHAFT BHR242RFE €8.63
59
 photo_cameraImage coming soon 219020-5 SWASH BEARING 10 HR2601 €46.03
60
 photo_cameraImage coming soon 227588-7 GEAR 32 BHR242RFE €10.07
61
 photo_cameraImage coming soon 257323-9 O-RING 8 BHR242RFE €1.32
62
 photo_cameraImage coming soon 266273-7 SCREW 4 X 12 X 4604D €1.32
63
 photo_cameraImage coming soon 346038-4 RETAINING BEARING B BHR261D €1.32
64
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.16
65
 photo_cameraImage coming soon 324212-4 RING 8 X HR2020 €6.70
66
 photo_cameraImage coming soon 922147-9 SCREW M4x25 €1.32
67
 photo_cameraImage coming soon 141230-5 SUPPORT BHR242RFE €5.16
68
 photo_cameraImage coming soon 213767-3 RING 75 BHR242RFE €2.03
69
 photo_cameraImage coming soon 318810-4 INNER HOUSING BHR242RFE €29.01
70
 photo_cameraImage coming soon 443153-6 FELT HR2601 €1.32
71
 photo_cameraImage coming soon 266273-7 SCREW 4 X 12 X 4604D €1.32
72
 photo_cameraImage coming soon 346536-8 RETAINER BEARING TO BHR242RFE P02 €2.03
73
 photo_cameraImage coming soon 256536-9 PIN 6 BHR242RFE €1.32
74
 photo_cameraImage coming soon 346538-4 WEIGHT HOLDER GUIDE BHR242RF P01 €1.32
75
 photo_cameraImage coming soon 313224-2 COUNTER WEIGHT BHR242RFE €5.16
76
 photo_cameraImage coming soon 346538-4 WEIGHT HOLDER GUIDE BHR242RF P01 €1.32
77
 photo_cameraImage coming soon 253726-5 FLAT WASHER 6 €1.32
78
 photo_cameraImage coming soon LC961018-5 EXT E-RING JIS JE-5 €1.32
79
 photo_cameraImage coming soon 213008-7 RING 26 €1.32
80
 photo_cameraImage coming soon 141458-5 GEAR 11 BHR242RFE €7.67
81
 photo_cameraImage coming soon 210024-0 BEARING HR5001C €5.16
82
 photo_cameraImage coming soon 253835-0 WASHER 8 €1.32
83
 photo_cameraImage coming soon 619737-4 ARMATURE €51.56
84
 photo_cameraImage coming soon 210143-2 BEARING 626ZZ €1.32
85
 Stator Ass'y for Cordless Rotary Hammer Makita DHR242RMJ 529187-4 Stator Ass'y for Cordless Rotary Hammer Makita DHR242RMJ €51.56
86
 Controller for Cordless Rotary Hammer Makita DHR242RMJ 620241-8 Controller for Cordless Rotary Hammer Makita DHR242RMJ €225.35
87
 photo_cameraImage coming soon 183C02-0 HOUSING DHR242 €29.01
89
 photo_cameraImage coming soon 815B44-7 DHR243 NAME PLATE €1.32
90
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
92
 photo_cameraImage coming soon 453124-5 SWITCH LEVER BHR242RFE €1.32
93
 photo_cameraImage coming soon 453123-7 BHR242RFE SWITCH LEVER €1.32
94
 photo_cameraImage coming soon 650709-0 C3JW-AP SWITCH €22.05
95
 photo_cameraImage coming soon 233598-4 TORSION SPRING 6 BHR242RFE €1.32
96
 photo_cameraImage coming soon 313226-8 LEVER BHR242RFE €1.32
97
 photo_cameraImage coming soon 644809-6 TERMINAL X BLS713-BHP451 €5.99
98
 photo_cameraImage coming soon 424476-1 RUBBER BHR242RFE €1.32
99
 photo_cameraImage coming soon 187377-1 BHR242RFE BATTERY SUPPORT €10.07
100
 photo_cameraImage coming soon 263036-2 RUBBER PIN 5 X BTW251 €1.32
101
 photo_cameraImage coming soon 268184-2 SPINOT 1.5 BTW251 €1.32
102
 photo_cameraImage coming soon 424473-7 BHR242RFE DAMPER €2.65
103
 photo_cameraImage coming soon 424473-7 BHR242RFE DAMPER €2.65
104
 photo_cameraImage coming soon 187377-1 BHR242RFE BATTERY SUPPORT €10.07
105
 Cover Cap Bits for Rotary Hammer MAKITA HR2020 286263-4 Cover Cap Bits for Rotary Hammer MAKITA HR2020 €2.03
106
 Elastic Ring 19 for HAMMER Makita HR2020 233940-9 Elastic Ring 19 for HAMMER Makita HR2020 €1.32
107
 photo_cameraImage coming soon 418217-5 CHUCK COVER HR2450FT €2.03
108
 photo_cameraImage coming soon 345333-9 STOPPER HR2450FT €1.32
109
 Steel Ball 7 mm for Hammers Makita 216022-2 Steel Ball 7 mm for Hammers Makita €1.32
110
 Guide Washer for HAMMER Makita HR2020 345187-4 Guide Washer for HAMMER Makita HR2020 €1.32
111
 Spring 21-29 for 20 mm Hammer Makita HR2020 233916-6 Spring 21-29 for 20 mm Hammer Makita HR2020 €1.32
112
 photo_cameraImage coming soon 267279-8 FLAT WASHER 21 X HR2450FT €1.32
113
 Tool Holder for Cordless Hammer Makita HR2450FT 324355-2 Tool Holder for Cordless Hammer Makita HR2450FT €24.94
114
 Steel Ball 6 mm for Hammers Makita 216013-3 Steel Ball 6 mm for Hammers Makita €1.32
115
 photo_cameraImage coming soon 231669-1 TORSION SPRING 31 X HR2450FT €1.32
116
 photo_cameraImage coming soon 345334-7 RING GEAR X HR2450FT €2.65
117
 photo_cameraImage coming soon 418218-3 RING GEAR COVER X HR2450FT €2.03
118
 photo_cameraImage coming soon 216018-3 STEEL BALL 5 HP2030 €1.32
119
 photo_cameraImage coming soon 345335-5 SPRING BAND X HR2450FT €1.32
120
 photo_cameraImage coming soon 267270-6 WASHER 24 X HR2450FT €1.32
121
 photo_cameraImage coming soon 233924-7 RETAINING RING 21 X HR2450FT €1.32
123
 photo_cameraImage coming soon 890994-5 Label/Clear Bhr242243 €1.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer DHR243

MAKITA repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer HR243.

In the following table, look for the model of Drill and the respective parts of the code.
Makita DHR243

Makita DHR243 - 24MM Rotary Hammer
# Part Num. Description
1 194080-7 QUICK CHANGE CHUCK SDS-PLUS
11 266745-2 HEX. BOLT M8X90
12 453129-5 GRIP BASE
13 158057-6 GRIP 36 COMPLETE
14 266351-3 TAPPING SCREW 4X35
15 144354-6 GEAR HOUSING COVR
16 331890-3 SLEEVE
17 211294-4 BALL BEARING 6806LLU
18 454112-5 LOCK BUTTON
19 234264-6 COMPRESSION SPRING 3
20 453131-8 CHANGE LEVER COVER
21 453125-3 CHANGE LEVER
22 213381-5 OIL SEAL 21
23 253308-3 WAVE WASHER 6
24 234147-0 COMPRESSION SPRING 5
25 326850-8 PRESS CONE
26 233360-7 COMPRESSION SPRING 4
27 346537-6 LOCK PLATE
29 216019-1 STEEL BALL 3.0
30 140266-1 TOOL RETAINER
31 332139-4 GUIDE RING
32 227360-7 SPUR GEAR 51
35 234148-8 COMPRESSION SPRING 31
36 267153-0 WASHER 30
37 257932-4 RETAINING WASHER 30
38 267153-0 WASHER 30
39 325783-4 SLEEVE 9B
40 325791-5 STRIKER B
41 325792-3 WASHER 10
42 234149-6 COMPRESSION SPRING 20
43 325793-1 RING HOLDER B
44 213073-6 O RING 9
45 233979-2 RETAINING RING (INT) R-28
46 326139-4 IMPACT BOLT
47 213258-4 O RING 17.5
48 310345-1 PISTON
49 346036-8 PIN PLATE
50 324215-8 PISTON PIN
51 234098-7 COMPRESSION SPRING 14
52 267447-3 WASHER 14
53 211012-0 BALL BEARING 606ZZ
54 257336-0 RETAINING RING EXT U-6
55 253186-1 FLAT WASHER 7
56 227231-8 SPUR GEAR 10
57 326849-3 CLUTCH CAM A
58 326140-9 CAM SHAFT
59 219020-5 SWASH BEARING 10
60 227588-7 SPUR GEAR 32
61 257323-9 RING 8
62 266273-7 TAPPING SCREW 4X12
63 346038-4 BEARING RETAINER B
64 210005-4 BALL BEARING 608DDW
65 324212-4 O RING 8
66 922147-9 PAN HEAD SCREW M4X25
67 141230-5 BEARING BRACKET
68 213767-3 O RING 75
69 318810-4 INNER HOUSING
70 443153-6 FELT
71 266273-7 TAPPING SCREW 4X12
72 346536-8 BEARING RETAINER A
73 256536-9 PIN 6
74 346538-4 COUNTER WEIGHT HOLDER
75 313224-2 COUNTER WEIGHT
76 346538-4 COUNTER WEIGHT HOLDER
77 253726-5 FLAT WASHER 6
78 LC961018-5 STOP RING E-5
79 213008-7 O RING 26
80 141458-5 SPUR GEAR 11
81 210024-0 BALL BEARING 6000LLU
82 253835-0 FLAT WASHER 8
83 619737-4 ARMATURE
84 210143-2 BALL BEARING 626ZZ
85 529187-4 FIELD
86 620241-8 CONTROLLER
87 183C02-0 HOUSING SET
88 815B50-2
89 815B44-7 DHR243 NAME PLATE
90 265995-6 TAPPING SCREW 4X18
92 453124-5 F/R CHANGE LEVER
93 453123-7 SWITCH LEVER
94 650709-0 SWITCH C3JW-1A-P
95 233598-4 TORSION SPRING 6
96 313226-8 LEVER
97 644809-6 TERMINAL
98 424476-1 RUBBER RING
99 187377-1 BATTERY HOLDER
100 263036-2 RUBBER PIN 5
101 268184-2 PIN 1.5
102 424473-7 CUSHION
103 424473-7 CUSHION
104 187377-1 BATTERY HOLDER
105 286263-4 CAP 35
106 233940-9 RETAINING RING EXT WR-19
107 418217-5 CHUCK COVER
108 345333-9 RING 21
109 216022-2 STEEL BALL 7.0
110 345187-4 GUIDE WASHER
111 233916-6 CONICAL COMP. SPRING 21-29
112 267279-8 FLAT WASHER 21
113 324355-2 QUICK CHANGE CHUCK
114 216013-3 STEEL BALL 6.0
115 231669-1 TORSION SPRING 31
116 345334-7 CHANGE RING
117 418218-3 CHANGE RING COVER
118 216018-3 STEEL BALL 5.0
119 345335-5 LEAF SPRING
120 267270-6 FLAT WASHER 24
121 233924-7 RETAINING RING INT R-21
122 893072-0
123 890994-5 CLEAR LABEL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita DHR243

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita DHR243 Drawing

Makita DHR243 Drawing

Download (645.93KB)

You might also like

Impact Drill 720W Makita HP2051
Makita SKU: Makita HP2051
Impact Drill 720W Makita HP2051
Impact Drill 720W Makita HP2051 HP2051 - Hammer Drill 2 Speed - 2 functions: rotation, rotation and striking - Electronic switch - 2-speed mechanical - Reversible - coated grip slip Softgrip - Safety Clutch - Collar diameter 42 mm,...
Last items in stock €240.82
Details
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566
Makita SKU: 191962-4
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 Genuine Parts Makita, Carbon Brushes for: Jigsaws 4304 - 4305 - 4306 - 4340 - 4341 - 4350 - 4351, for Drills 6310 -  6408 - 6824, for Sanders  BO4555 - 4556 - 4565 - 4566 Part...
AVAILABLE €7.53
Details
Change Lever for Impact Drills Makita HP2071F-HP2051 - 1
Makita SKU: 418083-0
Change Lever for Impact Drills Makita HP2071F-HP2051
Change Lever for Impact Drills Makita HP2071F-HP2051 Original spare Makita, Change Lever for Percussion Drills HP2071F - 720W 20mm HP2051. Parts for the following products: -  IMPACT DRILL HP2071F -  IMPACT DRILL 720W 20mm HP2051 -...
AVAILABLE €1.83
Details
Armature Insulation Washer for Planer Makita N1923B
Makita SKU: 681614-0
Armature Insulation Washer for Planer Makita N1923B
Armature Insulation Washer for Planer Makita N1923B Genuine part Makita, Armature Insulation Washer for Planer Makita N1923B - Cordless Impact Wrench Makita TW0350. Part for the following products: -  1923B - PLANER 82 MM -  N1923B -...
AVAILABLE €2.00
Details
Armature for Percussion Drills Makita HP2050-HP2051
Makita SKU: 517414-1
Armature for Percussion Drills Makita HP2050-HP2051
Armature for Percussion Drills Makita HP2050-HP2051 Original spare part Makita, Armature 220-240V for Percussion Drills HP2050 - HP2051 - HP2051F - 2 SPEED DP4011. Part for the following products: -  DP4011 - DRILL 2 SPEED 720W -...
AVAILABLE €55.67
Details
Stator for Percussion Drills Makita HP2050-HP2051
Makita SKU: 633528-9
Stator for Percussion Drills Makita HP2050-HP2051
Stator for Percussion Drills Makita HP2050-HP2051 Original spare part Makita, Stator (FIELD) 220-240V for Percussion Drills HP2050 - HP2051 - HP2051F - 2 SPEED DP4011. Part for the following products: - DP4011 - DRILL 2 SPEED 720W -...
AVAILABLE €13.28
Details
Armature for Percussion Drills Makita HP2030
Makita SKU: 517103-8
Armature for Percussion Drills Makita HP2030
Armature for Percussion Drills Makita HP2030 Original spare part Makita, Armature 220-240V for Percussion Drills HP2030 - HP2031 - HP2032 - HP2033 Part for the following products: - HP2030 - PERCUSSION...
AVAILABLE €79.46
Details
Handle for Hammer Drills Makita HP1630-HP1631
Makita SKU: 153503-4
Handle for Hammer Drills Makita HP1630-HP1631
Handle for Hammer Drills Makita HP1630-HP1631 Genuine spare Makita, Handle for Hammer Drills HP1620 - HP1630 - HP1631- HP1641- HP2030 - HP2031 - Maktec MT811 - MT814 - Maktec MT815 - MT818 Parts for the following products: - 8450 -...
AVAILABLE €4.41
Details
Handle Base for Hammer Drills Makita HP1630-HP1631
Makita SKU: 417630-4
Handle Base for Hammer Drills Makita HP1630-HP1631
Handle Base for Hammer Drills Makita HP1630-HP1631 Genuine spare part Makita, Handle Base for Hammer Drills HP1620 - HP1630 - HP1631- HP1641- HP2030 - HP2031 - Maktec MT811 - MT814 - Maktec MT815 - MT818 Parts for the following...
AVAILABLE €4.41
Details
Ext DIN471 Circlip-15 for Makita Power Tools
Makita SKU: 961055-9
Ext DIN471 Circlip-15 for Makita Power Tools
Ext DIN471 Circlip-15 for Makita Power Tools Genuine replacement part Makita, Ext DIN471 Circlip-15 for Makita Power Tools Part for the following products: - 2107F - SEGA A NASTRO - 2107FK - SEGA A NASTRO 710W 120mm -...
AVAILABLE €1.47
Details
Comments (0)
No customer reviews for the moment.
