Makita

Makita Spare Parts for Planer Thicknesser 2012NB

SKU: Makita 2012NB
€4.95
VAT included

Makita Spare Parts for Planer Thicknesser 2012NB

Makita Genuine spare parts or replacement parts for to repair 2012NB Planer Thicknesser, 220 V, 1650 W, 304 mm.
Makita Spare Parts for Planer Thicknesser 2012NB
  • Makita Spare Parts for Planer Thicknesser 2012NB
  • Makita Spare Parts for Planer Thicknesser 2012NB
  • Makita Spare Parts for Planer Thicknesser 2012NB
Makita

Makita Spare Parts for Planer Thicknesser 2012NB

SKU: Makita 2012NB Condition: New
€4.95
VAT included

Makita Spare Parts for Planer Thicknesser 2012NB

Makita Genuine spare parts or replacement parts for to repair 2012NB Planer Thicknesser, 220 V, 1650 W, 304 mm.
settings 110 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
110 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

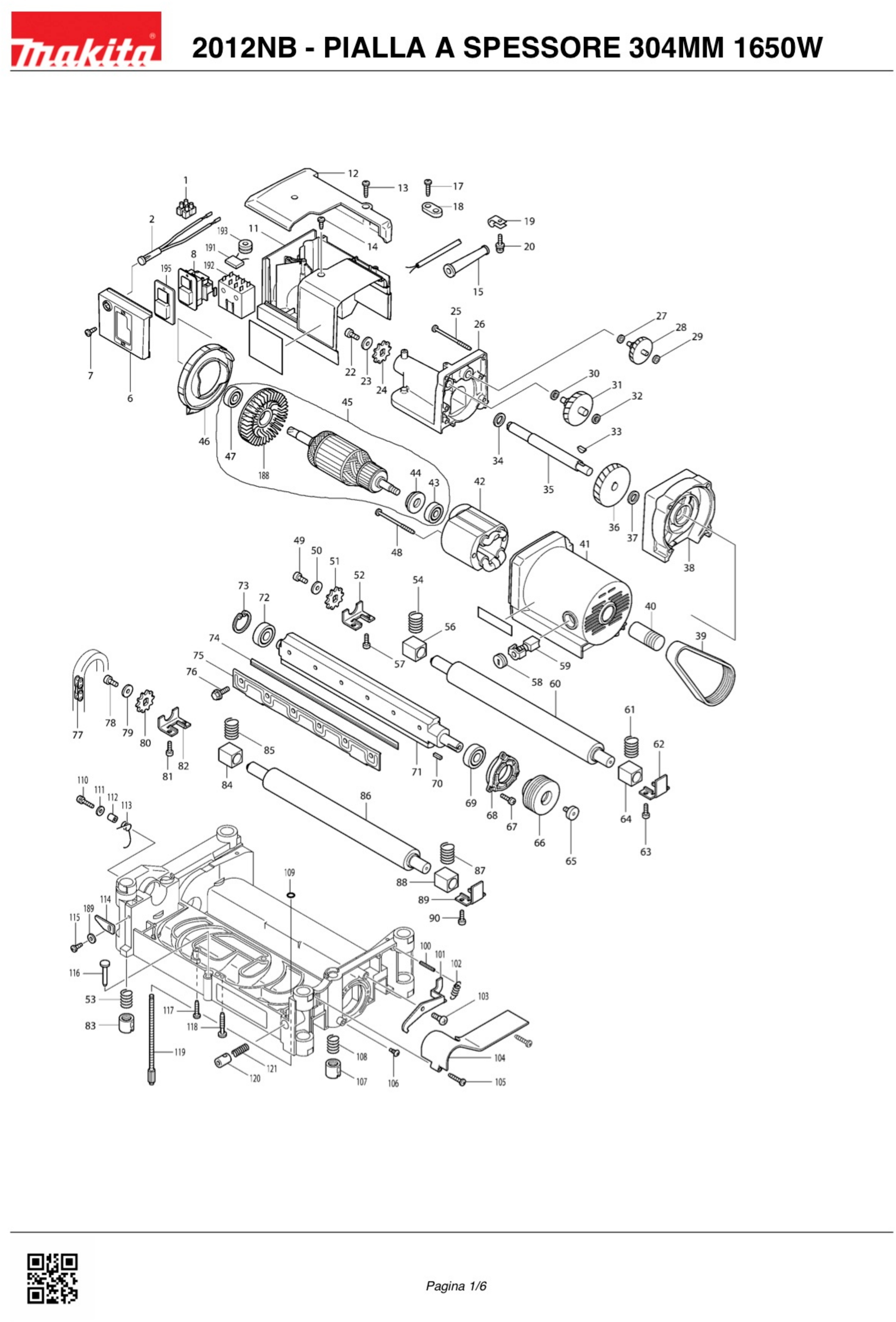

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 654561-8 CLAMP X LH1040F €4.81
2
 photo_cameraImage coming soon 631371-0 LAMP CPL €10.09
6
 photo_cameraImage coming soon 418416-9 SWITCH COVER €2.87
7
 photo_cameraImage coming soon 251991-0 SCREW M 4 X 12 X 3707 €1.28
11
 photo_cameraImage coming soon 417041-3 SWITCH BOX €13.06
12
 photo_cameraImage coming soon 417038-2 SWITCH BOX COVER €25.80
13
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
14
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
15
 photo_cameraImage coming soon 682516-3 CORD ARMOR 9.3-85 €2.69
17
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
18
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
19
 photo_cameraImage coming soon 687042-7 PLATE X LS1013 €1.33
20
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
22
 photo_cameraImage coming soon 922312-0 BOLT M6 X 12 €1.33
23
 photo_cameraImage coming soon 267080-1 WASHER 6 €1.28
24
 photo_cameraImage coming soon 221525-3 PINION 10 2012NB €1.52
25
 photo_cameraImage coming soon 266059-9 SCREW M5X75 X 9059SF €5.93
26
 photo_cameraImage coming soon 151739-9 GEAR CASE COVER CPL €25.80
27
 photo_cameraImage coming soon 253715-0 ROND.P.6 6510PBL / LVR / 43SB €1.50
28
 photo_cameraImage coming soon 226134-3 GEAR 8-50 €19.65
29
 photo_cameraImage coming soon 253715-0 ROND.P.6 6510PBL / LVR / 43SB €1.50
30
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
31
 photo_cameraImage coming soon 226135-1 GEAR 8-46 €17.31
32
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
33
 photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
34
 photo_cameraImage coming soon 253760-5 WASHER 14 €1.28
35
 photo_cameraImage coming soon 323923-8 SPINDLE €22.20
36
 photo_cameraImage coming soon 226518-5 GEAR 47 €17.31
37
 Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
38
 photo_cameraImage coming soon 151738-1 GEAR BOX CPL €22.20
39
 photo_cameraImage coming soon 225083-1 BELT V 8-341 €26.94
40
 photo_cameraImage coming soon 222155-3 PULLEY 8-23.5L €9.04
41
 photo_cameraImage coming soon 151737-3 MOTOR CRANKCASE CPL €36.84
42
 photo_cameraImage coming soon 526104-5 STATOR 230-240V €53.68
43
 photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
44
 Armature Washer for Planer Makita 1100 681623-9 Armature Washer for Planer Makita 1100 €2.00
45
 photo_cameraImage coming soon 516813-4 ARMATURE 220-240V €72.12
46
 photo_cameraImage coming soon 417033-2 DEFLECTOR €1.92
47
 photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
48
 photo_cameraImage coming soon 266059-9 SCREW M5X75 X 9059SF €5.93
49
 photo_cameraImage coming soon 922312-0 BOLT M6 X 12 €1.33
50
 photo_cameraImage coming soon 267080-1 WASHER 6 €1.28
51
 photo_cameraImage coming soon 221525-3 PINION 10 2012NB €1.52
52
 photo_cameraImage coming soon 343844-8 SUPPORT €2.87
54
 photo_cameraImage coming soon 231459-2 SPRING 14 X 2012 €2.45
56
 photo_cameraImage coming soon 214251-1 BRONZE BUSHING 17 €2.87
57
 photo_cameraImage coming soon 922221-3 Screw M5X16 X HM1303 €3.41
58
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
59
 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F 181044-0 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F €9.91
60
 photo_cameraImage coming soon 162216-6 NEEDLE 34-295 €159.31
61
 photo_cameraImage coming soon 233392-4 COMPRESSION SPRING 13A €1.28
63
 photo_cameraImage coming soon 922221-3 Screw M5X16 X HM1303 €3.41
64
 photo_cameraImage coming soon 214251-1 BRONZE BUSHING 17 €2.87
65
 photo_cameraImage coming soon 265854-4 SCREW M 6 X 12 €6.05
66
 photo_cameraImage coming soon 222154-5 PULLEY 8-54 €19.65
67
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
68
 photo_cameraImage coming soon 317259-5 BEARING BOX €5.42
69
 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.71
70
 photo_cameraImage coming soon 254204-8 KEY 4 €1.28
71
 photo_cameraImage coming soon 323928-8 DRUM €199.62
72
 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.71
73
 photo_cameraImage coming soon 962153-2 RETAINING RING R35 €2.08
74
 photo_cameraImage coming soon 793346-8 KNIVES NORM.306MM X2012 €62.93
75
 photo_cameraImage coming soon 343682-8 KNIFE SUPPORT €39.21
76
 photo_cameraImage coming soon 251609-3 BOLT M6X17 €2.02
77
 photo_cameraImage coming soon 225520-5 CHAIN ​​35-46 2012NB €11.80
78
 photo_cameraImage coming soon 922312-0 BOLT M6 X 12 €1.33
79
 photo_cameraImage coming soon 267080-1 WASHER 6 €1.28
80
 photo_cameraImage coming soon 221525-3 PINION 10 2012NB €1.52
81
 photo_cameraImage coming soon 922221-3 Screw M5X16 X HM1303 €3.41
82
 photo_cameraImage coming soon 343844-8 SUPPORT €2.87
83
 photo_cameraImage coming soon 252426-4 NUT M14 €13.06
84
 photo_cameraImage coming soon 214251-1 BRONZE BUSHING 17 €2.87
85
 photo_cameraImage coming soon 231459-2 SPRING 14 X 2012 €2.45
86
 photo_cameraImage coming soon 162216-6 NEEDLE 34-295 €159.31
87
 photo_cameraImage coming soon 233392-4 COMPRESSION SPRING 13A €1.28
88
 photo_cameraImage coming soon 214251-1 BRONZE BUSHING 17 €2.87
90
 photo_cameraImage coming soon 922221-3 Screw M5X16 X HM1303 €3.41
100
 photo_cameraImage coming soon 951122-8 PIN EL. 4-28 FOR UC3020A €1.47
101
 photo_cameraImage coming soon 344815-8 LOCKING PLATE €1.92
103
 photo_cameraImage coming soon 251283-7 SCREW M5 €2.45
105
 photo_cameraImage coming soon 266040-0 SCREW 4X25 CT €1.28
106
 photo_cameraImage coming soon 251322-3 SCREW M5X12 €1.28
107
 photo_cameraImage coming soon 252427-2 NUT M14 SX €13.06
109
 photo_cameraImage coming soon 213009-5 RING 4 €1.40
110
 photo_cameraImage coming soon 911233-1 HEAD SCREW M5X20 3600H €1.46
111
 photo_cameraImage coming soon 253194-2 WASHER 5 X HM1303 €1.40
112
 photo_cameraImage coming soon 257600-9 BUSHING 6 €1.28
113
 photo_cameraImage coming soon 231588-1 TORSION SPRING 9 €1.28
114
 photo_cameraImage coming soon 344068-9 INDICATOR €2.87
115
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
116
 photo_cameraImage coming soon 322229-1 PIN €4.04
117
 photo_cameraImage coming soon 266040-0 SCREW 4X25 CT €1.28
118
 photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.47
120
 photo_cameraImage coming soon 323927-0 NUT €6.90
121
 photo_cameraImage coming soon 231226-5 SPRING COMPRESSION X LC1230 €1.28
188
 photo_cameraImage coming soon 240003-4 FAN X 2702 €5.13
189
 photo_cameraImage coming soon 941051-3 FLAT WASHER 4 €1.38
191
 Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
192
 photo_cameraImage coming soon 638897-3 RELAY' €83.96
193
 photo_cameraImage coming soon 688131-1 FILTER LINE X MT240 €1.40
195
 photo_cameraImage coming soon 414301-4 DUST-COVER LID €1.92
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
91
 photo_cameraImage coming soon 226786-0 GEAR 15 €3.52
92
 photo_cameraImage coming soon 253828-7 WASHER 10 GA5020C-6021C €1.29
94
 photo_cameraImage coming soon 266040-0 SCREW 4X25 CT €1.28
97
 photo_cameraImage coming soon 266040-0 SCREW 4X25 CT €1.28
98
 photo_cameraImage coming soon 253828-7 WASHER 10 GA5020C-6021C €1.29
99
 photo_cameraImage coming soon 226786-0 GEAR 15 €3.52
122
 photo_cameraImage coming soon 256688-6 PIN 8 €4.67
123
 photo_cameraImage coming soon 271296-2 KNOB 45 €3.52
125
 photo_cameraImage coming soon 961012-7 RETAINING RING E6 €2.17
126
 photo_cameraImage coming soon 951122-8 PIN EL. 4-28 FOR UC3020A €1.47
127
 photo_cameraImage coming soon 266086-6 SCREW M5X16 WITH BRAKES THREADS €1.44
129
 photo_cameraImage coming soon 417032-4 DISK €1.28
130
 photo_cameraImage coming soon 816358-5 GRADUATED SCALE €1.28
132
 photo_cameraImage coming soon 153779-3 COMPLETE UPPER LID €80.58
136
 photo_cameraImage coming soon 265716-6 LOCK KNOB M5X10 €4.95
137
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
138
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
139
 photo_cameraImage coming soon 344816-6 TABLE FOR 2012NB €15.19
140
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
141
 photo_cameraImage coming soon 344819-0 GUIDE PLATE €2.45
142
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
143
 photo_cameraImage coming soon 417040-5 SIDE COVER €11.57
144
 photo_cameraImage coming soon 344820-5 SIDE PLATE €4.04
145
 photo_cameraImage coming soon 922323-5 SCREW M6 X 16 X 2107FK €1.28
146
 photo_cameraImage coming soon 251217-0 SCREW M4X10 X 2012 €2.45
147
 photo_cameraImage coming soon 253932-2 WASHER 10 3600B / BR €1.33
148
 photo_cameraImage coming soon 911108-4 SCREW M4X8 X 5103R €3.18
150
 photo_cameraImage coming soon 344817-4 SECONDARY TABLE 2012NB €19.65
152
 photo_cameraImage coming soon 266213-5 SCREW M5 X 12 X 5621RDW €1.28
155
 photo_cameraImage coming soon 317763-4 TABLE €103.07
156
 photo_cameraImage coming soon 323924-6 DX SCREW €19.65
158
 photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
160
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
161
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.11
162
 photo_cameraImage coming soon 285698-6 BEARING CHECK 33 €1.28
163
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
164
 photo_cameraImage coming soon 268075-7 PIN 4 HP2030 €1.28
165
 photo_cameraImage coming soon 252164-8 NUT M10-17 €1.28
168
 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 216041-8 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 €1.46
169
 photo_cameraImage coming soon 931403-6 HEX NUT M8 €1.40
170
 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH 922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH €1.35
171
 photo_cameraImage coming soon 265846-3 SCREW M8X16 €1.28
173
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
174
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.11
175
 photo_cameraImage coming soon 285698-6 BEARING CHECK 33 €1.28
176
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
177
 photo_cameraImage coming soon 268075-7 PIN 4 HP2030 €1.28
178
 photo_cameraImage coming soon 252164-8 NUT M10-17 €1.28
181
 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 216041-8 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 €1.46
182
 photo_cameraImage coming soon 931403-6 HEX NUT M8 €1.40
183
 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH 922231-0 Cap Hd Srew M5x20 for Chainsaw Dolmar PS222TH €1.35
184
 photo_cameraImage coming soon 265846-3 SCREW M8X16 €1.28
186
 photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
187
 photo_cameraImage coming soon 153731-1 CPL MAIN FRAME €176.28
194
 photo_cameraImage coming soon 282017-7 CHAIN €2.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Planer Thicknesser 2012NB

Makita Genuine spare parts or replacement parts for to repair 2012NB Planer Thicknesser, 220 V, 1650 W, 304 mm.

In the following table, look for the model of the Bench Saw and the respective parts of the code.

Makita 2012NB - PLANER THICKNESSER 304MM 1650W pag.1
# Part Num. Description
1 654561-8 CLAMP XLH1040F
2 631371-0 LAMP CPL
6 418416-9 SWITCH COVER
7 251991-0 SCREW M 4 X 12 X 3707
8 632519-7 SWITCH
11 417041-3 SWITCH BOX
12 417038-2 SWITCH BOX COVER
13 265995-6 SCREW M4X18 X 6408 / 6221DW
14 266026-4 SCREW M4 X 12
15 682516-3 CABLE SLEEVE 9.3-85
17 265995-6 SCREW M4X18 X 6408 / 6221DW
18 687124-5 CABLE CLAMP MT953
19 687042-7 PLATE X LS1013
20 911128-8 SCREW M4X16 X HR4000C
22 922312-0 BOLT M6 X 12
23 267080-1 WASHER 6
24 221525-3 PINION 10 2012NB
25 266059-9 SCREW M5X75 X 9059SF
26 151739-9 GEAR CASE COVER CPL
27 253715-0 FLAT WASHER 6 6510PBL / LVR / 43SB
28 226134-3 GEAR 8-50
29 253715-0 FLAT WASHER 6 6510PBL / LVR / 43SB
30 253215-0 FLAT WASHER 8 6510PBL / LVR
31 226135-1 GEAR 8-46
32 253215-0 FLAT WASHER 8 6510PBL / LVR
33 254001-2 WOODRUFF KEY 4
34 253760-5 WASHER 14
35 323923-8 SPINDLE
36 226518-5 GEAR 47
37 253744-3 FLAT WASHER 12 24B / 12N / 14
38 151738-1 GEAR BOX CPL
39 225083-1 BELT V 8-341
40 222155-3 PULLEY 8-23.5L
41 151737-3 MOTOR CRANKCASE CPL
42 526104-5 STATOR 230-240V
43 211087-9 BALL BEARING 6200DDW NSK
44 681623-9 INSULATING WASHER
45 516813-4 ARMATURE 220-240V
46 417033-2 DEFLECTOR
47 211087-9 BEARING BEARING 6200DDW NSK
48 266059-9 SCREW M5X75 X 9059SF
49 922312-0 BOLT M6 X 12
50 267080-1 WASHER 6
51 221525-3 PINION 10 2012NB
52 343844-8 SUPPORT
53 233016-2 COMPRESSION SPRING 15
54 231459-2 SPRING 14 X 2012
56 214251-1 BRONZE BUSHING 17
57 922221-3 SCREW M5X16 X HM1303
58 643650-4 BRUSH HOLDER CAP
59 181044-0 CARBON BRUSH SET CB-153 (150/52/54)
60 162216-6 NEEDLE 34-295
61 233392-4 COMPRESSION SPRING 13A
62 341685-6 SUPPORT (A)
63 922221-3 SCREW M5X16 X HM1303
64 214251-1 BRONZE BUSHING 17
65 265854-4 SCREW M 6X12 X KP312S
66 222154-5 PULLEY 8-54
67 911128-8 SCREW M4X16 X HR4000C
68 317259-5 BEARING BOX
69 211228-7 BEARING 6202DD BEARING
70 254204-8 KEY 4
71 323928-8 DRUM
72 211228-7 BALL BEARING 6202DD
73 962153-2 RETAINER RING R35
74 793346-8 KNIVES NORM.306MM X2012
75 343682-8 KNIFE SUPPORT
76 251609-3 BOLT M6X17
77 225520-5 CHAIN ​​35-46 2012NB
78 922312-0 BOLT M6 X 12
79 267080-1 WASHER 6
80 221525-3 PINION 10 2012NB
81 922221-3 SCREW M5X16 X HM1303
82 343844-8 SUPPORT
83 252426-4 NUT M14
84 214251-1 BRONZE BUSHING 17
85 231459-2 SPRING 14 X 2012
86 162216-6 NEEDLE 34-295
87 233392-4 COMPRESSION SPRING 13A
88 214251-1 BRONZINA 17
89 341685-6 SUPPORT (A)
90 922221-3 SCREW M5X16 X HM1303
100 951122-8 PIN EL. 4-28 FOR UC3020A
101 344815-8 LOCKING PLATE
102 231793-0 VOLTAGE SPRING 5
103 251283-7 SCREW M5 X 8406
104 417035-8 BELT COVER
105 266040-0 SCREW CT 4X25
106 251322-3 SCREW M5X12
107 252427-2 NUT M14 SX
108 233016-2 COMPRESSION SPRING 15
109 213009-5 RING 4
110 911233-1 HEAD SCREW M5X20 3600H
111 253194-2 WASHER 5 X HM1303
112 257600-9 BUSHING 6
113 231588-1 TORSION SPRING 9
114 344068-9 INDICATOR
115 266026-4 SCREW M4 X 12
116 322229-1 PIN
117 266040-0 SCREW CT 4X25
118 266173-1 SCREW PT 5X30
119 265736-0 SCREW M6X135
120 323927-0 NUT
121 231226-5 COMPRESSION SPRING X LC1230
188 240003-4 FAN X 2702
189 941051-3 FLAT WASHER 4
191 645200-1 CAPACITOR
192 638897-3 RELAY'
193 688131-1 LINE FILTER X MT240
195 414301-4 DUST-COVER LID
Makita 2012NB - PLANER THICKNESSER 304MM 1650W pag.2
91 226786-0 GEAR 15
92 253828-7 WASHER 10 GA5020C-6021C
93 417034-0 SHAFT SUPPORT
94 266040-0 SCREW CT 4X25
95 323926-2 SHAFT 10
96 417034-0 SHAFT SUPPORT
97 266040-0 SCREW CT 4X25
98 253828-7 WASHER 10 GA5020C-6021C
99 226786-0 GEAR 15
122 256688-6 PIN 8
123 271296-2 KNOB 45
124 272028-0 LEVER 160
125 961012-7 CHECK RING E6
126 951122-8 SPINOTTO EL. 4-28 FOR UC3020A
127 266086-6 BOLT M5X16 JR3020
128 317760-0 JOINT
129 417032-4 DISK
130 816358-5 GRADUATED SCALE
131 266240-2 SCREW M10X25
132 153779-3 COMPLETE UPPER LID
133 417036-6 TOOL BOX SUPPORT
134 165379-7 CHIPPERS COVER
135 417036-6 TOOL BOX SUPPORT
136 265716-6 LOCKING KNOB M5X10
137 265995-6 SCREW M4X18 X 6408 / 6221DW
138 265995-6 SCREW M4X18 X 6408 / 6221DW
139 344816-6 TABLE FOR 2012NB
140 266026-4 SCREW M4 X 12
141 344819-0 GUIDE PLATE
142 911128-8 SCREW M4X16 X HR4000C
143 417040-5 SIDE COVER
144 344820-5 SIDE PLATE
145 922323-5 SCREW M6 X 16 X 2107FK
146 251217-0 SCREW M4X10 X 2012
147 253932-2 WASHER 10 3600B / BR
148 911108-4 SCREW M4X8 X 5103R
149 344818-2 JUNCTION
150 344817-4 SECONDARY TABLE 2012NB
151 266240-2 SCREW M10X25
152 266213-5 SCREW M5 X 12 X 5621RDW
153 323925-4 SCREW LH
154 331562-0 COLUMN 20
155 317763-4 TABLE
156 323924-6 DX SCREW
157 142383-3 CPL LATERAL COVER
158 911128-8 SCREW M4X16 X HR4000C
159 232195-3 PLATE SPRING
160 266026-4 SCREW M4 X 12
161 211088-7 BEARING 6000 9527PB-9528PB
162 285698-6 BEARING CHECK 33
163 266026-4 SCREW M4 X 12
164 268075-7 PIN
165 252164-8 NUT M10-17
166 226791-7 GEAR 15
167 317260-0 SUPPORT
168 216041-8 BALL 5.6
169 931403-6 HEXAGONAL NUT M8
170 922231-0 BOLT M5X20
171 265846-3 SCREW M8X16
172 417030-8 GEAR COVER
173 266026-4 SCREW M4 X 12
174 211088-7 BEARING 6000 9527PB-9528PB
175 285698-6 BEARING CHECK 33
176 266026-4 SCREW M4 X 12
177 268075-7 PIN
178 252164-8 NUT M10-17
179 266791-7 HP2030
180 317260-0 SUPPORT
181 216041-8 BALL 5.6
182 931403-6 HEXAGONAL NUT M8
183 922231-0 BOLT M5X20
184 265846-3 SCREW M8X16
185 417030-8 GEAR COVER
186 266026-4 SCREW M4 X 12
187 153731-1 CPL MAIN FRAME
194 282017-7 CHAIN
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 2012NB
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita 2012NB

Drawing Makita 2012NB

Download (616.02KB)

You might also like

Retaining Ring E9 for Planer Makita 1923B-N1923B
Makita SKU: 961015-1
Retaining Ring E9 for Planer Makita 1923B-N1923B
Retaining Ring E9 for Planer Makita 1923B-N1923B Genuine part Makita, Retaining Ring E9 6221DW for Planer N1923B - 1923b - Table Saw 2704. Parts for the following products: - Table Saw 2704 - Planer Makita N1923B - Planer Makita 1923b...
AVAILABLE €1.43
Details
Angle Rail for 260 mm Table Saw Makita 2704
Makita SKU: 317872-9
Angle Rail for 260 mm Table Saw Makita 2704
Angle Rail for 260 mm Table Saw Makita 2704 Original replacement part Makita, Angle Rail for 260 mm Table Saw Makita 2704. Part for the following products: - 260 mm Table Saw Makita 2704 - Code: 317872-9
AVAILABLE €33.30
Details
Ring 16 for Slide Compound Mitre Saw Makita LH1040F
Makita SKU: 257262-3
Ring 16 for Slide Compound Mitre Saw Makita LH1040F
Ring 16 for Slide Compound Mitre Saw Makita LH1040F Original replacement part Makita, Ring 16 for Slide Compound Mitre Saws LH1040F -  LS1013 - LS1019L - LS1040F - Table Saw 2704. Part for the following products: - 2704 - TABLE SAW...
Last items in stock €2.13
Details
Work Table Cover for 260 mm Table Saw Makita 2704
Makita SKU: 126901-5
Work Table Cover for 260 mm Table Saw Makita 2704
Work Table Cover for 260 mm Table Saw Makita 2704 Original replacement part Makita, Work Table Cover for 260 mm Table Saw Makita 2704. Part for the following products: - 260 mm Table Saw Makita 2704 - Code: 126901-5
AVAILABLE €33.90
Details
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800
Makita SKU: 216041-8
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 Genuine Spare Part Makita, Steel Ball D. 5,6MM for Hex Collar Power Scrapers 3,2KG 505W HK1800 - HK1810 Part for the following...
Usually Ships in: 7/10 Business Days Approx. €1.46
Details
Comments (0)
