Makita Spare Parts for Belt Sander 9401
Fix Your Belt Sander 9401. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Orbital Sander and the respective parts of the code.

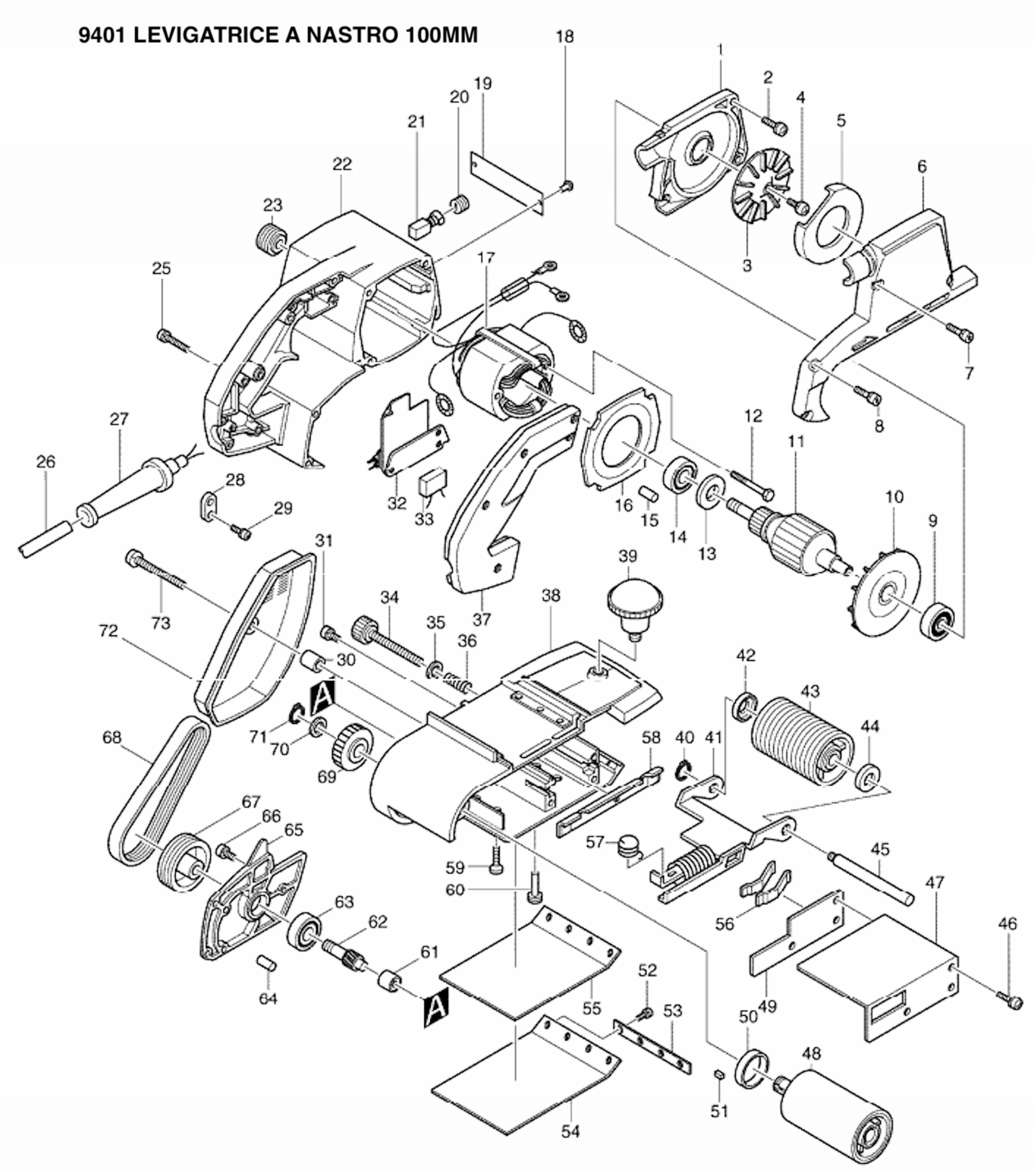

| 9401 BELT SANDER 100MM |
| # |
Part Num. |
Description |
| 1 |
151177-5 |
DUST COLLECTOR BRACKET |
| 1-1.C10 |
263014-2 |
RUBBER PIN 4 |
| 2 |
911226-8 |
PAN HEAD SCREW M5X18 |
| 3 |
241611-4 |
FAN 74 |
| 4 |
911211-1 |
PAN HEAD SCREW M5X12 |
| 5 |
343166-6 |
SEPARATOR |
| 6 |
315772-7 |
DUST COLLECTOR COVER |
| 7 |
911241-2 |
PAN HEAD SCREW M5X25 |
| 8 |
911241-2 |
PAN HEAD SCREW M5X25 |
| 9 |
211087-9 |
BALL BEARING 6200DDW |
| 10 |
241806-9 |
FAN 90 |
| 11 |
514207-7 |
ARMATURE ASS'Y 240V |
| 12 |
911270-5 |
PAN HEAD SCREW M5X45 |
| 13 |
681624-7 |
INSULATION WASHER |
| 14 |
211087-9 |
BALL BEARING 6200LLB |
| 15 |
263002-9 |
RUBBER PIN 4 |
| 16 |
411143-7 |
BAFFLE PLATE |
| 17 |
524206-1 |
FIELD ASS'Y 240V |
| 17D.C10 |
654020-2 |
RING TERMINAL |
| 17D.C20 |
654502-4 |
CONNECTOR P-2 |
| 18 |
953106-2 |
RIVET 0-5 |
| 19 |
811732-2 |
NAME PLATE 9401 |
| 19 |
850166-4 |
NAME PLATE 9401 |
| 20 |
643650-4 |
BRUSH HOLDER CAP 6.5-13.5 |
| 20 |
643650-4 |
BRUSH HOLDER CAP 6.5-13.5 |
| 21 |
181044-0 |
CARBON BRUSH SET CB-153 |
| 22 |
156225-5 |
MOTOR HOUSING |
| 22-1.C10 |
643660-1 |
BRUSH HOLDER 6.5-13.5 |
| 22-2 |
156225-5 |
MOTOR HOUSING |
| 22-2.C10 |
643653-8 |
BRUSH HOLDER 6.5-13.5 |
| 23+E1:G30 |
222012-5 |
V-PULLEY 6-24L |
| 25 |
911158-9 |
PAN HEAD SCREW M4X30 |
| 26 |
692541-6 |
POWER SUPPLY CORD 1.00-2-5.0 |
| 27 |
682516-3 |
CORD GUARD 9.3-85 |
| 28 |
687031-2 |
STRAIN RELIEF |
| 29 |
911133-5 |
PAN HEAD SCREW M4X18 |
| 30 |
257504-5 |
SLEEVE 6 |
| 31 |
911221-8 |
PAN HEAD SCREW M5X16 |
| 32 |
651018-0 |
SWITCH HPAHR2-3S |
| 34 |
251821-5 |
SCREW M8X72 |
| 35 |
941202-8 |
FLAT WASHER 8 |
| 36 |
231110-4 |
COMPRESSION SPRING 9 |
| 37 |
411142-9 |
HANDLE COVER |
| 38 |
156226-3 |
FRAME |
| 38.C10 |
214101-0 |
PLANE BEARING 12 |
| 38.C20 |
421044-1 |
SPONGE SHEET 42-47 |
| 39 |
271207-7 |
KNOB 55 |
| 40 |
961052-5 |
RETAINING RING S-12 |
| 41 |
163039-5 |
TENSION ROLLER ARM |
| 42 |
253922-5 |
CUP WASHER 12 |
| 43 |
152103-7 |
TENSION ROLLER COMPLETE |
| 43.C10 |
214101-0 |
PLANE BEARING 12 |
| 43.C20 |
421045-9 |
SPONGE SHEET3-50-57 |
| 44 |
253922-5 |
CUP WASHER 12 |
| 45 |
325108-2 |
TENSION ROLLER SHAFT |
| 46 |
911226-8 |
PAN HEAD SCREW M5X18 |
| 47 |
342331-4 |
BASE COVER |
| 48 |
151121-2 |
DRIVING ROLLER COMPLETE |
| 49 |
341195-3 |
BALANCE PLATE |
| 50 |
253922-5 |
CUP WASHER 12 |
| 51 |
254202-2 |
KEY 4 |
| 52 |
911111-5 |
PAN HEAD SCREW M4X10 WITH W |
| 53 |
341079-5 |
STRAP WASHER |
| 54 |
423029-3 |
CARBON PLATE 100MM |
| 55 |
421093-8 |
CORK RUBBER PLATE |
| 56 |
232029-0 |
LEAF SPRING |
| 57 |
231520-5 |
TORSION SPRING 18 |
| 58 |
155885-0 |
EDGE SLIDER |
| 59 |
912227-9 |
COUNTERSUNK HEAD SCREW M5X1! |
| 60 |
325109-0 |
SUPPORT PIN |
| 61 |
212003-4 |
NEEDLE BEARING 810 |
| 62 |
221193-2 |
HELICAL GEAR 10 |
| 63 |
211066-7 |
BALL BEARING 6200LLB |
| 64 |
263002-9 |
RUBBER PIN 4 |
| 65 |
152204-1 |
GEAR COVER COMPLETE |
| 65 |
312549-1 |
GEAR COVER |
| 66 |
911221-8 |
PAN HEAD SCREW M5X16 |
| 67 |
222038-7 |
V-PULLEY 6-55.7 X 9401/02 |
| 68 |
225021-3 |
POLY V-BELT 6-355 X 9401/02 |
| 68 |
225091-2 |
POLY V-BELT 6-355 X MT941 |
| 68 |
225021-3 |
POLY V-BELT 6-355 X 9401/02 |
| 69 |
221194-0 |
HELICAL GEAR 42 |
| 70 |
253312-2 |
THIN WASHER 12 |
| 70 |
253312-2 |
THIN WASHER 12 |
| 71 |
961052-5 |
RETAINING RING S-12 |
| 72 |
343165-8 |
BELT COVER |
| 73 |
911263-2 |
PAN HEAD SCREW M5X40 |
| 402 |
423029-3 |
CARBON PLATE 100MM |
| 403-2.C10 |
410602-8 |
FASTENER |
| 500 |
|
SANDING BELT 100X620MM |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
