Makita Spare Parts for Biscuit Jointer 3901
Makita Original spare parts at attractive prices never seen on the web, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Biscuit Jointer 3901.

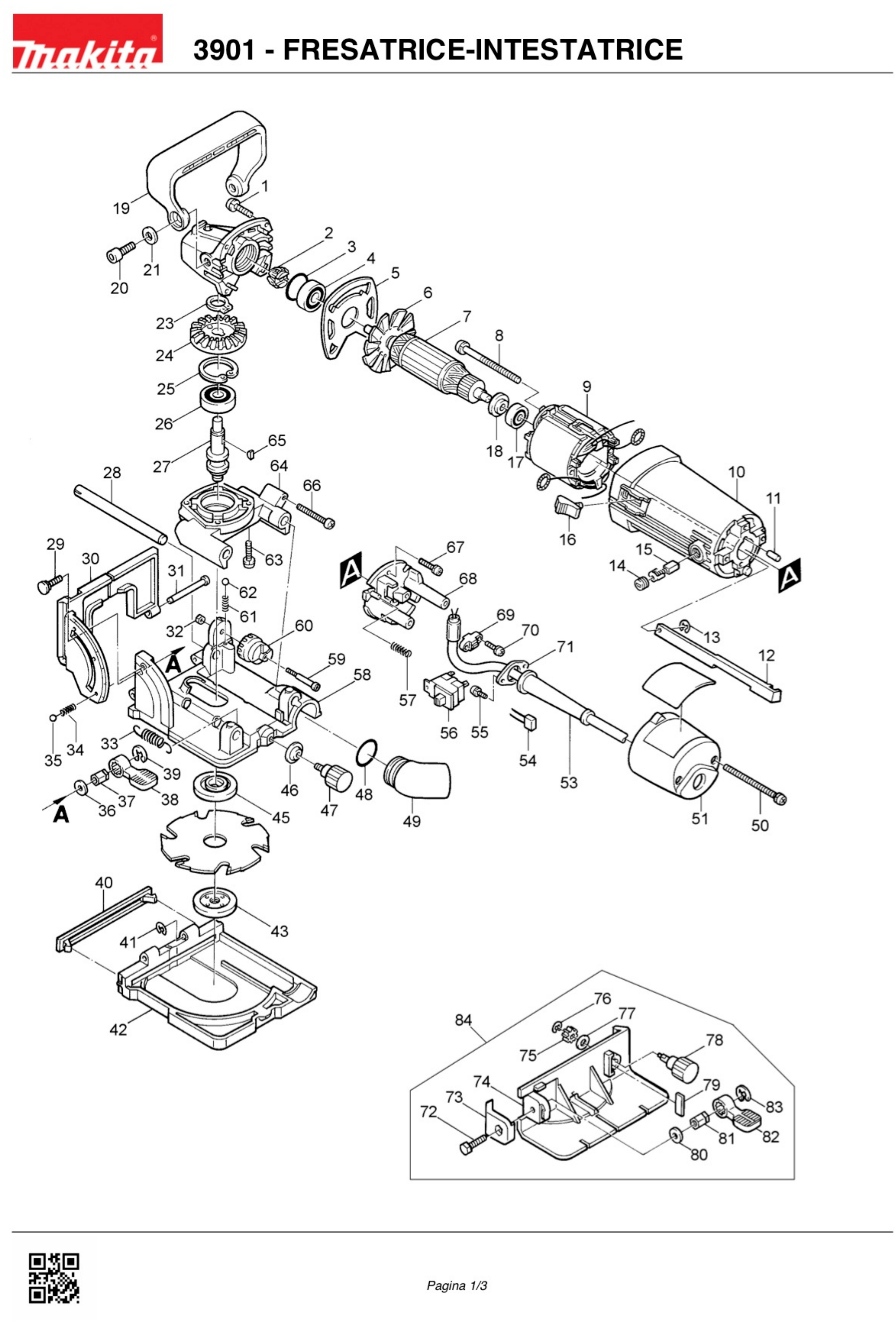

In the following table, look for the model of Plate Joiner and the respective parts of the code.
| 3901 BISCUIT JOINTER |
| # |
Part Num. |
Description |
| 1 |
911136-9 |
CYLINDRICAL HEAD SCREW M4X20 |
| 2 |
221357-8 |
GEAR 11 X 9503BH |
| 3 |
213407-3 |
GASKET 26 X 3901 |
| 4 |
211061-7 |
BALL BEARING 6000DD |
| 5 |
341398-9 |
6221DW PLATE X 9503BH |
| 6 |
241509-5 |
FAN 60 X 9503BH / 3901 |
| 7 |
511908-8 |
ARMATURE X 9503BH 3901 |
| 8 |
911596-5 |
SCREW M4X70 N9500N |
| 9 |
593138-3 |
STATOR FIELD X 3901 |
| 10 |
159283-0 |
HOUSING COMPLETE X 3901 |
| 11 |
263002-9 |
RUBBER PIN 4 |
| 12 |
411328-5 |
SWITCH ROD X 3901 |
| 13 |
257903-1 |
RETAINER RING E2,3 |
| 14 |
643550-8 |
CARBON BRUSH HOLDER CAP |
| 15 |
191940-4 |
CARBON BRUSH SET CB-411/410 422/421 |
| 16 |
414663-0 |
SWITCH LEVER |
| 17 |
210025-8 |
BEARING X 4324 |
| 18 |
681614-0 |
INSULATING WASHER |
| 19 |
415253-2 |
HANDLE X 3901 |
| 20 |
922422-3 |
HEXAGONAL BOLT M8X16 |
| 21 |
941202-8 |
FLAT WASHER 8 |
| 23 |
961052-5 |
RETAINER RING S12 |
| 24 |
221356-0 |
GEAR 36 X 9503BH |
| 25 |
962151-6 |
RING R32 |
| 26 |
211129-9 |
BALL BEARING 6201DD NSK |
| 27 |
322658-8 |
SPINDLE X 3901 |
| 28 |
322657-0 |
PIN 10 X 3901 |
| 29 |
251919-8 |
SCREW M6X20 |
| 30 |
316494-2 |
GUIDE RULE |
| 31 |
256689-4 |
PIN 4 |
| 32 |
931102-0 |
HEXAGONAL NUT M4 |
| 33 |
231795-6 |
TENSION SPRING |
| 34 |
231282-5 |
SPRING 2.4 X HP1300 |
| 35 |
216040-0 |
BALL 3.5 |
| 36 |
253804-1 |
WASHER 6 X LS1013 |
| 37 |
252133-9 |
HEXAGON NUT M6 |
| 38 |
272229-0 |
LEVER 40 X 3901 |
| 39 |
961014-3 |
RING E-8 RING |
| 40 |
162163-1 |
RUBBER PROTECTION X 3901 |
| 41 |
961017-7 |
RING E-3 X 4305T |
| 42 |
316496-8 |
PLATE |
| 43 |
224505-8 |
EXTERNAL FLANGE 10-40 |
| 45 |
224280-6 |
INTERNAL FLANGE 40 X 3901 |
| 46 |
232131-9 |
LOCK SPRING X 3901 |
| 47 |
265716-6 |
LOCK KNOB M5X10 |
| 48 |
213008-7 |
RING 26 |
| 49 |
415252-4 |
BEND TUBE X 3901 |
| 50 |
911196-1 |
CYLINDRICAL HEAD SCREW M4X70 |
| 51 |
410190-5 |
REAR COVER X9503BH |
| 53 |
682504-0 |
CABLE HANDLE 10/85 |
| 54 |
645173-8 |
CAPACITOR X JR3000VT |
| 55 |
911111-5 |
CYLINDRICAL HEAD SCREW M4X10 |
| 56 |
651651-8 |
SWITCH X 3901 |
| 57 |
231223-1 |
SPRING 6 X 9502B |
| 58 |
316495-0 |
BASIC PLATE X 3901 |
| 59 |
265026-1 |
BOLT M4 |
| 60 |
316491-8 |
BLOCK X 3901 |
| 61 |
231282-5 |
SPRING 2.4 X HP1300 |
| 62 |
216040-0 |
BALL 3.5 |
| 63 |
911136-9 |
CYLINDRICAL HEAD SCREW M4X20 |
| 64 |
316493-4 |
BEARINGS BOX X 3901 |
| 65 |
254002-0 |
WOODRUFF KEY 3 |
| 66 |
911263-2 |
CYLINDRICAL HEAD SCREW M5X40 |
| 67 |
911133-5 |
SCREW M4X18 |
| 68 |
410191-3 |
SWITCH HOLDER X9503BH |
| 69 |
687031-2 |
CABLE CLAMP X 3901 |
| 70 |
911126-2 |
SCREW M4X16 |
| 71 |
687637-6 |
CABLE PLATE 9501B / BH / 03BH |
| 72 |
921332-1 |
HEXAGONAL BUTTON M6X20 |
| 73 |
316492-6 |
COMPLETE BRACKET |
| 74 |
150455-0 |
ANGULAR GUIDE X 3901 |
| 75 |
226217-9 |
COMPLETE GEAR 16 X 3901 |
| 76 |
961017-7 |
RING E-3 X 4305T |
| 77 |
253186-1 |
FLAT WASHER 7 X 420S |
| 78 |
271415-0 |
KNOB 20 X 3901 |
| 79 |
232130-1 |
LOCKING SPRING X 3901 |
| 80 |
253804-1 |
WASHER 6 X LS1013 |
| 81 |
252133-9 |
HEXAGON NUT M6 |
| 82 |
272229-0 |
LEVER 40 X 3901 |
| 83 |
961014-3 |
RING E-8 RING |
| 84 |
122473-8 |
ANGULAR GUIDE KIT X 3901 |
