Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE

SKU: Makita 6221DWE
€22.17
VAT included

Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE

Makita original spare parts for to replace broken parts for to fix 9.6V Cordless Drill Driver 6221DWE.

Fix Your Cordless Drill Driver 6221DWE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE
  • Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE
  • Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE

Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE

SKU: Makita 6221DWE Condition: New
€22.17
VAT included

Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE

Makita original spare parts for to replace broken parts for to fix 9.6V Cordless Drill Driver 6221DWE.

Fix Your Cordless Drill Driver 6221DWE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 93 spare parts

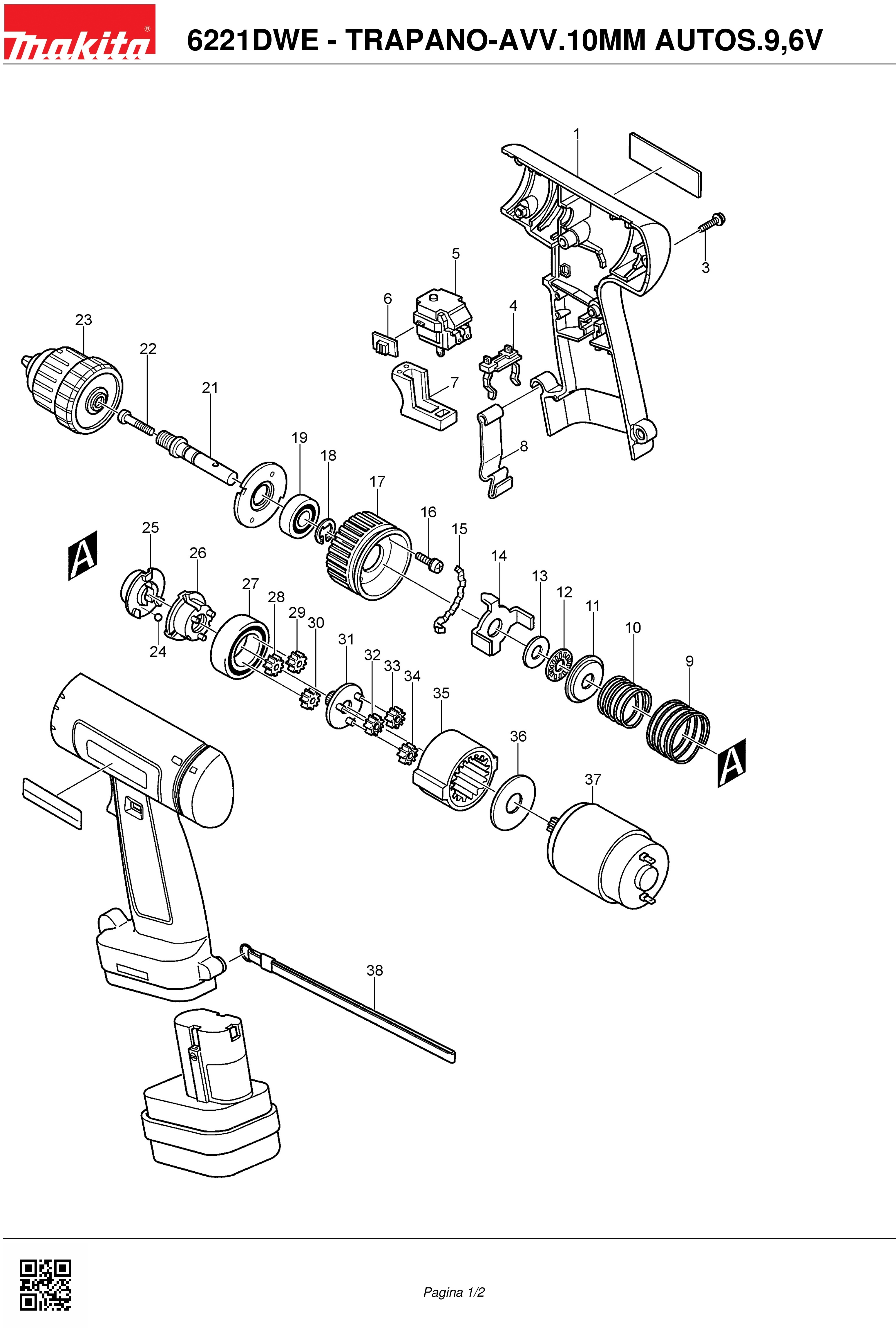

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

80 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
photo_cameraImage coming soon 306992 GRIP INCLUD.48 €1.83
3
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
3
photo_cameraImage coming soon 306343 BALL HOLDER FOR CORD €7.88
4
photo_cameraImage coming soon 306342 HOLDER SPRING (CORD ARMOR D8.8) €2.72
4
Switch for Battery Clamp for Cordless Drills Makita 6317DWDE-6271-6281-8271 DWAE 643918-8 Switch for Battery Clamp for Cordless Drills Makita 6317DWDE-6271-6281-8271 DWAE €8.40
5
Switch Adjusting Slide for Cordless Drill GSR 14,4 VE-2 2601099112 Switch Adjusting Slide for Cordless Drill GSR 14,4 VE-2 €3.79
5
photo_cameraImage coming soon 984118 WASHER (B) €1.30
6
photo_cameraImage coming soon 939547 RETAINING RING FOR D20 SHAFT €5.65
7
photo_cameraImage coming soon 314876 GEAR COVER €45.86
8
photo_cameraImage coming soon 344121-1 PLATE X 6221DW €3.14
9
photo_cameraImage coming soon 314881 0-RING €3.13
10
photo_cameraImage coming soon 2600508051 Cover BLACK €3.91
10
photo_cameraImage coming soon 981328 Spring H Dh24dva €1.91
11
photo_cameraImage coming soon 2600508052 Cover BLACK €3.91
11
photo_cameraImage coming soon 959155 STEEL BALL D3.97 €1.35
12
photo_cameraImage coming soon 314878 0-RING €1.64
13
photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
13
photo_cameraImage coming soon 314877 CHANGE LEVER €4.64
14
photo_cameraImage coming soon 307688 OIL SEAL €5.10
15
photo_cameraImage coming soon 307690 SLEEVE €9.86
16
photo_cameraImage coming soon 6904DD BALL BEARING 6904DDPS2L €23.92
18
Steel Ball 7 mm for Hammers Hitachi 959156 Steel Ball 7 mm for Hammers Hitachi €3.48
18
Retaining Ring E9 for Planer Makita 1923B-N1923B 961015-1 Retaining Ring E9 for Planer Makita 1923B-N1923B €1.43
19
Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW 211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW €8.69
19
Steel Ball D5.556 for Impact Driver Hitachi WH10DFL 959154 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL €1.84
20
photo_cameraImage coming soon 314882 CYLINDER €79.67
22
photo_cameraImage coming soon 251451-2 SCREW M5X22 X 6221DW €2.86
22
photo_cameraImage coming soon 301677 SECOND GEAR €29.15
23
photo_cameraImage coming soon 301678 SPRING (A) €4.12
24
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 216041-8 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 €1.46
24
photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
25
photo_cameraImage coming soon 301671 SECOND HAMMER €7.32
26
O-RING (B) for Rotary Hammer Hitachi DH20PB 301672 O-RING (B) for Rotary Hammer Hitachi DH20PB €1.13
27
photo_cameraImage coming soon 211375-4 BALL BEARING 6805LLB 6221D €22.62
27
photo_cameraImage coming soon 301680 O-RING (I.D. 10.5) €2.15
28
photo_cameraImage coming soon 226284-4 GEAR 15 X 6221DW €1.97
28
photo_cameraImage coming soon 315148 STRIKER €11.58
29
photo_cameraImage coming soon 301670 O-RING (A) €2.39
30
photo_cameraImage coming soon 301668 PISTON €9.33
31
photo_cameraImage coming soon 153228-0 GEAR 9 CPL X 6221DW €8.00
31
photo_cameraImage coming soon 301666 PISTON PIN €4.75
32
photo_cameraImage coming soon 2601099127 Adjusting Slide €5.72
32
photo_cameraImage coming soon 303977 WASHER (C) €7.88
33
photo_cameraImage coming soon 314880 INNER COVER €20.31
35
photo_cameraImage coming soon 226285-2 GEAR INT. 42 X 6221DW €12.01
35
photo_cameraImage coming soon 315161 GEAR SHAFT SET €23.27
36
photo_cameraImage coming soon 267067-3 FLAT WASHER 12 X 6221DW €1.65
36
photo_cameraImage coming soon 301659 WASHER (B) €1.30
37
Clutch Spring for Rotative Hammer Hitachi DH24PB3 301660 Clutch Spring for Rotative Hammer Hitachi DH24PB3 €2.08
38
photo_cameraImage coming soon 301661 CLUTCH €12.72
40
photo_cameraImage coming soon 306990 RECIPROCATING BEARING €58.22
41
photo_cameraImage coming soon 301663 SPACER €1.23
42
photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
43
photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
44
photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
45
Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
47
photo_cameraImage coming soon 314879 FAN GUIDE ASS’Y €4.64
50
photo_cameraImage coming soon 314914 INTERNAL WIRE (A) (BLACK) €3.13
51
photo_cameraImage coming soon 314913 INTERNAL WIRE (A) (GRAY) €3.13
52
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
53
photo_cameraImage coming soon 314889 HOUSING €18.43
54
photo_cameraImage coming soon 314912 NAME PLATE €3.13
55
photo_cameraImage coming soon 314915 INTERNAL WIRE (A) (RED) €3.13
56
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
57
photo_cameraImage coming soon 314891 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) €12.47
59
Switch for Hammer Drill Hitachi DH 20PB-DH 24PB-DH 24PC 314921 Switch for Hammer Drill Hitachi DH 20PB-DH 24PB-DH 24PC €46.05
59
Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
61
photo_cameraImage coming soon 2608040190 Support €9.26
91
photo_cameraImage coming soon 2607335687 Slide-In Accu Package 18V, 2,6Ah, NiMH, HD €508.29
101
Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €0.93
107
photo_cameraImage coming soon 2603421229 Countersunk-Head Screw M6x23 €2.13
653
photo_cameraImage coming soon 2607224425 Fast Charger EU 230/7,2-24V, 1h €176.29
653
photo_cameraImage coming soon 2607224427 Fast Charger GB 230/7,2-24V, 1h €137.58
653
photo_cameraImage coming soon 2607224429 Fast Charger AUS 240/7,2-24V, 1h €124.32
653
photo_cameraImage coming soon 2607225027 Fast Charger EU 230/7,2-24V, 30 MIN. €306.10
653
photo_cameraImage coming soon 2607225029 Fast Charger GB 230/7,2-24V, 30 MIN. €129.88
816
photo_cameraImage coming soon 1607000488 Carbon-Brush Set 10 x 2 607 034 904 €86.86
816
Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 2607034904 Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 €24.22
825
photo_cameraImage coming soon 2608572900 Keyless Chuck €75.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for 9.6V Cordless Drill Driver 6221DWE

Makita original spare parts for to replace broken parts for to fix 9.6V Cordless Drill Driver 6221DWE.

Fix Your Cordless Drill Driver 6221DWE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

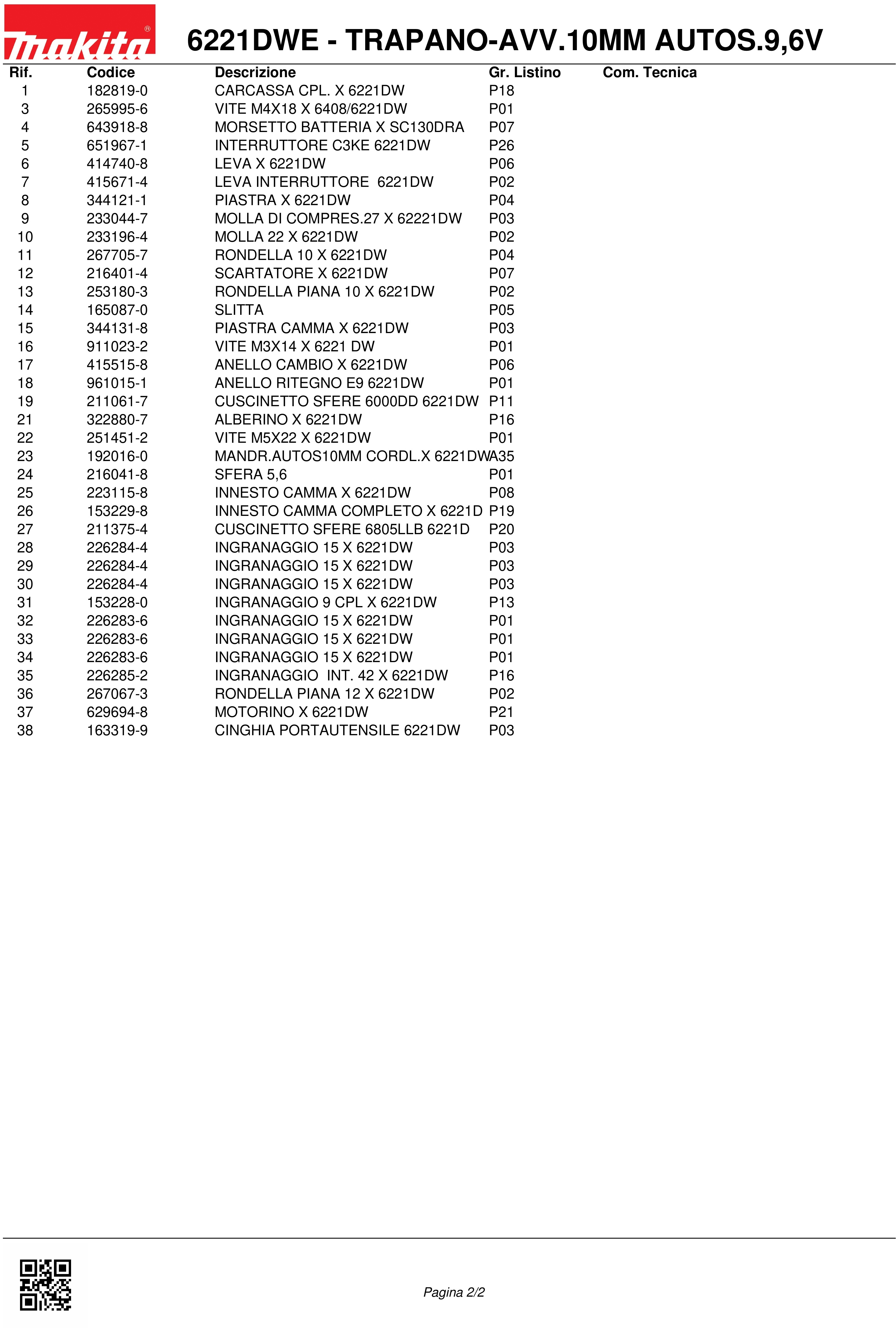

In the following table, look for the model of Cordless Dril and the respective parts of the code.
.

6221DWE - CORDLESS DRILL DRIVER 10MM KEYLESS CHUCK 9,6V
1 182819-0 HOUSING COMPLETE X 6221DW
3 265995-6 SCREW M4X18 X 6408 / 6221DW
4 643918-8 BATTERY TERMINAL X SC130DRA
5 651967-1 SWITCH C3KE 6221DW
6 414740-8 LEVER X 6221DW
7 415671-4 SWITCH LEVER 6221DW
8 344121-1 PLATE X 6221DW
9 233044-7 COMPRESSION SPRING 27 X 62221DW
10 233196-4 SPRING 22 X 6221DW
11 267705-7 WASHER 10 X 6221DW
12 216401-4 ROLLER HOUSING X 6221DW
13 253180-3 FLAT WASHER 10 X 6221DW
14 165087-0 SLEIGH
15 344131-8 CAM PLATE X 6221DW
16 911023-2 SCREW M3X14 X 6221 DW
17 415515-8 GEARBOX RING X 6221DW
18 961015-1 RETAINER RING E9 6221DW
19 211061-7 BALL BEARING 6000DD 6221DW
21 322880-7 POST X 6221DW
22 251451-2 SCREW M5X22 X 6221DW
23 192016-0 KEYLESS CHUCK 10MM CORDL.X 6221DWA35
24 216041-8 STEEL BALL 5.6
25 223115-8 CAM CONNECTION X 6221DW
26 153229-8 COMPLETE CAM END X 6221D
27 211375-4 BALL BEARING 6805LLB 6221D
28 226284-4 GEAR 15 X 6221DW
29 226284-4 GEAR 15 X 6221DW
30 226284-4 GEAR 15 X 6221DW
31 153228-0 GEAR 9 CPL X 6221DW
32 226283-6 GEAR 15 X 6221DW
33 226283-6 GEAR 15 X 6221DW
34 226283-6 GEAR 15 X 6221DW
35 226285-2 GEAR INT. 42 X 6221DW
36 267067-3 FLAT WASHER 12 X 6221DW
37 629694-8 MOTOR X 6221DW
38 163319-9 BELT X 6221DW
