Makita Spare Parts for Chain Mortiser 7104L

SKU: Makita 7104L
€10.09
VAT included

Makita Spare Parts for Chain Mortiser 7104L

Makita original spare parts for to replace broken parts for to fix Chain Mortiser 7104L.

Fix Your Chain Mortiser 7104L. All Spares are Ready For Quick Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Makita Spare Parts for Chain Mortiser 7104L
  • Makita Spare Parts for Chain Mortiser 7104L
  • Makita Spare Parts for Chain Mortiser 7104L
  • Makita Spare Parts for Chain Mortiser 7104L

Makita Spare Parts for Chain Mortiser 7104L

SKU: Makita 7104L Condition: New
€10.09
VAT included

Makita Spare Parts for Chain Mortiser 7104L

Makita original spare parts for to replace broken parts for to fix Chain Mortiser 7104L.

Fix Your Chain Mortiser 7104L. All Spares are Ready For Quick Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 120 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

98 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 682573-1 CORD ARMOR 10 X GA9010C €3.41
5
photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
7
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
9
photo_cameraImage coming soon 911226-8 HEAD SCREW CILIND. M5X18 €1.47
12
photo_cameraImage coming soon 651057-0 SWITCH TG71CL-2 X KP312 €25.76
14
photo_cameraImage coming soon 157044-2 GEAR CASE FOR 7104L €36.14
15
photo_cameraImage coming soon 154627-9 MOTOR HOUSING FOR 7104L €81.41
16
photo_cameraImage coming soon 681002-1 INSULATING WASHER €1.54
17
Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F 181044-0 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F €9.91
18
Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
20
photo_cameraImage coming soon 273416-4 KNOB 25 X PC1100 €7.16
21
photo_cameraImage coming soon 341571-1 LEFT-HANDLE SUPPORT €7.16
22
photo_cameraImage coming soon 911206-4 SCREW M5x10 €1.33
23
photo_cameraImage coming soon 231747-7 SPRING 20 FOR 7104L €7.99
30
photo_cameraImage coming soon 154397-0 CHAIN ​​CARTER FOR 7104L €198.72
31
photo_cameraImage coming soon 265253-0 SCREW M10 FOR 7104L €1.96
33
photo_cameraImage coming soon 941252-3 FLAT WASHER 10 €1.40
34
photo_cameraImage coming soon 251852-4 SCREW M8X28 FOR 7104L €2.81
36
photo_cameraImage coming soon 265254-8 SCREW M8X44 FOR 7104L €1.54
37
photo_cameraImage coming soon 931402-8 NUT M8 €3.18
38
photo_cameraImage coming soon 232068-0 SPRING FLAT €1.54
39
photo_cameraImage coming soon 911109-2 SCREW M4X8 X 4304T-4305T €1.34
40
photo_cameraImage coming soon 911908-2 HEAD SCREW CILIND. M5X80 €1.62
42
photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €3.18
69
photo_cameraImage coming soon 341745-4 DISC FOR 7104L €2.29
71
photo_cameraImage coming soon 311528-6 CHAIN ​​MOVEMENT SUPPORT FOR 7104L €100.67
74
photo_cameraImage coming soon 325330-1 SPINDLE FOR 7104L €2.81
75
photo_cameraImage coming soon 133571-3 BAR FOR CHAIN ​​FOR 7104L €61.28
76
photo_cameraImage coming soon 211076-4 BEARING 1008LL FOR 7104L €7.16
79
Ball Bearing 6201LLB NSK for Sander Makita SA7000 211106-1 Ball Bearing 6201LLB NSK for Sander Makita SA7000 €8.69
80
photo_cameraImage coming soon 213102-5 DUST WASHER 12 €2.57
82
photo_cameraImage coming soon 516939-2 ARMATURE FOR 7104L €74.02
83
photo_cameraImage coming soon 213051-6 DUST WASHER 10 €2.69
84
photo_cameraImage coming soon 211066-7 BALL BEARING HM1301 - 6200 €11.93
86
photo_cameraImage coming soon 524569-5 STATOR FOR 7104L €44.36
87
photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
89
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
90
photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
91
photo_cameraImage coming soon 931502-4 HEX FULL NUT M10 €1.22
94
photo_cameraImage coming soon 257017-6 RING 15 FOR 7104L €1.96
95
photo_cameraImage coming soon 221501-7 PINION 4 FOR 7104L €15.54
96
photo_cameraImage coming soon 211311-0 BEARING 6304LLB FOR 7104L €10.34
97
photo_cameraImage coming soon 321373-1 SPINDLE FOR 7104L €20.39
98
photo_cameraImage coming soon 221671-2 GEAR 47 FOR 7104L €15.54
99
photo_cameraImage coming soon 253197-6 WASHER 10 X LF1000 €1.22
100
photo_cameraImage coming soon 212066-0 NEEDLE BEARING 1015 €4.80
146
photo_cameraImage coming soon 345600-2 HANDLE SUPPORT FOR 7104L €13.69
147
photo_cameraImage coming soon 419064-7 HANDLE FOR 7104L €25.76
148
photo_cameraImage coming soon 419065-5 HANDLE COVER FOR 7104L €25.76
149
photo_cameraImage coming soon 646346-6 COIL FOR 7104L €29.12
150
photo_cameraImage coming soon 654571-5 CABLE FOR 7104L €1.54
151
Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
153
photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
26
photo_cameraImage coming soon 331162-6 LEVER C FOR 7104L €13.69
28
photo_cameraImage coming soon 256114-5 PIN 10 FOR 7104L €1.96
44
photo_cameraImage coming soon 310172-6 MOTOR SUPPORT FOR 7104L €157.65
45
Flat Washer 25 for Hex Collar Scraper Makita HK1800 253042-5 Flat Washer 25 for Hex Collar Scraper Makita HK1800 €1.46
50
photo_cameraImage coming soon 315344-8 UPPER HANDLE FOR 7104L €25.76
51
photo_cameraImage coming soon 325057-3 DEPTH SCALE FOR 7104L €6.15
53
photo_cameraImage coming soon 231543-3 TORSION SPRING 13 FOR 7104L €1.54
54
photo_cameraImage coming soon 257005-3 RING 8 FOR 7104L €1.96
55
photo_cameraImage coming soon 341585-0 HOOK FOR 7104L €3.72
56
photo_cameraImage coming soon 251215-4 SCREW FOR 7104L €1.54
57
photo_cameraImage coming soon 252409-4 NUT M10-20 FOR 7104L €2.81
61
photo_cameraImage coming soon 816045-6 GRADUATED SCALE FOR 7104L €2.81
63
photo_cameraImage coming soon 341588-4 GRADUATED SCALE INDEX €2.29
65
photo_cameraImage coming soon 154286-9 BASE FOR 7104L €127.42
67
photo_cameraImage coming soon 411723-9 BELL OF PROT. FOR 7104L €2.29
68
photo_cameraImage coming soon 231289-1 COMPRESSION SPRING 25 €2.81
101
photo_cameraImage coming soon 133014-5 LEVER 98 57/58 / 59B / 5100BR €7.92
102
photo_cameraImage coming soon 265235-2 SCREW M12X34 FOR 7104L €2.81
103
photo_cameraImage coming soon 315342-2 SHOULDER FOR VICE FOR 7104L €54.58
104
photo_cameraImage coming soon 321380-4 SCREW M14 FOR 7104L €15.54
106
photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
107
photo_cameraImage coming soon 231287-5 COMPRESSION SPRING 10 FOR 7104L €1.96
109
photo_cameraImage coming soon 154282-7 LEVER B FOR 7104L €29.12
111
photo_cameraImage coming soon 341587-6 RETAINER FOR 7104L €2.29
112
photo_cameraImage coming soon 941201-0 FLAT WASHER 8 €3.18
113
photo_cameraImage coming soon 271610-2 KNOB 40 FOR 7104L €2.29
114
photo_cameraImage coming soon 341569-8 BLOCK LEVER FOR 7104L €13.69
115
photo_cameraImage coming soon 256106-4 PIN 9 FOR 7104L €2.81
117
photo_cameraImage coming soon 257075-2 RING 9 FOR 7104L €2.29
119
photo_cameraImage coming soon 256623-4 PIN 9 FOR 7104L €2.81
121
photo_cameraImage coming soon 257561-3 BUSHING 9 FOR 7104L €3.22
122
photo_cameraImage coming soon 231746-9 SPRING 9 FOR 7104L €1.96
124
photo_cameraImage coming soon 321381-2 SLIDING BAR FOR 7104L €23.57
125
photo_cameraImage coming soon 951163-4 PIN 5-20 €2.24
127
photo_cameraImage coming soon 321382-0 GUIDE FOR 7104L €10.34
128
photo_cameraImage coming soon 231286-7 COMPRESS SPRING 36 FOR 7104L €3.72
129
photo_cameraImage coming soon 231285-9 SPRING COMPRES.48 FOR 7104L €6.15
130
photo_cameraImage coming soon 315216-7 VICE FOR 7104L €7.16
131
photo_cameraImage coming soon 321232-9 VICE SHAFT FOR 7104L €2.81
132
photo_cameraImage coming soon 253011-6 FLAT WASHER 6 €1.29
134
photo_cameraImage coming soon 951166-8 SPRING PIN 5/24 €1.40
136
photo_cameraImage coming soon 315340-6 SHOULDER FOR VICE FOR 7104L €100.67
137
photo_cameraImage coming soon 257562-1 COMPASS 9 FOR 7104L €3.22
140
photo_cameraImage coming soon 961012-7 RETAINING RING E6 €2.17
141
photo_cameraImage coming soon 133201-6 HANDLE FOR 7104L €9.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Chain Mortiser 7104L

Makita original spare parts for to replace broken parts for to fix Chain Mortiser 7104L.

Fix Your Chain Mortiser 7104L. All Spares are Ready For Quick Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model Chain Mortiser and the respective parts of the code.
Chain Mortiser 7104L

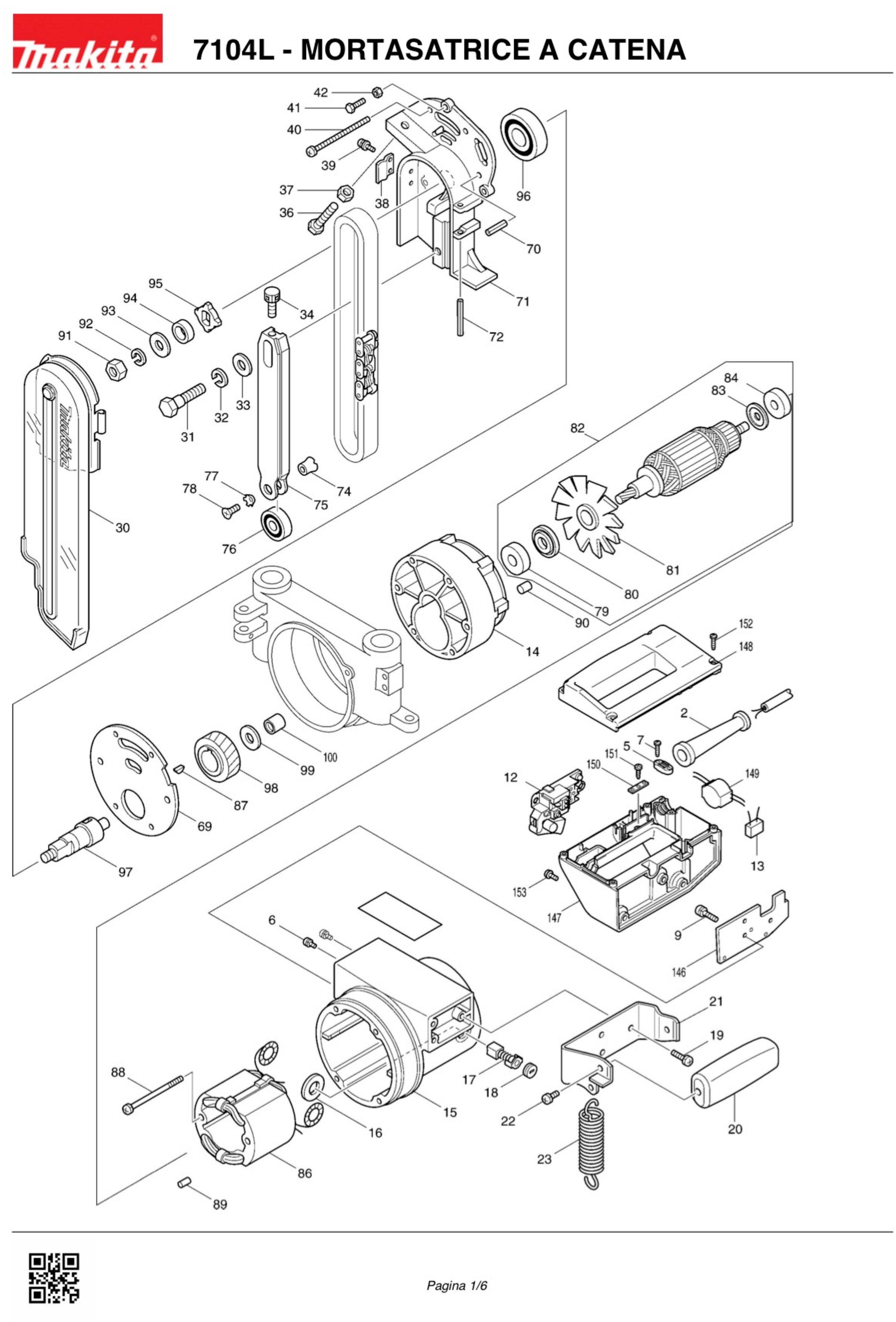

CHAIN MORTISER MAKITA 7104L pag.1
# Part Num. Description
2 682573-1 CORD ARMOR 10 X GA9010C
5 687053-2 STRAIN RELIEF
6 652014-1 SCREW M4X8 X HM1301
7 265995-6 SCREW M4X18 X 6408 / 6221DW
9 911226-8 CYLINDRICAL HEAD SCREW M5X18
12 651057-0 SWITCH TG71CL-2 X KP312S
13 645261-1 CAPACITOR FOR 7104L
14 157044-2 GEAR CASE FOR 7104L
15 154627-9 MOTOR HOUSING FOR 7104L
16 681002-1 INSULATING WASHER
17 181044-0 CARBON BRUSH SET CB-153 (150/52/54)
18 643650-4 CARBON BRUSH HOLDER CAP
19 911226-8 CYLINDRICAL HEAD SCREW M5X18
20 273416-4 KNOB 25 X PC1100
21 341571-1 LEFT-HANDLE SUPPORT
22 911206-4 CYLINDRICAL HEAD SCREW M5X10
23 231747-7 SPRING 20 FOR 7104L
30 154397-0 CHAIN ​​CARTER FOR 7104L
31 265253-0 SCREW M10 FOR 7104L
32 942253-4 ELASTIC WASHER 10 FOR 7104L
33 941252-3 FLAT WASHER 10
34 251852-4 SCREW M8X28 FOR 7104L
36 265254-8 SCREW M8X44 FOR 7104L
37 931402-8 NUT M8 X LS1013
38 232068-0 FLAT SPRING X KP312S
39 911109-2 SCREW M4X8 X 4304T-4305T
40 911908-2 CYLINDRICAL HEAD SCREW M5X80
41 921222-8 SCREW M5X16 FOR 7104L
42 252103-8 LOCKNUT X JR3020
69 341745-4 DISC FOR 7104L
70 951213-5 ELASTIC PIN 6-24 FOR 7104L
71 311528-6 CHAIN ​​MOVEMENT SUPPORT FOR 7104L
72 951178-1 ELASTIC PIN 5-40 FOR 7104L
74 325330-1 SPINDLE FOR 7104L
75 133571-3 BAR FOR CHAIN ​​FOR 7104L
76 211076-4 BEARING 1008LL FOR 7104L
77 943152-3 TOOTHED WASHER 6
78 251258-6 SCREW M6X12 FOR 7104L
79 211106-1 BALL BEARING 6201LLB
80 213102-5 DUST WASHER 12
81 241513-4 FAN 92 X SR2100 / 2300
82 516939-2 ARMATURE FOR 7104L
83 213051-6 DUST WASHER 10
84 211066-7 BALL BEARING HM1301
86 524569-5 STATOR FOR 7104L
87 254001-2 KEY 4
89 263002-9 RUBBER PIN 4
90 263005-3 RUBBER PIN 6
91 931502-4 HEX NUT M10
92 942253-4 ELASTIC WASHER 10 FOR 7104L
93 941252-3 FLAT WASHER 10
94 257017-6 RING 15 FOR 7104L
95 221501-7 PINION 4 FOR 7104L
96 211311-0 BEARING 6304LLB FOR 7104L
97 321373-1 SPINDLE FOR 7104L
98 221671-2 GEAR 47 FOR 7104L
99 253197-6 WASHER 10 X LF1000
100 212066-0 NEEDLE BEARING 1015
146 345600-2 HANDLE SUPPORT FOR 7104L
147 419064-7 HANDLE FOR 7104L
148 419065-5 HANDLE COVER FOR 7104L
149 646346-6 COIL FOR 7104L
150 654571-5 CABLE FOR 7104L
151 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
152 265995-6 SCREW M4X18 X 6408 / 6221DW
153 911218-7 CYLINDRICAL HEAD SCREW M5X14

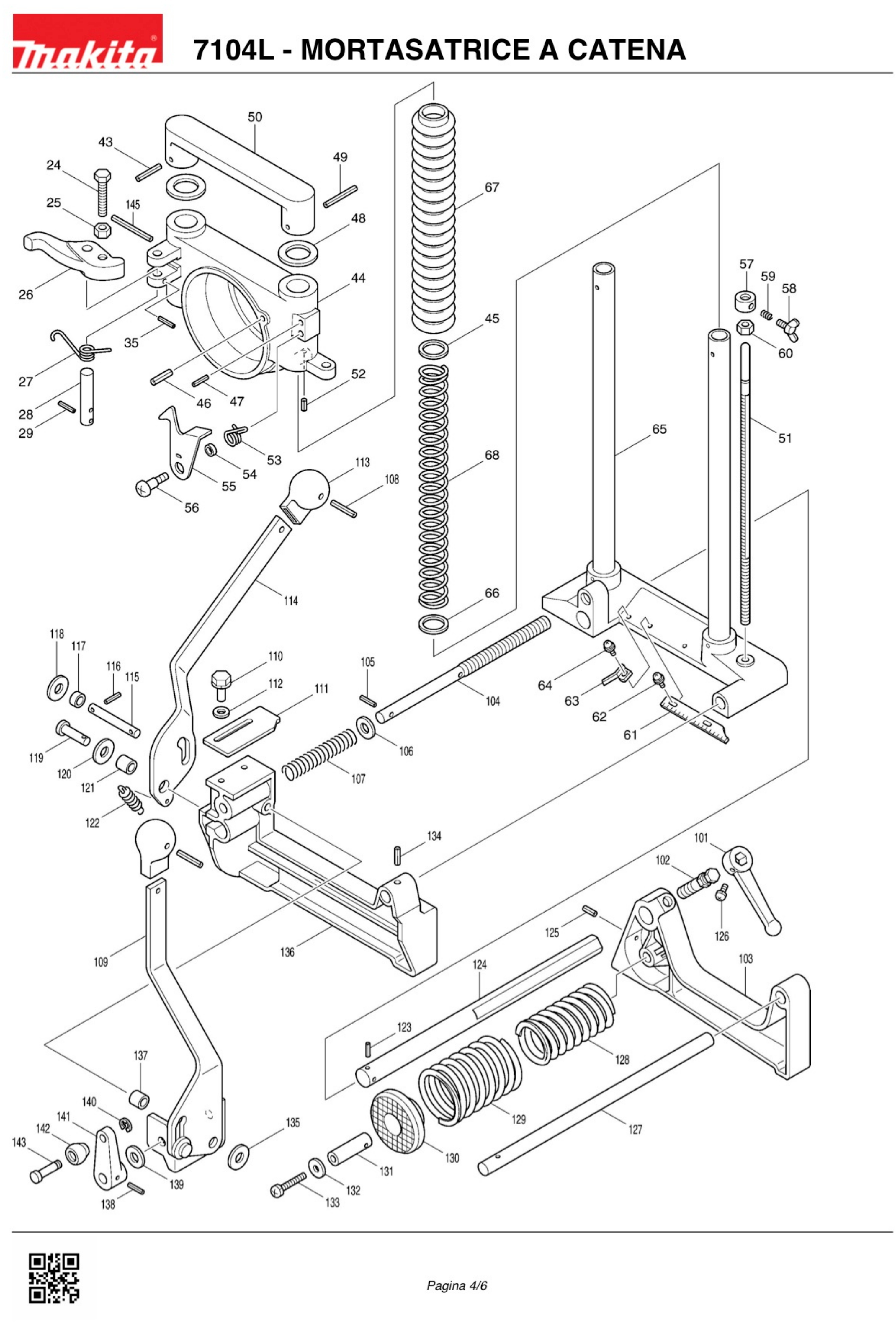

CHAIN MORTISER MAKITA 7104L pag.2
24 265254-8 SCREW M8X44 FOR 7104L
25 931402-8 NUT M8 X LS1013
26 331162-6 LEVER C FOR 7104L
27 231551-4 TORSION SPRING 12 FOR 7104L
28 256114-5 PIN 10 FOR 7104L
29 951116-3 PIN 4-20
35 951116-3 PIN 4-20
43 951172-3 ELASTIC PIN 5-32 FOR 7104L
44 310172-6 MOTOR SUPPORT FOR 7104L
45 253042-5 FLAT WASHER 25XM / HK1800
46 951213-5 ELASTIC PIN 6-24 FOR 7104L
47 951116-3 PIN 4-20
48 261022-7 RUBBER WASHER 24 FOR 7104L
49 951181-2 ELASTIC PIN 5-45 FOR 7104L
50 315344-8 UPPER HANDLE FOR 7104L
51 325057-3 DEPTH SCALE FOR 7104L
52 951151-1 ELASTIC PIN 5/12
53 231543-3 TORSION SPRING 13 FOR 7104L
54 257005-3 RING 8 FOR 7104L
55 341585-0 HOOK FOR 7104L
56 251215-4 SCREW FOR 7104L
57 252409-4 NUT M10-20 FOR 7104L
59 231005-1 SPRING 7 51BR / 8419B
60 931402-8 NUT M8 X LS1013
61 816045-6 GRADUATED SCALE FOR 7104L
62 911109-2 SCREW M4X8 X 4304T-4305T
63 341588-4 GRADUATED SCALE INDEX
64 911109-2 SCREW M4X8 X 4304T-4305T
65 154286-9 BASE FOR 7104L
66 253042-5 FLAT WASHER 25XM / HK1800
67 411723-9 BELL OF PROT. FOR 7104L
68 231289-1 COMPRESSION SPRING 25
101 133014-5 LEVER 98 57/58 / 59B / 5100BR
102 265235-2 SCREW M12X34 FOR 7104L
103 315342-2 SHOULDER FOR VICE FOR 7104L
104 321380-4 SCREW M14 FOR 7104L
105 951116-3 PIN 4-20
106 253180-3 FLAT WASHER 10 X 6221DW
107 231287-5 COMPRESSION SPRING 10 FOR 7104L
108 951172-3 5-32 ELASTIC PLUG FOR 7104L
109 154282-7 LEVER B FOR 7104L
110 921421-2 HEXAGONAL BOLT M8X16
111 341587-6 RETAINER FOR 7104L
112 941201-0 FLAT WASHER 8
113 271610-2 KNOB 40 FOR 7104L
114 341569-8 BLOCK LEVER FOR 7104L
115 256106-4 PIN 9 FOR 7104L
116 951116-3 PIN 4-20
117 257075-2 RING 9 FOR 7104L
118 253808-3 WASHER 9 FOR 7104L
119 256623-4 PIN 9 FOR 7104L
120 253808-3 WASHER 9 FOR 7104L
121 257561-3 BUSHING 9 FOR 7104L
122 231746-9 SPRING 9 FOR 7104L
123 951110-5 ELASTIC PIN 4/16 X MT240
124 321381-2 SLIDING BAR FOR 7104L
125 951163-4 PIN 5-20 X2414K
126 911207-2 SCREW M5X10 3600H
127 321382-0 GUIDE FOR 7104L
128 231286-7 COMPRESS SPRING 36 FOR 7104L
129 231285-9 SPRING COMPRES.48 FOR 7104L
130 315216-7 VICE FOR 7104L
131 321232-9 VICE SHAFT FOR 7104L
132 253011-6 FLAT WASHER 6 LS1400
133 911356-5 HEAD SCREW CILINDRICAM6X35 7104L
134 951166-8 ELASTIC PIN 5/24
135 253808-3 WASHER 9 FOR 7104L
136 315340-6 SHOULDER FOR VICE FOR 7104L
137 257562-1 COMPASS 9 FOR 7104L
138 951116-3 PIN 4-20
139 253180-3 FLAT WASHER 10 X 6221DW
140 961012-7 RINGING RING E6
141 133201-6 HANDLE FOR 7104L
145 951184-6 5-50 ELASTIC PLUG FOR 7104L

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 7104L
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Makita 7104L

Drawing Makita 7104L

Download (698.6KB)

You might also like

Makita SKU: 213460-9
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C Genuine spare part Makita, O-Ring 35 for SDS Max Rotary Demolition Hammers HR4501C  - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
AVAILABLE €3.29
Makita SKU: 681642-5
Armature Washer for Demolition Hammers Makita HR 4501-10-11C Genuine spare Makita, Armature Protection Washer for SDS-Max Rotary Hammers, HR4501C - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
Last items in stock €13.30
Makita SKU: 681646-7
Armature Washer for Demolition Hammer Makita HR3850K Genuine spare part Makita, Armature Protection Washer for Demolition Hammers HM1200 - HM1200K - HM1300 - HM1303 - HM1304 - HM1800 - HM1810 - HR3850 - HR3850K Part for the following...
AVAILABLE €8.71
Makita SKU: 253042-5
Flat Washer 25 for Hex Collar Scraper Makita HK1800 Genuine Spare Part Makita, Flat Washer 25 for Hex Collar Power Scrapers 3,2KG 505W HK1800 - HK1810 Part for the following products: -  HK1800 - HEX COLLAR POWER SCRAPER 3,2KG 505W...
Last items in stock €1.46
Comments (0)
