Makita Spare Parts for Jigsaw 4304T

SKU: Makita 4304T
€13.85
VAT included

Makita Spare Parts for Jigsaw 4304T

We have the original Makita Spare Parts for Jigsaw 4304T, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Jigsaw 4304T. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Jigsaw 4304T
  • Makita Spare Parts for Jigsaw 4304T
  • Makita Spare Parts for Jigsaw 4304T

Makita Spare Parts for Jigsaw 4304T

SKU: Makita 4304T Condition: New
€13.85
VAT included

Makita Spare Parts for Jigsaw 4304T

We have the original Makita Spare Parts for Jigsaw 4304T, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Jigsaw 4304T. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 85 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

78 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 182788-5 HANDLE CPL X 4304T €11.44
4
photo_cameraImage coming soon 344331-0 SWITCH LEVER X 4304T €2.67
5
photo_cameraImage coming soon 233101-1 COMPRESSION SPRING 4 €1.36
7
photo_cameraImage coming soon 415880-5 4304T STARTING PLATE €1.47
8
photo_cameraImage coming soon 415159-4 SPACER X 4304 €3.04
9
Switch for Polisher Makita SA7000 651922-3 Switch for Polisher Makita SA7000 €32.80
10
photo_cameraImage coming soon 631678-4 REGULATOR 200 / 220V X 4304T- €66.84
11
photo_cameraImage coming soon 256221-4 PIN 3 X JR3020 €1.36
12
photo_cameraImage coming soon 415158-6 LEVER SWITCH X JR3020 €4.98
13
photo_cameraImage coming soon 645258-0 CAPACITOR X 4304T €4.58
14
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
15
photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
16
photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
19
photo_cameraImage coming soon 322691-0 GEAR SHAFT X 4304/05 €23.64
20
photo_cameraImage coming soon 253139-0 FLAT WASHER 8 €2.03
21
photo_cameraImage coming soon 212043-2 BALL BEARING TLA810Z HR201 €6.44
22
photo_cameraImage coming soon 226428-6 GEAR 51 X 4304/05 €38.42
24
photo_cameraImage coming soon 253792-2 FLAT WASHER 26 X 9045B / N €1.36
25
photo_cameraImage coming soon 344134-2 PUSH PLATE X 4304 €3.73
26
photo_cameraImage coming soon 344330-2 BALANCE PLATE €7.36
29
photo_cameraImage coming soon 152454-8 ECCENTRIC HANDLE X 4304 €13.93
30
photo_cameraImage coming soon 212010-7 NEEDLE BEARING 607 €13.93
31
photo_cameraImage coming soon 344232-2 CURSOR PLATE X 4304 €2.03
32
photo_cameraImage coming soon 310028-3 CURSOR X 4304 €16.17
33
photo_cameraImage coming soon 316608-3 SLIDER CURSOR X 4304 €7.95
34
photo_cameraImage coming soon 153389-6 HOUSING GEAR COVER 4304 €48.75
37
photo_cameraImage coming soon 322826-3 TRASMISSION ROD X 4304T €5.86
38
photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
40
photo_cameraImage coming soon 152947-5 COMPLETE BLADE GUIDE €20.92
42
photo_cameraImage coming soon 256693-3 PIN 4 X 4304 4305 €4.30
43
photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
45
photo_cameraImage coming soon 168282-1 SHAFT X 4304T - 4305T €24.54
46
photo_cameraImage coming soon 310005-5 BLADE CLAMP X 4304T - 4305T €14.80
47
photo_cameraImage coming soon 344137-6 SLIDING PLATE X 4304 €4.30
48
photo_cameraImage coming soon 233151-6 SPRING 4 X X 4304T 4305T €1.26
49
photo_cameraImage coming soon 961017-7 RING E-3 X 4305T €3.76
50
photo_cameraImage coming soon 265035-0 SCREW M4X10 €1.36
51
photo_cameraImage coming soon 922126-7 SCREW M4x16 HR5000K / 3850B €1.69
52
photo_cameraImage coming soon 961004-6 RETAINING RING S8 €3.76
53
photo_cameraImage coming soon 442123-2 GASKET X 4304 4305 €2.62
55
photo_cameraImage coming soon 253715-0 ROND.P.6 6510PBL / LVR / 43SB €1.50
57
photo_cameraImage coming soon 911111-5 HEAD SCREW CILIND. M4X10 €3.76
59
photo_cameraImage coming soon 253811-4 WASHER 5 X 5012B €1.36
60
photo_cameraImage coming soon 272232-1 LEVER 65 X 4304T-4305T €1.47
61
photo_cameraImage coming soon 265434-6 SCREW M5X24 X 4304T-4305T €4.58
62
photo_cameraImage coming soon 344332-8 NUT M6 X 4304T-4305T €1.88
63
photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
64
photo_cameraImage coming soon 240039-3 FAN 54 €3.73
65
photo_cameraImage coming soon 517098-5 ARMATURE X 4304 4305 €86.31
66
Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
67
photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
68
photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
70
photo_cameraImage coming soon 344333-6 FIXING PLATE X 4304T €5.22
71
photo_cameraImage coming soon 252142-8 NUT M5 X 4304T-4305T €2.19
72
photo_cameraImage coming soon 911109-2 SCREW M4X8 X 4304T-4305T €1.34
74
photo_cameraImage coming soon 344443-9 BASIC PLATE X 4304 €9.61
75
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
76
photo_cameraImage coming soon 643923-5 CARBON BRUSH HOLDER  €4.09
77
photo_cameraImage coming soon 646067-0 CHOKE COIL X 6408 €5.76
79
photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
80
photo_cameraImage coming soon 415532-8 REAR COVER X 4304 €7.36
82
photo_cameraImage coming soon 415538-6 PLUG X4304 €2.03
83
photo_cameraImage coming soon 415748-5 HOUSING MOTOR X 4304 €23.64
84
photo_cameraImage coming soon 633288-3 STATOR X 4304 €27.49
86
photo_cameraImage coming soon 415878-2 DEFLECTOR X 4304T-4305T €1.47
87
photo_cameraImage coming soon 266052-3 PT SCREW 4X60 €7.03
88
photo_cameraImage coming soon 272231-3 LEVER 17 X 4304 4305 €12.33
89
photo_cameraImage coming soon 231314-8 SPRING 4 JG16 / 4301BV €1.36
90
photo_cameraImage coming soon 216008-6 BALL 4 €1.47
91
photo_cameraImage coming soon 961018-5 RETAINING RING E5 €3.76
92
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
93
photo_cameraImage coming soon 344537-0 PIN X 4304T, 4305T €1.47
94
photo_cameraImage coming soon 443106-5 FELT 10-20 €1.36
95
photo_cameraImage coming soon 344784-3 SAFETY SEAL X 4304 €1.36
96
photo_cameraImage coming soon 268074-9 PIN 4 FOR 4304 €3.73
97
photo_cameraImage coming soon 152950-6 ROLL CPL X 4304 €12.33
98
photo_cameraImage coming soon 253310-6 WASHER 10 56DW / HR3850B €1.36
99
photo_cameraImage coming soon 421821-1 DUST COVER 8 €2.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Jigsaw 4304T

We have the original Makita Spare Parts for Jigsaw 4304T, the diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of Jigsaw and the respective parts of the code.
Makita 4304T

Jigsaw 4304T
# Part Num. Description
1 912102-9 SCREW 4 X 6 X 4334D
2 182788-5 HANDLE CPL X 4304T
4 344331-0 SWITCH LEVER X 4304T
5 233101-1 COMPRESSION SPRING 4
7 415880-5 4304T STARTING PLATE
8 415159-4 SPACER X 4304
9 651922-3 TG71B SWITCH
10 631678-4 REGULATOR 200 / 220V X 4304T
11 256221-4 PIN 3 X JR3020
12 415158-6 JR3020 SWITCH LEVER
13 645258-0 CAPACITOR X 4304T
14 265995-6 SCREW M4X18 X 6408 / 6221DW
15 687063-9 STRAIN RELIEF X 4304T
16 682502-4 CORD GUARD 8/85 6408
17 265995-6 SCREW M4X18 X 6408 / 6221DW
19 322691-0 GEAR SHAFT X 4304/05
20 253139-0 FLAT WASHER 8
21 212043-2 BALL BEARING TLA810Z HR201
22 226428-6 GEAR 51 X 4304/05
23 212043-2 BALL BEARING TLA810Z HR201
24 253792-2 FLAT WASHER 26 X 9045B / N
25 344134-2 PUSH PLATE X 4304
26 344330-2 BALANCE PLATE
27 344330-2 BALANCE PLATE
28 253792-2 FLAT WASHER 26 X 9045B / N
29 152454-8 ECCENTRIC HANDLE X 4304
30 212010-7 NEEDLE BEARING 607
31 344232-2 CURSOR PLATE X 4304
32 310028-3 CURSOR X 4304
33 316608-3 SLIDER CURSOR X 4304
34 153389-6 HOUSING GEAR COVER 4304
35 322839-4 CONNECTOR X 4304T
36 416351-5 JOINT X 4304T
37 322826-3 TRASMISSION ROD X 4304T
38 266034-5 SCREW CT 4X16
39 265995-6 SCREW M4X18 X 6408 / 6221DW
40 152947-5 COMPLETE BLADE GUIDE
41 266115-5 SCREW M4X55 X 4304T
42 256693-3 PIN 4 X 4304 4305
43 266048-4 SCREW M 4 X 40 X 4334D
45 168282-1 SHAFT X 4304T - 4305T
46 310005-5 BLADE CLAMP X 4304T - 4305T
47 344137-6 SLIDING PLATE X 4304
48 233151-6 SPRING 4 X 4304T X 4305T
49 961017-7 E-3 X 4305T RING
50 265035-0 SCREW M4X10
51 922126-7 SCREW M4X16 HR5000K / 3850B
52 961004-6 RETAINING RING S8
53 442123-2 GASKET X 4304 4305
54 265995-6 SCREW M4X18 X 6408 / 6221DW
55 253715-0 FLAT WASHER 6 6510PBL / LVR / 43SB
56 151595-7 GEAR BOX 4304/4305
57 911111-5 CYLINDER HEAD SCREW M4X10
58 253715-0 FLAT WASHER 6 6510PBL / LVR / 43SB
59 253811-4 WASHER 5 X 5012B
60 272232-1 LEVER 65 X 4304T-4305T
61 265434-6 SCREW M5X24 X 4304T-4305T
62 344332-8 NUT M6 X 4304T-4305T
63 211031-6 BEARING 608LLB X 4304T
64 240039-3 FAN 54
65 517098-5 ARMATURE X 4304 4305
66 681636-0 INSULATING WASHER
67 211021-9 BALL BEARING 607LLB
68 421494-0 RUBBER RING 19 X 9521NB
70 344333-6 FIXING PLATE X 4304T
71 252142-8 NUT M5 X 4304T-4305T
72 911109-2 SCREW M4X8 X 4304T-4305T
73 912202-5 FLAT HEAD SCREW M5X8
74 344443-9 BASIC PLATE X 4304
75 191962-4 CARBON BRUSHES CB-419 (406.407) 418
76 643923-5 BRUSH HOLDER X 6408
77 646067-0 CHOKE COIL X 6408
79 266050-7 SCREW PT 4X30
80 415532-8 REAR COVER X 4304
82 415538-6 PLUG X4304
83 415748-5 HOUSING MOTOR X 4304
84 633288-3 STATOR X 4304
85 415879-0 AIR CAP X 4304T-4305T
86 415878-2 DEFLECTOR X 4304T-4305T
87 266052-3 SCREW PT 4X60
88 272231-3 LEVER 17 X 4304 4305
89 231314-8 SPRING 4 JG16 / 4301BV
90 216008-6 BALL 4
91 961018-5 STOP RING E5
92 263002-9 RUBBER PIN 4
93 344537-0 PIN X 4304T, 4305T
94 443106-5 FELT 10-20
95 344784-3 SAFETY SEAL X 4304
96 268074-9 PIN 4 FOR 4304
97 152950-6 ROLL CPL X 4304
98 253310-6 WASHER 10 56DW / HR3850B
99 421821-1 DUST COVER 8
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 4304T
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

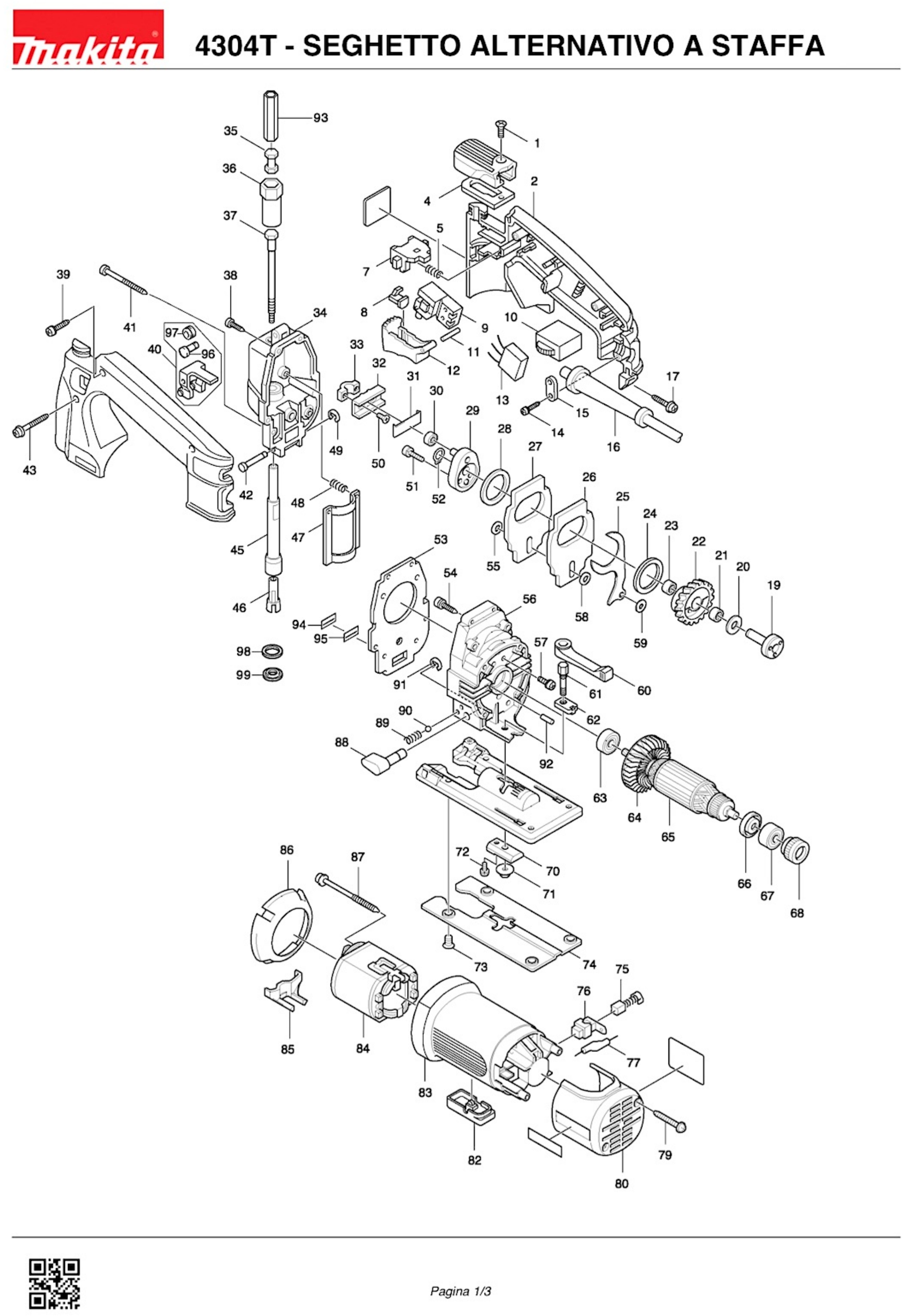

Diagram Makita 4304T
