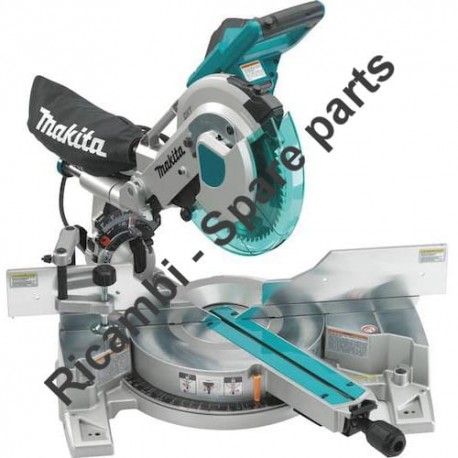

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Name: Makita Spare Parts for Sliding Compound Mitre Saw LS1219L
Brand: Makita
SKU: Makita LS1219L
Availability: InStock

SKU: Makita LS1219L

€245.01

VAT included

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Makita genuine spare parts or replacements parts for to repair Sliding Compound Mitre Saw LS1219L.

Fix Your Sliding Compound Mitre Saw LS1219L. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

141 spare parts

Page 1 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
2	Image coming soon	183H19-3 GRIP LS1019	€0.12	Not available for order
3	Image coming soon	638652-3 LASER SWITCH	€0.12	Not available for order
4	Image coming soon	631908-3 POWER CIRCUIT	€0.12	Not available for order
5	Image coming soon	451412-4 POWER CIRCUIT BOX	€0.12	Not available for order
6	Image coming soon	451003-1 LEVER SWITCH LS1216F	€1.91
7	Image coming soon	416356-5 LEVER X LF1000	€1.96
8	Image coming soon	650687-4 TG032B INTERUTOR	€0.12	Not available for order
9	Image coming soon	231026-3 SPRING 4 64K / 84DW / 6012HD	€1.29
10	Image coming soon	651941-9 SWITCH X LS1013	€5.58
11	Image coming soon	686015-7 TERMINAL	€1.23
12	Image coming soon	654531-7 CLAMP X 420S	€5.16
13		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
15	Image coming soon	451037-4 KEY SWITCH LS1216F	€1.29
16	Image coming soon	451000-7 SUPPORT LS1216F	€1.29
17		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
18		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
19	Image coming soon	457652-2 REAR COVER	€0.12	Not available for order
21		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
22	Image coming soon	687124-5 CORD CLAMP MT953	€1.32
23	Image coming soon	620811-3 REGULATOR	€0.12	Not available for order
24	Image coming soon	911948-0 SCREW M6x80 LS1216F	€1.29
26	Image coming soon	144533-6 MOTOR HOUSING	€0.12	Not available for order
27		181044-0 Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F	€9.90
28		643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A	€2.43
29	Image coming soon	596359-6 STATOR LS1216F	€56.03
30	Image coming soon	266329-6 SCREW 5x60 GA9020	€1.29
31		211480-7 Ball Bearing 6000 ZZ for CUT-OFF Machine Makita 2414EN	€2.03
32		681642-5 Armature Washer for Demolition Hammers Makita HR 4501-10-11C	€13.30
33	Image coming soon	240001-8 FAN 80 X LS1013	€5.43
34	Image coming soon	517844-6 INDUCED LS1216F	€93.52
35	Image coming soon	451194-8 DEFLECTOR LS1216F	€1.29
36	Image coming soon	318471-0 MOTOR SUPPORT LS1216F	€13.05
37		961057-5 Makita Power Tools Ext DIN471 Circlip-17	€1.47
38		210301-0 Ball Bearing 6003DDW for Circular Saw Makita HS6101K	€8.37
39	Image coming soon	922331-6 BOLT ESAG. CUT. 6x20	€1.53
40	Image coming soon	253804-1 WASHER 6 X LS1013	€1.40
41	Image coming soon	257163-5 RING 6 X LS1013	€2.52
42	Image coming soon	457704-9 SUCTION ASPIRATION	€0.12	Not available for order
43	Image coming soon	687042-7 PLATE X LS1013	€1.32
44	Image coming soon	266026-4 SCREW M4 X 12	€2.74
45	Image coming soon	251554-2 SCREW M6X40	€0.12	Not available for order
46	Image coming soon	922332-4 SCREW M6X20 X SC161	€1.44
47	Image coming soon	458146-0 LOGO PLATE LS1219L	€3.36
48	Image coming soon	961018-5 RETAINING RING E5	€1.32
49	Image coming soon	251547-9 SCREW M8X25	€0.12	Not available for order
50	Image coming soon	922226-3 SCREW M 5 X 18 X 4341FCT	€3.76
51	Image coming soon	266034-5 SCREW CT 4X16	€1.32
52	Image coming soon	144929-1 CONNECTION PLATE	€0.12	Not available for order
53	Image coming soon	257163-5 RING 6 X LS1013	€2.52
54	Image coming soon	253804-1 WASHER 6 X LS1013	€1.40
55	Image coming soon	262001-8 RING 5 X 6906 / 6905B	€2.94
56	Image coming soon	942151-2 WASHER 6	€1.24
57	Image coming soon	257785-1 COMPASS 6 LS1216F	€1.29
58	Image coming soon	266321-2 SCREW M6 X 16 X LS0714FL	€1.29
59	Image coming soon	911114-9 SCREW M4 X 10	€1.40
60	Image coming soon	231675-6 TORSION SPRING 11 X LH1040F	€1.33
61	Image coming soon	457764-1 PLATE LS1019	€0.12	Not available for order
62	Image coming soon	161647-6 PROTECTION SUPPORT LS1019	€5.42
63	Image coming soon	231928-3 RING RETAINING X LS1013	€1.33
64	Image coming soon	251544-5 SCREW M4	€0.00	Not available for order
65	Image coming soon	140F83-5 HOUSIN BLADE	€0.12	Not available for order
66	Image coming soon	231240-1 SPRING 7	€2.49
67	Image coming soon	256633-1 PIN 6 X LS1013	€1.96
68	Image coming soon	458148-6 CABLES LS1219	€1.83
69	Image coming soon	265028-7 SCREW M4X11	€2.62
70	Image coming soon	422235-7 PROTECTION LS1219L	€2.75
71	Image coming soon	347308-4 PROTECTION PLATE LS1219L	€6.58
72	Image coming soon	266283-4 SCREW M 8 X 20 X 4157KB	€2.45
73	Image coming soon	266020-6 SCREW M4 X 12	€1.32
74		961052-5 Retaining Ring S12 for Power Tools Makita	€1.32
75		210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327	€5.16
76	Image coming soon	261104-5 WASHER RUBBER 12 LS1216F	€1.29
77		253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT	€1.48
78	Image coming soon	254001-2 KEY CRESCENT 4	€1.44
79	Image coming soon	227550-2 GEAR 32 LS1216F	€9.01
80		253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT	€1.48
81	Image coming soon	253313-0 WASHER 14 X 4340T P01	€1.29
82	Image coming soon	451002-3 RETAINING LS1216F	€1.29
83	Image coming soon	266026-4 SCREW M4 X 12	€2.74
84	Image coming soon	325643-0 POST LS1216F	€4.68
85	Image coming soon	216024-8 STEEL BALL X BFL080FZ	€1.32
86	Image coming soon	227702-5 GEAR 27 LS1216F	€7.74
87	Image coming soon	227701-7 GEAR 14 LS1216F	€7.74
88		211480-7 Ball Bearing 6000 ZZ for CUT-OFF Machine Makita 2414EN	€2.03
89	Image coming soon	442147-8 SEAL LS1216F	€1.29
90		961055-9 Ext DIN471 Circlip-15 for Makita Power Tools	€1.47
91		210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327	€5.16
92	Image coming soon	911223-4 HEAD SCREW CILIND. M5X16	€1.44
93	Image coming soon	227703-3 GEAR 28 LS1216F	€7.74
94	Image coming soon	267010-2 FLAT WASHER 5 XJS1650	€1.33
95		210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327	€5.16
96	Image coming soon	158957-0 BOX BEARING LS1216F	€9.01
97	Image coming soon	285847-5 RETAINING CUSC.14-23 X BCS5	€4.68
98	Image coming soon	931202-6 NUT M5 X 4191D	€1.36
99	Image coming soon	942101-7 SPRING WASHER 5	€1.36
100	Image coming soon	325644-8 POST LS1216F	€6.90
101	Image coming soon	211236-8 BEARING 6002DDW X 5705R	€9.72
102	Image coming soon	285732-2 RETAINING BEARING 51 LS1216F	€1.29
103	Image coming soon	224431-1 INTERNAL FLANGE 53 LS1016-1216	€5.18
104	Image coming soon	224432-9 EXTERNAL FLANGE 53 LS1016-1216	€5.18
105		257262-3 Ring 16 for Slide Compound Mitre Saw Makita LH1040F	€2.13
106	Image coming soon	265034-2 SCREW M5 X 16	€1.33
107	Image coming soon	266755-9 SCREW M10X20	€1.91
108	Image coming soon	941051-3 FLAT WASHER 4	€1.38
109	Image coming soon	266020-6 SCREW M4 X 12	€1.32
110	Image coming soon	418104-8 GOAL	€2.86
111	Image coming soon	419378-4 SUPPORT B FOR LS0714FL	€3.51
112	Image coming soon	911003-8 SCREW M3X6 X 6096DW	€4.09
113	Image coming soon	231664-1 TORSION SPRING X LS0714FL	€1.29
114	Image coming soon	266318-1 SCREW M4X6 X LS0714FL	€1.29
115	Image coming soon	266306-8 SCREW M5 X LS0714FL	€2.45
116	Image coming soon	419379-2 SUPPORT C FOR LS0714FL	€4.68
117	Image coming soon	233471-8 COMPRESS SPRING 6 FOR LS0714FL	€1.29
118	Image coming soon	638651-5 LASER CIRCUIT	€32.52
119	Image coming soon	231664-1 TORSION SPRING X LS0714FL	€1.29
120	Image coming soon	266318-1 SCREW M4X6 X LS0714FL	€1.29
121	Image coming soon	266229-0 SCREW M 5X8 X KP312S	€1.29
122	Image coming soon	458903-6 LASER COVER	€0.12	Not available for order
123	Image coming soon	266034-5 SCREW CT 4X16	€1.32
124	Image coming soon	457664-5 PROTECTION LS1019	€0.12	Not available for order
125	Image coming soon	265753-0 SCREW M5X24 X LS07RKB	€2.45
126	Image coming soon	253807-5 WASHER 5 6012D / HD / 62/63 / 64DW	€1.42
127	Image coming soon	424193-3 WHEEL LS1216F	€1.29
128	Image coming soon	266385-6 SCREW 4x14 GA9020	€1.32
129	Image coming soon	458144-4 SAFETY COVER B LS1219	€48.67
130	Image coming soon	266385-6 SCREW 4x14 GA9020	€1.32
131	Image coming soon	347213-5 CENTRIFUGING PLATE LS1019	€0.12	Not available for order
132	Image coming soon	231634-0 SPRING TWIST 45 LS1016F	€1.23
133	Image coming soon	424190-9 RUBBER LS1216F	€1.29
134	Image coming soon	347214-3 CENTRAL COVER LS1019	€0.12	Not available for order
135	Image coming soon	265985-9 BOLT M6 X LS1040	€2.52
136	Image coming soon	253932-2 WASHER 10 3600B / BR	€1.33
137	Image coming soon	210168-6 BEARING 6805DDW LS1019	€0.12	Not available for order
138	Image coming soon	458437-9 SAFETY COVER A	€0.12	Not available for order
150	Image coming soon	458149-4 SLEEVE 17 LS1219L	€1.83
152	Image coming soon	233542-1 SPRING TWIST 40 LS1216F	€25.75

Page 2 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
139	Image coming soon	126792-4 COMPLETE SUCTION JOINT	€0.12	Not available for order
140		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.32
141	Image coming soon	183H71-1 SUCTION CONNECTOR DLS110	€6.58
142	Image coming soon	245048-7 TUBE 28-0.5	€6.58
143	Image coming soon	457672-6 SLEEVE LS1019	€0.12	Not available for order
144	Image coming soon	457673-4 STILL LS1019	€0.12	Not available for order
147	Image coming soon	458198-1 SUCTION JOINT DLS110	€7.39
149	Image coming soon	266034-5 SCREW CT 4X16	€1.32
153	Image coming soon	251267-5 SCREW M6	€1.96
154	Image coming soon	253948-7 SPRING WASHER 8	€1.29
155	Image coming soon	253835-0 WASHER 8	€1.32
156	Image coming soon	347221-6 QUICK RELEASE LS1019	€0.12	Not available for order
157	Image coming soon	347222-4 FRONT ARM PLATE	€0.12	Not available for order
158	Image coming soon	262076-7 FELT RING 30	€0.12	Not available for order
159	Image coming soon	326994-4 AUCTION 16 LS1019	€0.12	Not available for order
160	Image coming soon	271437-0 KNOB 22 LS1019	€0.12	Not available for order
161	Image coming soon	961013-5 RING RITEGNOXJN3200	€2.03
162	Image coming soon	266034-5 SCREW CT 4X16	€1.32
163	Image coming soon	144912-8 FRONT ARM	€0.12	Not available for order
164	Image coming soon	233151-6 SPRING 4 X X 4304T 4305T	€1.32
165	Image coming soon	256364-2 PIN 4 LS1019	€0.12	Not available for order
166	Image coming soon	232384-0 COMPRESSION SPRING 10 LS1019	€0.12	Not available for order
167	Image coming soon	326977-4 STATION PIN X LS1019	€0.12	Not available for order

Shipping and delivery information will be available shortly.

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Fix Your Sliding Compound Mitre Saw LS1219L. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.

Sliding Compound Mitre Saw LS1219L
#	Part Num.	Description
1	265995-6	SCREW M4X18 X 6408 / 6221DW
2	183H19-3	GRIP LS1019
3	638652-3	LASER SWITCH
4	631908-3	POWER CIRCUIT
5	451412-4	POWER CIRCUIT BOX
6	451003-1	LS1216F SWITCH LEVER
7	416356-5	UNLOCK LEVER X LF1000
8	650687-4	TG032B INTERUTOR
9	231026-3	SPRING 4 64K / 84DW / 6012HD
10	651941-9	SWITCH X LS1013
11	686015-7	CLAMP
12	654531-7	CLAMP X 420S
13	265995-6	SCREW M4X18 X 6408 / 6221DW
15	451037-4	LS1216F SWITCH KEY
16	451000-7	HOLDER LS1216F
17	265995-6	SCREW M4X18 X 6408 / 6221DW
18	265995-6	SCREW M4X18 X 6408 / 6221DW
19	457652-2	REAR COVER
21	265995-6	SCREW M4X18 X 6408 / 6221DW
22	687124-5	CABLE CLAMP MT953
23	620811-3	REGULATOR
24	911948-0	SCREW M6X80 LS1216F
26	144533-6	MOTOR HOUSING
27	181044-0	CARBON BRUSHES CB-153 (150/52/54)
28	643650-4	CARBON BRUSHES HOLDER CAP
29	596359-6	STATOR LS1216F
30	266329-6	SCREW 5X60 FOR GA9020
31	211480-7	BEARING 6000ZZ
32	681642-5	WASHER X LS1013
33	240001-8	FAN 80 X LS1013
34	517844-6	ARMATURE LS1216F
35	451194-8	DEFLECTOR LS1216F
36	318471-0	MOTOR SUPPORT LS1216F
37	961057-5	RINGING RING S17
38	210301-0	BEARING 6003DDW RT0700C
39	922331-6	BOLT ESAG. CUT. 6X20
40	253804-1	WASHER 6 X LS1013
41	257163-5	RING 6 X LS1013
42	457704-9	SUCTION ASPIRATION
43	687042-7	PLATE X LS1013
44	266026-4	SCREW M4 X 12
45	251554-2	SCREW M6X40
46	922332-4	SCREW M6X20 X SC161
47	458146-0	LOGO PLATE LS1219L
48	961018-5	RETAINING RING E5
49	251547-9	SCREW M8X25
50	922226-3	SCREW M 5 X 18 X 4341FCT
51	266034-5	SCREW CT 4X16
52	144929-1	CONNECTION PLATE
53	257163-5	RING 6 X LS1013
54	253804-1	WASHER 6 X LS1013
55	262001-8	RING 5 X 6906 / 6905B
56	942151-2	WASHER 6 4101R
57	257785-1	SLEEVE 6 LS1216F
58	266321-2	SCREW M6 X 16 X LS0714FL
59	911114-9	SCREW M4 X 10
60	231675-6	TORSION SPRING 11 X LH1040F
61	457764-1	PLATE LS1019
62	161647-6	PROTECTION SUPPORT LS1019
63	231928-3	STOP RING X LS1013
64	251544-5	SCREW M4
65	140F83-5	HOUSIN BLADE
66	231240-1	MOLLA7 36BR / 12BR / 2412N / 14
67	256633-1	PIN 6 X LS1013
68	458148-6	CABLES LS1219
69	265028-7	SCREW M4X11
70	422235-7	PROTECTION LS1219L
71	347308-4	PROTECTION PLATE LS1219L
72	266283-4	SCREW M 8 X 20 X 4157KB
73	266020-6	SCREW M4 X 12
74	961052-5	RING CHECK S12
75	210005-4	BEARING BALLS 608 DDW
76	261104-5	RUBBER WASHER 12 LS1216F
77	253744-3	FLAT WASHER 12 24B / 12N / 14
78	254001-2	WOODRUFF KEY 4
79	227550-2	GEAR 32 LS1216F
80	253744-3	FLAT WASHER 12 24B / 12N / 14
81	253313-0	WASHER 14 X 4340T
82	451002-3	RETAINING LS1216F
83	266026-4	SCREW M4 X 12
84	325643-0	SHAFT LS1216F
85	216024-8	BALL STEEL X BFL080FZ
86	227702-5	GEAR 27 LS1216F
87	227701-7	GEAR 14 LS1216F
88	211480-7	BEARING 6000ZZ
89	442147-8	GASKET LS1216F
90	961055-9	RINGING RING S15
91	210005-4	BEARING BALLS 608 DDW
92	911223-4	CYLINDER HEAD SCREW M5X16
93	227703-3	GEARS 28 LS1216F
94	267010-2	FLAT WASHER 5 XJS1650
95	210005-4	BEARING BALLS 608 DDW
96	158957-0	BE1216F BEARING BOX
97	285847-5	BEARING RETAINER 14-23 X BCS550R
98	931202-6	NUT M5 X 4191D
99	942101-7	ELASTIC WASHER 5
100	325644-8	SHAFT LS1216F
101	211236-8	BEARING 6002DDW X 5705R
102	285732-2	BEARING RETURN 51 LS1216F
103	224431-1	INTERNAL FLANGE 53 LS1016-1216
104	224432-9	EXTERNAL FLANGE 53 LS1016-1216
105	257262-3	RING 16 X LH1040F
106	265034-2	SCREW M5 X 16
107	266755-9	SCREW M10X20
108	941051-3	FLAT WASHER 4
109	266020-6	SCREW M4 X 12
110	418104-8	LENTE X LS0714FL
111	419378-4	SUPPORT B FOR LS0714FL
112	911003-8	SCREW M3X6 X 6096DW
113	231664-1	TORSION SPRING X LS0714FL
114	266318-1	SCREW M4X6 X LS0714FL
115	266306-8	SCREW M5 X LS0714FL
116	419379-2	SUPPORT C FOR LS0714FL
117	233471-8	COMPRESS SPRING 6 FOR LS0714FL
118	638651-5	LASER CIRCUIT
119	231664-1	TORSION SPRING X LS0714FL
120	266318-1	SCREW M4X6 X LS0714FL
121	266229-0	SCREW M 5X8 X KP312S
122	458903-6	LASER COVER
123	266034-5	SCREW CT 4X16
124	457664-5	PROTECTION LS1019
125	265753-0	SCREW M5X24 X LS07RKB
126	253807-5	WASHER 5 6012D / HD / 62/63 / 64DW
127	424193-3	WHEEL LS1216F
128	266385-6	SCREW 4X14 FOR GA9020
129	458144-4	SAFETY COVER B LS1219
130	266385-6	SCREW 4X14 FOR GA9020
131	347213-5	CENTRIFUGING PLATE LS1019
132	231634-0	SPRING TUBE 45 LS1016F
133	424190-9	RUBBER LS1216F
134	347214-3	CENTRAL COVER LS1019
135	265985-9	BOLT M6 X LS1040
136	253932-2	WASHER 10 3600B / BR
137	210168-6	BEARING 6805DDW LS1019
138	458437-9	SAFETY COVER A
Pag.2
139	126792-4	COMPLETE SUCTION JOINT
140	265995-6	SCREW M4X18 X 6408 / 6221DW
141	183H71-1	SUCTION CONNECTOR DLS110
142	245048-7	TUBE 28-0.5
143	457672-6	SLEEVE LS1019
144	457673-4	STILL LS1019
147	458198-1	SUCTION JOINT DLS110
149	266034-5	SCREW CT 4X16
150	458149-4	SLEEVE 17 LS1219L
152	233542-1	SPRING TUBE 40 LS1216F
153	251267-5	SCREW M6
154	253948-7	ELASTIC WASHER 8
155	253835-0	WASHER 8
156	347221-6	QUICK RELEASE LS1019
157	347222-4	FRONT ARM PLATE
158	262076-7	FELT RING 30
159	326994-4	AUCTION 16 LS1019
160	271437-0	KNOB 22 LS1019
161	961013-5	RETAINING RING XJN3200 RING
162	266034-5	SCREW CT 4X16
163	144912-8	FRONT ARM
164	233151-6	SPRING 4 X 4304T X 4305T
165	256364-2	PIN 4 LS1019
166	232384-0	COMPRESSION SPRING 10 LS1019
167	326977-4	STATION PIN X LS1019
168	458145-2	ARM COVER
169	144658-6	ARM SUPPORT
170	265008-3	SCREW M5 X LS1013
171	222191-9	PULLEY 17-19.3
172	210167-8	BEARING 6902LLB LS1019
173	267804-5	WAVY WASHER 15 HR2230
174	326975-8	SHAFT LS1019
175	210167-8	BEARING 6902LLB LS1019
176	687042-7	PLATE X LS1013
177	913416-9	SCREW M8X12 LS1019
178	416536-3	KEY SUPPORT X LS0714FL
179	266026-4	SCREW M4 X 12
180	951107-4	4/14 ELASTIC PIN
181	273016-0	GRIP 50B LS1019
182	266440-4	SCREW M5X40 EBH341U
183	251545-3	SCREW M6 LS1019
184	144930-6	BLOCK LEVER
185	253948-7	ELASTIC WASHER 8
186	253835-0	WASHER 8
187	251267-5	SCREW M6
188	327054-5	PIN 9-418 LS1219L
189	253194-2	WASHER 5 X HM1303
190	257436-6	SLEEVE 5 LS1219L
191	253165-9	FLAT WASHER 8
192	457666-1	SLEEVE 20 LS1019
193	326977-4	STOP PIN X LS1019
194	222192-7	PULLEY 17-87.8 LS1019
195	327053-7	NUT M10-19 LS1219L
196	225102-3	BELT 15-810
197	232384-0	COMPRESSION SPRING 10 LS1019
198	253388-9	FLAT WASHER 10 LS1019
199	252244-0	SELF-LOCKING NUT M10-17
200	253024-7	WASHER 10 X LS1013
201	961057-5	RINGING RING S17
202	216413-7	THRUST NEEDLE CAGE 1024
203	253024-7	WASHER 10 X LS1013
204	216413-7	THRUST NEEDLE CAGE 1024
205	961013-5	RETAINING RING XJN3200 RING
206	271437-0	KNOB 22 LS1019
207	253024-7	WASHER 10 X LS1013
208	144911-0	CPL ARM
209	251547-9	SCREW M8X25
210	458151-7	PLATE DX LS1219L
211	266026-4	SCREW M4 X 12
212	266034-5	SCREW CT 4X16
213	415208-7	RELEASE BUTTON X LS1211
214	233031-6	COMPRESSION SPRING X 9029-9029SF
215	457654-8	PROTECTION SUPPORT LS1019
216	458150-9	LH PLATE LS1219L
217	266026-4	SCREW M4 X 12
218	253389-7	WASHER 94 LS1019
219	422229-2	DRIVING POWDER LS1219L
220	319593-9	STOPPER LS1019
221	231646-3	SPRING TUBE 14 LS1216F
222	253744-3	FLAT WASHER 12 24B / 12N / 14
223	961052-5	RING CHECK S12
224	266026-4	SCREW M4 X 12
225	457668-7	SUPPORT LS1019
226	144925-9	LATERAL GUIDE DX
227	144922-5	SX LATERAL GUIDE
228	922458-2	SCREW M8X35 LS1019
229	251887-5	SCREW M6X10 X N500
230	251561-5	SCREW M10X12 LS1019
231	319565-4	GUIDE
232	266026-4	SCREW M4 X 12
233	451201-7	BASE AS LS1216F
235	265442-7	SCREW M8X40 X LS1013
236	253852-0	WASHER 8 X LS1013
237	216413-7	THRUST NEEDLE CAGE 1024
238	266385-6	SCREW 4X14 FOR GA9020
239	458147-8	GRADI INCLINATION PLATE LS1219
240	251547-9	SCREW M8X25
241	251547-9	SCREW M8X25
244	266026-4	SCREW M4 X 12
245	457702-3	INDEX PLATE LS1019
246	326970-8	BLOCK PIN 8 LS1019
247	234122-6	COMPRESSION SPRING 6
249	457657-2	LEVER 25 LS1019
250	253804-1	WASHER 6 X LS1013
251	961018-5	RINGING RING E5
252	144928-3	SLIDE COMPAUND LS1219L
254	326973-2	ROD 12 LS1019
255	286039-9	HOOD
256	326976-6	SHAFT LS1019
257	911113-1	SCREW M4X10 X LS1013
258	231325-3	SPRING COMPRRESS. 6 X LS0714FL
259	310803-7	ROTATION STOPPER LS1019
260	347217-7	LEVER PLATE LS1019
261	256186-0	PIN 5 MS43 / EM43
262	911231-5	CYLINDER HEAD SCREW M5X20
263	347219-3	STANDARD SUPPORT LS1019
264	327052-9	BLOCK PIN LS1219L
265	457656-4	BLOCK LEVER LS1019
266	327051-1	BLOCK PIN 6 LS1219L
267	256158-5	PIN 3 X T221DW
268	231325-3	SPRING COMPRRESSION 6 X LS0714FL
269	347237-1	CAM LS1019
270	319592-1	SUPPORT PIN LS1019
271	922231-0	BOLT M5X20
272	347216-9	BLOCK PLATE LS1019
274	326972-4	ROD 6
275	961011-9	RETAINING RING E4
276	257425-1	RING 5 LS1019
277	253194-2	WASHER 5 X HM1303
278	922231-0	BOLT M5X20
279	911113-1	SCREW M4X10 X LS1013
280	144656-0	LEVER 25 CPL LS1019
281	911008-8	SCREW M3 X 8 X 1050DW
282	345272-3	BFL0714FL BLOCK LEVER SUPPORT
283	273015-2	HANDLE 50A LS1019
284	266026-4	SCREW M4 X 12
285	457655-6	SLIDING PLATE LS1019
286	347223-2	GRADUATED PLATE LS1019
287	251546-1	SCREW M5 LS1019
288	347218-5	LATCH SLOPING PLATE LS1019
289	265786-5	SCREW M5X16
290	319560-4	BASE LS1019
291	421845-7	FOOT LS1216F
292	267195-4	WASHER 4 X DCS230T
293	266026-4	SCREW M4 X 12
294	327095-1	SUPPORT 200 LS1019
295	961015-1	RING CHECK E9 6221DW
296	266026-4	SCREW M4 X 12
297	266318-1	SCREW M4X6 X LS0714FL
299	232249-6	SPRING BAND LS1216F
300	266026-4	SCREW M4 X 12
302	327145-2	SUPPORT 90
303	266213-5	SCREW M5 X 12 X 5621RDW

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita LS1219L

Available 12 Items

Data sheet

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Mitre Saw

Specific References

Condition New

Download

Diagram Makita LS1219L

Download (561.81KB)

Makita SKU: 681642-5

Armature Washer for Demolition Hammers Makita HR 4501-10-11C

Armature Washer for Demolition Hammers Makita HR 4501-10-11C Genuine spare Makita, Armature Protection Washer for SDS-Max Rotary Hammers, HR4501C - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...

AVAILABLE €13.30

Details

Makita SKU: 181044-0

Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F

Carbon Brushes CB-153 for Miter Saws Makita LS1016-1040-1216F Genuine replacement part MAKITA, Carbon Brushes CB-153 for Miter Saws, LH1040F - LS1040F - LS1016F - LS1216F - 2704 - LF1000. Part for the following products: - Miter Saw...

AVAILABLE €9.90

Details

Makita SKU: 961015-1

Retaining Ring E9 for Planer Makita 1923B-N1923B

Retaining Ring E9 for Planer Makita 1923B-N1923B Genuine part Makita, Retaining Ring E9 6221DW for Planer N1923B - 1923b - Table Saw 2704. Parts for the following products: - Table Saw 2704 - Planer Makita N1923B - Planer Makita 1923b...

AVAILABLE €1.43

Details

Makita SKU: 211480-7

Ball Bearing 6000 ZZ for CUT-OFF Machine Makita 2414EN

Ball Bearing 6000 ZZ for CUT-OFF Machine Makita 2414EN Genuine spare part Makita, Ball Bearing 6000 ZZ for CUT-OFF Machine 2414EN- 2414NB - Smerigliatrici Angolari GA7020 - GA7020S - GA9020 - GA9020S Part for the following products: -...

AVAILABLE €2.03

Details

Makita SKU: 210301-0

Ball Bearing 6003DDW for Circular Saw Makita HS6101K

Ball Bearing 6003DDW for Circular Saw Makita HS6101K Original spare Makita, Ball Bearing 6003DDW for Circular Saws HS6101K - HS7101K - HS0600 - Levigatrici orbitali 9045B - 9045N. Part for the following products: - HS6101K - CIRCULAR...

AVAILABLE €8.37

Details

Makita SKU: 210005-4

Ball Bearing 608DDW for Jigsaw Makita 4327

Ball Bearing 608DDW for Jigsaw Makita 4327 Genuine Part Makita, Ball Bearing 608DDW for Jigsaws 4304 - 4305 - 4320 - 4322 - 4323 - 4324 - 4326 - 4327...

AVAILABLE €5.16

Details

Makita SKU: 257262-3

Ring 16 for Slide Compound Mitre Saw Makita LH1040F

Ring 16 for Slide Compound Mitre Saw Makita LH1040F Original replacement part Makita, Ring 16 for Slide Compound Mitre Saws LH1040F - LS1013 - LS1019L - LS1040F - Table Saw 2704. Part for the following products: - 2704 - TABLE SAW...

AVAILABLE €2.13

Details

Comments (0)

No customer reviews for the moment.

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Makita Spare Parts for Sliding Compound Mitre Saw LS1219L

Data sheet

Specific References

Download

Diagram Makita LS1219L

You might also like

Products

News

Notes

Our company
