Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C

SKU: Makita HM1202C
€62.54
VAT included

Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C.
Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C
  • Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C
  • Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C
Makita

Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C

SKU: Makita HM1202C Condition: New
€62.54
VAT included

Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C.
settings 89 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
89 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

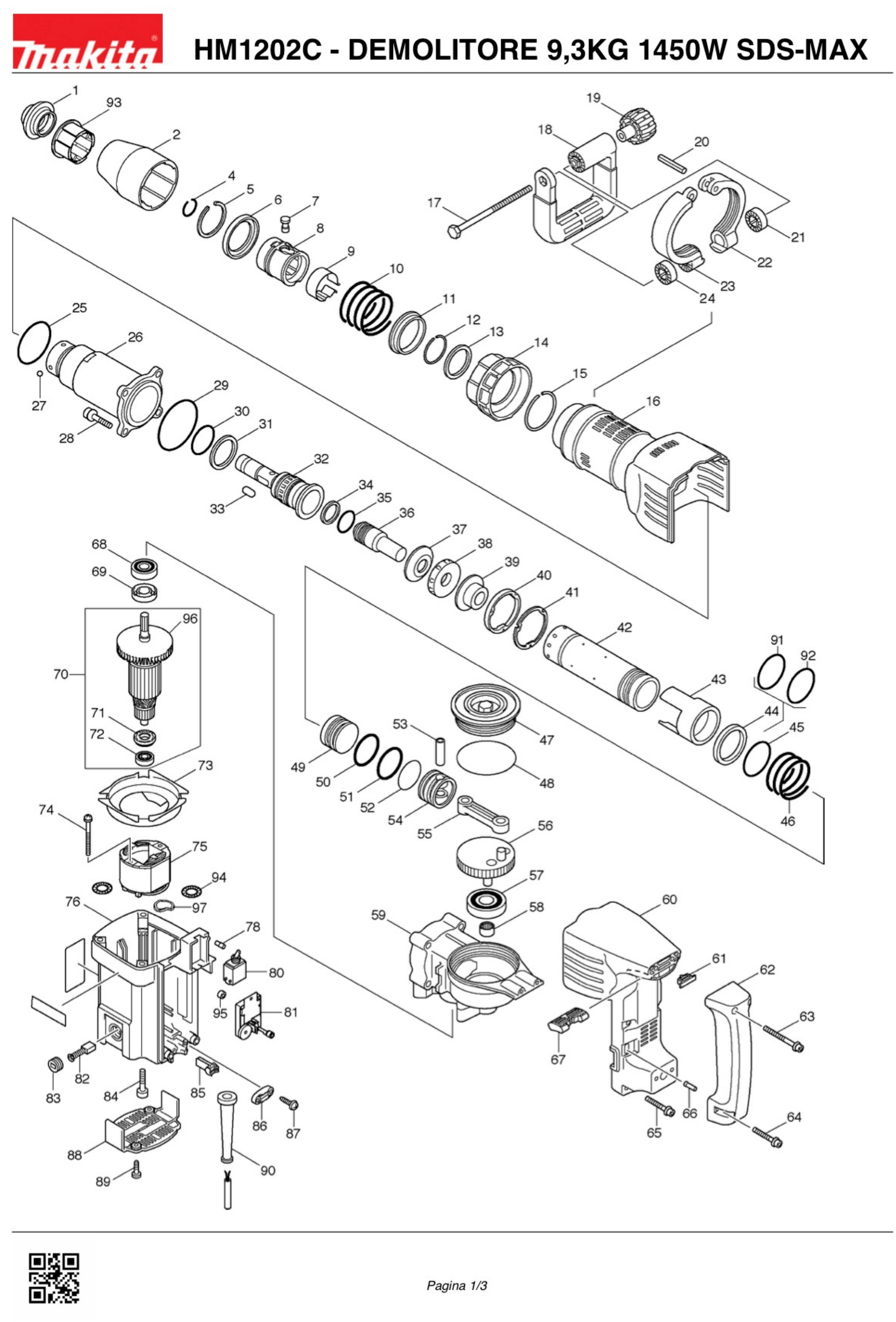

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 286250-3 TOOL HOLDER CAP HR5001C €5.58
2
 photo_cameraImage coming soon 417577-2 TIPS HOLDER COVER HM1202C €8.13
4
 Retaining Ring for Rotary Hammer Makita HR50001C 231984-3 Retaining Ring for Rotary Hammer Makita HR50001C €2.01
5
 photo_cameraImage coming soon 961232-3 RETAINING RING WR-45 €2.69
6
 photo_cameraImage coming soon 267735-8 WASHER X HR5001C €4.90
7
 photo_cameraImage coming soon 323767-6 PIN X HR5001C €4.24
8
 photo_cameraImage coming soon 324185-1 CHUCK RING HM1202C €72.55
9
 photo_cameraImage coming soon 232180-6 RING X HR5001C €4.90
10
 photo_cameraImage coming soon 233218-0 COMPRESSION SPRING HR5001C €2.58
11
 photo_cameraImage coming soon 324131-4 STEEL BALL GUIDE HM1202C €13.71
12
 photo_cameraImage coming soon 233909-3 CIRCLIP 34 HM1202C €2.00
13
 photo_cameraImage coming soon 267760-9 FLAT WASHER 37 HM1202C €8.13
14
 photo_cameraImage coming soon 416934-1 CHANGE RING X HM1202C €6.35
15
 photo_cameraImage coming soon 231989-3 CIRCLIP 46 HM1202C €2.00
16
 photo_cameraImage coming soon 416938-3 HOUSING COVER HM1202C €34.21
17
 photo_cameraImage coming soon 265439-6 SCREW M8X150 X HM1100C €2.82
18
 Side Handle for Demolition Hamme Makita HM1202C 417003-1 Side Handle for Demolition Hamme Makita HM1202C €20.05
19
 Knob Handle M8 X for Hammer Makita HM1100-HM1100C 252640-2 Knob Handle M8 X for Hammer Makita HM1100-HM1100C €8.23
20
 photo_cameraImage coming soon 951166-8 SPRING PIN 5/24 €1.40
21
 Side Handle Ring for Demolition Hamme Makita HM1202C 417002-3 Side Handle Ring for Demolition Hamme Makita HM1202C €2.82
22
 photo_cameraImage coming soon 318505-9 SIDE HANDLE BASE 82A X HM1203C €12.69
23
 photo_cameraImage coming soon 318506-7 HANDLE BASE 82B X HM1203C €12.69
25
 photo_cameraImage coming soon 213670-8 RING 58 HM1202C €2.00
26
 photo_cameraImage coming soon 310087-7 BARREL HM1202C €108.21
27
 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 216041-8 Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 €1.46
28
 photo_cameraImage coming soon 922451-6 BOLT M8x30 €1.91
29
 photo_cameraImage coming soon 213720-9 GASKET 67 €3.41
30
 photo_cameraImage coming soon 213508-7 SEAL 38 HM0810 €2.76
31
 photo_cameraImage coming soon 262095-3 RUBBER RING 43 HM1202C €3.69
32
 photo_cameraImage coming soon 324109-7 TOOL HOLDER X HM1202C €120.46
33
 Roller 8 for Hammer Makita HM1100-HM1100C 322908-1 Roller 8 for Hammer Makita HM1100-HM1100C €2.76
34
 photo_cameraImage coming soon 213431-6 O-RING 23 HR5001C €16.95
35
 photo_cameraImage coming soon 213394-6 O-RING RUBBER X HR5001C €1.42
36
 photo_cameraImage coming soon 324132-2 IMPACT BOLT HM1202C €20.62
37
 photo_cameraImage coming soon 323909-2 IMPACT BOLT GUIDE HM1202C €8.13
38
 photo_cameraImage coming soon 421691-8 RUBBER RING 21 HM1202C €12.14
39
 photo_cameraImage coming soon 323875-3 COLLARED SLEEVE 24 HM1202C €13.71
40
 photo_cameraImage coming soon 417600-3 GUIDE RING HM1202C €3.69
41
 photo_cameraImage coming soon 344998-4 FLAT WASHER 49 HM1202C €6.35
42
 photo_cameraImage coming soon 331608-2 CYLINDER LINER 44 HM1202C €65.86
43
 photo_cameraImage coming soon 416928-6 SLIDE SLEEVE 49 HM1202C €6.35
44
 photo_cameraImage coming soon 257224-1 RING 49 HM1202C €12.14
46
 photo_cameraImage coming soon 233246-5 COMPRESSION SPRING 50 HM1202C €3.01
47
 photo_cameraImage coming soon 416935-9 CRANK CAP HM1202C €10.59
48
 photo_cameraImage coming soon 213806-9 GASKET 90 XHR2510 €4.72
49
 photo_cameraImage coming soon 323910-7 STRIKER HM1202C €18.17
50
 O-Ring 34 for Demolition Hamme Makita HM1202C 213485-3 O-Ring 34 for Demolition Hamme Makita HM1202C €4.41
52
 photo_cameraImage coming soon 213523-1 RING 36 HM1202C €1.35
53
 photo_cameraImage coming soon 257693-6 PIN 9 HR5001C €3.01
54
 photo_cameraImage coming soon 416929-4 PISTON HM1202C €9.48
55
 Conrod for Demolition Hamme Makita HM1202C 416930-9 Conrod for Demolition Hamme Makita HM1202C €3.90
56
 photo_cameraImage coming soon 323877-9 CRANKSHAFT HM1202C €65.86
57
 photo_cameraImage coming soon 211327-5 BALL BEARING HM1202C €13.71
58
 photo_cameraImage coming soon 212113-7 NEEDLE BEARING 1212 €18.17
59
 photo_cameraImage coming soon 318102-1 CRANK HOUSING HM1202C €81.46
60
 photo_cameraImage coming soon 416940-6 CONTGROLLER COVER HM1202C €34.21
61
 photo_cameraImage coming soon 415692-6 STOPPER HM1100 €2.69
62
 photo_cameraImage coming soon 421507-7 HANDLE X HM1100C €44.84
63
 photo_cameraImage coming soon 922361-7 SCREW M6X40 X HM1303 €1.40
64
 photo_cameraImage coming soon 922353-6 SCREW M6x30 HM1202C €1.46
66
 Acrylic Pin 5 for Demolition Hamme Makita HM1202C 416932-5 Acrylic Pin 5 for Demolition Hamme Makita HM1202C €2.73
67
 photo_cameraImage coming soon 416931-7 SWITCH LEVER X HM1202C €4.90
68
 photo_cameraImage coming soon 211238-4 BALL BEARING 6202LLU €8.65
69
 photo_cameraImage coming soon 213273-8 OIL SEAL 17 X HM1202C €10.59
70
 photo_cameraImage coming soon 516803-7 ARMATURE HM1202C €163.92
71
 Armature Washer for Demolition Hammers Makita HR 4501-10-11C 681642-5 Armature Washer for Demolition Hammers Makita HR 4501-10-11C €13.30
72
 photo_cameraImage coming soon 211088-7 BALL BEARING 6000-9527PB 9528PB €7.11
73
 photo_cameraImage coming soon 416936-7 BAFFLE PLATE HM1202C €4.24
74
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
75
 photo_cameraImage coming soon 526093-4 STATOR - FIELD 220 X HM1202C €42.90
76
 photo_cameraImage coming soon 158581-9 MOTOR HOUSING HM1202C €58.96
78
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
80
 photo_cameraImage coming soon 651481-7 SWITCH X HM1100C €32.73
81
 Speed Controller for Demolition Hammer Makita HR5001C 631273-0 Speed Controller for Demolition Hammer Makita HR5001C €98.45
82
 Carbon Brushes CB-155 for Hammer Makita HM1400 181048-2 Carbon Brushes CB-155 for Hammer Makita HM1400 €13.26
83
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
84
 photo_cameraImage coming soon 922364-1 SCREW M6X40 €1.40
85
 photo_cameraImage coming soon 417715-6 FIX ROD €2.14
86
 photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
87
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
88
 photo_cameraImage coming soon 416937-5 REAR COVER X HM1202C €9.48
90
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €3.18
93
 photo_cameraImage coming soon 417576-4 SLEEVE 39 FOR HM1202C €3.01
94
 photo_cameraImage coming soon 654020-2 RING TERMINAL 94 €1.40
95
 photo_cameraImage coming soon 421914-4 CONTROLLER PROTECTOR HM1202C €1.35
96
 photo_cameraImage coming soon 241908-1 FAN 80 X 9049 €3.69
97
 photo_cameraImage coming soon 267809-5 WAVE WASHER 19 FOR HM1202 €1.35
999
 photo_cameraImage coming soon 193391-7 SERVICE KIT HM1202C €58.96
1000
 Grease Gr.30 for SDS-Max Hammer Makita HR4002 181490-7 Grease Gr.30 for SDS-Max Hammer Makita HR4002 €7.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Demolition Hammer 1450W SDS-MAX HM1202C

We are MAKITA original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C.

In the following table, look for the model of the Hammer and the respective parts of the code.
Makita HM1202C

HM1202C - DEMOLITORE 9,3KG 1450W SDS-MAX
# Part Num. Description
1 286250-3 TOOL HOLDER CAP HR5001C/HM1202 HR5001C
2 417577-2 TIPS HOLDER COVER HM1202C
4 231984-3 RING SPRING 25 HR50001C
5 961232-3 RETAINER RING WR 45
6 267735-8 WASHER X HR5001C
7 323767-6 PIN X HR5001C
8 324185-1 CHUCK RING HM1202C
9 232180-6 LEAF SPRING 41 HR5001C
10 233218-0 COMPRESSION SPRING HR5001C
11 324131-4 STEEL BALL GUIDE HM1202C
12 233909-3 ING SPRING 34 HM1202C
13 267760-9 FLAT WASHER 37 HM1202C
14 416934-1 CHANGE RING X HM1202C
15 231989-3 RING SPRING 46 HM1202C
16 416938-3 HOUSING COVER HM1202C
17 265439-6 SCREW M8X150 X HM1100C
18 417003-1 SIDE HANDLE X HM1202C
19 252640-2 HANDLEGRIP KNOB M8
20 951166-8 SPRING PIN 5/24
21 417002-3 SIDE HANDLE CAM HM1202C
22 318505-9 SIDE HANDLE BASE 82A X HM1203C
23 318506-7 SIDE HANDLE BASE 82B X HM1203C
24 417002-3 HANDLE RING HM1202C
25 213670-8 O-RING 58 HM1202C
26 310087-7 BARREL HM1202C
27 216041-8 STEEL BALL 5.6
28 922451-6 BOLT M8X30
29 213720-9 O-RING 67
30 213508-7 O-RING 38 HM0810
31 262095-3 RUBBER RING 43 HM1202C
32 324109-7 TOOL HOLDER X HM1202C
33 322908-1 ROLLER 8 X HM1100C
34 213431-6 O-RING 23 HR5001C
35 213394-6 RUBBER RING X HR5001C
36 324132-2 IMPACT BOLT HM1202C
37 323909-2 IMPACT BOLT GUIDE HM1202C
38 421691-8 RUBBER RING 21 HM1202C
39 323875-3 COLLARED SLEEVE 24 HM1202C
40 417600-3 GUIDE RING HM1202C
41 344998-4 FLAT WASHER 49 HM1202C
42 331608-2 CYLINDER LINER 44 HM1202C
43 416928-6 SLIDE SLEEVE 49 HM1202C
44 257224-1 RING 49 HM1202C
45 213508-7 O-RING 38 HM0810
46 233246-5 COMPRESSION SPRING 50 HM1202C
47 416935-9 CRANK CAP HM1202C
48 213806-9 O-RING 90 XHR2510
49 323910-7 STRIKER HM1202C
50 213485-3 RING 34 HM1202C
51 213485-3 RING 34 HM1202C
52 213523-1 RING 36 HM1202C
53 257693-6 PIN 9 HR5001C
54 416929-4 PISTON HM1202C
55 416930-9 CONROD HM1202C
56 323877-9 CRANKSHAFT HM1202C
57 211327-5 BALL BEARING HM1202C
58 212113-7 NEEDLE BEARING 1212
59 318102-1 CRANK HOUSING HM1202C
60 416940-6 CONTGROLLER COVER HM1202C
61 415692-6 STOPPER HM1100
62 421507-7 HANDLE X HM1100C
63 922361-7 SCREW M6X40 X HM1303
64 922353-6 SCREW M6 X30 X HM1202C
65 922353-6 SCREW M6 X30 X HM1202C
66 416932-5 RUBBER PIN 5 HM1202C
67 416931-7 SWITCH LEVER X HM1202C
68 211238-4 BALL BEARING 6202LLU
69 213273-8 OIL SEAL 17 X HM1202C
70 516803-7 ARMATURE HM1202C
71 681642-5 WASHER X LS1013
72 211088-7 BALL BEARING 6000 9527PB-9528PB
73 416936-7 BAFFLE PLATE HM1202C
74 266095-5 SCREW 5 X 55 HR5001C
75 526093-4 STATOR - FIELD 220 X HM1202C
76 158581-9 MOTOR HOUSING HM1202C
78 263002-9 RUBBER PIN 4
80 651481-7 SWITCH X HM1100C
81 631273-0 CONTROLLER X HR5001C
82 181048-2 CARBON BRUSHE SET CB-155 (CB-161)
83 643650-4 CARBON BRUSH HOLDER CAP
84 922364-1 SCREW M6X40
85 417715-6 FIX ROD
86 687053-2 STRAIN RELIEF
87 265995-6 SCREW M4X18 X 6408 / 6221DW
88 416937-5 REAR COVER X HM1202C
89 265995-6 SCREW M4X18 X 6408 / 6221DW
90 682560-0 CORD GUARD 10 HM1202C / 9079S
91 213508-7 O-RING 38 HM0810
92 213508-7 O-RING 38 HM0810
93 417576-4 SLEEVE 39 FOR HM1202C
94 654020-2 TERMINAL RING 94
95 421914-4 CONTROLLER PROTECTOR HM1202C
96 241908-1 FAN 80 X 9049
97 267809-5 WAVE WASHER 19 FOR HM1202
999 193391-7 SERVICE KIT HM1202C
1000 181490-7 GREASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HM1202C
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HM1202C

Diagram Makita HM1202C

Download (340.78KB)

You might also like

Armature Washer for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 681642-5
Armature Washer for Demolition Hammers Makita HR 4501-10-11C
Armature Washer for Demolition Hammers Makita HR 4501-10-11C Genuine spare Makita, Armature Protection Washer for SDS-Max Rotary Hammers, HR4501C - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
Last items in stock €13.30
Details
Carbon Brushes CB-155 for Hammer Makita HM1400
Makita SKU: 181048-2
Carbon Brushes CB-155 for Hammer Makita HM1400
Carbon Brushes CB-155 for Hammer Makita HM1400 Makita genuine spare part, Carbon Brusches CB-155 for Hammer Breaker HM1400 Exagonal 30 mm 1240 W Part for the following products: - Hammer Breaker HM1400 Exagonal 30 mm 1240 W Technical...
Last items in stock €13.26
Details
Speed Controller for Demolition Hammer Makita HR5001C
Makita SKU: 631273-0
Speed Controller for Demolition Hammer Makita HR5001C
Speed Controller for Demolition Hammer Makita HR5001C Genuine replacement part MAKITA, Speed Controller for Demolition Hammers SDS-MAX HM1202C - 9,3KG 1450W SDS-MAX - HR5001C - ROTATIVE HAMMER 50MM SDS-MAX....
AVAILABLE €98.45
Details
Side Handle for Demolition Hamme Makita HM1202C
Makita SKU: 417003-1
Side Handle for Demolition Hamme Makita HM1202C
Side Handle for Demolition Hammer Makita HM1202C Genuine part Makita, Side Handle for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C Parts for the following products: - Demolition Hammer Makita...
Last items in stock €20.05
Details
Knob Handle M8 X for Hammer Makita HM1100-HM1100C
Makita SKU: 252640-2
Knob Handle M8 X for Hammer Makita HM1100-HM1100C
Knob Handle M8 X for Hammer Makita HM1100-HM1100C Genuine spare parts Makita, Knob Handle M8 X for Hammer Makita HM1100 - HM1100C - HM1101C - HM1140C - HM1200K. Parts for the following products: - HM1100 - HAMMER 1050W SDS-MAX -...
AVAILABLE €8.23
Details
Retaining Ring for Rotary Hammer Makita HR50001C
Makita SKU: 231984-3
Retaining Ring for Rotary Hammer Makita HR50001C
Retaining Ring for Rotary Hammer Makita HR50001C Genuine spare part Makita, Retaining Ring for Rotary Hammers HR50001C - HR4001C - HR4002 - HR4010C - HR4011C - Hammer HM0860C - HM0870C. Part for the following products: - HR4001C -...
AVAILABLE €2.01
Details
O-Ring 34 for Demolition Hamme Makita HM1202C
Makita SKU: 213485-3
O-Ring 34 for Demolition Hamme Makita HM1202C
O-Ring 34 for Demolition Hamme Makita HM1202C Genuine replacement part Makita, Ring 34 for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C. Parts for the following products: - HM1202C - DEMOLITION HAMMER 9,3KG 1450W SDS-MAX - Code:...
AVAILABLE €4.41
Details
Acrylic Pin 5 for Demolition Hamme Makita HM1202C
Makita SKU: 416932-5
Acrylic Pin 5 for Demolition Hamme Makita HM1202C
Acrylic Pin 5 for Demolition Hamme Makita HM1202C Genuine replacement part Makita, Acrylic Pin 5 for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C. Parts for the following products: -  Demolition Hammer Makita 9,3KG 1450W SDS-MAX...
AVAILABLE €2.73
Details
Roller 8 for Hammer Makita HM1100-HM1100C
Makita SKU: 322908-1
Roller 8 for Hammer Makita HM1100-HM1100C
Roller 8 for Hammer Makita HM1100-HM1100C Genuine spare part Makita, Roller 8 for Hammer Makita HM1100 - HM1100C - HM1101C - HM1202C - HR4000C - HR4500C - HR5001C. This is an authentic...
Last items in stock €2.76
Details
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800
Makita SKU: 216041-8
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800
Steel Ball D. 5,6MM for Hex Collar Scraper Makita HK1800 Genuine Spare Part Makita, Steel Ball D. 5,6MM for Hex Collar Power Scrapers 3,2KG 505W HK1800 - HK1810 Part for the following...
Usually Ships in: 7/10 Business Days Approx. €1.46
Details
Conrod for Demolition Hamme Makita HM1202C
Makita SKU: 416930-9
Conrod for Demolition Hamme Makita HM1202C
Conrod for Demolition Hamme Makita HM1202C Genuine replacement part Makita, Conrod for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C. Parts for the following products: -  Demolition Hammer Makita 9,3KG 1450W SDS-MAX HM1202C - Code:...
Last items in stock €3.90
Details
Comments (0)
