Makita Spare Parts for Vacuum Cleaner VC3210L

SKU: Makita VC3210L
€177.45
VAT included

Makita Spare Parts for Vacuum Cleaner VC3210L

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wet/Dry Vacuum Cleaner VC3210L.
Makita Spare Parts for Vacuum Cleaner VC3210L
  • Makita Spare Parts for Vacuum Cleaner VC3210L
  • Makita Spare Parts for Vacuum Cleaner VC3210L
  • Makita Spare Parts for Vacuum Cleaner VC3210L

Makita Spare Parts for Vacuum Cleaner VC3210L

SKU: Makita VC3210L Condition: New
€177.45
VAT included

Makita Spare Parts for Vacuum Cleaner VC3210L

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wet/Dry Vacuum Cleaner VC3210L.
settings 93 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 452451-7 REAR COVER X VC3210L €4.74
2
photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
3
photo_cameraImage coming soon 140751-4 TOP COVER VC3210L €22.50
4
photo_cameraImage coming soon 451340-3 HANDLE VC3210L €6.77
6
photo_cameraImage coming soon 423393-2 UPPER DAMPER VC3210L €4.09
7
photo_cameraImage coming soon 266060-4 SCREW M4 X 65 JN1601 €4.70
9
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
11
photo_cameraImage coming soon 650623-0 SWITCH X VC3210L €17.13
13
photo_cameraImage coming soon 631922-9 CONTROL X VC3210L €11.40
17
photo_cameraImage coming soon 655117-0 SOCKET X VC3210L €6.77
19
photo_cameraImage coming soon 140742-5 BASE SWITCH X VC3210L €8.81
25
photo_cameraImage coming soon 213054-0 GASKET 9 HR2210 / 20 / 5016N €1.36
31
Controller for Vacuum Cleaner Makita VC3210L 620033-5 Controller for Vacuum Cleaner Makita VC3210L €86.42
32
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C 213406-5 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C €1.35
34
photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
35
photo_cameraImage coming soon 687149-9 CABLE CLAMP VC3210L €2.03
36
photo_cameraImage coming soon 688131-1 FILTER LINE X MT240 €1.40
37
photo_cameraImage coming soon 140254-8 BASE UPPER COVER VC3210L €15.10
38
photo_cameraImage coming soon 423395-8 LOWER CUSHION VC3210L €2.16
39
photo_cameraImage coming soon 423279-0 SEAL 70 VC3210L €3.08
40
photo_cameraImage coming soon 451338-0 MOTOR COVER VC3210L €2.52
41
photo_cameraImage coming soon 241512-6 FAN 62 VC3210L €1.68
42
photo_cameraImage coming soon 424228-0 RUBBER RING 120 X VC3210L €4.09
43
photo_cameraImage coming soon 125876-5 MOTOR X VC3210L €138.86
44
photo_cameraImage coming soon 911283-6 SCREW M5X60 VC3210L €1.41
45
photo_cameraImage coming soon 195483-8 CARBON BRUSHES CB-173 €10.10
46
photo_cameraImage coming soon 452106-4 CARBON BRUSH HOLDER X VC3210L €10.10
47
photo_cameraImage coming soon 643610-6 CARBON BRUSH HOLDER VC3210L €3.08
48
photo_cameraImage coming soon 911118-1 M4PER12 SCREW €2.74
51
Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
52
photo_cameraImage coming soon 517849-6 ARMATURE VC3210L €54.69
53
photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
54
photo_cameraImage coming soon 526204-1 STATOR FOR VC3210L €39.88
56
photo_cameraImage coming soon 316795-8 FLANGE VC3210L €1.68
57
photo_cameraImage coming soon 241910-4 FAN 125 X VC3210L €3.54
58
photo_cameraImage coming soon 325747-8 SPACER X VC3210L €2.16
59
photo_cameraImage coming soon 346114-4 PROTECTION X VC3210L €6.03
60
photo_cameraImage coming soon 241910-4 FAN 125 X VC3210L €3.54
62
photo_cameraImage coming soon 931403-6 HEX NUT M8 €1.40
63
photo_cameraImage coming soon 346115-2 COIL COVER X VC3210L €3.08
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
A01-1
photo_cameraImage coming soon 195433-3 HOSE COMPLETE 28-3.5 SET €64.92
A05
photo_cameraImage coming soon 195440-6 POLY BAG SET €14.91
C20
photo_cameraImage coming soon 417191-4 CUFF LOCK €5.52
A04
photo_cameraImage coming soon 417764-3 HOLDER 10-33 €1.29
A02
photo_cameraImage coming soon 417765-1 FRONT CUFF 22 €2.73
C50
photo_cameraImage coming soon 417766-9 FRONT CUFF 38 €4.23
64
photo_cameraImage coming soon 424229-8 SUPPORT X VC3210L €3.54
65
photo_cameraImage coming soon 423396-6 REAR FILTER X VC3210L €4.74
66
photo_cameraImage coming soon 423399-0 SIDE FILTER X VC3210L €1.68
67
photo_cameraImage coming soon 423397-4 SHOCK ABSORBER X VC3210L €2.16
68
photo_cameraImage coming soon 451544-7 TANK COVER X VC3210L €28.42
71
photo_cameraImage coming soon 195441-4 FILTER CARTRIDGE X VC3210L €100.01
72
photo_cameraImage coming soon 424377-3 SHOCK ABSORBER X VC3210L €15.10
73
photo_cameraImage coming soon 195612-3 PRE-FILTER VC3210L €39.88
74
photo_cameraImage coming soon 424270-1 SHOCK ABSORBER X VC3210L €13.25
75
photo_cameraImage coming soon 266257-5 SCREW M4 X 28 X 9561CV €2.01
76
photo_cameraImage coming soon 417587-9 SUPPORT VC3210L €2.16
77
photo_cameraImage coming soon 451455-6 SUPPORT X VC3210L €1.68
78
Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
79
Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
80
photo_cameraImage coming soon 168537-4 HOOK X VC3210L €11.40
81
photo_cameraImage coming soon 451545-5 HOOK SUPPORT VC3210L €1.68
82
photo_cameraImage coming soon 188824-5 TANK X VC3210L €174.00
83
photo_cameraImage coming soon 451546-3 SUCTION COVER X VC3210L €4.74
84
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K 213655-4 Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K €3.13
85
photo_cameraImage coming soon 451454-8 RING X VC3210L €6.03
86
photo_cameraImage coming soon 424346-4 RING T VC3210 €4.74
87
photo_cameraImage coming soon 649150-2 CABLE GRAUND 120 VC3210L €3.08
89
photo_cameraImage coming soon 911118-1 M4PER12 SCREW €2.74
90
photo_cameraImage coming soon 451643-5 WHEEL COVER X VC3210L €1.68
91
photo_cameraImage coming soon 961060-6 RETAINING RING S20 €2.50
92
Washer 20 for Angle Grinder Makita GA9020 267299-2 Washer 20 for Angle Grinder Makita GA9020 €1.27
93
photo_cameraImage coming soon 451642-7 WHEEL 170 VC3210L €26.01
94
photo_cameraImage coming soon 331888-0 JOINT X VC3210L €4.74
95
photo_cameraImage coming soon 168547-1 WHEEL 75 X VC3210L €10.10
96
photo_cameraImage coming soon 141019-1 FLOAT X VC3210L €6.03
97
photo_cameraImage coming soon 452446-0 FLOATING SUPPORT VC3210L €4.74
98
photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
99
photo_cameraImage coming soon 424382-0 RUBBER SUPPORT X VC3210L €2.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Vacuum Cleaner VC3210L

Distribution and Sale at attractive prices of MAKITA Original Spare Parts

. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wet/Dry Vacuum Cleaner VC3210L.

In the following table, look for the model of Vacuum Cleaner and the respective parts of the code.
Makita VC3210L

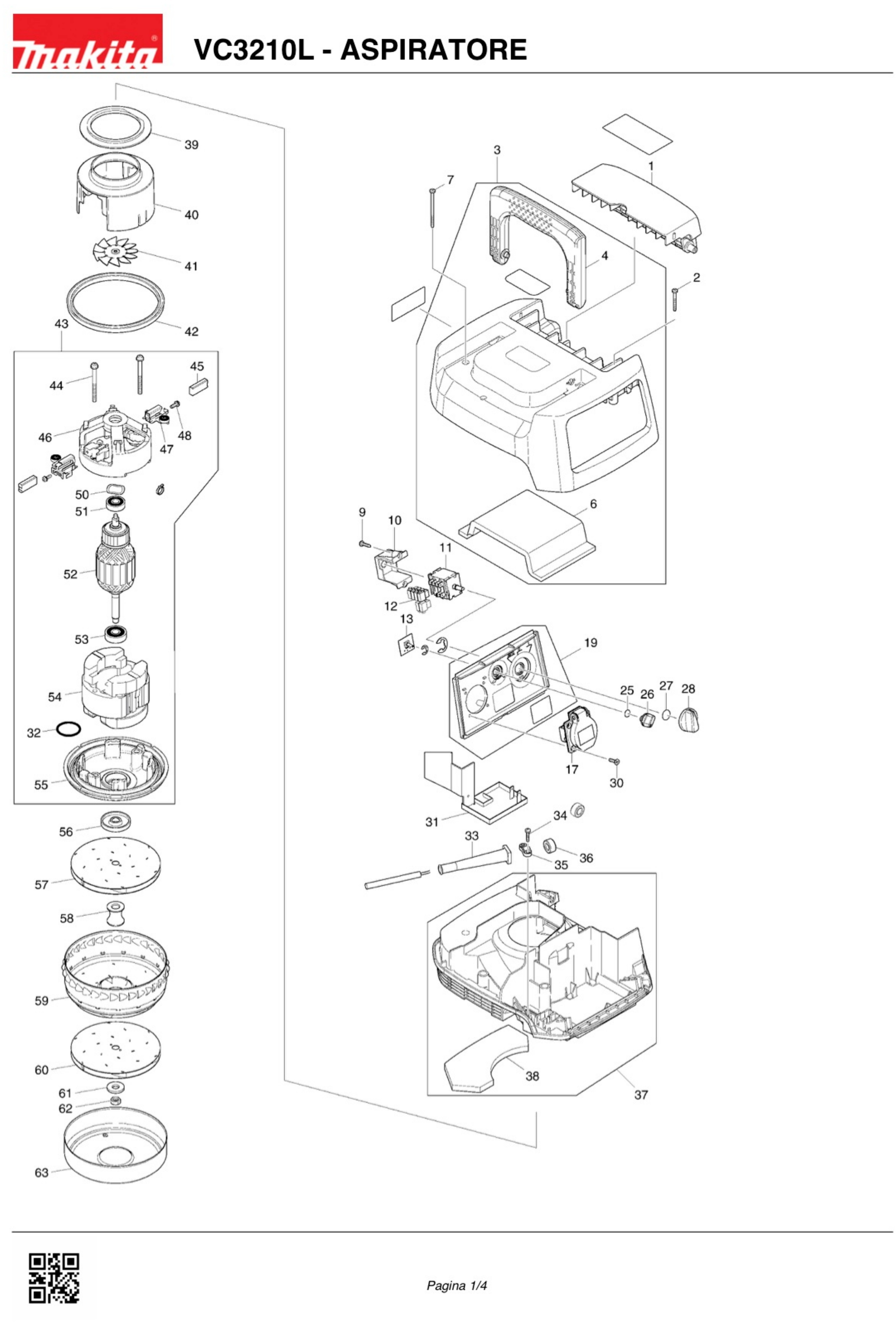

VC3210L VACUUM CLEANER CLASS L MAKITA Pag.1
# Part Num. Description
1 452451-7 REAR COVER X VC3210L
2 266048-4 SCREW M 4 X 40 X 4334D
3 140751-4 TOP COVER VC3210L
4 451340-3 HANDLE VC3210L
6 423393-2 UPPER DAMPER VC3210L
7 266060-4 SCREW M4 X 65 JN1601
9 265995-6 SCREW M4X18 X 6408 / 6221DW
10 451343-7 VC3210L SWITCH SUPPORT
11 650623-0 SWITCH X VC3210L
12 686023-8 CLAMP VC3210L
13 631922-9 CONTROL X VC3210L
17 655117-0 SOCKET X VC3210L
19 140742-5 BASE SWITCH X VC3210L
25 213054-0 GASKET 9 HR2210 / 20 / 5016N
26 451344-5 VC3210L SWITCH KNOB
27 213176-6 RING 14 X AN901
28 451342-9 SWITCH LEVER X VC3210L
30 266630-9 SCREW 4X16 X VC3210L
31 620033-5 CONTROLLER FOR VC3210L
32 213406-5 GASKET 30 58NB / SB / HM1200
33 682575-7 CABLE SLEEVE 12-90 VC3210L
34 265999-8 SCREW 4X25
35 687149-9 CABLE CLAMP VC3210L
36 688131-1 LINE FILTER X MT240
37 140254-8 BASE UPPER COVER VC3210L
38 423395-8 LOWER CUSHION VC3210L
39 423279-0 SEAL 70 VC3210L
40 451338-0 MOTOR COVER VC3210L
41 241512-6 FAN 62 VC3210L
42 424228-0 RUBBER RING 120 X VC3210L
43 125876-5 MOTOR X VC3210L
44 911283-6 SCREW M5X60 VC3210L
45 195483-8 CARBON BRUSHES CB-173
46 452106-4 BRUSH HOLDER X VC3210L
47 643610-6 BRUSH HOLDER VC3210L
48 911118-1 SCREW M4X12
50 267715-4 WAVY WASHER 20 VC3210L
51 211092-6 BEARING BALLS 629DD
52 517849-6 ARMATURE VC3210L
53 211087-9 BALL BEARING 6200DDW NSK
54 526204-1 STATOR FOR VC3210L
55 454480-6 MOTOR SUPPORT
56 316795-8 FLANGE VC3210L
57 241910-4 FAN 125 X VC3210L
58 325747-8 SPACER X VC3210L
59 346114-4 PROTECTION X VC3210L
60 241910-4 FAN 125 X VC3210L
61 316799-0 WASHER 10 VC3210L
62 931403-6 HEXAGONAL NUT M8
63 346115-2 COIL COVER X VC3210L

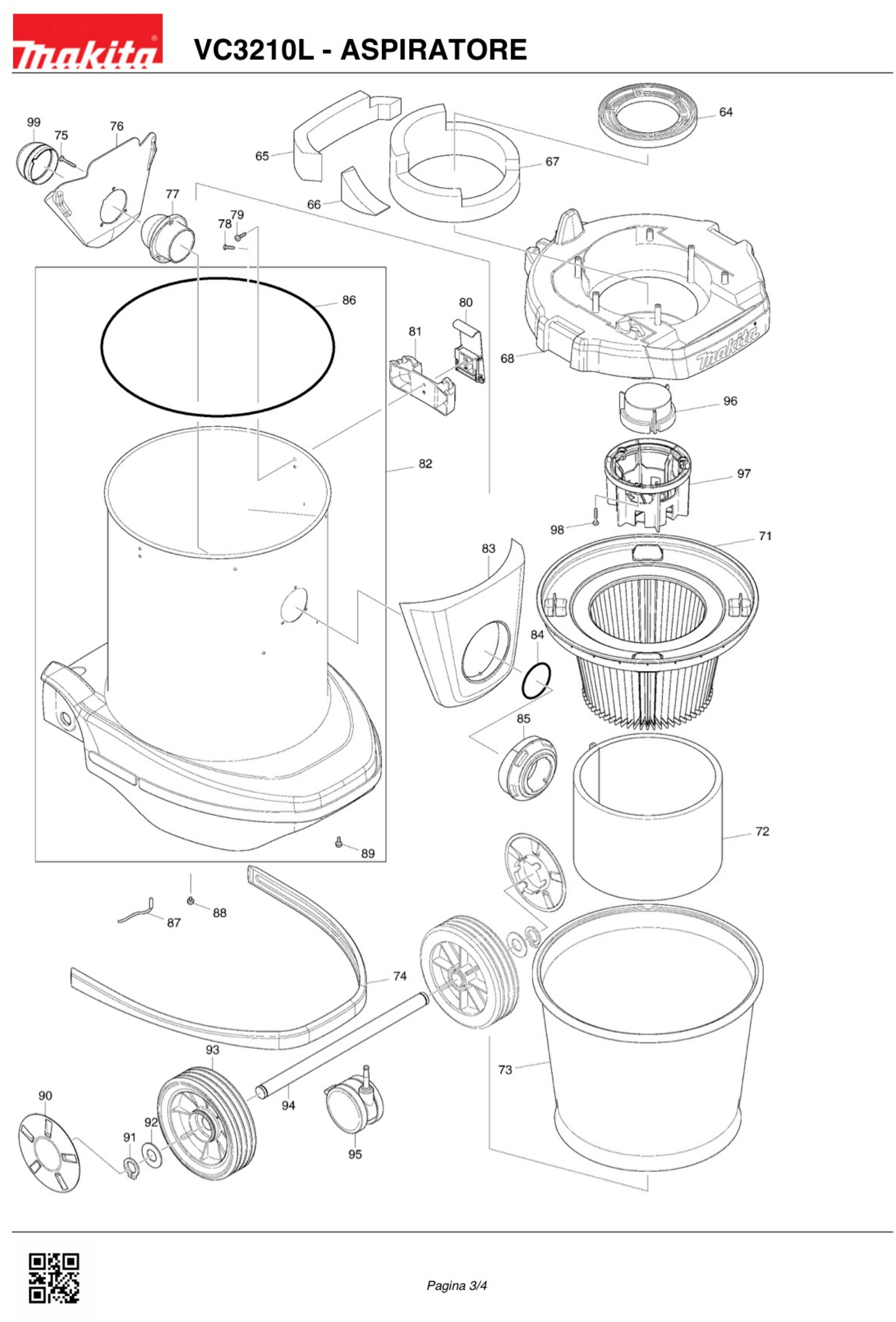

VC3210L VACUUM CLEANER CLASS L MAKITA Pag.2
64 424229-8 SUPPORT X VC3210L
65 423396-6 REAR FILTER X VC3210L
66 423399-0 SIDE FILTER X VC3210L
67 423397-4 SHOCK ABSORBER X VC3210L
68 451544-7 TANK COVER X VC3210L
71 195441-4 FILTER CARTRIDGE X VC3210L
72 424377-3 SHOCK ABSORBER X VC3210L
73 195612-3 PRE-FILTER VC3210L
74 424270-1 SHOCK ABSORBER X VC3210L
75 266257-5 SCREW M4 X 28 X 9561CV
76 417587-9 SUPPORT VC3210L
77 451455-6 SUPPORT X VC3210L
78 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
79 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
80 168537-4 HOOK X VC3210L
81 451545-5 HOOK SUPPORT VC3210L
82 188824-5 TANK X VC3210L
83 451546-3 SUCTION COVER X VC3210L
84 213655-4 GASKET 56 HR3510 / 20 / HM12
85 451454-8 RING X VC3210L
86 424346-4 RING T VC3210
87 649150-2 CABLE MASS 120 VC3210L
88 911103-4 PAN HEAD SCREW M4X6 3600H
89 911118-1 SCREW M4X12
90 451643-5 WHEEL COVER X VC3210L
91 961060-6 RING CHECK S20
92 267299-2 WASHER 20 FOR GA9020
93 451642-7 WHEEL 170 VC3210L
94 331888-0 JOINT X VC3210L
95 168547-1 WHEEL 75 X VC3210L
96 141019-1 FLOAT X VC3210L
97 452446-0 FLOATING SUPPORT VC3210L
98 265999-8 SCREW 4X25
99 424382-0 RUBBER SUPPORT X VC3210L
A01-1 195433-3 HOSE COMPLETE 28-3.5 SET
C20 417191-4 CUFF LOCK
C30 417586-1 STOPPER
C40 417662-1 SLEEVE
C50 417766-9 FRONT CUFF 38
D10 INC. A02,A03
A02 417765-1 FRONT CUFF 22
A03 424379-9 FRONT CUFF 24
A04 417764-3 HOLDER 10-33
A05 195440-6 POLY BAG SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita VC3210L
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita VC3210L

Diagram Makita VC3210L

Download (577.58KB)

You might also like

Valex s.p.a. SKU: 213406-5
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C Genuine spare part Makita, O-Ring for cylinder Rotary Demolition Hammers SDS Max, HR4001C - HR4002 - HR4003C - HR4010C - HR4011C Part for the following products: - Rotary...
Last items in stock €1.35
Makita SKU: 267299-2
Washer 20 for Angle Grinder Makita GA9020 Genuine replacement part Makita, Washer 20 for Angle Grinders GA9020 - GA9020S - GA9030 - GA9030R - GA9030S - GA9040R - GA9040S. Part for the following products: - GA7020 - ANGLE GRINDER 180MM...
AVAILABLE €1.27
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K Sale
Makita SKU: 213655-4
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K Genuine part Makita, Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850 - HR3850B - HR3850K. For the following items: - Rotary Demolition Hammer MAKITA HR3850 - Rotary...
AVAILABLE €3.13
Makita SKU: 211092-6
Bearing 629DD FOR Angle Grinder Makita GA4530 Genuine part Makita, Ball Bearing 629DD for Angle Grinders GA4530 - GA4530R - GA4534 - GA5034 - GA9000 - 9541-9542. Parts for the following products: - GA4530 - ANGLE GRINDER 115MM -...
AVAILABLE €9.01
Makita SKU: 266192-7
Srew M4X14 for Hammers Makita HR4001C-HR4010C Original spare Makita, Srew M4X14 for Demolition Hammers Makita HR4001C - HR4010C Parts for the following products: - Demolition Hammer HR4001C -...
AVAILABLE €1.46
Makita SKU: 620033-5
Controller for Vacuum Cleaner Makita VC3210L Genuine spare part Makita, Controller for Vacuum Cleaner 32L 1050W L Wet - Dry - VC3210L Part for the following products: -  VC3210L - Vacuum Cleaner 32L 1050W L Wet - Dry - Code: 620033-5
Last items in stock €86.42
Comments (0)
