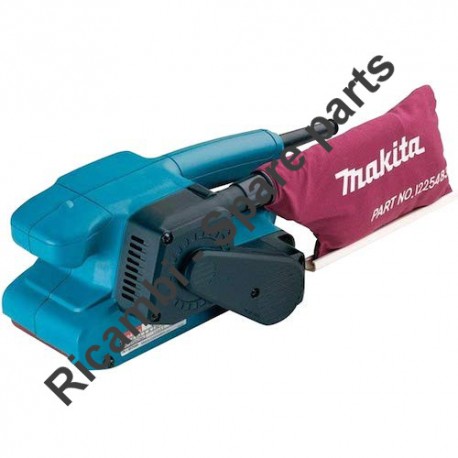

Makita Spare Parts for Belt Sander 9911
Fix Your
Belt Sander 9911. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Orbital Sander and the respective parts of the code.

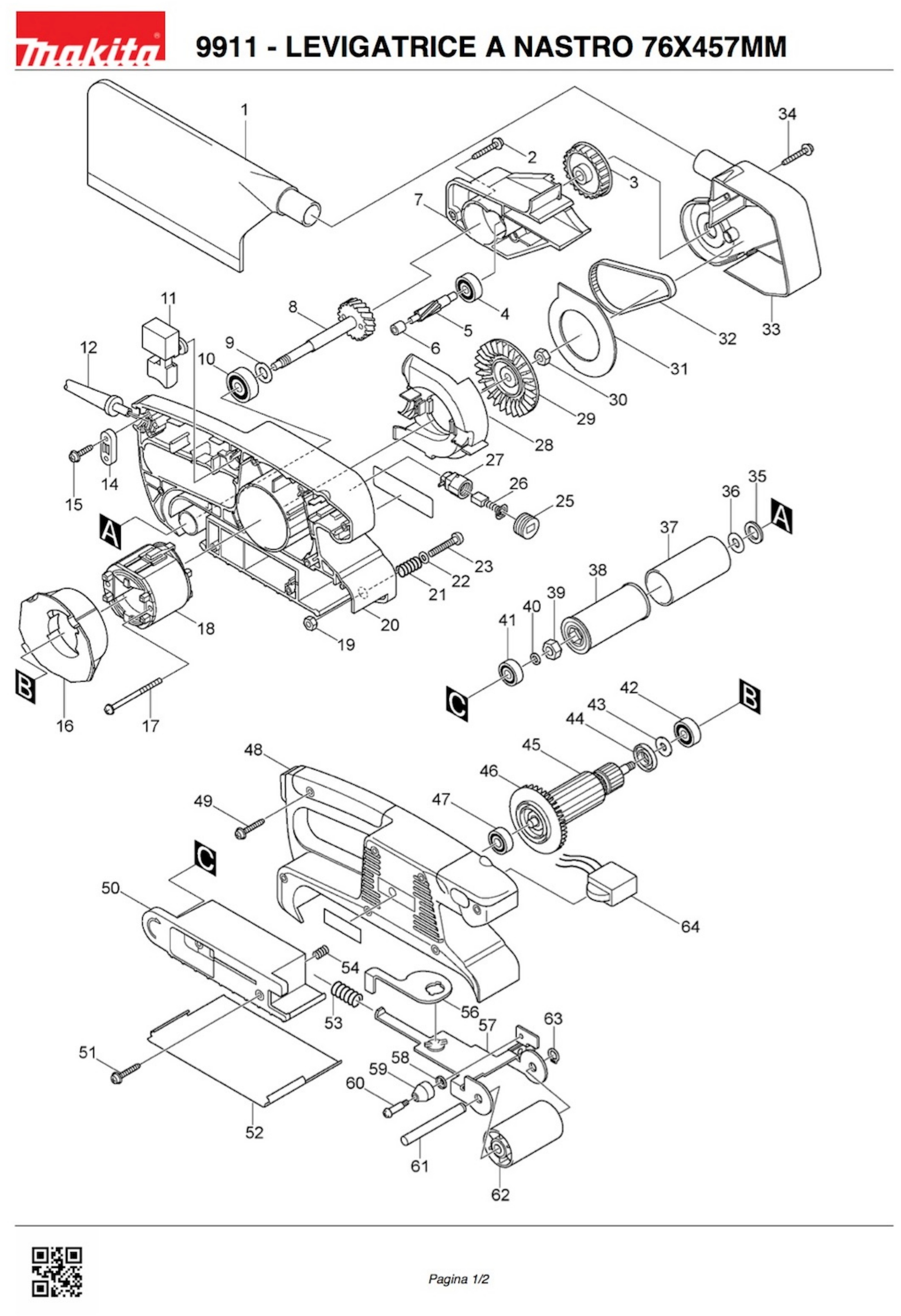

| Belt Sander 9911 |
| # |
Part Num. |
Description |
| 1 |
122548-3 |
DUST BAG 9910 / 11 |
| 2 |
265999-8 |
SCREW 4X25 |
| 3 |
222144-8 |
PULLEY 8,5-45,1 9910/11 |
| 4 |
210005-4 |
BEARING BALLS 608 DDW |
| 5 |
226494-3 |
GEAR 9910/11 |
| 6 |
212009-2 |
ROLLER BEARING X 9910/11 |
| 7 |
416420-2 |
MOTOR HOLDER X 9910/11 |
| 8 |
153252-3 |
CPL GEAR X 9910 |
| 9 |
253758-2 |
FLAT WASHER 10 |
| 10 |
211061-7 |
BEARING BALLS 6000DD 6221DW |
| 11 |
651285-7 |
9910/11 SWITCH |
| 12 |
682504-0 |
CORD GUARD 10/85 |
| 14 |
687063-9 |
STOPPER X 4304T |
| 15 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 16 |
416418-9 |
CONVOYER 9910/11 |
| 17 |
266052-3 |
SCREW PT 4X60 |
| 18 |
633393-6 |
STATOR 220/240 X 9910/11 |
| 19 |
252156-7 |
NUT M5 X 4191D |
| 20 |
150958-4 |
LEFT HOUSING 9910-9911 |
| 21 |
233219-8 |
SPRING COMPRES.6 9910/11 |
| 22 |
941102-2 |
FLAT WASHER 5 |
| 23 |
911252-7 |
CYLINDER HEAD SCREW 9910/11 |
| 25 |
643550-8 |
CAP BRUSH HOLDER |
| 26 |
191940-4 |
CARBON BRUSHE SET CB-411/410 422/421 |
| 27 |
643922-7 |
CARBON BRUSHES HOLDER X 9521NB |
| 28 |
416416-3 |
SPIRAL PLATE 9910/11 |
| 29 |
241660-1 |
FAN WITH PULLEY 9910/11 |
| 30 |
252153-3 |
NUT M6 FIL. SX |
| 31 |
344584-1 |
PLATE 9910/11 |
| 32 |
225079-2 |
BELT 9910/11 |
| 33 |
416415-5 |
BELT COVER X 9910/11 |
| 34 |
265999-8 |
SCREW 4X25 |
| 35 |
267177-6 |
FLAT WASHER 9910/11 |
| 36 |
253865-1 |
WASHER 8 HR5000K / HR3850 |
| 37 |
422032-1 |
RUBBER SLEEVE 9910/11 |
| 38 |
316971-4 |
REAR ROLLER9910 / 11 |
| 39 |
252154-1 |
NUT 9910/11 |
| 40 |
253077-6 |
FLAT WASHER 6 4300 / 01BV |
| 41 |
210143-2 |
BEARING 626ZZ |
| 42 |
210023-2 |
BEARING 9910/11 |
| 43 |
253823-7 |
FLAT WASHER 7 X JS1600 |
| 44 |
681648-3 |
INSULATING WASHER 9910/11 |
| 45 |
517243-2 |
ARMATURE 9910/11 |
| 46 |
240008-4 |
FAN X 9910/11 |
| 47 |
211021-9 |
BALL BEARING 607LLB |
| 48 |
182982-9 |
RIGHT HOUSING 9911 |
| 49 |
265999-8 |
SCREW 4X25 |
| 50 |
416419-7 |
SHOE 9910/11 |
| 51 |
265999-8 |
SCREW 4X25 |
| 52 |
344586-7 |
STEEL PLATE 9910/11 |
| 53 |
233221-1 |
COMPRESSION SPRING 9910/11 |
| 54 |
231038-6 |
COMPRESSION SPRING 5.5 LS0810 |
| 56 |
344585-9 |
LEVER 9910/11 |
| 57 |
150837-6 |
FRONT AXLE ROLLER 9910/11 |
| 58 |
267731-6 |
WASHER X 9910/11 |
| 59 |
416417-1 |
ROLLER X 9910/11 |
| 60 |
265059-6 |
SCREW 9910/11 |
| 61 |
323776-5 |
ROLLER PIN 9910/11 |
| 62 |
152585-3 |
FRONT ROLLER CPL 9910/11 |
| 63 |
961004-6 |
RING CHECK S8 |
| 64 |
631678-4 |
REGULATOR 200 / 220V X 4304T- |
