Makita Spare Parts for Belt Sander 9404X
Fix Your Belt Sander 9404X. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Orbital Sander and the respective parts of the code.

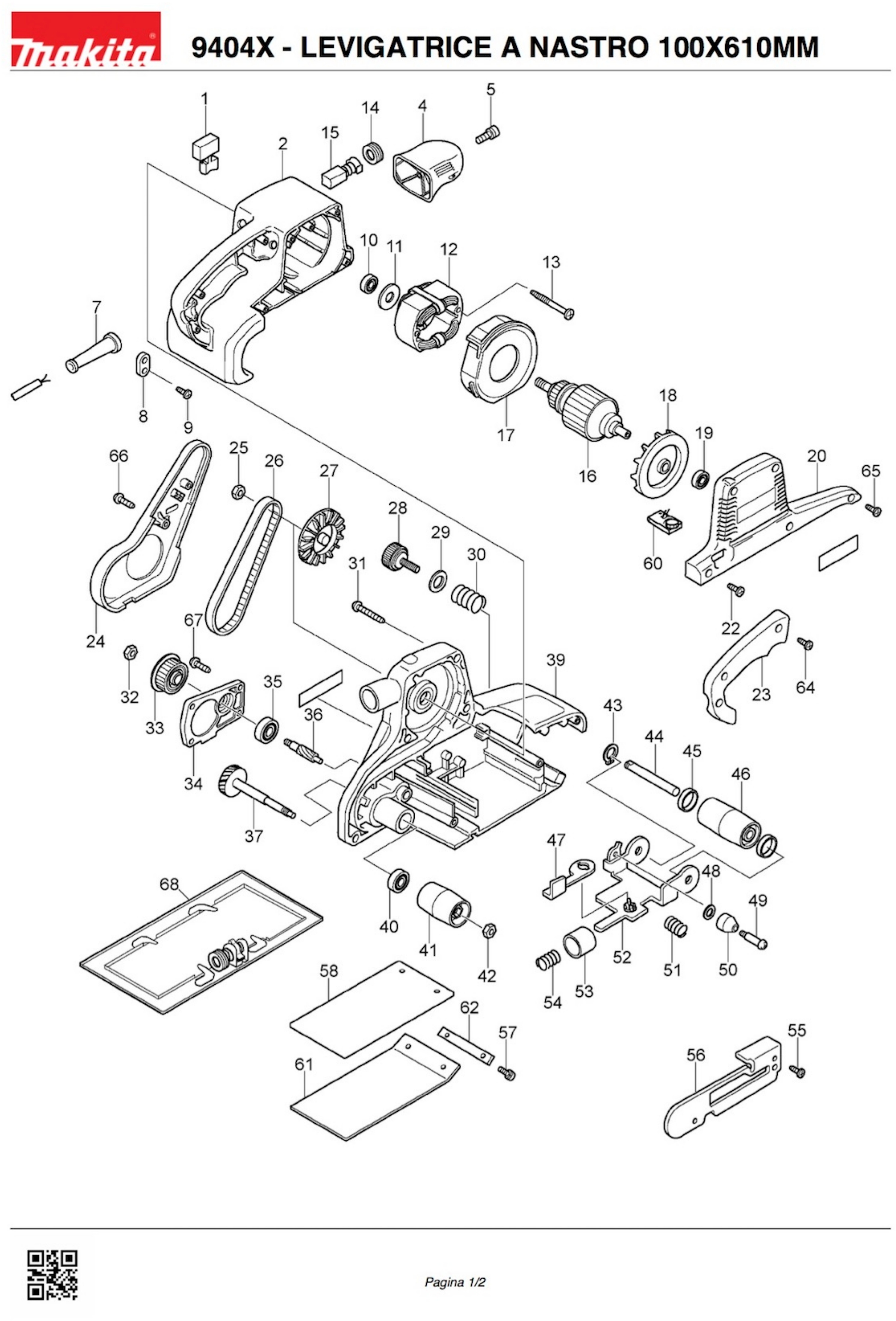

Belt Sander 9404X Pag.1
|
| # |
Part Num. |
Description |
| 1 |
650230-9 |
TGL115CDT-2 EQ SWITCH |
| 2 |
151743-8 |
MOTOR HIUSIN CPL 9920 |
| 4 |
417049-7 |
FRONT GRIP HT2256D |
| 5 |
266173-1 |
SCREW PT 5X30 |
| 7 |
682503-2 |
CORD GUARD X HM1500 |
| 8 |
687063-9 |
CLAMP X 4304T |
| 9 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 10 |
211088-7 |
BEARING 6000 9527PB-9528PB |
| 11 |
681649-1 |
INSULATING WASHER 9403 |
| 12 |
523404-4 |
STATOR 220 X 9920 |
| 13 |
266056-5 |
SCREW M 5 X 45 X JR3060T |
| 14 |
643750-0 |
CARBON BRUSH HOLDER CAP |
| 15 |
191963-2 |
CARBON BRUSHES CB-303 |
| 16 |
513339-7 |
ARMATURE 9920 |
| 17 |
417050-2 |
DEFLECTOR X 9920 |
| 18 |
240026-2 |
FAN X 9920 |
| 19 |
210023-2 |
BEARING 9910/11 |
| 20 |
417048-9 |
MOTOR COVER X 9920 |
| 22 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 23 |
417051-0 |
HANDLE COVER X 9920 |
| 24 |
417052-8 |
BELT COVER X 9920 |
| 25 |
252153-3 |
NUT M6 FIL. SX |
| 26 |
225084-9 |
TRANSMISSION BELT X 9920 |
| 27 |
241663-5 |
FAN X 9920 |
| 28 |
251815-0 |
KNOB WITH SCREW M6 |
| 29 |
253707-9 |
FLAT WASHER 16 99B / 6000R / 8410B |
| 30 |
231225-7 |
SPRING 16 99B / 9924DB |
| 31 |
266050-7 |
SCREW PT 4X30 |
| 32 |
931402-8 |
NUT M8 X LS1013 |
| 33 |
222156-1 |
PULLEY X 9920 |
| 34 |
317273-1 |
GEAR COVER 9920 |
| 35 |
211092-6 |
BEARING BALLS 629DD |
| 36 |
226520-8 |
HELICAL GEAR X 9920 |
| 37 |
151755-1 |
HELICAL GEAR X 9920 |
| 39 |
151748-8 |
COMPLETE FRAME X 9404 |
| 40 |
211088-7 |
BEARING 6000 9527PB-9528PB |
| 41 |
162217-4 |
REAR ROLLER 9920 |
| 42 |
252154-1 |
NUT 9910/11 |
| 43 |
961052-5 |
RING CHECK S12 |
| 44 |
323932-7 |
TENSION ROLLER SHAFT X 9404 |
| 45 |
253922-5 |
WASHER 12 9401/02 / 99B |
| 46 |
151754-3 |
FRONT ROLLER CPL 9404 |
| 47 |
344823-9 |
LEVER X 9920 |
| 48 |
267731-6 |
WASHER X 9910/11 |
| 49 |
265059-6 |
SCREW 9910/11 |
| 50 |
416417-1 |
ROLLER X 9910/11 |
| 51 |
233249-9 |
COMPRESSION SPRING 7 X 9920 |
| 52 |
151745-4 |
TENSION ROLLER ARM X 9404 |
| 53 |
267746-3 |
BUSH X 9920 |
| 54 |
233250-4 |
COMPRESSION SPRING 12 X9920 |
| 55 |
266034-5 |
SCREW CT 4X16 |
| 56 |
344822-1 |
PROTECTION COVER X 9920 |
| 57 |
911116-5 |
SCREW M4X12 X AM4024LG |
| 58 |
423314-4 |
CORK PLATE X 9404 |
| 60 |
631380-9 |
CONTROL X 9920 |
| 61 |
423317-8 |
CARBON PLATE X 9404 |
| 62 |
344849-1 |
BRACKET WASHER X 9404 |
| 64 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 65 |
266034-5 |
SCREW CT 4X16 |
| 66 |
266034-5 |
SCREW CT 4X16 |
| 67 |
266034-5 |
SCREW CT 4X16 |
| 68 |
193072-3 |
SANDING SHOE |
| Accessories Pag.2 |
| 500 |
122591-2 |
DUST BAG |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
