Makita Spare Parts for Angle Grinder 9524NB

SKU: Makita 9524NB
€24.24
VAT included

Makita Spare Parts for Angle Grinder 9524NB

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder 9524NB.
Makita Spare Parts for Angle Grinder GA9524NB
  • Makita Spare Parts for Angle Grinder GA9524NB
  • Makita Spare Parts for Angle Grinder GA9524NB
Makita

Makita Spare Parts for Angle Grinder 9524NB

SKU: Makita 9524NB Condition: New
€24.24
VAT included

Makita Spare Parts for Angle Grinder 9524NB

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder 9524NB.
settings 38 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

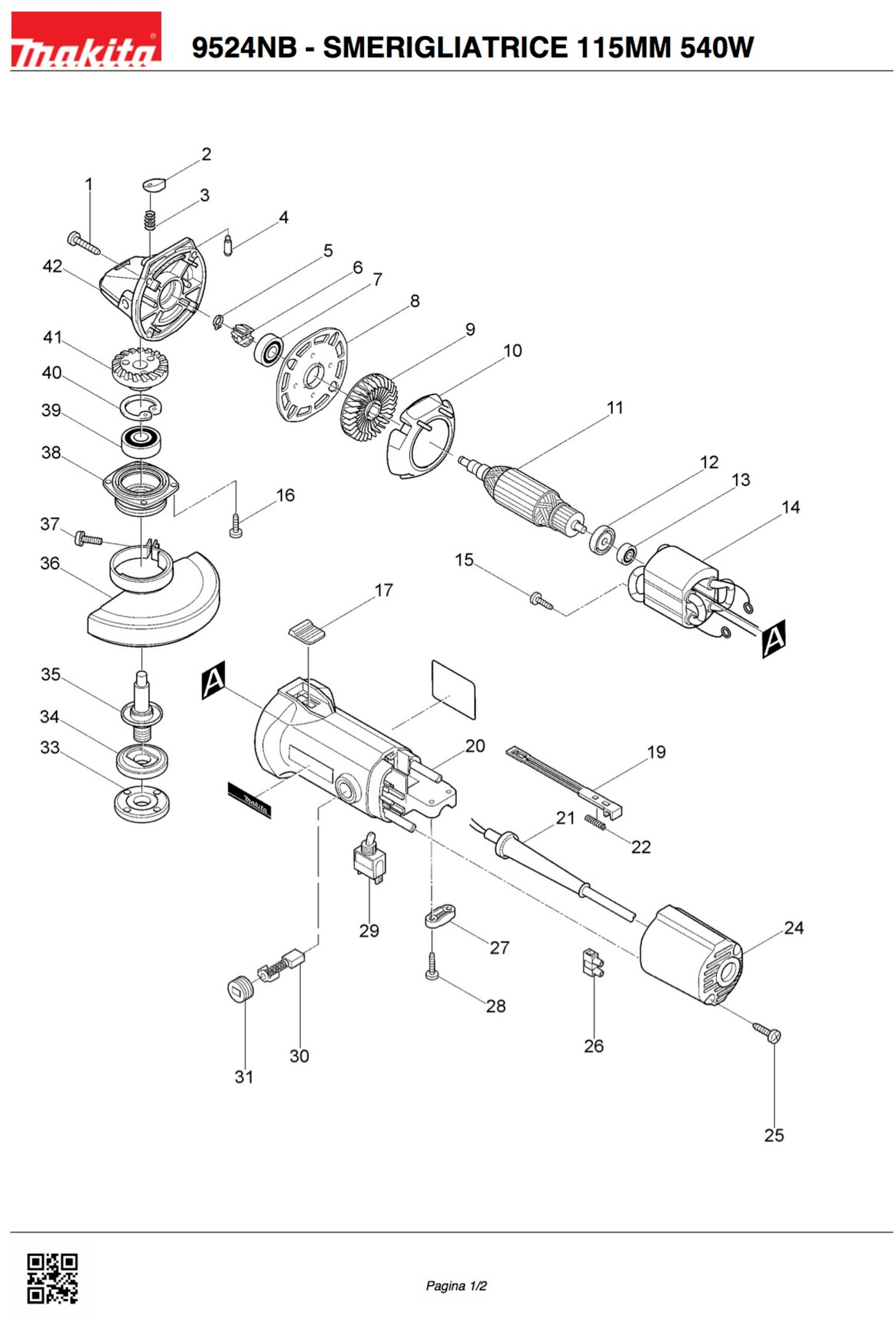

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 415491-6 DISC-LOCK BUTTON €1.25
3
 photo_cameraImage coming soon 233072-2 COMPRESSION SPRING 8 X 9541 €1.40
4
 photo_cameraImage coming soon 256437-1 PIN 4 X 9521NB €2.62
5
 photo_cameraImage coming soon 961002-0 RETAINING RING S6 €1.26
6
 photo_cameraImage coming soon 226799-1 GEAR 11 X 9524NB €10.14
7
 photo_cameraImage coming soon 211062-5 BEARING 6000 X9524NB €7.81
8
 photo_cameraImage coming soon 285684-7 BEARING SUPPORT X9524NB €2.75
9
 photo_cameraImage coming soon 241890-4 FAN 57 X 9524NB €4.23
10
 photo_cameraImage coming soon 415954-2 CONVEYOR X 9524NB €2.25
11
 photo_cameraImage coming soon 517303-0 ARMATURE CPL X 9524NB €28.56
13
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
14
 photo_cameraImage coming soon 521623-6 FIELD X 9524NB €15.24
15
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
16
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
17
 Switch Lever Knob for Angle Grinder Makita 9524NB 415952-6 Switch Lever Knob for Angle Grinder Makita 9524NB €2.62
19
 Switch Lever for Angle Grinder Makita 9524NB 417352-6 Switch Lever for Angle Grinder Makita 9524NB €2.62
20
 photo_cameraImage coming soon 159866-6 HOUSING MOTOR X9524NB €20.01
21
 photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
24
 photo_cameraImage coming soon 415955-0 BACK CASE X 9524NB €6.03
25
 photo_cameraImage coming soon 266121-0 SCREW M4PER18 €1.40
26
 photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
27
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
29
 photo_cameraImage coming soon 651433-8 SWITCH ST115A-31 €8.99
30
 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC 191940-4 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC €8.17
31
 Carbon Brush Holder Cap for Power Trimmers Makita 3707-3708 643928-5 Carbon Brush Holder Cap for Power Trimmers Makita 3707-3708 €1.50
33
 Upper Flange for Angle Grinders Makita 115-125 mm 224554-5 Upper Flange for Angle Grinders Makita 115-125 mm €8.23
34
 Inner Flange 42 for Angle Grinder Makita 9524NB 224490-5 Inner Flange 42 for Angle Grinder Makita 9524NB €2.94
35
 photo_cameraImage coming soon 152522-7 SHAFT CPL. X 9524NB €17.22
36
 Cover Disc for Angle Grinder Makita 9527NB 165053-7 Cover Disc for Angle Grinder Makita 9527NB €11.40
37
 Cover Disc Screw M5X16 for Angle Grinder Makita 9527NB 251391-4 Cover Disc Screw M5X16 for Angle Grinder Makita 9527NB €1.38
38
 photo_cameraImage coming soon 316800-1 BEARING BOX X 9523/24 €17.22
39
 photo_cameraImage coming soon 211107-9 BEARING 6201 €9.40
40
 Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
41
 Spiral Bevel Gear 36 for Angle Grinder Makita 9524NB 226798-3 Spiral Bevel Gear 36 for Angle Grinder Makita 9524NB €8.66
42
 photo_cameraImage coming soon 159867-4 GEAR HOUSING X 9524NB €25.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder 9524NB

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder 9524NB.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Makita 9524NB

Angle Grinder 9524NB
# Part Num. Description
1 266111-3 SCREW M5X25 X 9524NB
2 415491-6 BUTTON
3 233072-2 COMPRESSION SPRING 8 X 9541
4 256437-1 PIN 4 X 9521NB
5 961002-0 RING CHECK S6
6 226799-1 GEAR 11 X 9524NB
7 211062-5 BALL BEARING 6000 X9524NB
8 285684-7 BEARING SUPPORT X9524NB
9 241890-4 FAN 57 X 9524NB
10 415954-2 CONVEYOR X 9524NB
11 517303-0 ARMATURE CPL X 9524NB
12 681638-6 INSULATOR WASHER X 9524NB
13 211012-0 BALL BEARING X 9524NB
14 521623-6 FIELD X 9524NB
15 266007-8 SCREW M3 X10 HP2030
16 266034-5 SCREW CT 4X16
17 415952-6 SWITCH LEVER X 9524NB
19 417352-6 SWITCH ROD X 9524NB
20 159866-6 HOUSING MOTOR X9524NB
21 682502-4 CORD ARMOR 8/85 6408
22 233285-5 COMPRESSION SPRING 4
24 415955-0 REAR COVER X 9524NB
25 266121-0 SCREW M4X18 X 9524NB
26 654532-5 6E / 1DS BLOCK TERMINAL
27 687052-4 STRAIN RELIEF 6408
28 266121-0 SCREW M4X18 X 9524NB
29 651433-8 SWITCH ST115A-31
30 191940-4 CARBON BRUSH SET CB-411/410 422/421
31 643928-5 HOLDER CAP X9524NB
33 224554-5 CLAMP WASHER 14-45 X 9541
34 224490-5 RECIEVE WASHER 42
35 152522-7 SHAFT X 9524NB
36 165053-7 DISC GUARD X 9541
37 251391-4 SCREW M5X16
38 316800-1 BEARING BOX X 9523/24
39 211107-9 BALL BEARING 6201 X 9524NB
40 962151-6 R32 RETAINING RING
41 226798-3 GEAR 36 X 9524NB
42 159867-4 GEAR HOUSING X 9524NB
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 9524NB
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita GA9524NB

Diagram Makita GA9524NB

Download (244.75KB)
