Makita

Makita Spare Parts for Hammer HM1200

SKU: Makita HM1200
€217.94
VAT included

Makita Spare Parts for Hammer HM1200

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer HM1200.
Makita Spare Parts for Hammer HM1200
  • Makita Spare Parts for Hammer HM1200
  • Makita Spare Parts for Hammer HM1200
Makita

Makita Spare Parts for Hammer HM1200

SKU: Makita HM1200 Condition: New
€217.94
VAT included

Makita Spare Parts for Hammer HM1200

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer HM1200.
settings 77 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

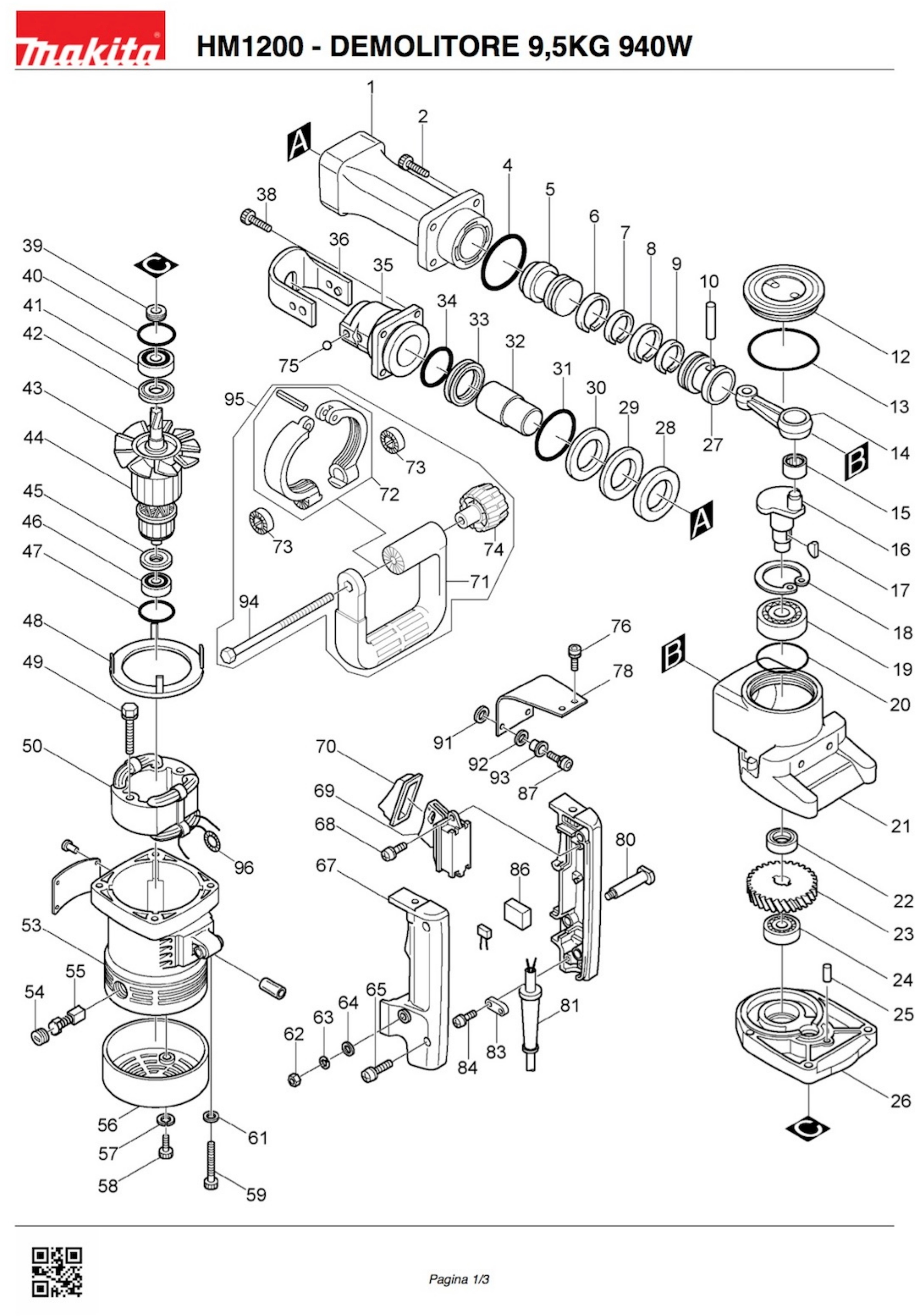

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 151310-9 BARREL CPL X HM1200 €189.97
2
 photo_cameraImage coming soon 922451-6 BOLT M8x30 €1.91
4
 Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K 213655-4 Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K €3.13
5
 photo_cameraImage coming soon 321732-9 STRIKER X HM1200 €28.26
6
 Piston Ring 40 for Demolition Hammer MAKITA HM1200 412049-2 Piston Ring 40 for Demolition Hammer MAKITA HM1200 €28.34
7
 photo_cameraImage coming soon 341862-0 INTERNAL RING 36 XHM1200 €7.30
8
 Piston Ring 40 for Demolition Hammer MAKITA HM1200 412049-2 Piston Ring 40 for Demolition Hammer MAKITA HM1200 €28.34
9
 photo_cameraImage coming soon 341862-0 INTERNAL RING 36 XHM1200 €7.30
10
 photo_cameraImage coming soon 256120-0 PIN 10 €5.09
12
 Crank Cap for Rotary Hammers Makita HR5000-HR5000K 414218-1 Crank Cap for Rotary Hammers Makita HR5000-HR5000K €24.78
13
 photo_cameraImage coming soon 213754-2 O-RING 71 X HM1200 €3.91
14
 photo_cameraImage coming soon 315419-3 ROD X HM1200 €34.93
15
 photo_cameraImage coming soon 212208-6 ROLLER BEARING 1516 €20.97
16
 photo_cameraImage coming soon 152180-9 XHM1200 CRANK SHAFT €43.42
17
 photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
18
 photo_cameraImage coming soon 962251-2 RETAINING RING R52 €3.06
19
 photo_cameraImage coming soon 211327-5 BALL BEARING HM1202C €13.71
20
 Seal 53 for Demolition Hammer MAKITA HM1200 213656-2 Seal 53 for Demolition Hammer MAKITA HM1200 €1.46
21
 photo_cameraImage coming soon 156863-3 BOX ROD X HM1200 €89.11
22
 photo_cameraImage coming soon 213306-9 SEALING OIL 20 XHM1200 €5.09
23
 photo_cameraImage coming soon 221701-9 GEAR 50 X HM1200 €37.92
24
 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.63
25
 photo_cameraImage coming soon 256111-1 PIN 6 €3.13
26
 photo_cameraImage coming soon 157072-7 GEAR CASE XHM1200 €53.32
27
 photo_cameraImage coming soon 321441-0 PISTON X HM1200 / HR5000K €39.00
28
 photo_cameraImage coming soon 267058-4 FLAT WASHER 32 XHM1200 €14.31
29
 photo_cameraImage coming soon 261054-4 WASHER NYLON 32 XHM1200 €5.01
30
 photo_cameraImage coming soon 253845-7 FLAT WASHER 31 XHM1200 €9.45
31
 Seal 50 for Hammers MAKITA HR3850-B-K 213604-1 Seal 50 for Hammers MAKITA HR3850-B-K €3.29
32
 photo_cameraImage coming soon 322107-5 HAMMER X HM1200 €65.65
33
 Seal X 35 for Demolition Hammer MAKITA HM1200 213472-2 Seal X 35 for Demolition Hammer MAKITA HM1200 €32.42
34
 photo_cameraImage coming soon 213464-1 GASKET 34 X HM1200 €1.67
35
 photo_cameraImage coming soon 321440-2 FRONT COVER XHM1200 €151.56
36
 photo_cameraImage coming soon 164617-4 XHM1200 TIP HOLDER €34.93
38
 photo_cameraImage coming soon 922451-6 BOLT M8x30 €1.91
39
 photo_cameraImage coming soon 331180-4 SEAL X HM1200 €6.49
40
 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C 213460-9 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C €3.29
41
 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.63
42
 photo_cameraImage coming soon 213202-1 DUST WASHER 15 €2.48
43
 photo_cameraImage coming soon 241638-4 FAN 94 X HM1200 €9.48
44
 photo_cameraImage coming soon 514778-4 ARMATURE X HM1200 €189.97
45
 Armature Washer for Demolition Hammer Makita HR3850K 681646-7 Armature Washer for Demolition Hammer Makita HR3850K €8.71
46
 photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
47
 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C 213406-5 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C €1.35
48
 photo_cameraImage coming soon 410163-8 BAFFLE PLATE HM1200 / HR3850 €3.81
49
 photo_cameraImage coming soon 265347-1 SCREW M5X45 €1.97
50
 photo_cameraImage coming soon 524633-2 STATOR FIELD X HM1200 / HR3850 / B €73.74
53
 photo_cameraImage coming soon 159034-1 MOTOR HOUSIND HM1200 / HR3850 / B €89.11
54
 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A 643650-4 Carbon Brush Holder Cover for Electric Chainsaw Makita UC3041A €2.43
55
 Carbon Brushes CB-155 for Hammer Makita HM1400 181048-2 Carbon Brushes CB-155 for Hammer Makita HM1400 €13.26
56
 photo_cameraImage coming soon 284055-5 REAR COVER HM1200 / HR3850 €12.29
57
 photo_cameraImage coming soon 942101-7 SPRING WASHER 5 €1.36
58
 photo_cameraImage coming soon 922222-1 SCREW M5X16 €1.46
59
 photo_cameraImage coming soon 922371-4 HEX SCREW M6x50 €1.42
61
 photo_cameraImage coming soon 941152-7 FLAT WASHER 6 €1.46
62
 photo_cameraImage coming soon 931301-4 HEX NUT M6 €1.26
63
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
64
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
65
 photo_cameraImage coming soon 922241-7 SCREW M5x25 €1.47
67
 photo_cameraImage coming soon 182077-8 HANDLE SET XHM1200 / K €34.93
68
 photo_cameraImage coming soon 911126-2 SCREW M4x16 €1.47
69
 Switch for Demolition Hammer MAKITA HM1200 651145-3 Switch for Demolition Hammer MAKITA HM1200 €39.90
70
 Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K 421265-5 Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K €3.90
71
 Side Handle for Demolition Hamme Makita HM1202C 417003-1 Side Handle for Demolition Hamme Makita HM1202C €20.05
72
 photo_cameraImage coming soon 152620-7 HANDLE SUPPORT 60 €21.54
73
 Side Handle Ring for Demolition Hamme Makita HM1202C 417002-3 Side Handle Ring for Demolition Hamme Makita HM1202C €2.82
74
 Knob Handle M8 X for Hammer Makita HM1100-HM1100C 252640-2 Knob Handle M8 X for Hammer Makita HM1100-HM1100C €8.23
75
 photo_cameraImage coming soon 216003-6 BALL 10 X HM1200 €1.29
76
 photo_cameraImage coming soon 922316-2 BOLT M6 X 14 €1.25
78
 photo_cameraImage coming soon 343755-7 PLATE X HM1200 €8.49
80
 Handle Shaft for Demolition Hammer Makita HM0810T 321210-9 Handle Shaft for Demolition Hammer Makita HM0810T €2.96
81
 Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18
83
 photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
84
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
86
 Sponge for Hammers Makita M802 - HR3850B 685700-9 Sponge for Hammers Makita M802 - HR3850B €2.00
87
 photo_cameraImage coming soon 922316-2 BOLT M6 X 14 €1.25
91
 photo_cameraImage coming soon 262051-3 RUBBER RING 9-6 XHR3850 €1.25
92
 photo_cameraImage coming soon 262052-1 RUBBER RING 9-3 XHR3850 €3.92
93
 photo_cameraImage coming soon 257636-8 SLEEVE 6 X HR3850 €3.92
94
 photo_cameraImage coming soon 265439-6 SCREW M8X150 X HM1100C €2.82
96
 photo_cameraImage coming soon 654020-2 RING TERMINAL 94 €1.40
999
 photo_cameraImage coming soon 193244-0 HM1200 SERVICE KIT €73.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Hammer HM1200

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer HM1200.

In the following table, look for the model of the Hammer and the respective parts of the code.
Makita HM1200

Hammer HM1200
# Part Num. Description
1 151310-9 BARREL CPL X HM1200
2 922451-6 BOLT M8X30
4 213655-4 GASKET 56 HR3510 / 20 / HM12
5 321732-9 STRIKER X HM1200
6 412049-2 PISTON RING 40 X HM1200
7 341862-0 INTERNAL RING 36 XHM1200
8 412049-2 PISTON RING 40 X HM1200
9 341862-0 INTERNAL RING 36 XHM1200
10 256120-0 PIN 10
12 414218-1 CRANK CAP HM1200
13 213754-2 GASKET 71 X HM1200
14 315419-3 ROD X HM1200
15 212208-6 ROLLER BEARING 1516
16 152180-9 XHM1200 CRANK SHAFT
17 254001-2 WOODRUFF KEY 4
18 962251-2 R52 RETAININ RING
19 211327-5 BEARING HM1202C
20 213656-2 GASKET 53 X HM1200
21 156863-3 BOX ROD X HM1200
22 213306-9 SEALING OIL 20 XHM1200
23 221701-9 GEAR 50 X HM1200
24 211228-7 BALL BEARING 6202DD
25 256111-1 PIN 6
26 157072-7 GEAR CASE XHM1200
27 321441-0 PISTON X HM1200 / HR5000K
28 267058-4 FLAT WASHER 32 XHM1200
29 261054-4 WASHER NYLON 32 XHM1200
30 253845-7 FLAT WASHER 31 XHM1200
31 213604-1 GASKET 50 X HR3850 / B
32 322107-5 HAMMER X HM1200
33 213472-2 GASKET X 35 HM1200
34 213464-1 GASKET 34 X HM1200
35 321440-2 FRONT COVER XHM1200
36 164617-4 XHM1200 TIP HOLDER
38 922451-6 BOLT M8X30
39 331180-4 SEAL X HM1200
40 213460-9 GASKET 35 HK / HR1800 / HM12
41 211228-7 BALL BEARING 6202DD
42 213202-1 DUST SEAL 15
43 241638-4 FAN 94 X HM1200
44 514778-4 ARMATURE X HM1200
45 681646-7 ISOLATOR WASHER HM1200 / 3612BR
46 211087-9 BALL BEARING 6200DDW NSK
47 213406-5 GASKET 30 58NB / SB / HM1200
48 410163-8 BAFFLE PLATE HM1200 / HR3850
49 265347-1 SCREW STATOR M5X45
50 524633-2 STATOR X HM1200 / HR3850 / B
53 159034-1 HOUSING MOTOR HM1200 / HR3850 / B
54 643650-4 BRUSH HOLDER CAP
55 181048-2 CARBON BRUSHES CB-155 (CB-161)
56 284055-5 REAR COVER HM1200 / HR3850
57 942101-7 ELASTIC WASHER 5
58 922222-1 SCREW M5X16
59 922371-4 SCREW M6X50
61 941152-7 FLAT WASHER 6
62 931301-4 HEXAGON NUT M6
63 942151-2 WASHER 6 4101R
64 941151-9 WASHER 6 X HM1303
65 922241-7 SCREW M5X25
67 182077-8 HANDLE SET XHM1200 / K
68 911126-2 SCREW M4X16
69 651145-3 SWITCH C3D-H-MS
70 421265-5 DUST COVER HR3850 / B
71 417003-1 SIDE HANDLE X HM1202C
72 152620-7 HANDLE SUPPORT 60
73 417002-3 HM1202C HANDLE RING
74 252640-2 GRIP KNOB M8 X
75 216003-6 BALL 10 X HM1200
76 922316-2 BOLT M6 X 14
78 343755-7 PLATE X HM1200
80 321210-9 HANDLE SHAFT HR3850 / B
81 682505-8 CORD GUARD 10/90
83 687001-1 CABLE CLAMP
84 911133-5 SCREW M4X18
86 685700-9 SPONGE X M802 / HR3850B
87 922316-2 BOLT M6 X 14
91 262051-3 RUBBER RING 9-6 XHR3850
92 262052-1 RUBBER RING 9-3 XHR3850
93 257636-8 SLEEVE X HR3850
94 265439-6 SCREW M8X150 X HM1100C
96 654020-2 TERMINAL RING 94
999 193244-0 HM1200 SERVICE KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HM1200
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HM1200

Diagram Makita HM1200

Download (351.63KB)

You might also like

Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C
Valex s.p.a. SKU: 213406-5
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C
Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C Genuine spare part Makita, O-Ring for cylinder Rotary Demolition Hammers SDS Max, HR4001C - HR4002 - HR4003C - HR4010C - HR4011C Part for the following products: - Rotary...
Last items in stock €1.35
Details
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 213460-9
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C Genuine spare part Makita, O-Ring 35 for SDS Max Rotary Demolition Hammers HR4501C  - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
AVAILABLE €3.29
Details
Carbon Brushes CB-155 for Hammer Makita HM1400
Makita SKU: 181048-2
Carbon Brushes CB-155 for Hammer Makita HM1400
Carbon Brushes CB-155 for Hammer Makita HM1400 Makita genuine spare part, Carbon Brusches CB-155 for Hammer Breaker HM1400 Exagonal 30 mm 1240 W Part for the following products: - Hammer Breaker HM1400 Exagonal 30 mm 1240 W Technical...
AVAILABLE €13.26
Details
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K Sale
Makita SKU: 213655-4
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K
Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850-B-K Genuine part Makita, Seal 56 HR 3510/20/HM12 for Rotary Hammers MAKITA HR3850 - HR3850B - HR3850K. For the following items: - Rotary Demolition Hammer MAKITA HR3850 - Rotary...
AVAILABLE €3.13
Details
Seal 50 for Hammers MAKITA HR3850-B-K
Makita SKU: 213604-1
Seal 50 for Hammers MAKITA HR3850-B-K
Seal 50 for Rotary Hammers MAKITA HR3850-B-K Genuine part Makita, Seal 50 - HR3850/B for Rotary Hammers MAKITA HR3850 - HR3850B - HR3850K. Part for the following products: - Demolition...
AVAILABLE €3.29
Details
Power Cord Protection 10/90 for for Makita Power Tools
Makita SKU: 682505-8
Power Cord Guard 10/90 for for Makita Power Tools
Power Cord Guard 10/90 for for Makita Power Tools Genuine part Makita, Power Cord Guard diameter 10 mm Length 90 mm for Power Tools. Parts for the following products: - 4112HS - CUTTING ANG.305MM 2400W - 4114S - CUTTING ANG.355MM...
AVAILABLE €3.18
Details
Side Handle for Demolition Hamme Makita HM1202C
Makita SKU: 417003-1
Side Handle for Demolition Hamme Makita HM1202C
Side Handle for Demolition Hammer Makita HM1202C Genuine part Makita, Side Handle for Demolition Hammer 9,3KG 1450W SDS-MAX HM1202C Parts for the following products: - Demolition Hammer Makita...
AVAILABLE €20.05
Details
Knob Handle M8 X for Hammer Makita HM1100-HM1100C
Makita SKU: 252640-2
Knob Handle M8 X for Hammer Makita HM1100-HM1100C
Knob Handle M8 X for Hammer Makita HM1100-HM1100C Genuine spare parts Makita, Knob Handle M8 X for Hammer Makita HM1100 - HM1100C - HM1101C - HM1140C - HM1200K. Parts for the following products: - HM1100 - HAMMER 1050W SDS-MAX -...
AVAILABLE €8.23
Details
Armature Washer for Demolition Hammer Makita HR3850K
Makita SKU: 681646-7
Armature Washer for Demolition Hammer Makita HR3850K
Armature Washer for Demolition Hammer Makita HR3850K Genuine spare part Makita, Armature Protection Washer for Demolition Hammers HM1200 - HM1200K - HM1300 - HM1303 - HM1304 - HM1800 - HM1810 - HR3850 - HR3850K Part for the following...
AVAILABLE €8.71
Details
Seal 53 for Demolition Hammer MAKITA HM1200
Makita SKU: 213656-2
Seal 53 for Demolition Hammer MAKITA HM1200
Seal 53 for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Seal 53 Demolition Hammers HM1200 - HM1200K - HM0870C - HM0870C - HM0871C. Part for the following products: -...
AVAILABLE €1.46
Details
Seal X 35 for Demolition Hammer MAKITA HM1200 Sale
Makita SKU: 213472-2
Seal X 35 for Demolition Hammer MAKITA HM1200
Seal X 35 for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Seal X 35 for Demolition Hammer HM1200. Part for the following products: -  HM1200 - DEMOLITION HAMMER 9,5KG 940W - Code: 213472-2
AVAILABLE €32.42
Details
Sponge for Hammers Makita M802 - HR3850B
Makita SKU: 685700-9
Sponge for Hammers Makita M802 - HR3850B
Sponge for Hammers Makita M802 - HR3850B Original spare part Makita, Sponge Sheet for Hammers M802/HR3850B - HM0810 - HM1400 - HM1200. Part for the following products: - 410 - DUST COLLECTORS - 4105KB - Dustless Cutter Dry Cutting 125...
AVAILABLE €2.00
Details
Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K
Makita SKU: 421265-5
Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K
Switch Dust Cover for Rotary Hammers MAKITA HR3850-B-K Genuine replacement part Makita, Switch Dust Cover for Rotary Hammers MAKITA HR3850 - HR3850B - HR3850K. Part for the following products: -  HR3850 - ROTARY HAMMER -  HR3850B -...
AVAILABLE €3.90
Details
Crank Cap for Rotary Hammers Makita HR5000-HR5000K
Makita SKU: 414218-1
Crank Cap for Rotary Hammers Makita HR5000-HR5000K
Crank Cap for Rotary Hammers Makita HR5000-HR5000K Genuine replacement part Makita, Crank Cap for Rotary Hammer Spline HR5000 - Rotary Hammer Hex Shank HR5000K. Part For the following items: -...
Usually Ships in: 7/10 Business Days Approx. €24.78
Details
Piston Ring 40 for Demolition Hammer MAKITA HM1200
Makita SKU: 412049-2
Piston Ring 40 for Demolition Hammer MAKITA HM1200
Piston Ring 40  for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Piston Ring 40  for Demolition Hammer HM1200 - HM1200K. Part for the following products: -  HM1200 - DEMOLITION HAMMER 9,5KG 940W -  HM1200K -...
Last items in stock €28.34
Details
Switch for Demolition Hammer MAKITA HM1200
Makita SKU: 651145-3
Switch for Demolition Hammer MAKITA HM1200
Switch for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Switch C3D-H-MS for Demolition Hammer HM1200 - HM1200K. Part for the following products: -  HM1200 - DEMOLITION...
AVAILABLE €39.90
Details
Comments (0)
