Makita Spare Parts for CUT-OFF Machine 2414EN
We supply original MAKITA spare parts, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for CUT-OFF Machine 2414EN.

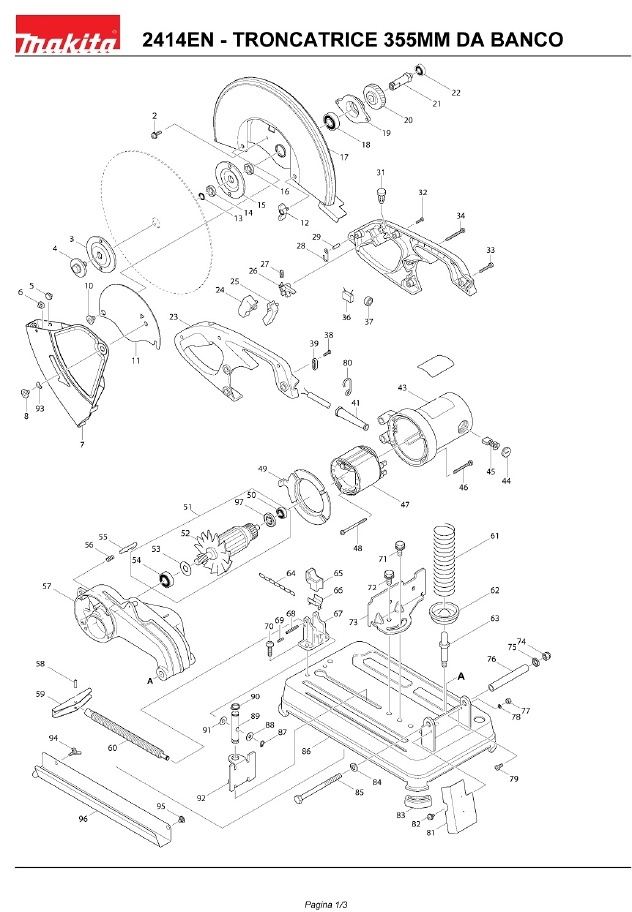

In the following table, look for the model of the CUT-OFF Machine and the respective parts of the code.
| Miter Saw Makita 2414EN |
| # |
Part Num. |
Description |
| 2 |
911333-7 |
SCREW M6 X 20 X 2702 |
| 3 |
224456-5 |
FLANGE 90 2414EN |
| 4 |
251680-7 |
BOLT C / BORDINO 10X25 |
| 5 |
418142-0 |
CAP X HEADPHONES SAFETY MT240 |
| 6 |
418142-0 |
CAP X HEADPHONES SAFETY MT240 |
| 7 |
165710-7 |
2414EN SAFETY GUIDE |
| 8 |
265121-7 |
SCREW M 6 X MT240 |
| 10 |
265121-7 |
SCREW M 6 X MT240 |
| 11 |
346639-8 |
COVER CENTRAL 2414EN |
| 12 |
251887-5 |
WING SCREW M6x10 X N500 |
| 13 |
213162-7 |
SEAL 14 |
| 14 |
257255-0 |
RING 17 X MT240 |
| 15 |
224456-5 |
FLANGE 90 2414EN |
| 16 |
257255-0 |
RING 17 X MT240 |
| 17 |
165709-2 |
PROTECTION BLADE 2414EN |
| 18 |
211282-1 |
BEARING 6203ZZ X MT240 |
| 19 |
316527-3 |
BEARING 2414B |
| 20 |
226415-5 |
GEAR 41 2414B |
| 21 |
322633-4 |
POST 2414B |
| 22 |
211480-7 |
BEARING 6000ZZ |
| 23 |
182628-7 |
HANDLE COMPLETE 2414B |
| 24 |
651922-3 |
TG71B SWITCH |
| 25 |
152463-7 |
LEVER SWITCH. 2414B FULL |
| 26 |
415366-9 |
ROCKER X 2414B |
| 27 |
231397-8 |
SPRING COMPRESSION 4 2414B |
| 28 |
281207-9 |
BRACKET X 2414B |
| 29 |
256012-3 |
PIN X 2414NB |
| 31 |
417113-4 |
KEY SWITCH. X BLS713 |
| 32 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 33 |
911258-5 |
SCREW M5x35 4101R |
| 34 |
911273-9 |
SCREW M5x50 X 2414NB |
| 36 |
645200-1 |
CAPACITOR |
| 37 |
688131-1 |
FILTER LINE X MT240 |
| 38 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 39 |
687124-5 |
Cable tie CLAMP MT953 |
| 41 |
682540-6 |
CORD GUARD JN1601 |
| 43 |
141788-4 |
CASING MOTOR MT2414EN |
| 44 |
643710-2 |
PLUG BRUSH XHM1500 |
| 45 |
191953-5 |
CARBON BRUSCHES CB-203 X 3612C |
| 46 |
911273-9 |
SCREW M5x50 X 2414NB |
| 47 |
636008-4 |
STATOR X 2414B |
| 48 |
266059-9 |
SCREW M5X75 X 9059SF |
| 49 |
415369-3 |
PLATE BAFFLE 2414B |
| 50 |
210042-8 |
BEARING FOR 629LLB GD0600 |
| 51 |
510240-7 |
ARMATURE 2414EN |
| 52 |
241515-0 |
FAN 92 X 2708 |
| 53 |
267714-6 |
WASHER 15 X 2414B |
| 54 |
211228-7 |
BALL BEARING 6202DD |
| 55 |
322665-1 |
STOP X 2414B |
| 56 |
231240-1 |
SPRING 7 36BR / 12BR / 2412N / 14 |
| 57 |
150916-0 |
HOUSING ING. CPL X 2414NB |
| 58 |
951163-4 |
PIN 5-20 X2414K |
| 59 |
272027-2 |
KNOB 120 X MT240 |
| 60 |
324323-5 |
THREADED BAR X VICE MT240 |
| 61 |
233113-4 |
COMPRESSION SPRING 45 2414B |
| 62 |
165066-8 |
HARD STOPS SPRING 2414B |
| 63 |
265407-9 |
NUT M10 X 2414B |
| 64 |
282015-1 |
CHAIN X MT240 |
| 65 |
313114-9 |
DADO X VICE MT240 |
| 66 |
345311-9 |
HODER PLATE SCREW x MT240 |
| 67 |
317662-0 |
SUPPORT SCREW VISE X MT240 |
| 68 |
951175-7 |
PIN FLEXIBLE 5/36 |
| 69 |
951110-5 |
ELASTIC PIN 4/16 X MT240 |
| 70 |
265125-9 |
SCREW M8 X 30 X MT240 |
| 71 |
265201-9 |
HEXAGON BOLT M10x25 |
| 72 |
265201-9 |
HEXAGON BOLT M10x25 |
| 73 |
346637-2 |
PLATE GUIDE 2414EN |
| 74 |
252130-5 |
NUT M10-17 X 2414B |
| 75 |
267713-8 |
WASHER 10 X 2414B |
| 76 |
331428-4 |
TUBE 16-113 X 2414B |
| 77 |
931302-2 |
NUT M6 HR4000C |
| 78 |
942151-2 |
WASHER 6 4101R |
| 79 |
922312-0 |
BOLT M6 X 12 |
| 80 |
322049-3 |
HOOK X 2414K |
| 81 |
165705-0 |
PROTECTION SPARKS 2414EN |
| 82 |
911308-6 |
SCREW M6x10 X 2414NB |
| 83 |
421487-7 |
LEG STRETCH X 2414B |
| 84 |
267713-8 |
WASHER 10 X 2414B |
| 85 |
265406-1 |
BOLT M10 X 130 2414B |
| 86 |
165717-3 |
BASE 2414EN |
| 87 |
961004-6 |
RETAINING RING S8 |
| 88 |
267257-8 |
WASHER 8 X MT240 |
| 89 |
256545-8 |
PIN 16 2414EN |
| 90 |
961056-7 |
RETAINING RING S16 |
| 91 |
267257-8 |
WASHER 8 X MT240 |
| 92 |
346636-4 |
JAW PLATE 2414NB |
| 93 |
253903-9 |
WASHER 6 3700B |
| 94 |
924306-1 |
BUTTERFLY SCREW M6x10 |
| 95 |
265985-9 |
BOLT M6 X LS1040 |
| 96 |
345292-7 |
COVER LOWER 2414NB |
| 97 |
681666-1 |
INSULATING WASHER UC3530A-4030 |
