Makita Spare Parts for Nibbler JN3201J

SKU: Makita JN3201J
€37.19
VAT included

Makita Spare Parts for Nibbler JN3201J

Makita genuine spare parts or replacements parts for to fix Nibbler JN3201J.
Makita Spare Parts for Nibbler JN3201J
  • Makita Spare Parts for Nibbler JN3201J
  • Makita Spare Parts for Nibbler JN3201J

Makita Spare Parts for Nibbler JN3201J

SKU: Makita JN3201J Condition: New
€37.19
VAT included

Makita Spare Parts for Nibbler JN3201J

Makita genuine spare parts or replacements parts for to fix Nibbler JN3201J.
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

36 spare parts

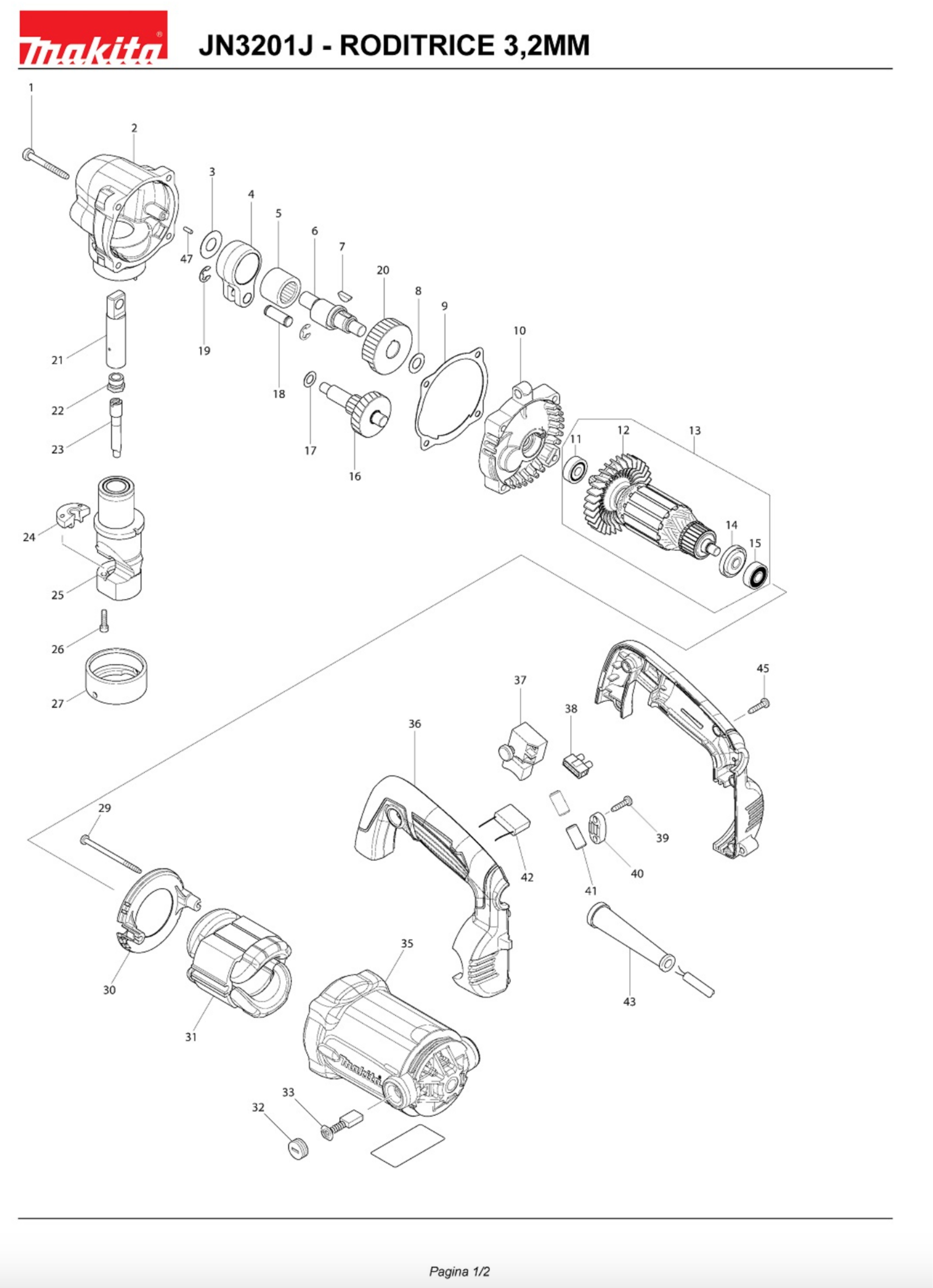

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 266056-5 SCREW M 5 X 45 X JR3060T €2.69
3
photo_cameraImage coming soon 253759-0 WASHER P.12 JN / JS3200 €3.41
4
photo_cameraImage coming soon 331167-6 ROD X JN3200 €34.32
5
photo_cameraImage coming soon 212306-6 BEARING ROLLER 2020 €12.92
6
photo_cameraImage coming soon 321408-8 SHAFT ECCENTRIC XJN3200 €42.15
7
photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
8
Flat Washer 10 for 260 mm Table Saw Makita 2704 253758-2 Flat Washer 10 for 260 mm Table Saw Makita 2704 €1.43
9
photo_cameraImage coming soon 442186-8 SEAL €2.06
10
photo_cameraImage coming soon 141796-5 COVER GEAR BOX €24.42
11
photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
12
photo_cameraImage coming soon 240094-5 FAN 70 GA5010 €2.53
14
photo_cameraImage coming soon 681644-1 INSULATED WASHER for 9227CB €2.74
15
photo_cameraImage coming soon 210029-0 BALL BEARING 608ZZ X MT601 €2.08
16
photo_cameraImage coming soon 226060-6 GEAR 15-46 XJN3200 €42.15
17
Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
18
photo_cameraImage coming soon 321418-5 PIN 9 X JN3200 €2.54
19
photo_cameraImage coming soon 961013-5 RING RITEGNOXJN3200 €2.20
20
photo_cameraImage coming soon 221880-3 GEAR 44 XJN3200 €24.42
21
photo_cameraImage coming soon 152486-5 RETAINING PUNCH X JN3200 €42.15
22
photo_cameraImage coming soon 321406-2 SCREW X JN3200 €2.94
23
photo_cameraImage coming soon 792728-1 PUNCH X JN3200 €32.92
24
photo_cameraImage coming soon 792292-2 MATRIX X JN3200 €29.01
25
photo_cameraImage coming soon 152176-0 RETAINING MATRIX X JN3200 €239.55
27
photo_cameraImage coming soon 321415-1 NUT X JN3200 €34.32
29
photo_cameraImage coming soon 266340-8 SCREW 4X65 GA5010 €1.26
32
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
33
Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
35
photo_cameraImage coming soon 158278-0 HOUSING MOTOR GA5010 €15.51
37
photo_cameraImage coming soon 650230-9 SWITCH TGL115CDT EQ-2 €12.14
38
photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
39
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
40
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
41
photo_cameraImage coming soon 688172-7 FILTER LINE €1.40
42
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
43
Cord Guard JN1601 for Angle Grinder Makita 9015B 682540-6 Cord Guard JN1601 for Angle Grinder Makita 9015B €2.72
45
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Nibbler JN3201J

Makita genuine spare parts or replacements parts for to fix Nibbler JN3201J.

In the following table, look for the model of the Nibbler and the respective parts of the code.
Nibbler JN3201J

Nibbler JN3201J
# Part Num. Description
1 266056-5 SCREW M5 X 45 X JR3060T
2 141797-3 GEAR BOX
3 253759-0 ROND.P.12 JN / JS3200
4 331167-6 ROD X JN3200
5 212306-6 BEARING ROLLER 2020
6 321408-8 SHAFT ECCENTRIC XJN3200
7 254001-2 KEY CRESCENT 4
8 253758-2 FLAT WASHER 10
9 442186-8 SEAL
10 141796-5 COVER GEAR BOX
11 211031-6 BEARING 608LLB X 4304T
12 240094-5 FAN 70 GA5010
13 513859-1 ARMATURE
14 681644-1 INSULATING WASHER X 9227CB
15 210029-0 BEARING 608Z X MT601
16 226060-6 GEAR 15-46 XJN3200
17 253215-0 ROND. FLAT 8 6510PBL / LVR
18 321418-5 PIN 9 X JN3200
19 961013-5 RING RITEGNOXJN3200
20 221880-3 GEAR 44 XJN3200
21 152486-5 RETAINING PUNCH X JN3200
22 321406-2 SCREW X JN3200
23 792728-1 PUNCH X JN3200
24 792292-2 MATRIX X JN3200
25 152176-0 RETAINING MATRIX X JN3200
26 922127-5 BOLT M4x16
27 321415-1 NUT X JN3200
29 266340-8 SCREW 4X65 GA5010
30 454140-0 BAFFLE
31 525869-6 STATOR
32 643750-0 PLUG BRUSH HOLDER
33 191963-2 CARBON BRUSHES CB-303
35 158278-0 HOUSING MOTOR GA5010
36 187532-5 HANDLE
37 650230-9 SWITCH TGL115CDT EQ-2
38 654532-5 TERMINAL BLOCK 6E / 1DS
39 266326-2 SCREW 4x18 X MT601
40 687052-4 CLAMP Cable tie X 6408
41 688172-7 FILTER LINE
42 645200-1 CAPACITOR
43 682540-6 SLEEVE JN1601
45 266326-2 SCREW 4x18 X MT601
47 256255-7 PIN 3
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
