Makita Spare Parts for Metal Shear JS3201J

SKU: Makita JS3201J
€42.06
VAT included

Makita Spare Parts for Metal Shear JS3201J

Makita genuine spare parts or replacements parts for to fix Makita JS3201J Metal Shear.

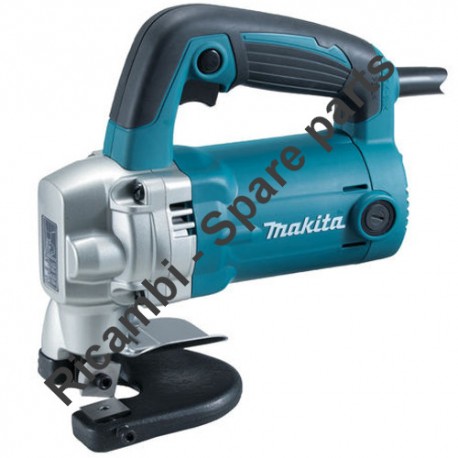

Makita Spare Parts for Blechschere JS3201J
  • Makita Spare Parts for Blechschere JS3201J
  • Makita Spare Parts for Blechschere JS3201J
Makita

Makita Spare Parts for Metal Shear JS3201J

SKU: Makita JS3201J Condition: New
€42.06
VAT included

Makita Spare Parts for Metal Shear JS3201J

Makita genuine spare parts or replacements parts for to fix Makita JS3201J Metal Shear.
settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts

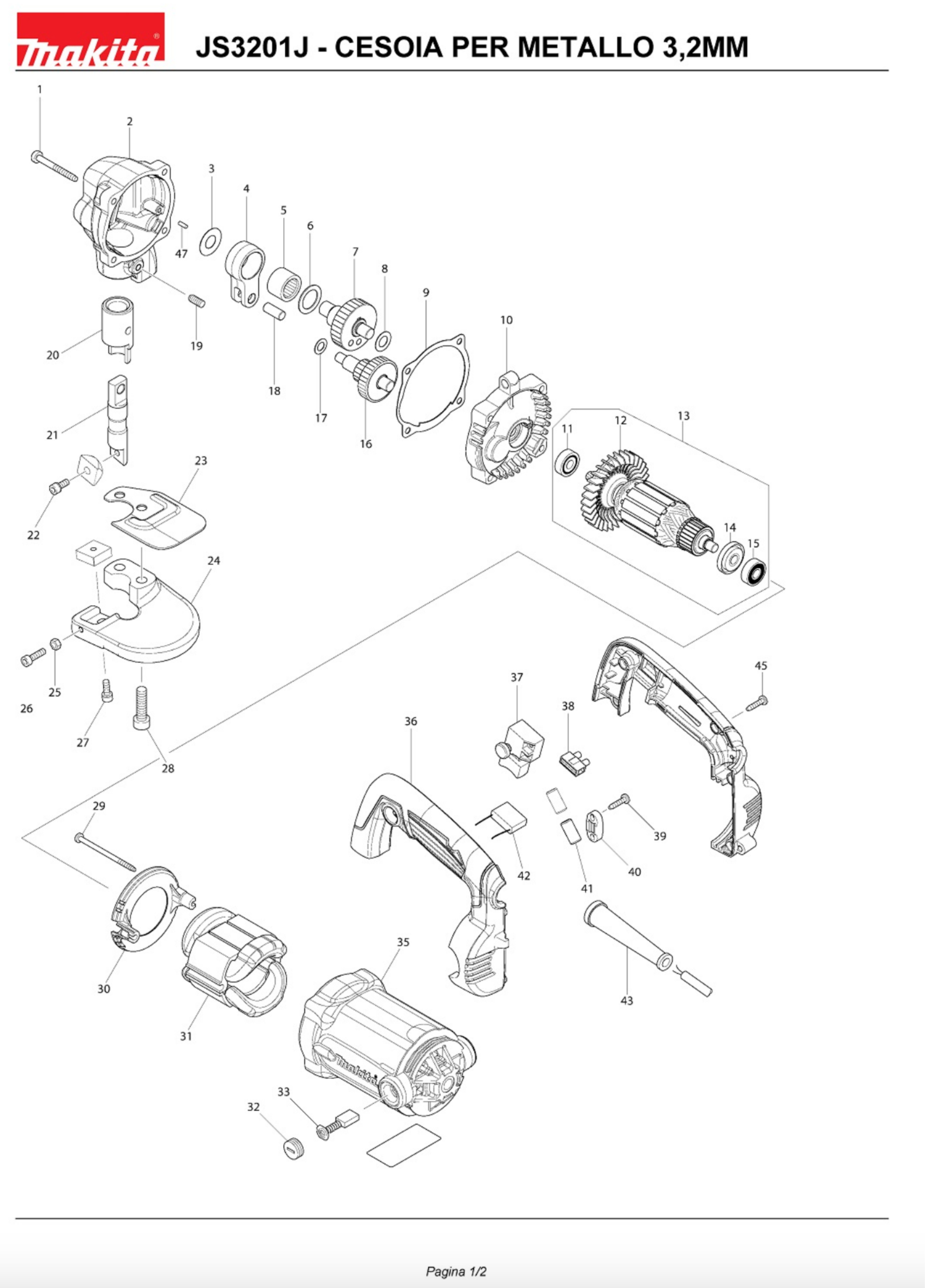

Page 1 zoom_in View exploded
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 266056-5 SCREW M 5 X 45 X JR3060T €2.69
2
 photo_cameraImage coming soon 141795-7 GEAR BOX €27.61
3
 photo_cameraImage coming soon 253759-0 WASHER P.12 JN / JS3200 €3.41
4
 photo_cameraImage coming soon 331166-8 ROD X JS3200 €34.32
5
 photo_cameraImage coming soon 212252-3 BEARING ROLLER 1816 €8.61
6
 photo_cameraImage coming soon 253198-4 FLAT WASHER 18 XJS3200 €2.17
7
 photo_cameraImage coming soon 153141-2 SHAFT ECCENTRIC XJS3200 €77.44
8
 photo_cameraImage coming soon 253311-4 ROND.10 8419B / 6710D €1.42
9
 photo_cameraImage coming soon 442186-8 SEAL €2.06
10
 photo_cameraImage coming soon 141796-5 COVER GEAR BOX €24.42
11
 photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
12
 photo_cameraImage coming soon 240094-5 FAN 70 GA5010 €2.53
14
 photo_cameraImage coming soon 681644-1 INSULATED WASHER for 9227CB €2.74
15
 photo_cameraImage coming soon 210029-0 BALL BEARING 608ZZ X MT601 €2.08
16
 photo_cameraImage coming soon 226058-3 GEAR 18-46 XJS3200 €42.15
17
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
18
 photo_cameraImage coming soon 256118-7 PIN 8 €2.06
19
 photo_cameraImage coming soon 913322-8 SCREW M6x14 €1.34
20
 photo_cameraImage coming soon 321405-4 TUBE X JS3200 €34.32
21
 photo_cameraImage coming soon 321404-6 HOLDER KNIFE XJS3200 €30.65
22
 photo_cameraImage coming soon 922216-6 SCREW ESAG. M5x14 €1.36
23
 photo_cameraImage coming soon 346641-1 PROTECTION €2.06
24
 photo_cameraImage coming soon 331165-0 SHOE X JS3200 €119.76
25
 photo_cameraImage coming soon 931203-4 NUT ESAG. M5-8 XJS3200 €1.98
26
 photo_cameraImage coming soon 922227-1 BOLT M5X18 €1.40
27
 photo_cameraImage coming soon 922216-6 SCREW ESAG. M5x14 €1.36
28
 photo_cameraImage coming soon 922451-6 BOLT M8x30 €1.91
29
 photo_cameraImage coming soon 266340-8 SCREW 4X65 GA5010 €1.26
32
 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
33
 Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
35
 photo_cameraImage coming soon 158278-0 HOUSING MOTOR GA5010 €15.51
36
 photo_cameraImage coming soon 187531-7 HANDLE €16.59
37
 photo_cameraImage coming soon 650230-9 SWITCH TGL115CDT EQ-2 €12.14
38
 photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
39
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
40
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
41
 photo_cameraImage coming soon 688172-7 FILTER LINE €1.40
42
 Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
43
 Cord Guard JN1601 for Angle Grinder Makita 9015B 682540-6 Cord Guard JN1601 for Angle Grinder Makita 9015B €2.72
45
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Metal Shear JS3201J

Makita genuine spare parts or replacements parts for to fix Makita JS3201J Metal Shear.

In the following table, look for the model of the Blenchschere and the respective parts of the code.
Blechschere JS3201J

Makita JS3201J Metal Shear Spare Parts
# Part Num. Description
1 266056-5 SCREW M5 X 45 X JR3060T
2 141795-7 GEAR BOX
3 253759-0 ROND.P.12 JN / JS3200
4 331166-8 ROD X JS3200
5 212252-3 BEARING ROLLER 1816
6 253198-4 FLAT WASHER 18 XJS3200
7 153141-2 SHAFT ECCENTRIC XJS3200
8 253311-4 ROND.10 8419B / 6710D
9 442186-8 SEAL
10 141796-5 COVER GEAR BOX
11 211031-6 BEARING 608LLB X 4304T
12 240094-5 FAN 70 GA5010
13 513859-1 ARMATURE
14 681644-1 INSULATING WASHER X 9227CB
15 210029-0 BEARING 608Z X MT601
16 226058-3 GEAR 18-46 XJS3200
17 253215-0 ROND. FLAT 8 6510PBL / LVR
18 256118-7 PIN 8
19 913322-8 SCREW M6x14
20 321405-4 TUBE X JS3200
21 321404-6 HOLDER KNIFE XJS3200
22 922216-6 SCREW ESAG. M5x14
23 346641-1 PROTECTION
24 331165-0 SHOE X JS3200
25 931203-4 NUT ESAG. M5-8 XJS3200
26 922227-1 BOLT M5X18
27 922216-6 SCREW ESAG. M5x14
28 922451-6 BOLT M8x30
29 266340-8 SCREW 4X65 GA5010
30 454140-0 BAFFLE
31 525869-6 STATOR
32 643750-0 PLUG BRUSH HOLDER
33 191963-2 CARBON BRUSHES CB-303
35 158278-0 CASING MOTOR GA5010
36 187531-7 HANDLE
37 650230-9 SWITCH TGL115CDT EQ-2
38 654532-5 TERMINAL BLOCK 6E / 1DS
39 266326-2 SCREW 4x18 X MT601
40 687052-4 CLAMP Cable tie X 6408
41 688172-7 FILTER LINE
42 645200-1 CAPACITOR
43 682540-6 SLEEVE JN1601
45 266326-2 SCREW 4x18 X MT601
47 256255-7 PIN 3

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita JS3201J
12 Items

Specific References

New

Download

Diagram Makita JS3201J

Diagram Makita JS3201J

Download (685.18KB)
