Makita Spare Parts for Drywall Screwdriver FS4000

SKU: Makita FS4000
€5.15
VAT included

Makita Spare Parts for Drywall Screwdriver FS4000

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Drywall Screwdrivers FS4000.
Makita Spare Parts for Drywall Screwdriver FS4000
  • Makita Spare Parts for Drywall Screwdriver FS4000
  • Makita Spare Parts for Drywall Screwdriver FS4000

Makita Spare Parts for Drywall Screwdriver FS4000

SKU: Makita FS4000 Condition: New
€5.15
VAT included

Makita Spare Parts for Drywall Screwdriver FS4000

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Drywall Screwdrivers FS4000.
settings 46 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 158875-2 FRONT HOOD FS4000 €6.69
3
photo_cameraImage coming soon 424235-3 SEAL 30 FS2500K €1.25
4
photo_cameraImage coming soon 455591-0 RING RETAINING FS2500K €2.78
5
photo_cameraImage coming soon 233974-2 CIRCLIP 33 FS2500K €1.92
6
photo_cameraImage coming soon 232245-4 SPRING BAND BFS440 €3.92
7
photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
8
photo_cameraImage coming soon 158883-3 GEAR BOX FS4000 €5.73
9
photo_cameraImage coming soon 232050-9 SPRING BAND €2.49
10
photo_cameraImage coming soon 216040-0 BALL 3.5 €1.44
11
photo_cameraImage coming soon 324983-3 POST 125N FS4000 €14.68
16
photo_cameraImage coming soon 233126-5 COMPRESSION SPRING 6 €2.49
17
photo_cameraImage coming soon 268229-6 PIN 8 FS4000 €1.34
18
photo_cameraImage coming soon 226687-2 GEAR 41N FS4000 €6.69
19
photo_cameraImage coming soon 216415-3 ROLLER THRUST X 6823 €3.42
20
photo_cameraImage coming soon 216212-7 WASHER 821 X 6823 €1.34
22
photo_cameraImage coming soon 158874-4 COVER BOX INGR.FS4000 €3.42
24
photo_cameraImage coming soon 210007-0 BEARING 608S (LB) X 6931DW €8.61
25
photo_cameraImage coming soon 240083-0 FAN 52 HR1830 €3.43
26
photo_cameraImage coming soon 515759-1 ARMATURE FS4000 €27.61
27
Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
28
Ball Bearing 607 ZZ for Impact Drill Maktek MT601 210062-2 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 €4.41
29
Ball Bearing Protection for Angle Grinder Makita GA4530 421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530 €2.00
30
photo_cameraImage coming soon 266467-4 SCREW 4X50 FS2500K €1.66
32
photo_cameraImage coming soon 633693-4 STATOR FS2500K €9.72
33
photo_cameraImage coming soon 450885-8 HOUSING MOTOR FS4000 €7.49
34
photo_cameraImage coming soon 162272-6 HOOK FS2500K €2.39
37
photo_cameraImage coming soon 689111-0 DISTANCE X HR2020 €1.40
38
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
39
photo_cameraImage coming soon 643948-9 HOLDER CARBON BRUSHES X DP4003 €1.79
40
photo_cameraImage coming soon 643951-0 HOLDER CARBON BRUSHES X DP4003 €2.12
41
photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
42
photo_cameraImage coming soon 650614-1 SWITCH FS2500K €22.34
43
photo_cameraImage coming soon 158878-6 COVER HANDLE FS2500K €11.32
44
photo_cameraImage coming soon 266374-1 SCREW 4X25 GA9020 €1.43
45
photo_cameraImage coming soon 266374-1 SCREW 4X25 GA9020 €1.43
47
photo_cameraImage coming soon 646122-8 COIL FS2500K €1.34
48
photo_cameraImage coming soon 645253-0 CAPACITOR X 6408 €5.93
49
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
50
Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
53
photo_cameraImage coming soon 423413-2 RUBBER PLATE FS2500 €1.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Drywall Screwdriver FS4000

Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Drywall Screwdrivers FS4000.

In the following table, look for the model of Dry Wall Screwdrivers and the respective parts of the code.
Drywall Screwdrivers FS4000

Drywall Screwsriver FS4000
# Part Num. Description
1 158875-2 FRONT HOOD FS4000
2 424163-2 SEAL DUST FS4000
3 424235-3 SEAL 30 FS2500K
4 455591-0 RING RETAINING FS2500K
5 233974-2 CIRCLIP 33 FS2500K
6 232245-4 SPRING BAND BFS440
7 266361-0 SCREW 4 X 30 X 9554NB
8 158883-3 GEAR BOX FS4000
9 232050-9 SPRING FASCIA6701B / 10DW / 6801DBV
10 216040-0 BALL 3.5
11 324983-3 POST 125N FS4000
16 233126-5 SPRING COMPRESSION 6 X 6832
17 268229-6 PIN 8 FS4000
18 226687-2 GEAR 41N FS4000
19 216415-3 ROLLER THRUST X 6823
20 216212-7 WASHER 821 X 6823
21 424162-4 SEAL FS4000
22 158874-4 COVER BOX INGR.FS4000
23 451099-2 RING 7 FS2500K
24 210007-0 BEARING 608S (LB) X 6931DW
25 240083-0 FAN 52 HR1830
26 515759-1 ARMATURE FS4000
27 681636-0 INSULATION WASHER
28 210062-2 BEARING 607ZZ X MT601
29 421868-5 RING RUBBER X 9554NB
30 266467-4 SCREW 4X50 FS2500K
31 450880-8 BAFFLE FS2500K
32 633693-4 STATOR FS2500K
33 450885-8 HOUSING MOTOR FS4000
34 162272-6 HOOK FS2500K
35 866602-0 LABEL FS4000
36 808575-1 LABEL 4000G FS4000
37 689111-0 DISTANCE X HR2020
38 191962-4 CARBON BRUSHES CB-419 (406.407) 6408
39 643948-9 HOLDER CARBON BRUSHES X DP4003
40 643951-0 HOLDER CARBON BRUSHES X DP4003
41 687124-5 Cable tie CLAMP MT953
42 650614-1 SWITCH FS2500K
43 158878-6 COVER HANDLE FS2500K
44 266374-1 SCREW 4X25 FOR GA9020
45 266374-1 SCREW 4X25 FOR GA9020
47 646122-8 COIL FS2500K
48 645253-0 CAPACITOR X 6408
49 265995-6 SCREW M4X18 X 6408 / 6221DW
50 682559-5 SAVE CABLE X 6822
53 423413-2 RUBBER PLATE FS2500
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita FS4000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

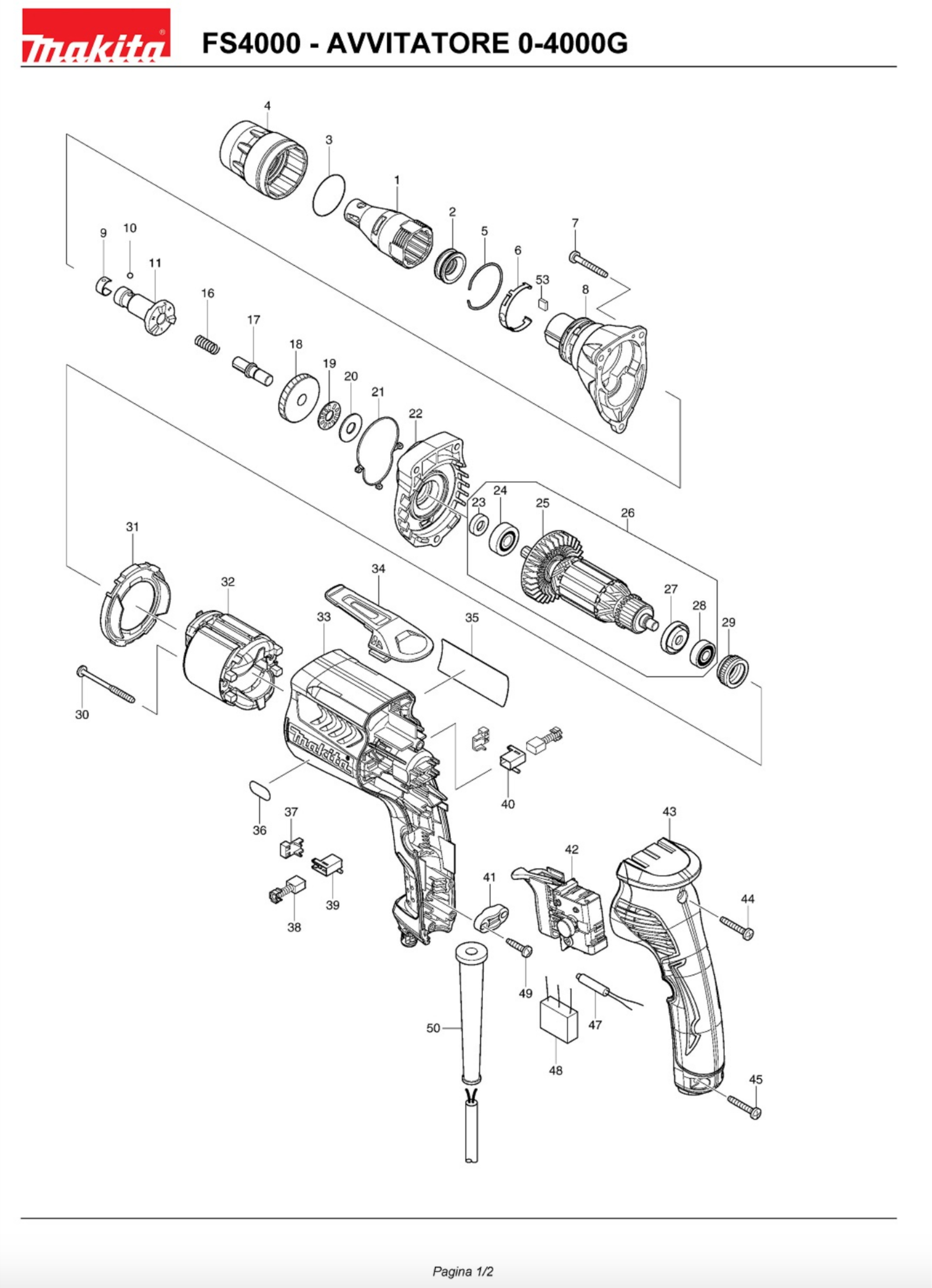

Diagram Makita FS4000
