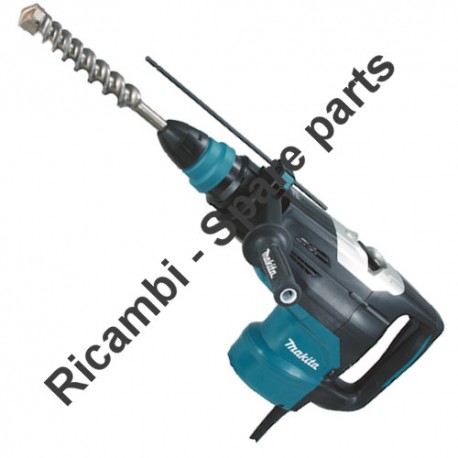

Makita Spare Parts for Rotary Hammer HR5202C
We have the original MAKITA parts and tool repair help you need to get your tools running like new again.
Fix Your
Rotary Hammer HR5202C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer Makita HR5202C |
| # |
Part Num. |
Description |
| 1 |
142412-2 |
COVER B |
| 2 |
286292-7 |
FRONT HOOD |
| 3 |
233948-3 |
RING 25 X HR5201C |
| 4 |
257367-9 |
RING 28 |
| 5 |
262172-1 |
RUBBER RING 29 |
| 6 |
454767-6 |
SLEEVE |
| 7 |
324752-2 |
X RING CHUCK HR5201C |
| 8 |
454768-4 |
COVER DISENGAGEMENT |
| 9 |
310178-4 |
FERMAPUNTA X HR5201C |
| 10 |
346751-4 |
SPRING GUIDE |
| 11 |
234317-1 |
COMPRESSION SPRING 49 |
| 12 |
346751-4 |
SPRING GUIDE |
| 13 |
213664-3 |
RING 60 |
| 14 |
922456-6 |
BOLT M8x35 |
| 15 |
142408-3 |
CANNON |
| 16 |
454769-2 |
BUSH BLOCK |
| 17 |
259057-0 |
SNAP RING 74 |
| 18 |
213766-5 |
RING 78 X HR5201C |
| 19 |
213789-3 |
RING 38 |
| 21 |
326361-3 |
TIPS TO HOLDER |
| 22 |
268308-0 |
PIN 9 |
| 23 |
231989-3 |
CIRCLIP 46 HM1202C |
| 24 |
257353-0 |
RING 49 |
| 25 |
213779-6 |
RING 45 |
| 26 |
267477-4 |
WASHER 60 |
| 27 |
262171-3 |
RUBBER RING 60 |
| 28 |
267477-4 |
WASHER 60 |
| 29 |
326362-1 |
HOLDER TIPS B |
| 30 |
213783-5 |
RING 48 |
| 32 |
234318-9 |
COMPRESSION SPRING 45 |
| 33 |
213811-6 |
RING 26.5 |
| 34 |
213780-1 |
RING RESIN 32.5 |
| 35 |
213776-2 |
RING 26 |
| 36 |
326374-4 |
SWING |
| 37 |
257354-8 |
RING 23 |
| 38 |
262173-9 |
RUBBER RING 24 |
| 39 |
267856-6 |
WASHER 23 |
| 40 |
257994-2 |
RETAINING RING WR-44 |
| 41 |
257355-6 |
RING 44 |
| 42 |
267478-2 |
WASHER 44 |
| 43 |
234319-7 |
COMPRESSION SPRING 46 |
| 44 |
267478-2 |
WASHER 44 |
| 45 |
326377-8 |
STRIKER |
| 46 |
213781-9 |
RING 33 |
| 47 |
332093-2 |
CYLINDER 40 |
| 48 |
213460-9 |
O-RING 35 HK / HR1800 / HM12 |
| 49 |
213782-7 |
O-RING 30 |
| 50 |
257820-5 |
SLEEVE 9 |
| 51 |
319097-1 |
PISTON |
| 52 |
213460-9 |
O-RING 35 HK / HR1800 / HM12 |
| 53 |
454765-0 |
WASHER |
| 54 |
256548-2 |
PIN 6 |
| 55 |
346749-1 |
LINK PLATE |
| 56 |
313272-1 |
DRIVING SLEEVE |
| 57 |
454779-9 |
GUIDE RING |
| 58 |
227625-7 |
GEAR 33 |
| 67 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 68 |
454326-6 |
CHANGE LEVER |
| 69 |
319082-4 |
CRANK CAP COVER |
| 70 |
454770-7 |
CONTROL PLATE |
| 71 |
454771-5 |
BUTTON |
| 72 |
234284-0 |
COMPRESSION SPRING 4 |
| 73 |
454345-2 |
LEVER |
| 74 |
213262-3 |
O-RING 18 4100R |
| 75 |
424607-2 |
FILTER CAP |
| 76 |
443129-3 |
FILTER HR2800 |
| 77 |
911128-8 |
SCREW M4x16 X HR4000C |
| 78 |
454764-2 |
CRANK CAP |
| 79 |
424608-0 |
SEAL RING B |
| 80 |
232280-2 |
SPRING PLATE |
| 81 |
454766-8 |
RING |
| 82 |
911511-9 |
SCREW M4 X 10 X HR4001C / HR4010C |
| 83 |
454778-1 |
CONNECTION GUIDE |
| 84 |
233611-8 |
TORSION SPRING 7 |
| 85 |
911128-8 |
SCREW M4x16 X HR4000C |
| 86 |
346748-3 |
GUIDE RAIL |
| 87 |
142407-5 |
HOUSING ROD B |
| 88 |
922359-4 |
SCREW M6X35 |
| 168 |
257994-2 |
RETAINING RING WR-44 |
| 59 |
286255-3 |
CAP 13 X DC24SA |
| 89 |
454784-6 |
BASE B |
| 90 |
911233-1 |
HEAD SCREW M5X20 3600H |
| 92 |
126476-4 |
TORQUE CPL |
| 93 |
227628-1 |
GEAR 10 |
| 94 |
211323-3 |
BALL BEARING 6904 |
| 95 |
142410-6 |
TORQUE LIMITER COMPLETE |
| 96 |
324727-1 |
WASHER B |
| 97 |
210005-4 |
BALL BEARING 608 DDW |
| 98 |
253215-0 |
FLAT WASHER 8 6510PBL / LVR |
| 99 |
961004-6 |
RETAINING RING S8 |
| 100 |
424609-8 |
SEAL RING A |
| 101 |
142409-1 |
GEAR HOUSING |
| 102 |
922359-4 |
SCREW M6X35 |
| 103 |
213231-4 |
OIL SEAL X HR4500C |
| 104 |
326376-0 |
CRANK SHAFT |
| 105 |
211418-2 |
BALL BEARING 6006LLU X HR4500C |
| 106 |
254229-2 |
KEY 5 X HR4000C |
| 107 |
227788-9 |
GEAR 46 |
| 108 |
227336-4 |
GEAR 26 |
| 109 |
961102-6 |
RETAINING RING S22 |
| 110 |
253843-1 |
FLAT WASHER X LC1230 |
| 111 |
331596-3 |
SOCKET 12 X HR4500C |
| 112 |
211238-4 |
BALL BEARING 6202LLU |
| 113 |
267215-4 |
WASHER 15 X BTD200 |
| 114 |
517898-3 |
ARMATURE |
| 115 |
681642-5 |
WASHER X LS1013 |
| 116 |
210059-1 |
BEARING 6000 HR2010 |
| 117 |
266568-8 |
SCREW 5 X 80 X HM1101C |
| 118 |
454772-3 |
BAFFLE |
| 119 |
636303-2 |
STATOR FOR HR5201C |
| 120 |
632B59-7 |
BRUSHE HOLDER |
| 121 |
195844-2 |
CARBON BRUSHE CB-175 |
| 124 |
454763-4 |
GEAR HOUSING COVER |
| 125 |
454757-9 |
MOTOR HOUSING |
| 126 |
922359-4 |
SCREW M6X35 |
| 127 |
240016-5 |
FAN X HR5001C |
| 128 |
253165-9 |
FLAT WASHER 8 |
| 129 |
252178-7 |
NUT M 8-12 X 4112HS |
| 130 |
454762-6 |
COVER LOWER |
| 131 |
266041-8 |
PT SCREW 5x25 |
| 133 |
682560-0 |
CABLE SLEEVE X HM1202C / 9079S |
| 134 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 135 |
419024-9 |
CORD CLAMP BASE HR4001C |
| 136 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 137 |
687169-3 |
CORD CLAMP HP1620 |
| 138 |
632C15-3 |
LEAD UNIT |
| 142 |
620251-5 |
CONTROLLER |
| 143 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 144 |
454346-0 |
LENS |
| 145 |
234281-6 |
COMPRESSION SPRING 6 |
| 146 |
632A83-4 |
SWITCH |
| 147 |
454336-3 |
SWITCH LEVER C |
| 148 |
187890-9 |
SWITCH BOX |
| 150 |
266041-8 |
PT SCREW 5x25 |
| 153 |
454782-0 |
HANDLE B |
| 155 |
266041-8 |
PT SCREW 5x25 |
| 160 |
454333-9 |
SWITCH LEVER B |
| 164 |
154626-1 |
SWITCH HOLDER HR4001C |
| 165 |
650678-5 |
SWITCH C3PA-1121 |
| 166 |
454760-0 |
COVER HANDLE |
| 167 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
