Makita

Makita Spare Parts for Wall Chaser SG180/2

SKU: Makita SG180/2
€3.08
VAT included

Makita Spare Parts for Wall Chaser SG180/2

Makita genuine spare parts or replacement parts for to repair Wall Chaser 1800W 180 mm Makita SG180/2.
Makita Spare Parts for Wall Chaser SG180/2
  • Makita Spare Parts for Wall Chaser SG180/2
  • Makita Spare Parts for Wall Chaser SG180/2
Makita

Makita Spare Parts for Wall Chaser SG180/2

SKU: Makita SG180/2 Condition: New
€3.08
VAT included

Makita Spare Parts for Wall Chaser SG180/2

Makita genuine spare parts or replacement parts for to repair Wall Chaser 1800W 180 mm Makita SG180/2.
settings 56 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

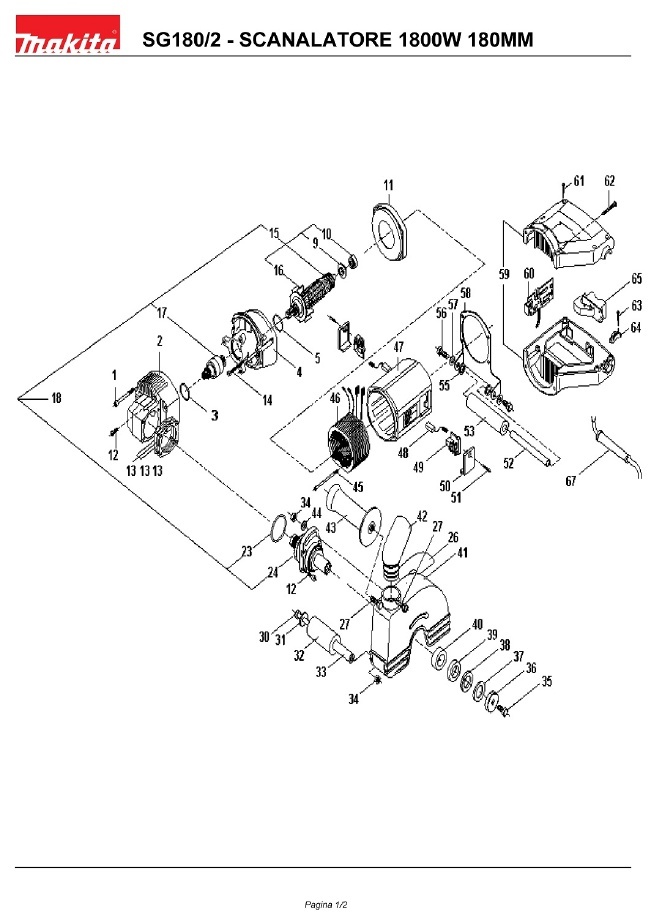

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon B19471 SCREWM5 X 50 X SG180 €2.94
2
 photo_cameraImage coming soon B50815 GEAR BOX X SG150 €193.46
3
 photo_cameraImage coming soon B51003 RING 35X2.5 X SG180 €1.40
4
 photo_cameraImage coming soon B06712 MOTOR COVER X SG180 €239.55
9
 photo_cameraImage coming soon B05116 INSULATED WASHER X SG180 €2.06
10
 photo_cameraImage coming soon B22681 BALL BEARING 6000 2RS €16.17
11
 photo_cameraImage coming soon B41418 VANE X SG150 €12.69
12
 photo_cameraImage coming soon B33415 SCREW M5 X 20 X SG150 €1.40
13
 photo_cameraImage coming soon B30361 PLATE 0.15 X SG150 €4.43
13
 photo_cameraImage coming soon B30379 PLATE 0.2X SG150 €4.43
13
 photo_cameraImage coming soon B30387 PLATE X 0.3 SG150 €5.13
14
 photo_cameraImage coming soon B27854 SCREW M5 X 45 X SG180 €1.34
15
 photo_cameraImage coming soon B58032 ARMATURE X SG180 €391.27
16
 photo_cameraImage coming soon B21600 FAN X SG180 €12.92
17
 photo_cameraImage coming soon B65011 GEAR X SG180 €132.54
18
 photo_cameraImage coming soon B06711 ARMATURE SET X SG180 €479.11
23
 photo_cameraImage coming soon B30148 RING 46X2 X SG2150 €2.69
24
 photo_cameraImage coming soon B64881 SPINDLE X SG180 €271.49
26
 photo_cameraImage coming soon B47100 SCALE X SG180 €4.45
27
 photo_cameraImage coming soon B11528 BOLT M 8 X 25 X SG150 €1.40
30
 photo_cameraImage coming soon B11122 BOLT M 8 X 90 X SG150 €2.69
31
 photo_cameraImage coming soon B11189 WASHER 8.4 X SG150 €1.40
32
 Makita SG150/2 Tension Roller B10777 Makita SG150/2 Tension Roller €13.33
33
 photo_cameraImage coming soon B11247 TUBE X SG150 €9.89
34
 photo_cameraImage coming soon B18952 NUT M8 X SG150 €1.40
35
 photo_cameraImage coming soon B10983 BOLT M 8 X 16 X SG150 €9.06
36
 photo_cameraImage coming soon B29934 EXTERNAL FLANGE X SG150 €24.35
37
 photo_cameraImage coming soon B30486 RING 3 X SG150 €3.84
38
 photo_cameraImage coming soon B55376 RING 5 X SG180 €7.49
39
 photo_cameraImage coming soon B10678 RING 10 X SG150 €9.89
40
 photo_cameraImage coming soon B55384 RING 21 X SG180 €12.92
41
 photo_cameraImage coming soon B06343 COVER DISC X SG180 €132.54
42
 photo_cameraImage coming soon B44669 SUCTION JOIN X SG180 €27.61
43
 photo_cameraImage coming soon B08482 HANDLE SIDE X SG150 €40.40
44
 photo_cameraImage coming soon B21071 WASHER M8 X SG150 €1.40
45
 photo_cameraImage coming soon B36137 SCREW M4 X 80 X SG150 €2.08
46
 photo_cameraImage coming soon B45856 FIELDS X SG180 €168.48
47
 photo_cameraImage coming soon B58701 MOTOR HOUSING X SG180 €86.23
48
 photo_cameraImage coming soon B45872 CARBON BRUSHE (1 pc) X SG150 €17.00
49
 photo_cameraImage coming soon B52894 CARBON BRUSHE HOLDER X SG150 €28.03
50
 photo_cameraImage coming soon B38299 CARBON BRUSHE HOLDER COVER X SG180 €3.13
51
 photo_cameraImage coming soon B21030 SCREW M3,9 X 13 X SG150 €1.40
52
 photo_cameraImage coming soon B31096 TUBE X SG150 €12.69
53
 Makita SG150/2 Roller 26X113 B09506 Makita SG150/2 Roller 26X113 €10.39
55
 photo_cameraImage coming soon B26948 WASHER 13 X SG150 €1.40
56
 photo_cameraImage coming soon B30981 BOLT M 7 X 12 X SG150 €2.08
57
 photo_cameraImage coming soon B31070 WASHER 7.4 X SG150 €1.40
58
 photo_cameraImage coming soon B10801 HOLDER X SG150 €68.84
59
 photo_cameraImage coming soon B48611 COMPLETE HANDLE X SG150 €68.84
60
 Makita SG150/2 - SG180/2 Controller B35055 Makita SG150/2 - SG180/2 Controller €210.90
61
 photo_cameraImage coming soon B42721 SCREW M3,9 X 19 X SG150 €1.40
62
 photo_cameraImage coming soon B44941 SCREW M4,8 X 38 X SG150 €1.40
63
 photo_cameraImage coming soon B20990 SCREW M3,9 X 16 X SG150 €1.40
64
 photo_cameraImage coming soon B17913 CLAMP X 2702 €5.13
65
 photo_cameraImage coming soon B31468 SWITCH X SG150 €75.83
67
 photo_cameraImage coming soon B25221 SAVE CABLE X SG150 €2.08

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Wall Chaser SG180/2

Makita genuine spare parts or replacement parts for to repair Wall Chaser 1800W 180 mm Makita SG180/2.

In the following table, look for the model of Groover and the respective parts of the code.

Wall Chaser Makita SG180/2
# Part Num. Description
1 B19471 SCREWM5 X 50 X SG180
2 B50815 GEARBOX BOX SG150
3 B51003 RING 35X2.5 X SG180
4 B06712 MOTOR COVER X SG180
5 B53488 RING 31,42X2,62 X SG180
9 B05116 INSULATED WASHER X SG180
10 B22681 BALL BEARING 6000 2RS
11 B41418 DEFLECTOR X SG150
12 B33415 SCREW M5 X 20 X SG150
13 B30379 PLATE 0.2 X SG150
13 B30387 PLATE 0.3 X SG150
13 B30361 PLATE 0.15 X SG150
14 B27854 SCREW M5 X 45 X SG180
15 B58032 ARMATURE X SG180
16 B21600 FAN X SG180
17 B65011 GEAR X SG180
18 B06711 ARMATURE SET X SG180
23 B30148 RING 46X2 X SG2150
24 B64881 SPINDLE X SG180
26 B47100 SCALE X SG180
27 B11528 BOLT M 8 X 25 X SG150
30 B11122 BOLT M 8 X 90 X SG150
31 B11189 WASHER 8.4 X SG150
32 B10777 ROLLER X SG150
33 B11247 TUBE X SG150
34 B18952 NUT M8 X SG150
35 B10983 BOLT M 8 X 16 X SG150
36 B29934 EXTERNAL FLANGE X SG150
37 B30486 RING 3 X SG150
38 B55376 RING 5 X SG180
39 B10678 RING 10 X SG150
40 B55384 RING 21 X SG180
41 B06343 COVER DISC X SG180
42 B44669 SUCTION JOIN X SG180
43 B08482 SIDE HANDLE X SG150
44 B21071 WASHER M8 X SG150
45 B36137 SCREW M4 X 80 X SG150
46 B45856 FIELDS X SG180
47 B58701 MOTOR HOUSING X SG180
48 B45872 CARBON BRUSH X SG150 (single)
49 B52894 CARBON BRUSHE HOLDER X SG150
50 B38299 CARBON BRUSHE HOLDER COVER X SG180
51 B21030 SCREW M3.9 X 13 X SG150
52 B31096 TUBE X SG150
53 B09506 WASHER X SG150
55 B26948 WASHER 13 X SG150
56 B30981 BOLT M 7 X 12 X SG150
57 B31070 WASHER 7.4 X SG150
58 B10801 SUPPORT X SG150
59 B48611 COMPLETE HANDLE X SG150
60 B35055 CONTROLLER X SG150
61 B42721 SCREW M3.9 X 19 X SG150
62 B44941 SCREW M4,8 X 38 X SG150
63 B20990 ScCREW M3.9 X 16 X SG150
64 B17913 TERMINAL X 2702
65 B31468 SWITCH X SG150
67 B25221 CABLE ARMOR X SG150
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita SG180/2
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita SG180/2

Diagram Makita SG180/2

Download (254.53KB)
