at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Wall Chaser 1800W 150 mm Makita SG150/2.

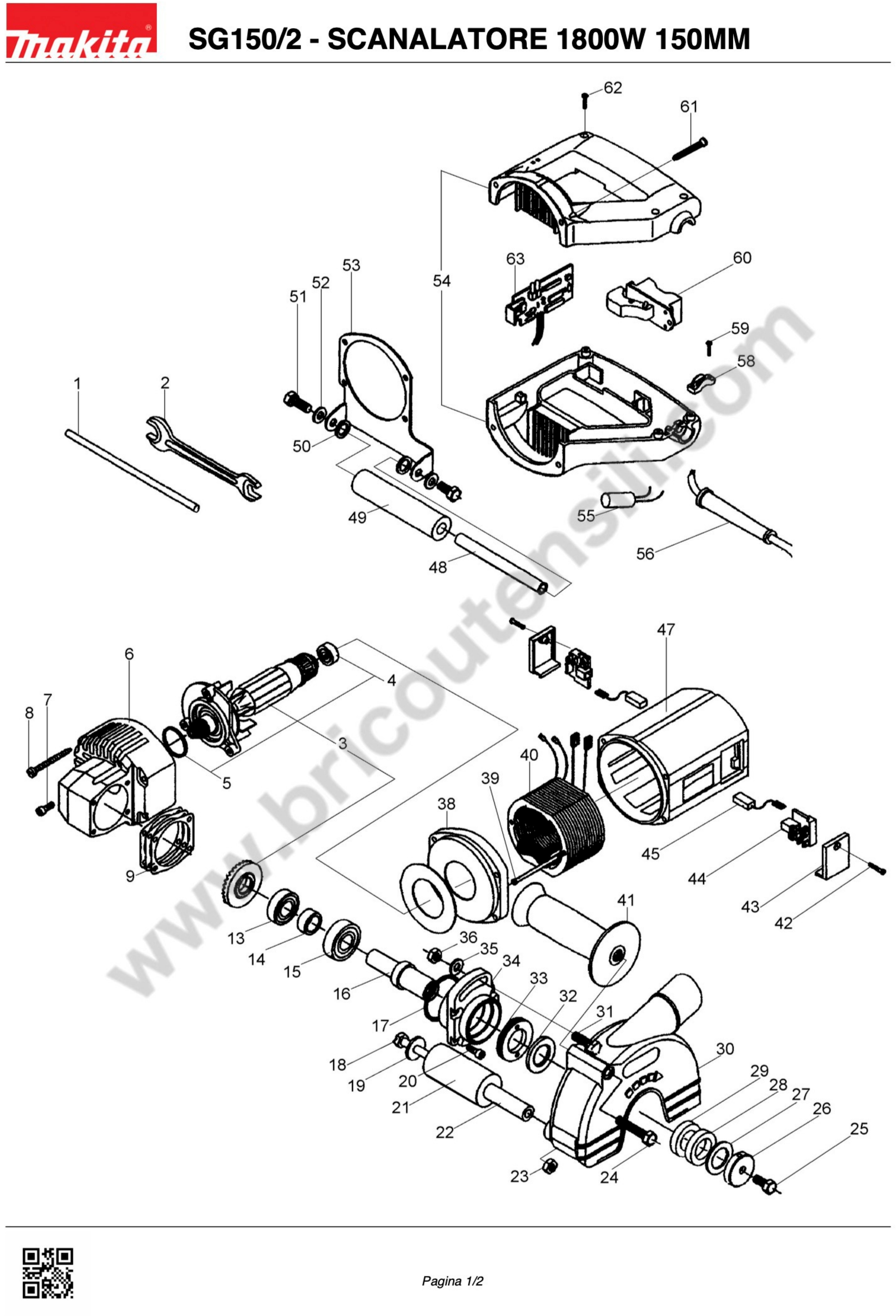

In the following table, look for the model of Groover and the respective parts of the code.
| Wall Chaser Makita SG150/2 | ||
| # | Part Num. | Description |
| 1 | B47720 | BOLT X SG150 |
| 2 | B03384 | WRENCH 13/17 X SG150 |
| 3 | B35915 | ARMATURE X SG150 |
| 4 | 211066-7 | BEARING HM1301 - 6200 |
| 5 | B32615 | RING X SG150 |
| 6 | B50815 | GEAR BOX X SG150 |
| 7 | B33415 | SCREW M5 X 20 X SG150 |
| 8 | B07450 | SCREW M4,8 X 80 X SG150 |
| 9 | B30379 | PLATE 0.2X SG150 |
| 9 | B30387 | PLATE X 0.3 SG150 |
| 9 | B30361 | PLATE 0.15 X SG150 |
| 13 | B30130 | BEARING X SG150 |
| 14 | B30015 | SOCKET X SG150 |
| 15 | 211490-4 | BEARING 6203LLU X SG150-2 |
| 16 | B46748 | POST X SG150 |
| 17 | B30148 | RING 46X2 X SG2150 |
| 18 | B11122 | BOLT M 8 X 90 X SG150 |
| 19 | B11189 | WASHER 8.4 X SG150 |
| 20 | B33415 | SCREW M5 X 20 X SG150 |
| 21 | B10777 | TENSION ROLLER X SG150 |
| 22 | B11247 | TUBE X SG150 |
| 23 | B18952 | NUT M8 X SG150 |
| 24 | B33407 | BOLT M 8 X 55 X SG150 |
| 25 | B10983 | BOLT M 8 X 16 X SG150 |
| 26 | B29934 | EXTERNAL FLANGE X SG150 |
| 27 | B30486 | RING 3 X SG150 |
| 28 | B10678 | RING 10 X SG150 |
| 29 | B30494 | RING 18 X SG150 |
| 30 | B50831 | SAFETY COVER X SG150 |
| 31 | B11528 | BOLT M 8 X 25 X SG150 |
| 32 | B29884 | RING 2.7X SG150 |
| 33 | B30171 | STOP BEARING X SG150 |
| 34 | B50823 | BEARING BOX X SG150 |
| 35 | B21071 | WASHER M8 X SG150 |
| 36 | B18952 | NUT M8 X SG150 |
| 38 | B41418 | VANE X SG150 |
| 39 | B36137 | SCREW M4 X 80 X SG150 |
| 40 | B50849 | STATOR 220 X SG150 |
| 41 | B08482 | HANDLE SIDE X SG150 |
| 42 | B21030 | SCREW M3,9 X 13 X SG150 |
| 43 | B45625 | COVER PORTACARBONCINI X SG150 |
| 44 | B32508 | PORT CARBON BRUSHES X SG150 |
| 45 | B45872 | CARBON BRUSHE (1 pc) X SG150 |
| 47 | B45443 | HOUSING MOTOR X SG150 |
| 48 | B31096 | TUBE X SG150 |
| 49 | B09506 | TENSION ROLLER X SG150 |
| 50 | B26948 | WASHER 13 X SG150 |
| 51 | B30981 | BOLT M 7 X 12 X SG150 |
| 52 | B31070 | WASHER 7.4 X SG150 |
| 53 | B10801 | HOLDER X SG150 |
| 54 | B32607 | HANDLE COMPLETE X SG150 |
| 55 | B14886 | MUFFLER X SG150 |
| 56 | B25221 | SAVE CABLE X SG150 |
| 58 | B17913 | CLAMP X 2702 |
| 59 | B20990 | SCREW M3,9 X 16 X SG150 |
| 60 | B31468 | SWITCH X SG150 |
| 61 | B44941 | SCREW M4,8 X 38 X SG150 |
| 62 | B42721 | SCREW M3,9 X 19 X SG150 |
| 63 | B35055 | CONTROLLER X SG150 |
