Makita

Makita Spare Parts for Rotary Hammer HR4011C

SKU: Makita HR4011C Condition: New
€34.02
VAT included

Makita Spare Parts for Rotary Hammer HR4011C

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer HR4011C.
settings 130 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
124 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

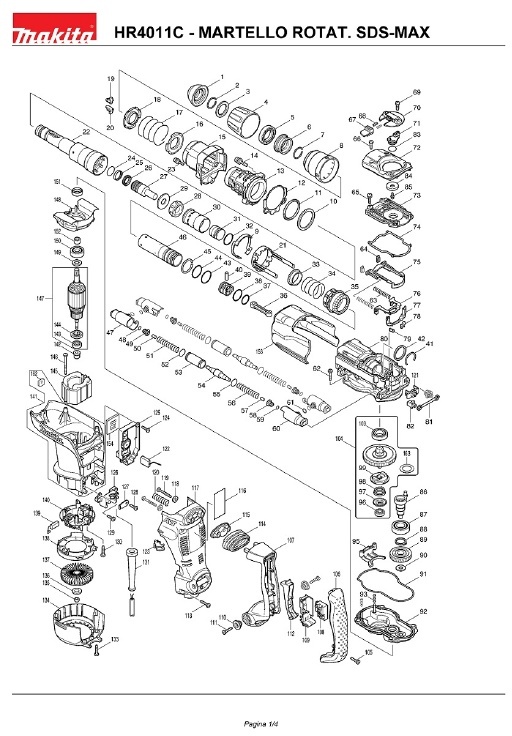

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 286285-4 FRONT HOOD HR4001C/4010C €3.19
2
 Retaining Ring for Rotary Hammer Makita HR50001C 231984-3 Retaining Ring for Rotary Hammer Makita HR50001C €2.01
3
 photo_cameraImage coming soon 267272-2 WASHER 28 HM0860C €5.67
4
 photo_cameraImage coming soon 419015-0 SLEEVE CHUCK HR4001 €3.29
5
 photo_cameraImage coming soon 419002-9 DISTANCE HR4001C/HR4010C €2.13
6
 photo_cameraImage coming soon 324548-1 RING CHUCK HR4001C €10.43
8
 photo_cameraImage coming soon 419016-8 COVER DISCONNECT HR4001C/4010C €2.70
9
 Lock Sleeve Guide for Rotary Hammer Makita HR4001C 419760-7 Lock Sleeve Guide for Rotary Hammer Makita HR4001C €2.65
10
 photo_cameraImage coming soon 267336-2 WASHER 45 HR4001C/HR4010C €2.27
11
 photo_cameraImage coming soon 262116-1 RING URETHANE 45 HR4001C €10.43
12
 Seal Sheet for Rotary Hammer Makita HR4001C 421911-0 Seal Sheet for Rotary Hammer Makita HR4001C €2.59
13
 photo_cameraImage coming soon 154621-1 CANNON HR4001C/HR4010C €75.47
14
 photo_cameraImage coming soon 922353-6 SCREW M6x30 HM1202C €1.46
15
 photo_cameraImage coming soon 154624-5 COVER CANNON HR4001C/4010C €5.67
16
 photo_cameraImage coming soon 345579-7 GUIDE SPRING HR4001C/HR4010C €1.74
17
 photo_cameraImage coming soon 233431-0 SPRING COMP.48 HR4001C/HR4010C €1.70
19
 photo_cameraImage coming soon 310161-1 STOP BIT HR4001C/HR4010C €12.01
21
 Lock Sleeve for Rotary Hammer Makita HR4001C 165633-9 Lock Sleeve for Rotary Hammer Makita HR4001C €28.33
22
 photo_cameraImage coming soon 324542-3 TIPS HR4001C/HR4010C €234.11
23
 photo_cameraImage coming soon 266437-3 SCREW M4x16 FRENA THREAD HR4001C €3.39
24
 Ring 20 for Demolition Hammer Makita HR4000C 213317-4 Ring 20 for Demolition Hammer Makita HR4000C €1.44
25
 Rubber Ring 25 for Hammers Makita HR4000C 213392-0 Rubber Ring 25 for Hammers Makita HR4000C €9.24
26
 Ring 18 for Demolition Hammers Makita HR4001C/4010C 213281-9 Ring 18 for Demolition Hammers Makita HR4001C/4010C €6.71
27
 Impact Bolt for Rotary Hammers Makita HR4001-2-10-11C 324569-3 Impact Bolt for Rotary Hammers Makita HR4001-2-10-11C €21.69
28
 photo_cameraImage coming soon 421901-3 RING RUBBER 17 HR4001C/4010C €10.43
29
 Steel Ring 17 for Demolition Hammers Makita HR 4001-2-10-11C 324573-2 Steel Ring 17 for Demolition Hammers Makita HR 4001-2-10-11C €7.72
30
 Sliding Bushing for Hammers Makita HR4001-2-10-11C 419003-7 Sliding Bushing for Hammers Makita HR4001-2-10-11C €6.55
31
 Impact Device for Demolition Hammers Makita HR4001-2-10-11C 324571-6 Impact Device for Demolition Hammers Makita HR4001-2-10-11C €21.69
32
 Ring 22 Piston + Impact Device for Hammers Makita HR4001-2-3-10-11C 213962-5 Ring 22 Piston + Impact Device for Hammers Makita HR4001-2-3-10-11C €4.19
33
 photo_cameraImage coming soon 331709-6 RING 33 HR4001C/HR4010C €9.63
34
 photo_cameraImage coming soon 233448-3 SPRING COMPRESSION 37 HR4001C/HR4010C €1.70
35
 photo_cameraImage coming soon 227509-9 GEAR 25 HR4001C/HR4010C €45.33
36
 Conrod for Rotary Demolition Hammers Makita HR4001-10-11C 419005-3 Conrod for Rotary Demolition Hammers Makita HR4001-10-11C €4.86
37
 Ring 21 for Piston Demolition Hammers Makita HR4001-2-10-11-13C 213379-2 Ring 21 for Piston Demolition Hammers Makita HR4001-2-10-11-13C €4.19
39
 Piston for Rotary Demolition Hammers Makita HR4001-2-10-11-13C 419004-5 Piston for Rotary Demolition Hammers Makita HR4001-2-10-11-13C €5.00
40
 Piston Pin for Hammers Makita HR4000-4001-2-10-11-13C 256197-5 Piston Pin for Hammers Makita HR4000-4001-2-10-11-13C €1.67
41
 Elastic Ring for Demolition Hammers Makita HR 4001-2-10-11C 233937-8 Elastic Ring for Demolition Hammers Makita HR 4001-2-10-11C €4.19
42
 photo_cameraImage coming soon 257268-1 RING 33 HR4001C/HR4010C €5.10
43
 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C 213406-5 Gasket 30 O-R for Cylinder Hammers Makita HR4001-2-3-10-11C €1.35
45
 Ring Spring 32 for Rotary Hammer Makita HR4001C 233935-2 Ring Spring 32 for Rotary Hammer Makita HR4001C €1.80
46
 Cilynder 28.5 for Rotary Hammer Makita HR4001C 324570-8 Cilynder 28.5 for Rotary Hammer Makita HR4001C €53.67
47
 photo_cameraImage coming soon 317923-8 PIPE HOLDER HR4010C €22.03
48
 photo_cameraImage coming soon 213030-4 RING 8 X RP1100C €1.42
50
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
52
 photo_cameraImage coming soon 213275-4 O-RING 18 X BFL401F €4.51
53
 photo_cameraImage coming soon 324572-4 PIPE 16 HR4010C €7.28
54
 photo_cameraImage coming soon 324574-0 COUNTER WEIGHT HR4010C €6.74
62
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.70
63
 photo_cameraImage coming soon 233432-8 COMPRESSION SPRING 7 HR4001C/4010C €1.70
65
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
66
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
67
 photo_cameraImage coming soon 419009-5 BUTTON FRAME HR4001C €2.13
68
 photo_cameraImage coming soon 233436-0 COMPRESSION SPRING 3 HR4001C/HR4010C €1.70
70
 photo_cameraImage coming soon 419020-7 LEVER HR4001C/HR4010C €5.67
71
 photo_cameraImage coming soon 419007-9 ROD LEVER HR4001C €2.50
72
 photo_cameraImage coming soon 317924-6 CRANK CAP COVER HR4011C €12.89
73
 photo_cameraImage coming soon 419030-4 COVER HOUSING LOWER ROD. €5.67
74
 Seal Ring for Rotary Hammer Makita HR4001C 421908-9 Seal Ring for Rotary Hammer Makita HR4001C €1.98
75
 photo_cameraImage coming soon 419019-2 GUIDE PLATE CONNECTION €4.08
76
 photo_cameraImage coming soon 345582-8 CONNECTION PLATE HR4001C €4.88
77
 photo_cameraImage coming soon 419012-6 AIR PIPE HR4010C €1.74
80
 photo_cameraImage coming soon 154622-9 CRANK HOUSING COMPL HR4010C €102.94
81
 photo_cameraImage coming soon 423345-3 CUSHION PLATE SHOCK HR4001 €1.42
82
 photo_cameraImage coming soon 419008-7 FIX GUIDE HR4001C €1.42
83
 photo_cameraImage coming soon 213262-3 O-RING 18 4100R €2.59
84
 photo_cameraImage coming soon 419006-1 CONNECTING LEVER HR4001C €2.50
85
 photo_cameraImage coming soon 911511-9 SCREW M4X10 HR4001C/HR4010C €1.25
86
 Crankshaft for Hammers Makita HR4001-10-11C 324550-4 Crankshaft for Hammers Makita HR4001-10-11C €25.21
87
 photo_cameraImage coming soon 211332-2 BALL BEARING 6004 2RS HR 3000C €10.43
88
 photo_cameraImage coming soon 961060-6 RETAINING RING S20 €2.50
89
 photo_cameraImage coming soon 226605-0 GEAR 38 HR4001C/HR4010C €21.53
90
 photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
91
 Gear Box Sealing Ring for SDS-Max Hammer Makita HR4001C 421907-1 Gear Box Sealing Ring for SDS-Max Hammer Makita HR4001C €3.51
92
 photo_cameraImage coming soon 154623-7 GFEAR HOUSING COMPLETE  HR4001C/4010C €107.20
93
 Compression Spring 5 for Hammers Makita HR4001-4002-4010-4011C 233433-6 Compression Spring 5 for Hammers Makita HR4001-4002-4010-4011C €1.30
95
 Makita HR4001-4002-4010-4011C Change Plate 419018-4 Makita HR4001-4002-4010-4011C Change Plate €4.19
96
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
97
 photo_cameraImage coming soon 345581-0 WASHER 8 HR4001C €1.70
98
 photo_cameraImage coming soon 233936-0 SPRING 19-27 HR4001C/HR4010C €1.70
99
 photo_cameraImage coming soon 324549-9 DRIVING FLANGE HR4001C/HR4010C €12.01
103
 photo_cameraImage coming soon 211323-3 BALL BEARING 6904 €21.53
104
 photo_cameraImage coming soon 135508-6 TORQUE LIMITER ASS'Y HR4001C €265.84
105
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
106
 photo_cameraImage coming soon 419036-2 HANDLE COVER HR4001C/HR4010C €24.71
107
 Rear Handle for Demolition Hammer Makita HR4011C 419038-8 Rear Handle for Demolition Hammer Makita HR4011C €14.24
108
 Switch TG73-B1 for Demolition Hammer Makita HR4001C 650567-4 Switch TG73-B1 for Demolition Hammer Makita HR4001C €20.01
109
 photo_cameraImage coming soon 154626-1 SWITCH HOLDER HR4001C €4.08
110
 photo_cameraImage coming soon 313124-6 SHOULDER SLEEVE 6 HR4011C €2.99
112
 photo_cameraImage coming soon 419025-7 SWITCH X HR4011C €4.08
114
 photo_cameraImage coming soon 421912-8 DUST COVER X HR4011C €3.34
115
 photo_cameraImage coming soon 419014-2 DUST COVER SUPPORT X HR4011C €2.27
117
 photo_cameraImage coming soon 419037-0 HANDLE BASE HR4011C €19.48
118
 photo_cameraImage coming soon 267066-5 FLAT WASHER 5 X6811DW €1.40
119
 photo_cameraImage coming soon 266211-9 SCREW 5 X 40 HK0500 €3.76
120
 Compression Spring 11 mm for Hammer Makita HR4011C 233434-4 Compression Spring 11 mm for Hammer Makita HR4011C €3.03
121
 photo_cameraImage coming soon 419013-4 SPRING GUIDE X HR4011C €2.52
122
 photo_cameraImage coming soon 638406-8 CABLE HARNESS X HR4011C €2.27
123
 photo_cameraImage coming soon 419010-0 LENS HR4001C/HR4010C €2.08
125
 Speed Controller for Demolition Hammers Makita HR4001-4010-4011C 631657-2 Speed Controller for Demolition Hammers Makita HR4001-4010-4011C €92.55
126
 photo_cameraImage coming soon 419024-9 CORD CABLES BASE HR4001C €2.18
127
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
131
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €3.18
134
 photo_cameraImage coming soon 419032-0 COVER LOWER HR4001C/4010C €10.43
135
 photo_cameraImage coming soon 931303-0 HEXAGONAL NUT M6 €1.36
136
 photo_cameraImage coming soon 253047-5 FLAT WASHER 6 €1.70
137
 Fan 76 for Rotary Hammer Makita HR4001C 241876-8 Fan 76 for Rotary Hammer Makita HR4001C €7.77
138
 photo_cameraImage coming soon 419022-3 FAN GUIDE HR4001C/HR4010C €1.74
139
 Carbon Brushes CB-350 for Hammers Makita HR4001C 194160-9 Carbon Brushes CB-350 for Hammers Makita HR4001C €8.80
140
 photo_cameraImage coming soon 638715-5 CARBON BRUSHE HOLDER HR4001C €13.60
141
 photo_cameraImage coming soon 154619-8 HOUSING MOT. HR4001C/HR4010C €40.57
142
 photo_cameraImage coming soon 324390-0 SLEEVE 6 HR4001C/HR4010C €4.08
144
 Armature Washer for Demolition Hammers Makita HR4000C 681650-6 Armature Washer for Demolition Hammers Makita HR4000C €8.76
145
 Stator for Makita Rotary Hammer HR4001C/4013C 625758-6 Stator for Makita Rotary Hammer HR4001C/4013C €40.79
146
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
147
 Armature for Demolition Hammers Makita HR 4001-10-11C 513633-7 Armature for Demolition Hammers Makita HR 4001-10-11C €76.12
148
 photo_cameraImage coming soon 419021-5 BAFFLE HR4001C/HR4010C €4.88
149
 Flat Washer 12 for Angle Grinder Makita GA4540 253084-9 Flat Washer 12 for Angle Grinder Makita GA4540 €1.39
150
 photo_cameraImage coming soon 211137-0 BEARING 6201LLU HM0860C €10.43
151
 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C 213231-4 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C €15.13
152
 photo_cameraImage coming soon 331596-3 SLEEVE 12 4500C €10.43
153
 photo_cameraImage coming soon 419033-8 CRANK HOUSING COVER HR4010C €6.74
162
 photo_cameraImage coming soon 345650-7 PLATE HR4001C €1.74
163
 photo_cameraImage coming soon 267456-2 WASHER 38 HR4001C/4011C €1.70
999
 Service Pack for Hammers Makita HR4001C-4002-4010-11C 195195-3 Service Pack for Hammers Makita HR4001C-4002-4010-11C €33.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer HR4011C

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer HR4011C.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Makita HR4011C

Rotary Hammer Makita HR4011C
# Part Num. Description
1 286285-4 HOOD ANT. X HR4001C / 4010C
2 231984-3 RING X HR50001C
3 267272-2 WASHER 28 X HM0860C
4 419015-0 CHUCK SLEEVE X HR4001C
5 419002-9 DISTANCE X HR4001C / HR4010C
6 324548-1 X RING CHUCK HR4001C
7 231984-3 RING X HR50001C
8 419016-8 COVER DISCONNECT HR4001C / 4010C
9 419760-7 GUIDE BUSH BLOCK
10 267336-2 WASHER 45 X HR4001C / HR4010C
11 262116-1 RING URETHANE 45 HR4001C
12 421911-0 SEAL SHEET X HR4001C / HR4010C
13 154621-1 BARREL COMPLETE X HR4001C / HR4010C
14 922353-6 SCREW M6 X30 X HM1202C
15 154624-5 BARREL COVER COMPLETE X HR4001C / 4010C
16 345579-7 SPRING GUIDE HR4001C / HR4010C
17 233431-0 COMPRESSION SPRING 48 HR4001C / HR4010C
18 345579-7 SPRING GUIDE HR4001C / HR4010C
19 310161-1 TOOL RETAINER X HR4001C / HR4010C
20 310161-1 TOOL RETAINER X HR4001C / HR4010C
21 165633-9 LOCK SLEEVE HR4001C
22 324542-3 TOOL HOLDER X HR4001C / HR4010C
23 266437-3 SCREW M4x16 FRENAFIL X HR4001C
24 213317-4 O-RING 20 X HR4000C
25 213392-0 FLUORIDE RING 25 X HR4000C
26 213281-9 O-RING 18 X HR4001C / HR4010C
27 324569-3 IMPACT BOLT X HR4001C / HR4010C
28 421901-3 RING RUBBER 17 HR4001C / 4010C
29 324573-2 RING 17 X HR4001C / HR4010C
30 419003-7 SLIDING SLEEVE X HR4001C
31 324571-6 STRIKER X HR4001C / HR4010C
32 213962-5 RING 22 X HR4001C / HR4010C
33 331709-6 RING 33 X HR4001C / HR4010C
34 233448-3 COMPRESSION SPRING 37 HR4001C / HR4010C
35 227509-9 GEAR 25 HR4001C / HR4010C
36 419005-3 CONROD X HR4001C / HR4010C
37 213379-2 RING 21 X AN621
38 213962-5 RING 22 X HR4001C / HR4010C
39 419004-5 PISTON X HR4001C / HR4010C
40 256197-5 PIN 4 X HR4000C
41 233937-8 CIRCLIP 31 HR4001C
42 257268-1 RING 33 X HR4001C / HR4010C
43 213406-5 GUARNIZ.30 58NB / SB / HM1200
44 213406-5 GUARNIZ.30 58NB / SB / HM1200
45 233935-2 RING SPRING 32 X HR4001C
46 324570-8 CYLINDER 28.5 HR4001C / HR4010C
47 317923-8 SUPPORT TUBE COMPENSATION. HR4010C
48 213030-4 RING 8 X RP1100C
49 419011-8 GUIDE X SPRING COMPENSATION. HR4010C
50 263005-3 PIN RUBBER 6
51 233435-2 COMPRESSION SPRING 11 X HR4010C
52 213275-4 RING 18 X BFL401F
53 324572-4 PIPE 16 HR4010C
54 324574-0 COUNTER WEIGHT X HR4010C
55 213275-4 O-RING 18 X BFL401F
56 233435-2 COMPRESSION SPRING 11 X HR4010C
57 263005-3 RUBBER PIN 6
58 419011-8 SPRING GUIDE HR4010C
59 213030-4 O-RING 8 X RP1100C
60 317923-8 PIPE HOLDER HR4010C
61 213030-4 O-RING 8 X RP1100C
62 266041-8 PT SCREW 5x25
63 233432-8 COMPRESSION SPRING 7 X HR4001C / 4010C
64 421910-2 SEAL PLATE X HR4010C
65 911133-5 SCREW M4X18
66 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
67 419009-5 LOCK BUTTON X HR4001C
68 233436-0 COMPRESSION SPRING 3 X HR4001C / HR4010C
69 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
70 419020-7 LEVER X HR4001C / HR4010C
71 419007-9 CRANK LEVER HR4001C
72 317924-6 CRANK CAP COVER HR4011C
73 419030-4 CRANK CAP
74 421908-9 SEAL RING X HR4001C
75 419019-2 LINK PLATE GUIDE
76 345582-8 LINK PLATE HR4001C
77 419012-6 AIR PIPE HR4010C
78 421909-7 AIR PIPE SEAL HR4010C
79 421909-7 AIR PIPE SEAL HR4010C
80 154622-9 CRANK HOUSING COMPLETE HR4010C
81 423345-3 CUSHION PLATE HR4001C
82 419008-7 FIX GUIDE HR4001C
83 213262-3 O-RING 18 4100R
84 419006-1 LINK LEVER HR4001C
85 911511-9 SCREW M4 X 10 X HR4001C / HR4010C
86 324550-4 CRANK SHAFT HR4001C / 4010C
87 211332-2 BEARING HR3000C
88 961060-6 RETAINING RING S20
89 226605-0 GEAR 38 HR4001C / HR4010C
90 253180-3 FLAT WASHER 10 X 6221DW
91 421907-1 RING X HR4001C
92 154623-7 GEAR HOUSING COMPLETE HR4001C / 4010C
93 233433-6 COMPRESSION SPRING 5 X HR4001C / HR4010C
95 419018-4 CHANGE PLATE HR4001C / HR4010C
96 210005-4 BALL BEARING 608 DDW
97 345581-0 WASHER 8 X HR4001C
98 233936-0 SPRING 19-27 HR4001C / HR4010C
99 324549-9 FLANGE GUIDE HR4001C / HR4010C
103 211323-3 BEARING 6904
104 135508-6 TORQUE LIMITER ASS'Y X HR4001C
105 265995-6 SCREW M4X18 X 6408 / 6221DW
106 419036-2 GRIP COVER HR4001C / HR4010C
107 419038-8 REAR HANDLE X HR4011C
108 650567-4 Switch,. TG73B-1 HR4001C
109 154626-1 SWITCH HOLDER HR4001C
110 313124-6 SLEEVE 6 HR4011C
111 266041-8 PT SCREW 5x25
112 419025-7 SWITCH LEVER X HR4011C
113 266041-8 PT SCREW 5x25
114 421912-8 DUST COVER X HR4011C
115 419014-2 DUST COVER SUPPORT X HR4011C
116 861481-1 LABEL HR4011C
117 419037-0 HANDLE BASE HR4011C
118 267066-5 FLAT WASHER 5 X6811DW
119 266211-9 SCREW 5 X 40 X HK0500
120 233434-4 COMPRESSION SPRING 11 X HR4011C
121 419013-4 SPRING GUIDE X HR4011C
122 638406-8 LEAD UNIT X HR4011C
123 419010-0 LENS X HR4001C / HR4010C
124 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
125 631657-2 SPEED CONTROLLER HR4001C
126 419024-9 CORD CLAMP BASE HR4001C
127 687169-3 CORD CLAMP HP1620
128 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
129 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
130 265995-6 SCREW M4X18 X 6408 / 6221DW
131 682560-0 CABLE SLEEVE X HM1202C / 9079S
133 265995-6 SCREW M4X18 X 6408 / 6221DW
134 419032-0 REAR COVER HR4001C / 4010C
135 931303-0 HEX NUT M6
136 253047-5 FLAT WASHER 6
137 241876-8 FAN 76
138 419022-3 FAN GUIDE HR4001C / HR4010C
139 194160-9 CARBON BRUSH CB-350 X HR4001C
140 638715-5 BRUSH HOLDER HR4001C
141 154619-8 MOTOR HOUSING HR4001C / HR4010C
142 324390-0 SLEEVE 6 X HR4001C / HR4010C
143 210005-4 BALL BEARING 608 DDW
144 681650-6 INSULATION WASHER X HR4000C
145 625758-6 FIELD ASSY 220-240V HR4001C / 4010C
146 266095-5 SCREW 5 X 55 HR5001C
147 513633-7 ARMATURE 220-240V HR4001C / 4010C
148 419021-5 BAFFLE PLATE HR4001C / HR4010C
149 253084-9 WASHER 12 8419B / 5016NB
150 211137-0 BEARING 6201LLU X HM0860C
151 213231-4 OIL SEAL X HR4500C
152 331596-3 SLEEVE 12 X HR4500C
153 419033-8 CRANK HOUSING COVER HR4010C
154 421939-8 SPONGE SHEET HR4001C / HR4010C
162 345650-7 PLATE X HR4001C
163 267456-2 WASHER 38 X HR4001C / 4011C
999 195195-3 SERVICE KIT HR4001C / HR4010C
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR4011C
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HR4011C

Diagram Makita HR4011C

Download (297.09KB)

You might also like

Elastic Ring for Demolition Hammers Makita HR 4001-2-10-11C
Valex s.p.a. SKU: 233937-8
Elastic Ring for Demolition Hammers Makita HR 4001-2-10-11C
Elastic Ring for Demolition Hammers Makita HR 4001-2-10-11C Genuine spare part Makita SDS Max Rotary Demolition Hammers eg, Elastic Ring for, HR4001C - HR 4002 - HR4010C - HR4011C Part for the following products: - ROTARY HAMMER SDS...
AVAILABLE €4.19
Details
Sliding Bushing for Hammers Makita HR4001-2-10-11C
Valex s.p.a. SKU: 419003-7
Sliding Bushing for Hammers Makita HR4001-2-10-11C
Sliding Bushing for Hammers Makita HR4001-2-10-11C Genuine spare part Makita, Sliding Bushing for Hammers eg, HR4001C - HR 4002 - HR4003C - HR4010C - HR4011C. Part for the following products: - ROTARY HAMMER SDS MAX HR4001C - ROTARY...
AVAILABLE €6.55
Details
Gear Pletine for Hammers SDS-MAX Makita HR4001-4002-4010-4011C
Makita SKU: 419018-4
Makita HR4001-4002-4010-4011C Change Plate
Makita HR4001-4002-4010-4011C Change Plate Genuine spare Makita, Change Plate for Demolition Hammers SDS Max, HR4001C - HR 4002 - HR4010C - HR4011C and compatible. For the following articoili: -  Rotary Hammer...
Last items in stock €4.19
Details
Carbon Brushes CB-350 for Hammers Makita HR4001C
Makita SKU: 194160-9
Carbon Brushes CB-350 for Hammers Makita HR4001C
Carbon Brushes CB-350 for Hammers Makita HR4001C Genuine Part Makita, Carbon Brushes for Hammers HK1820 - HM0870C - HR3200C - HR3210FCT - HR4001C - HR4002 - HR4010-11-13C. Part for the following items: - STONECUTTER 3.3kg 550W HK1820...
AVAILABLE €8.80
Details
Pinion for Hammers Makita HR3200C
Makita SKU: 452126-8
Pinion for Hammers Makita HR3200C
Pinion for Hammers Makita HR3200C Genuine spare part Makita, Pinion for Rotary Hammers, HR3200C - HR3210C - HR3210FCT - HR3540C - HR3541FC Part for the following products: - ROTARY HAMMER SDS-PLUS 32MM HR3200C - ROTARY HAMMER...
AVAILABLE €3.18
Details
Crown for Hammers Makita HR3200C
Makita SKU: 450244-6
Crown for Hammers Makita HR3200C
Crown for Hammers Makita HR3200C Genuine spare part Makita, Crown for Rotary Hammers, HR3200C - HR3210C - HR3210FCT - HR3540C - HR3541FC Part for the following products: -  ROTARY HAMMER SDS-PLUS 32MM HR3200C -  ROTARY...
AVAILABLE €3.18
Details
Crown Cover for Hammers Makita HR3200C Sale
Makita SKU: 450237-3
Crown Cover for Hammers Makita HR3200C
Crown Cover for Hammer Makita HR3200C Genuine spare part Makita, Crown Cover for Rotary Hammers, HR3200C - HR3210C - HR3210FCT - HR3540C - HR3541FC. Part for the following products: -  ROTARY HAMMER SDS-PLUS 32MM HR3200C -  ROTARY...
Last items in stock €3.18
Details
Rubber Ring 25 for Hammers Makita HR4000C
Makita SKU: 213392-0
Rubber Ring 25 for Hammers Makita HR4000C
Rubber Ring 25 for Hammers Makita HR4000C Original spare Makita, Rubber ring 25 mm for Rotary Hammers SDS Max, HR4001C - HR 4002 - HR4003C - HR4010C - HR4011C - HR4013C - HR4500C - HR5201C - HR5210C and compatible. - Code: 213392-0
AVAILABLE €9.24
Details
Lock Sleeve for Rotary Hammer Makita HR4001C
Makita SKU: 165633-9
Lock Sleeve for Rotary Hammer Makita HR4001C
Lock Sleeve for Rotary Hammer Makita HR4001C Genuine spare Makita, Lock Sleeve for Rotary Hammers SDS-MAX Makita HR4001C - HR4001C - HR4002 - HR4010C - HR4011C. Parts for the following products: -  Rotary Hammer SDS-MAX HR4001C...
Last items in stock €28.33
Details
Armature for Demolition Hammers Makita HR 4001-10-11C
Makita SKU: 513633-7
Armature for Demolition Hammers Makita HR 4001-10-11C
Armature for Demolition Hammers Makita HR 4001-10-11C Original spare Makita, Armature Ass'y 220-240V for SDS-Max Rotary Hammers, HR4001C - HR4010C - HR4011C. Part for the Following products: -  Rotary Hammer SDS-MAX HR4001C...
Last items in stock €76.12
Details
Power Cord for Angle Grinder Makita 1800-2000-2200W
Makita SKU: Cavo 230
Power Cord for Angle Grinder Makita 1800-2000-2200W
Power Cord for Angle Grinder Makita 1800-2000-2200W Original spare Makita, Power cord for Angle Grinders 1800-2000-2200 Watts and compatible. Part for the following products: - For Angle Grinder Makita 230 mm - Code :
Last items in stock €31.79
Details
Eccentric Shaft for Hammers Makita HR4001-10-11C
Makita SKU: 324550-4
Crankshaft for Hammers Makita HR4001-10-11C
Crankshaft for Hammers Makita HR4001-10-11C Original replacement part Makita, Crankshaft for SDS-Max Rotary Hammers, HR4001C - HR4002 - HR4010C - HR4011C. Part for the following products: - ROTARY HAMMER SDS-MAX...
Last items in stock €25.21
Details
Service Pack for Hammers Makita HR4001C-4002-4010-11C
Makita SKU: 195195-3
Service Pack for Hammers Makita HR4001C-4002-4010-11C
Service Pack for Hammers Makita HR4001C-4002-4010-11C Genuine spare parts Makita, Service Pack for Rotary Hammers SDS-Max, HR4001C - HR4002 - HR4010C - HR4011C Part for the following items: - ROTARY HAMMER SDS-MAX Makita HR4001C -...
Last items in stock €33.48
Details
Armature Washer for Demolition Hammers Makita HR4000C
Makita SKU: 681650-6
Armature Washer for Demolition Hammers Makita HR4000C
Armature Washer for Demolition Hammers Makita HR4000C Genuine spare part Makita, Armature Protection Washer for SDS-Max Rotary Hammers, HM0860C - HM0870C - HM1100C - HM1140C - HR3000C - HR3200C - HR3541FC - HR4000C. Part for the...
Last items in stock €8.76
Details
Cilynder 28.5 for Rotary Hammer Makita HR4001C Sale
Makita SKU: 324570-8
Cilynder 28.5 for Rotary Hammer Makita HR4001C
Cilynder 28.5 for Rotary Hammer Makita HR4001C Genuine parts MAKITA: Cilynder 28.5 for Rotary Hammers SDS MAX HR4001C - HR4010C - HR4011C Parts for the following products:  - HR4001C - ROTARY HAMMER SDS-MAX 40MM - HR4010C - ROTARY...
AVAILABLE €53.67
Details
Rear Handle for Demolition Hammer Makita HR4011C Sale
Makita SKU: 419038-8
Rear Handle for Demolition Hammer Makita HR4011C
Rear Handle for Demolition Hammer Makita HR4011C Genuine part MAKITA, Rear Handle for Demolition Hammer Makita HR4011C Parts for the following products: - Demolition Hammer Makita HR4011C - Code: 419038-8
AVAILABLE €14.24
Details
Compression Spring 11 mm for Hammer Makita HR4011C Sale
Makita SKU: 233434-4
Compression Spring 11 mm for Hammer Makita HR4011C
Compression Spring 11 mm for Hammer Makita HR4011C Genuine spare Makita, Compression Spring 11 mm for Hammers HM0871C - HM1111C - HM1213C - HR4011C - HR4511C - HR5211C Parts for the following products: - HM0871C - HAMMER 1100W SDS-MAX...
AVAILABLE €3.03
Details
Ring 20 for Demolition Hammer Makita HR4000C
Valex s.p.a. SKU: 213317-4
Ring 20 for Demolition Hammer Makita HR4000C
Ring 20 for Demolition Hammer Makita HR4000C Genuine spare part Makita, Ring 20 for Rotary Hammers SDS Max, HR4001C - HR 4002 - HR4003C - HR4010C - HR4011C - HR4013C Part for the following products: - Rotary Hammer Makita HR4000C -...
AVAILABLE €1.44
Details
Retaining Ring for Rotary Hammer Makita HR50001C
Makita SKU: 231984-3
Retaining Ring for Rotary Hammer Makita HR50001C
Retaining Ring for Rotary Hammer Makita HR50001C Genuine spare part Makita, Retaining Ring for Rotary Hammers HR50001C - HR4001C - HR4002 - HR4010C - HR4011C - Hammer HM0860C - HM0870C. Part for the following products: - HR4001C -...
AVAILABLE €2.01
Details
Lock Sleeve Guide for Rotary Hammer Makita HR4001C
Makita SKU: 419760-7
Lock Sleeve Guide for Rotary Hammer Makita HR4001C
Lock Sleeve Guide for Rotary Hammer Makita HR4001C Genuine spare part Makita, Lock Sleeve Guide for Rotary Hammers SDS-MAX Makita HR4001C - HR4001C - HR4002 - HR4010C - HR4011C. Parts for the following products: - Rotary Hammer...
Last items in stock €2.65
Details
Seal Sheet for Rotary Hammer Makita HR4001C
Makita SKU: 421911-0
Seal Sheet for Rotary Hammer Makita HR4001C
Seal Sheet for Rotary Hammer Makita HR4001C Genuine part MAKITA, Seal Sheet for Rotary Hammers HR4001C - HR4010C - HR4011C Part for the following products:  -  HR4001C - ROTARY HAMMER SDS-MAX 40MM  -  HR4010C - ROTARY HAMMER SDS-MAX...
on 7/10 Business Days Approx €2.59
Details
Seal Ring for Rotary Hammer Makita HR4001C
Makita SKU: 421908-9
Seal Ring for Rotary Hammer Makita HR4001C
Seal Ring for Rotary Hammer Makita HR4001C Genuine part MAKITA, Seal Ring for Rotary Hammers HR4001C - HR4010C - HR4011C Part for the following products:  -  HR4001C - ROTARY HAMMER SDS-MAX 40MM  -  HR4010C - ROTARY HAMMER SDS-MAX...
on 7/10 Business Days Approx €1.98
Details
Fan 76 for Rotary Hammer Makita HR4001C
Makita SKU: 241876-8
Fan 76 for Rotary Hammer Makita HR4001C
Fan 76 for Rotary Hammer Makita HR4001C Genuine part MAKITA, Seal Ring for Rotary Hammers HR4001C - HR4010C - HR4011C Part for the following products: -  HR4000C - ROTARY HAMMER MAKITA -  HR4001C - ROTARY HAMMER SDS-MAX 40MM  -...
Last items in stock €7.77
Details
Ring Spring 32 for Rotary Hammer Makita HR4001C
Makita SKU: 233935-2
Ring Spring 32 for Rotary Hammer Makita HR4001C
Ring Spring 32 for Rotary Hammer Makita HR4001C Genuine part MAKITA, Ring Spring 32 for Rotary Hammers HR4001C - HR4010C - HR4011C Part for the following products:  -  HR4001C - ROTARY...
Last items in stock €1.80
Details
Comments (0)
