Makita Spare Parts for Abrasive Cut Off Saw 2414B
We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Abrasive Cut Off Saw 2414B.

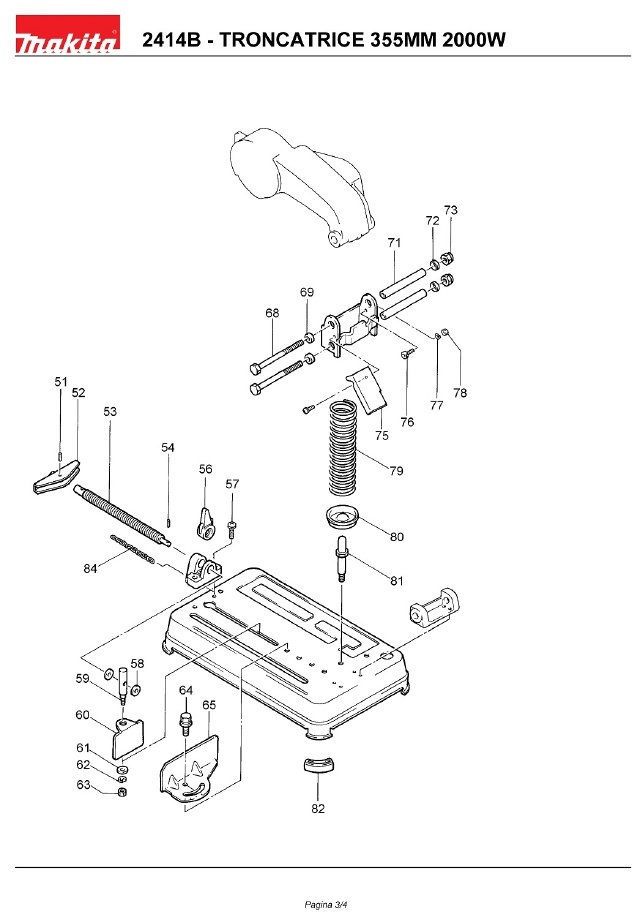

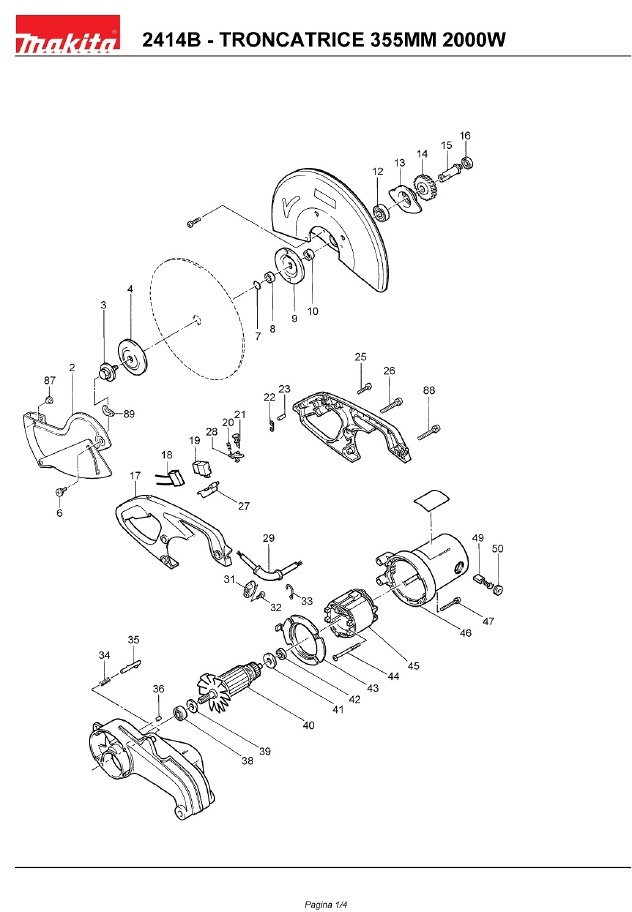

In the following table, look for the model of the hammerr and the respective parts of the code.
| Abrasive Cut Off Saw Makita 2414B |
| # |
Part Num. |
Description |
| 2 |
168275-8 |
BLADE COMPLETE GUIDE COVER |
| 3 |
251680-7 |
BOLT C / BORDINO 10X25 |
| 4 |
224299-5 |
INNER FLANGE 90 2414B |
| 6 |
265121-7 |
SCREW M 6 X MT240 |
| 7 |
213162-7 |
SEAL 14 AN5010 |
| 8 |
257185-5 |
RING 17 |
| 9 |
224299-5 |
INNER FLANGE 90 |
| 10 |
257185-5 |
RING 17 |
| 12 |
211490-4 |
BEARING 6203LLU X SG150-2 |
| 13 |
316527-3 |
BEARING |
| 14 |
226415-5 |
GEAR 41 |
| 15 |
322633-4 |
POST |
| 16 |
211061-7 |
BALL BEARING 6000 |
| 17 |
182628-7 |
HANDLE COMPLETE |
| 18 |
645200-1 |
CAPACITOR |
| 19 |
651922-3 |
SWITCH |
| 20 |
231397-8 |
SPRING COMPRESSION 4 |
| 21 |
411478-6 |
BUTTON SWITCH |
| 22 |
281207-9 |
BRACKET |
| 23 |
256012-3 |
PIN |
| 25 |
265995-6 |
M4X18 SCREW |
| 26 |
911271-3 |
HEAD SCREW CILIND. M5x50 |
| 27 |
152463-7 |
LEVER SWITCH. COMPLETE |
| 28 |
415366-9 |
ROCKER |
| 29 |
682503-2 |
SLEEVE PROTECTING_COVER |
| 31 |
687052-4 |
CLAMP cable tie |
| 32 |
265995-6 |
M4X18 SCREW |
| 33 |
322049-3 |
HOOK |
| 34 |
231240-1 |
SPRING 7 |
| 35 |
322665-1 |
STILL |
| 36 |
263005-3 |
RUBBER PIN 6 |
| 38 |
211228-7 |
BALL BEARING 6202 |
| 39 |
267714-6 |
WASHER 15 |
| 40 |
510240-7 |
ARMATURE 2414EN |
| 41 |
681633-6 |
WASHER |
| 42 |
211092-6 |
BALL BEARING 629 |
| 43 |
415369-3 |
BAFFLE PLATE |
| 44 |
911908-2 |
HEAD SCREW CILIND. M5X80 |
| 45 |
636008-4 |
STATORE |
| 46 |
159750-5 |
CASING MOTOR COMPL. 2414NB |
| 47 |
911271-3 |
HEAD SCREW CILIND. M5x50 |
| 49 |
191953-5 |
CARBOB BRUSHES CB-203 |
| 50 |
643710-2 |
PLUG BRUSH XHM1500 |
| 87 |
415661-7 |
STOPPER |
| 88 |
911258-5 |
SCREW M5x35 |
| 89 |
253903-9 |
WASHER 6 3700B |
| 51 |
951163-4 |
PIN 5-20 |
| 52 |
272021-4 |
KNOB |
| 53 |
322239-8 |
VICE SCREW |
| 54 |
951066-2 |
PIN 3-18 |
| 56 |
322209-7 |
BOLT CLAMP |
| 57 |
911451-1 |
HEAD SCREW CILIND. M8x30 |
| 58 |
253731-2 |
FLAT WASHER 8 |
| 59 |
321680-2 |
SCREW M8 |
| 60 |
342679-4 |
JAW PLATE |
| 61 |
253752-4 |
FLAT WASHER 8 |
| 62 |
942201-3 |
WASHER 8 |
| 63 |
931402-8 |
NUT M8 |
| 64 |
265201-9 |
HEXAGON BOLT M10x25 |
| 65 |
344087-5 |
PLATE GUIDE |
| 68 |
265406-1 |
BOLT M10 X 130 |
| 69 |
267713-8 |
WASHER 10 |
| 71 |
331428-4 |
TUBE 16-113 |
| 72 |
267713-8 |
WASHER 10 |
| 73 |
252130-5 |
NUT M10-17 |
| 75 |
344088-3 |
PLATE |
| 76 |
922312-0 |
BOLT M6 X 12 |
| 77 |
942151-2 |
WASHER 6 |
| 78 |
252014-7 |
NUT M6-10 |
| 79 |
233113-4 |
COMPRESSION SPRING 45 |
| 80 |
165066-8 |
HARD STOPS SPRING 2414B |
| 81 |
265407-9 |
NUT M10 |
| 82 |
421487-7 |
LEG STRETCH |
| 84 |
282016-9 |
CHAIN X 2414B |
