Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB

SKU: Makita 4105KB
€14.77
VAT included

Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Dustless Cutter Dry Cutting Ø 125mm 4105KB.
Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB
  • Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB
  • Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB

Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB

SKU: Makita 4105KB Condition: New
€14.77
VAT included

Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Dustless Cutter Dry Cutting Ø 125mm 4105KB.
settings 52 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

46 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon 251812-6 SCREW M5x10 €1.98
2
photo_cameraImage coming soon 155463-6 BLADE COVER €9.27
4
photo_cameraImage coming soon 224081-2 EXTERNAL FLANGE €12.97
5
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
7
photo_cameraImage coming soon 224080-4 INTERNAL FLANGE 36 €7.66
8
photo_cameraImage coming soon 315360-0 CAP BLADE €26.30
9
photo_cameraImage coming soon 321383-8 TREE €15.81
10
Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB 254011-9 Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB €1.38
12
Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
13
Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
14
photo_cameraImage coming soon 221692-4 GEAR 40 €13.98
15
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
16
photo_cameraImage coming soon 212028-8 ROLLER BEARING 709 €9.27
17
photo_cameraImage coming soon 411301-5 BACK €2.42
18
photo_cameraImage coming soon 122191-8 BAG €22.42
19
photo_cameraImage coming soon 262018-1 RUBBER RING 26 €1.66
20
photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
24
photo_cameraImage coming soon 911263-2 HEAD SCREW CILIND. €1.47
25
photo_cameraImage coming soon 156300-7 HOUSING MOTOR €32.69
26
Carbon Brushes CB-100 for Polishing Makita 9207SPB 181030-1 Carbon Brushes CB-100 for Polishing Makita 9207SPB €8.23
27
Carbon Brush Holder Cap for Hammer Makita HR1820 643600-9 Carbon Brush Holder Cap for Hammer Makita HR1820 €2.02
28
photo_cameraImage coming soon 522533-0 FIELD €40.14
29
photo_cameraImage coming soon 411902-9 AIR CONVEYOR €2.42
30
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
31
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
32
photo_cameraImage coming soon 681613-2 INSULATION WASHER €1.29
33
photo_cameraImage coming soon 512923-5 ARMATURE €101.14
34
photo_cameraImage coming soon 241636-8 FAN 72 €8.20
35
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
37
Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.29
38
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
39
Sponge for Hammers Makita M802 - HR3850B 685700-9 Sponge for Hammers Makita M802 - HR3850B €2.00
40
photo_cameraImage coming soon 682504-0 CORD GUARD 10/85 €3.84
42
photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
43
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
44
photo_cameraImage coming soon 155919-9 COVER HANDLE €6.38
45
photo_cameraImage coming soon 421142-1 SWITCH COVER €4.79
46
photo_cameraImage coming soon 651204-3 SWITCH SGEL115CDY €13.00
47
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
49
photo_cameraImage coming soon 168089-5 ANTIVIBRATION Ø40X30 MF M8X25 65SH €21.28
50
photo_cameraImage coming soon 251919-8 SCREW M6X20 €1.43
51
photo_cameraImage coming soon 157540-0 CARCASS INGRAN.X 4105KB €15.81
52
photo_cameraImage coming soon 911111-5 HEAD SCREW CILIND. M4X10 €3.76
53
photo_cameraImage coming soon 162097-8 SEPARATOR €8.20
54
photo_cameraImage coming soon 911143-2 SCREW M4FOR22 €1.40
56
photo_cameraImage coming soon 652603-2 MICRO SWITCH €5.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Dustless Cutter Dry Cutting 4105KB

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Dustless Cutter Dry Cutting Ø 125mm 4105KB.

In the following table, look for the model of Dustless Cutter and the respective parts of the code.
Makita 4105KB

Dustless Cutter Dry Cutting 4105KB
# Part Num. Description
1 251812-6 SCREW M5x10
2 155463-6 BLADE COVER
3 265226-3 HEXAGON BOLT M6X17
4 224081-2 EXTERNAL FLANGE
5 911133-5 SCREW M4X18
7 224080-4 INTERNAL FLANGE 36
8 315360-0 CAP BLADE
9 321383-8 TREE
10 254011-9 KEY CRESCENT 4
11 253335-0 WASHER 12
12 211129-9 BALL BEARING 6201DDU
13 962151-6 RETAINING RING R32
14 221692-4 GEAR 40
15 961052-5 RETAINING RING S12
16 212028-8 ROLLER BEARING 709
17 411301-5 BACK
18 122191-8 BAG
19 262018-1 RUBBER RING 26
20 942151-2 WASHER 6
21 934301-3 WING NUT M6
24 911263-2 HEAD SCREW M5x40
25 156300-7 HOUSING MOTOR
26 181030-1 CARBON BRUSHES CB-100 (101,2,3)
27 643600-9 PLUG BRUSH HOLDER
28 522533-0 STATORE
29 411902-9 AIR CONVEYOR
30 263002-9 PIN RUBBER 4
31 210005-4 BALL BEARING 608 DDW
32 681613-2 INSULATION WASHER
33 512923-5 ARMATURE
34 241636-8 FAN 72
35 961052-5 RETAINING RING S12
36 253748-5 FLAT WASHER 12
37 211131-2 BALL BEARING 6001DDW
38 263002-9 PIN RUBBER 4
39 685700-9 SPONGE
40 682504-0 CABLE SLEEVE 10/85
42 687001-1 CLAMP cable tie
43 911133-5 SCREW M4X18
44 155919-9 COVER HANDLE
45 421142-1 SWITCH COVER
46 651204-3 SWITCH
47 645006-7 CAPACITOR X LS1013
48 951222-4 JACK BAND 6/36
49 168089-5 BASE
50 251919-8 SCREW M6X20
51 157540-0 CARCASS INGRAN.X 4105KB
52 911111-5 SCREW M4X10
53 162097-8 SEPARATOR
54 911143-2 SCREW M4X22
56 652603-2 SALVAMOTORE
57 410192-1 COVER ENGINE UM3000 / 84D

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s MAKITA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to MAKITA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita 4105KB
12 Items

Specific References

New

Download

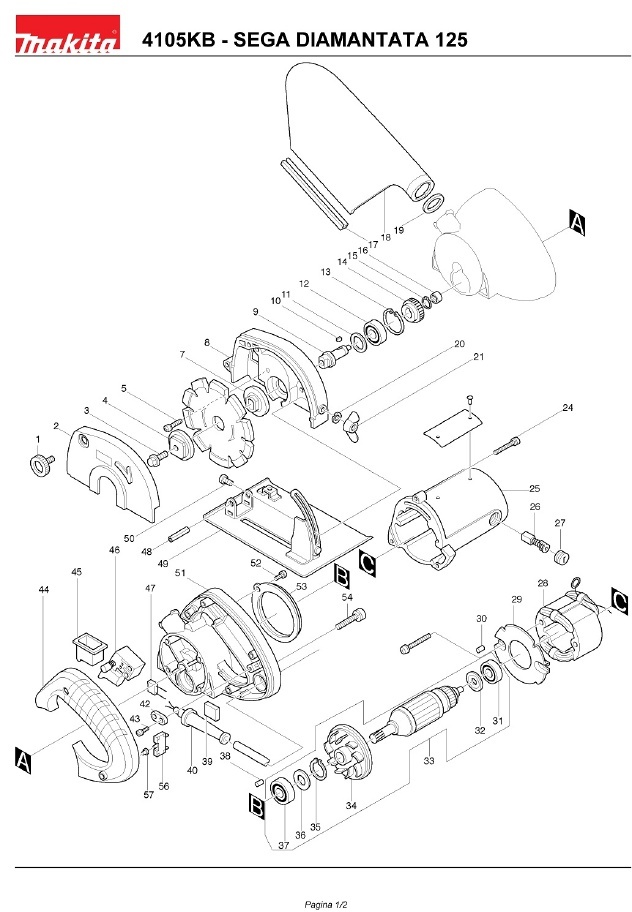

Diagram Makita 4105KB

Diagram Makita 4105KB

Download (295.21KB)
