Makita

Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C

SKU: Makita HR4511C
€3.28
VAT included

Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C

MAKITA Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer SDS-MAX 45 mm HR4511C.
Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C
  • Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C
  • Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C - Drawing
Makita

Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C

SKU: Makita HR4511C Condition: New
€3.28
VAT included

Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C

MAKITA Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer SDS-MAX 45 mm HR4511C.
settings 127 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
126 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

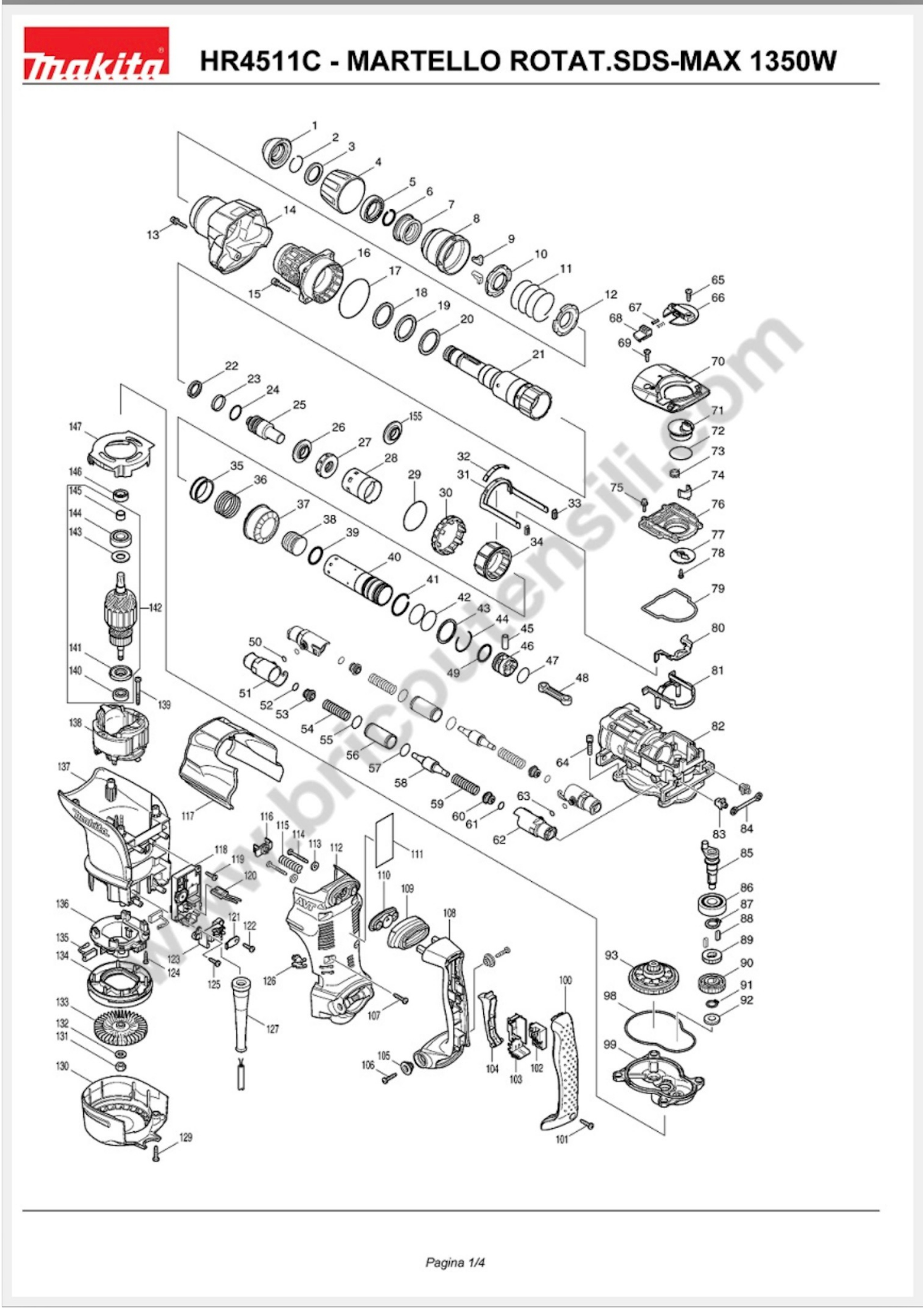

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 286285-4 FRONT HOOD HR4001C/4010C €3.19
2
 photo_cameraImage coming soon 233948-3 RING 25 X HR5201C €1.46
3
 photo_cameraImage coming soon 257280-1 RING 28 X HR5201C €4.51
4
 Makita HR4501C Chuck Cover 450064-8 Makita HR4501C Chuck Cover €3.07
5
 photo_cameraImage coming soon 419002-9 DISTANCE HR4001C/HR4010C €2.13
7
 photo_cameraImage coming soon 324752-2 CHUCK RING HR5201C €19.33
8
 photo_cameraImage coming soon 450030-5 RELEASE COVER HR4501C €3.91
9
 photo_cameraImage coming soon 310178-4 TOOL RETAINER HR5201C €7.72
10
 photo_cameraImage coming soon 345804-6 SPRING GUIDE HR5201C €2.74
11
 photo_cameraImage coming soon 233496-2 COMRESSION SPRING 49 X HR5201C €2.74
13
 photo_cameraImage coming soon 922148-7 SCREW M4 X 25 X HR5201C €1.42
14
 photo_cameraImage coming soon 158300-3 BARREL COVER CPL. HR4510C €11.27
15
 photo_cameraImage coming soon 922353-6 SCREW M6x30 HM1202C €1.46
16
 photo_cameraImage coming soon 158576-2 BARREL COMPLETE HR4501C €51.12
17
 photo_cameraImage coming soon 213754-2 O-RING 71 X HM1200 €3.91
18
 photo_cameraImage coming soon 267357-4 WASHER 36 X HR4501C €4.51
19
 photo_cameraImage coming soon 262135-7 URETHANE RING 36 X HR4501C €2.74
21
 photo_cameraImage coming soon 324872-2 TOOL HOLDER HR4501C €245.15
22
 photo_cameraImage coming soon 213980-3 RING 21 X HR4501C €3.91
23
 photo_cameraImage coming soon 213431-6 O-RING 23 HR5001C €16.95
24
 photo_cameraImage coming soon 213394-6 O-RING RUBBER X HR5001C €1.42
25
 photo_cameraImage coming soon 324802-3 IMACT BOLT HR4501C €11.27
26
 photo_cameraImage coming soon 324805-7 RING 19 X HR4501C €6.05
27
 photo_cameraImage coming soon 424032-7 RUBBER RING 20 X HR4501C €10.07
28
 photo_cameraImage coming soon 450024-0 SLIDE SLEEVE HR4501C €4.63
29
 Seal 53 for Demolition Hammer MAKITA HM1200 213656-2 Seal 53 for Demolition Hammer MAKITA HM1200 €1.46
30
 photo_cameraImage coming soon 450031-3 LOCK SLEEVE HR4501C €2.74
31
 photo_cameraImage coming soon 165465-4 LINK ARM HR4501C €21.93
32
 photo_cameraImage coming soon 450032-1 LINK ARM GUIDE HR4501C €2.13
33
 photo_cameraImage coming soon 424024-6 SEAL PLATE X HR5210C €3.01
34
 photo_cameraImage coming soon 324800-7 DRIVING SLEEVE HR4501C €21.93
35
 photo_cameraImage coming soon 331599-7 RING 38 X HR4500C €16.95
36
 photo_cameraImage coming soon 234024-6 COMPRESSION SPRING 39 X HR4501C €2.74
37
 photo_cameraImage coming soon 227526-9 STRAIGHT BEVEL GEAR 35 HR4511C HR4501C €45.66
38
 photo_cameraImage coming soon 324804-9 STRIKER X HR4501C €6.75
39
 photo_cameraImage coming soon 213981-1 RING 27 X HR4501C €2.74
40
 photo_cameraImage coming soon 324803-1 CYLINDER 34 X HR4501C €57.04
41
 photo_cameraImage coming soon 233956-4 CIRCLIP 37 X HR4501C €1.42
42
 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C 213460-9 O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C €3.29
43
 photo_cameraImage coming soon 257283-5 RING 38 X HR4501C €3.91
44
 photo_cameraImage coming soon 233955-6 CIRCLIP 36 X HR4501C €1.42
45
 photo_cameraImage coming soon 331598-9 PIPE 10 HR4500C €3.91
46
 Piston for Demolition Hammer Makita HR4501C 450025-8 Piston for Demolition Hammer Makita HR4501C €4.39
47
 photo_cameraImage coming soon 213407-3 SEAL 26 X 3901 €2.18
48
 Conrod for Demolition Hammer Makita HR4501C 450026-6 Conrod for Demolition Hammer Makita HR4501C €4.86
50
 photo_cameraImage coming soon 213030-4 RING 8 X RP1100C €1.42
51
 photo_cameraImage coming soon 318169-9 PIPE HOLDER HR4510C €12.92
52
 photo_cameraImage coming soon 213118-0 O-RING 12 X HR5210C €1.42
53
 photo_cameraImage coming soon 450027-4 GUIDE SPRING HR4510C €2.13
54
 photo_cameraImage coming soon 234023-8 COMPRESSION SPRING 14 X HR4510C €2.74
55
 photo_cameraImage coming soon 213373-4 RING 22 €1.42
56
 photo_cameraImage coming soon 331778-7 PIPE 20 X HR4510C €4.51
58
 photo_cameraImage coming soon 324806-5 COUNTER WIEGHT, HR4510C HR4510C €21.93
65
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
66
 photo_cameraImage coming soon 419020-7 LEVER HR4001C/HR4010C €5.67
67
 photo_cameraImage coming soon 233436-0 COMPRESSION SPRING 3 HR4001C/HR4010C €1.70
68
 photo_cameraImage coming soon 419009-5 BUTTON FRAME HR4001C €2.13
70
 photo_cameraImage coming soon 318170-4 CRANK CAP COVER HR4511C €14.35
71
 photo_cameraImage coming soon 450687-2 CRANK LEVER HR5201C €3.19
72
 photo_cameraImage coming soon 213534-6 RING 36 X HR5201C €1.42
73
 photo_cameraImage coming soon 233506-5 TORSION SPRING 16 X HR5201C €1.42
74
 photo_cameraImage coming soon 310207-3 LINK LEVER HR5201C €7.72
75
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
76
 photo_cameraImage coming soon 455525-3 CRANK CAP €8.65
77
 photo_cameraImage coming soon 345778-1 RETAINER PLATE HR5201C €3.91
78
 photo_cameraImage coming soon 265014-8 SCREW M4 X 12 €2.13
79
 photo_cameraImage coming soon 424034-3 SEAL RING HR4501C €2.13
80
 photo_cameraImage coming soon 345822-4 LINK PLATE X HR4501C €5.23
81
 photo_cameraImage coming soon 450029-0 LINK PLATE GUIDE HR4501C €2.74
82
 photo_cameraImage coming soon 158297-6 CRANK HOUSING COMPLETE, HR4510C HR4510C €74.13
83
 photo_cameraImage coming soon 419008-7 FIX GUIDE HR4001C €1.42
84
 photo_cameraImage coming soon 423345-3 CUSHION PLATE SHOCK HR4001 €1.42
85
 photo_cameraImage coming soon 324801-5 CRANK SHAFT HR4501C €28.83
86
 photo_cameraImage coming soon 211279-0 BALL BEARING 6303LLU X HR4501C €10.07
87
 Makita Power Tools Ext DIN471 Circlip-17 961057-5 Makita Power Tools Ext DIN471 Circlip-17 €1.47
88
 photo_cameraImage coming soon 254220-0 KEY 5 X HR4501C €2.13
89
 photo_cameraImage coming soon 227181-7 SPUR GEAR 19 X HR4501C €11.27
90
 photo_cameraImage coming soon 226655-5 HELICAL GEAR 36 X HR4501R €19.35
91
 Makita Power Tools Ext DIN471 Circlip-14 961054-1 Makita Power Tools Ext DIN471 Circlip-14 €1.37
92
 photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
93
 photo_cameraImage coming soon 125415-1 TORQUE LIMITER ASSY HR4511C €142.43
98
 photo_cameraImage coming soon 424033-5 SEAL RING HR4501C €2.13
99
 photo_cameraImage coming soon 158299-2 GEAR HOUSING CPL X HR4501C €36.41
100
 photo_cameraImage coming soon 419796-6 HANDLE COVER HR5201C €19.33
101
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
102
 Switch TG73-B1 for Demolition Hammer Makita HR4001C 650567-4 Switch TG73-B1 for Demolition Hammer Makita HR4001C €20.01
103
 photo_cameraImage coming soon 154626-1 SWITCH HOLDER HR4001C €4.08
104
 photo_cameraImage coming soon 419025-7 SWITCH X HR4011C €4.08
105
 photo_cameraImage coming soon 313124-6 SHOULDER SLEEVE 6 HR4011C €2.99
106
 photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.70
108
 Makita HR4511C Handle 419798-2 Makita HR4511C Handle €14.78
110
 photo_cameraImage coming soon 450028-2 DUST COVER SUPPORT X HR4511C €2.52
111
 photo_cameraImage coming soon 864096-3 LABEL MOD. HR4511C €1.22
112
 Makita HR4511C Handle Base 450038-9 Makita HR4511C Handle Base €34.02
113
 photo_cameraImage coming soon 253807-5 WASHER 5 6012D / HD / 62/63 / 64DW €1.42
114
 photo_cameraImage coming soon 266211-9 SCREW 5 X 40 HK0500 €3.76
115
 Compression Spring 11 mm for Hammer Makita HR4011C 233434-4 Compression Spring 11 mm for Hammer Makita HR4011C €3.03
116
 photo_cameraImage coming soon 419013-4 SPRING GUIDE X HR4011C €2.52
117
 Makita HR4511C Crank Housing Cover 450036-3 Makita HR4511C Crank Housing Cover €9.23
118
 photo_cameraImage coming soon 631751-0 CONTROLLER HR4501C €62.73
120
 photo_cameraImage coming soon 638510-3 LEAD UNIT HR5201C €2.74
121
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
123
 photo_cameraImage coming soon 419024-9 CORD CABLES BASE HR4001C €2.18
126
 Lens for Demolition Hammer Makita HR4501C 419774-6 Lens for Demolition Hammer Makita HR4501C €3.19
127
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €3.18
130
 Makita HR4501C Rear Cover 450035-5 Makita HR4501C Rear Cover €10.14
131
 photo_cameraImage coming soon 252178-7 NUT M 8-12 X 4112HS €1.42
132
 photo_cameraImage coming soon 253165-9 FLAT WASHER 8 €1.42
133
 Fan for Rotary Hammer Makita HR4500C 240016-5 Fan for Rotary Hammer Makita HR4500C €10.36
134
 photo_cameraImage coming soon 419782-7 FAN GUIDE HR5201C €3.19
135
 Carbon Brushes Makita for Hammers HM-HR 195844-2 Carbon Brushes Makita for Hammers HM-HR €11.59
136
 photo_cameraImage coming soon 638447-4/HR CARBON BRUSHE HOLDER HR5201C €12.69
137
 Makita HR4501C Motor Housing 450041-0 Makita HR4501C Motor Housing €30.76
138
 photo_cameraImage coming soon 636313-9 STATOR FIELD 240V HR4501C €33.32
139
 photo_cameraImage coming soon 266046-8 SCREW M5x50 HR2010 €2.74
140
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €12.89
141
 Armature Washer for Demolition Hammers Makita HR 4501-10-11C 681642-5 Armature Washer for Demolition Hammers Makita HR 4501-10-11C €13.30
142
 Armature for Demolition Hammers Makita HR 4501-11C 517768-6 Armature for Demolition Hammers Makita HR 4501-11C €119.31
143
 photo_cameraImage coming soon 267025-9 FLAT WASHER 15 6912D €1.42
144
 photo_cameraImage coming soon 211238-4 BALL BEARING 6202LLU €8.65
145
 photo_cameraImage coming soon 331596-3 SLEEVE 12 4500C €10.43
146
 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C 213231-4 Oil Seal for Demolition Hammers Makita HR 4001-2-10-11-13C €15.13
147
 photo_cameraImage coming soon 450033-9 BAFFLE PLATE HR4501C €2.74
155
 photo_cameraImage coming soon 331840-8 SHOULDER SLEEVE 19 HR4511C HR4501C P10 €7.72
999
 Service Pack for Demolition Hammers Makita HR4501C-4510-11C 195210-3 Service Pack for Demolition Hammers Makita HR4501C-4510-11C €38.52
1000
 Makita Dust Extraction Attachment 196074-8 Makita Dust Extraction Attachment €124.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C

MAKITA Original spare parts

 at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer SDS-MAX 45 mm HR4511C.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Makita HR4511C

Rotary Hammer SDS-MAX 45 mm HR 4511C
# Part Num. Description
1 286285-4 TOOLHOLDER CAP. X HR4001C / 4010C
2 233948-3 O-RING 25 X HR5201C
3 257280-1 O-RING 28 X HR5201C
4 450064-8 CHUCK COVER HR4501C
5 419002-9 SPACER X HR4001C / HR4010C
6 233948-3 O-RING 25 X HR5201C
7 324752-2 CHUCK O-RING HR5201C
8 450030-5 RELEASE COVER X HR4501C
9 310178-4 TOOL RETAINER X HR5201C
10 345804-6 GUIDE SPRING HR5201C
11 233496-2 COMPRESSION SPRING 49 X HR5201C
12 345804-6 GUIDE SPRING HR5201C
13 922148-7 H.S.H. BOLT M4X25, 6922NB HR5201C
14 158300-3 BARREL COVER CPL. HR4510C
15 922353-6 SCREW M6 X30 X HM1202C
16 158576-2 BARREL X HR4501C
17 213754-2 O-RING 71 X HM1200
18 267357-4 WASHER 36 X HR4501C
19 262135-7 URETHANE O-RING 36 X HR4501C
20 267357-4 WASHER 36 X HR4501C
21 324872-2 TOOL HOLDER HR4501C
22 213980-3 O-RING 21 X HR4501C
23 213431-6 FLUORIDE RING 28, HR5001C HR5001C
24 213394-6 O-RING 23 X HR5001C
25 324802-3 IMPACT BOLT HR4501C
26 324805-7 O-RING 19 X HR4501C
27 424032-7 O-RING 20 X HR4501C
28 450024-0 SLIDE SLEEVE, HR4510C HR4501C
29 213656-2 O-RING 53 X HM1200
30 450031-3 LOCK SLEEVE, HR4510C HR4501C
31 165465-4 LINK ARM, HR4510C HR4501C
32 450032-1 LINK ARM GUIDE HR4501C
33 424024-6 SEAL PLATE HR5210C
34 324800-7 DRIVING SLEEVE HR4501C
35 331599-7 O-RING 38 X HR4500C
36 234024-6 COMPRESSION SPRING 39 X HR4501C
37 227526-9 STRAIGHT BEVEL GEAR 35, HR4510C HR4501C
38 324804-9 STRIKER X HR4501C
39 213981-1 O-RING 27 X HR4501C
40 324803-1 CYLINDER 34 X HR4501C
41 233956-4 CIRCLIP 37 X HR4501C
42 213460-9 O-RING 35 HK / HR1800 / HM12
43 257283-5 O-RING 38 X HR4501C
44 233955-6 CIRCLIP 36 X HR4501C
45 331598-9 PIPE 10 HR4500C
46 450025-8 PISTON X HR4501C
47 213407-3 O-RING 26 X 3901
48 450026-6 CONROD HR4501C
49 213981-1 O-RING 27 X HR4501C
50 213030-4 O-RING 8 X RP1100C
51 318169-9 PIPE HOLDER HR4510C
52 213118-0 O-RING 12 X HR5210C
53 450027-4 GUIDE SPRING HR4510C
54 234023-8 COMPRESSION SPRING 14 X HR4510C
55 213373-4 O-RING 22 X 6821
56 331778-7 PIPE 20 X HR4510C
57 213373-4 O-RING 22 X 6821
58 324806-5 COUNTER WIEGHT, HR4510C HR4510C
59 234023-8 COMPRESSION SPRING14 X HR4510C
60 450027-4 GUIDE SPRING HR4510C
61 213118-0 O-RING 12 X HR5210C
62 318169-9 PIPE HOLDER HR4510C
63 213030-4 O-RING 8 X RP1100C
64 922353-6 SCREW M6 X30 X HM1202C
65 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
66 419020-7 LEVER X HR4001C / HR4010C
67 233436-0 COMPRESSION SPRING 3 X HR4001C / HR4010C
68 419009-5 LOCK BUTTON HR4001C
69 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
70 318170-4 CRANK CAP COVER HR4511C
71 450687-2 CRANK LEVER HR5201C
72 213534-6 O-RING 36 X HR5201C
73 233506-5 TORSION SPRING 16 X HR5201C
74 310207-3 LINK LEVER HR5201C
75 911133-5 SCREW M4X18
76 455525-3 CRANK CAP
77 345778-1 RETAINER PLATE HR5201C
78 265014-8 SCREW M4 X 12
79 424034-3 SEAL RING  HR4501C
80 345822-4 LINK PLATE X HR4501C
81 450029-0 GUIDE HR4501C
82 158297-6 CRANK HOUSING COMPLETE, HR4510C HR4510C
83 419008-7 FIX GUIDE X HR4001C
84 423345-3 CUSHION PLATE HR4001C
85 324801-5 CRANCK SHAFT X HR4501C
86 211279-0 BALL BEARING 6303LLU X HR4501C
87 961057-5 RETAINING O-RING S17
88 254220-0 KEY 5 X HR4501C
89 227181-7 GEAR 19 X HR4501C
90 226655-5 GEAR 36 X HR4501R
91 961054-1 RETAINING O-RING S14
92 253180-3 FLAT WASHER 10 X 6221DW
93 125415-1 TORQUE LIMITER ASS'Y X HR4501C
98 424033-5 O-RING HR4501C
99 158299-2 GEAR HOUSING COMPL. X HR4501C
100 419796-6 HANDLE COVER X HR5201C
101 265995-6 SCREW M4X18 X 6408 / 6221DW
102 650567-4 Switch,. TG73B-1 HR4001C
103 154626-1 SWITCH HOLDER HR4001C
104 419025-7 SWITCH LEVER X HR4011C
105 313124-6 SHOULDER SLEEVE 6 HR4011C
106 266041-8 PT SCREW 5x25
107 266041-8 PT SCREW 5x25
108 419798-2 HANDLE X HR5211C
109 424035-1 DUST COVER X HR4511C
110 450028-2 DUST COVER SUPPORT X HR4511C
111 864096-3 LABEL MOD. HR4511C
112 450038-9 HANDLE BASE X HR4511C
113 253807-5 WASHER 5 6012D / HD / 62/63 / 64DW
114 266211-9 SCREW 5 X 40 X HK0500
115 233434-4 COMPRESSION SPRING 11 X HR4011C
116 419013-4 SPRING GUIDE X HR4011C
117 450036-3 CRANK HOUSING COVER HR4510C
118 631751-0 CONTROLLER FOR HR4501C
119 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
120 638510-3 CORD HR5201C
121 687169-3 STRAIN RELIEF HP1620
122 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
123 419024-9 CORD CLAMP BASE HR4001C
124 265995-6 SCREW M4X18 X 6408 / 6221DW
125 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
126 419774-6 LENS FOR HR5201C
127 682560-0 CORD GUARD 10 X HM1202C / 9079S
129 266041-8 PT SCREW 5x25
130 450035-5 REAR COVER x HR4501C
131 252178-7 NUT M 8-12 X 4112HS
132 253165-9 FLAT WASHER 8
133 240016-5 FAN X HR5001C
134 419782-7 FAN GUIDE HR5201C
135 195844-2 CARBON BRUSHE SET CB-175
136 638447-4/HR CARBON BRUSHE HOLDER HR5201C
137 450041-0 MOTOR HOUSING X HR4501C
138 636313-9 STATOR FOR HR4501C
139 266046-8 SCREW M5x50 HR2010
140 210059-1 BEARING 6000 HR2010
141 681642-5 WASHER X LS1013
142 517768-6 ARAMTURE X HR4501C
143 267025-9 FLAT WASHER 15 6912D
144 211238-4 BALL BEARING 6202LLU
145 331596-3 SOCKET 12 X HR4500C
146 213231-4 O-RING OIL X HR4500C
147 450033-9 BAFFLE HR4501C
155 331840-8 SOCKET FOR 19 HR4501C
999 195210-3 KIT MAINT. HR4501C / 4510 / 11C
1000 196074-8 DUST EXTRACTOR ATTACHMENT SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR4511C
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita HR4511C Drawing

Makita HR4511C Drawing

Download (379.19KB)

You might also like

Switch for Polisher Sander Makita SA7000C
Makita SKU: 650213-9
Switch for Polisher Sander Makita SA7000C
Switch for Polisher Sander Makita SA7000C Genuine spare part Makita, Switch TG71ARS for Polisher Sander Makita SA7000C Part for the following products: -  SA7000C - POLISHER DIAM.180 1500/4000 Tech Data: - Type : TG71ARS - Code :...
Last items in stock €32.80
Details
Switch for Polisher Makita SA7000
Makita SKU: 651922-3
Switch for Polisher Makita SA7000
Switch for Polisher Makita SA7000 Genuine part Makita, Switch for Polisher SA7000 - Mitre Saw 2414B - 2414EN-NB - Planes Makita 4304 - 4304T - 4306 -  Circular Saws Makita 5017RKB - 5603R - RK - 5703R - RK - 5705RK Part for the...
Last items in stock €32.80
Details
Carbon Brushes Makita for Hammers HM-HR
Makita SKU: 195844-2
Carbon Brushes Makita for Hammers HM-HR
Carbon Brushes Makita for Makita Hammers HM-HR Genuine part MAKITA, Carbon Brushe Set CB-175 old CB-171 for repair Hammers and Rotary Hammers HM1101C - HM1111C - HM1203C - HR4501C - HR4510C - HR5201C - HR5201C. Part For the following...
AVAILABLE €11.59
Details
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 213460-9
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C Genuine spare part Makita, O-Ring 35 for SDS Max Rotary Demolition Hammers HR4501C  - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
AVAILABLE €3.29
Details
Armature Washer for Demolition Hammers Makita HR 4501-10-11C
Makita SKU: 681642-5
Armature Washer for Demolition Hammers Makita HR 4501-10-11C
Armature Washer for Demolition Hammers Makita HR 4501-10-11C Genuine spare Makita, Armature Protection Washer for SDS-Max Rotary Hammers, HR4501C - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
Last items in stock €13.30
Details
Armature for Demolition Hammers Makita HR 4501-11C
Makita SKU: 517768-6
Armature for Demolition Hammers Makita HR 4501-11C
Armature for Demolition Hammers Makita HR 4501-11C Genuine spare Makita, Armature Ass'y 220-240V for SDS-Max Rotary Hammers, HR4501C - HR4511C. FOR THE FOLLOWS ITEMS : - Hammer Makita HR4501C - Hammer Makita HR4511C - Code: 517768-6
Last items in stock €119.31
Details
Power Cord for Angle Grinder Makita 1800-2000-2200W
Makita SKU: Cavo 230
Power Cord for Angle Grinder Makita 1800-2000-2200W
Power Cord for Angle Grinder Makita 1800-2000-2200W Original spare Makita, Power cord for Angle Grinders 1800-2000-2200 Watts and compatible. Part for the following products: - For Angle Grinder Makita 230 mm - Code :
Last items in stock €31.79
Details
Service Pack for Demolition Hammers Makita HR4501C-4510-11C
Makita SKU: 195210-3
Service Pack for Demolition Hammers Makita HR4501C-4510-11C
Service Pack for Demolition Hammers Makita HR4501C-4510-11C Genuine part Makita, Service Pack for Demolition Hammers SDS-Max, HR4501C - HR4510 - HR4511C. FOR THE FOLLOWING ITEMS: - Demolition Hammer Makita HR4501C - Demolition Hammer...
AVAILABLE €38.52
Details
Compression Spring 11 mm for Hammer Makita HR4011C Sale
Makita SKU: 233434-4
Compression Spring 11 mm for Hammer Makita HR4011C
Compression Spring 11 mm for Hammer Makita HR4011C Genuine spare Makita, Compression Spring 11 mm for Hammers HM0871C - HM1111C - HM1213C - HR4011C - HR4511C - HR5211C Parts for the following products: - HM0871C - HAMMER 1100W SDS-MAX...
AVAILABLE €3.03
Details
Conrod for Demolition Hammer Makita HR4501C
Makita SKU: 450026-6
Conrod for Demolition Hammer Makita HR4501C
Conrod for Demolition Hammer Makita HR4501C Original spare parts Makita, Conrod for Demolition Rotary Hammers HR4501C - HR4510C - HR4511C Part for the following product: - HR4501C - ROTARY HAMMER SDS-MAX 1300W - HR4510C - ROTARY...
AVAILABLE €4.86
Details
Piston for Demolition Hammer Makita HR4501C
Makita SKU: 450025-8
Piston for Demolition Hammer Makita HR4501C
Piston for Demolition Hammer Makita HR4501C Original spare parts Makita, Piston for Demolition Rotary Hammers HR4501C - HR4510C - HR4511C Part for the following product: -  HR4501C - ROTARY...
AVAILABLE €4.39
Details
Seal 53 for Demolition Hammer MAKITA HM1200
Makita SKU: 213656-2
Seal 53 for Demolition Hammer MAKITA HM1200
Seal 53 for Demolition Hammer MAKITA HM1200 Genuine replacement part Makita, Seal 53 Demolition Hammers HM1200 - HM1200K - HM0870C - HM0870C - HM0871C. Part for the following products: -...
Last items in stock €1.46
Details
Lens for Demolition Hammer Makita HR4501C
Makita SKU: 419774-6
Lens for Demolition Hammer Makita HR4501C
Lens for Demolition Hammer Makita HR4501C Original spare parts Makita, Lens for Demolition Rotary Hammers HR4501C - HR4510C - HR4511C Part for the following product: -  HR4501C - ROTARY HAMMER SDS-MAX 1300W - HR4510C - ROTARY HAMMER...
Last items in stock €3.19
Details
Fan for Rotary Hammer Makita HR4500C
Makita SKU: 240016-5
Fan for Rotary Hammer Makita HR4500C
Fan for Rotary Hammer Makita HR4500C Genuine part Makita, Fan for Rotary Hammers SDS Max HR4500C - HR4501C - HR4510C - HR4511C - HR5001C - HR5202C. Parts for the following products:...
on 7/10 Business Days Approx. €10.36
Details
Makita HR4501C Motor Housing
Makita SKU: 450041-0
Makita HR4501C Motor Housing
Makita HR4501C Motor Housing Genuine part Makita, Motor Housing for Rotary Hammer SDS-MAX HR4501C - HR4510C - HR4511C. Part for the following products: - HR4501C - ROTARY HAMMER SDS-MAX 1300W - HR4510C - ROTARY HAMMER...
Last items in stock €30.76
Details
Makita HR4511C Handle Base
Makita SKU: 450038-9
Makita HR4511C Handle Base
Makita HR4511C Handle Base Genuine part Makita, Handle Base for Rotary Hammer SDS-MAX HR4511C. Part for the following products: - HR4511C - ROTARY HAMMER SD-SMAX 1350W 45mm - Code: 450038-9
Last items in stock €34.02
Details
Makita HR4511C Handle
Makita SKU: 419798-2
Makita HR4511C Handle
Makita HR4511C Handle Genuine part Makita, Handle for Rotary Hammer SDS-MAX HR4511C - HR5211C. Part for the following products: - HR4511C - ROTARY HAMMER SD-SMAX 1350W 45mm - HR5211C - MARTELLO ROTATIVO 52MM SDS-MAX -...
Last items in stock €14.78
Details
Makita HR4501C Rear Cover
Makita SKU: 450035-5
Makita HR4501C Rear Cover
Makita HR4501C Rear Cover Genuine part Makita, Rear Cover for Rotary Hammer SDS-MAX HR4501C - HR4510C - HR4511C. Part for the following products: - HR4501C - ROTARY HAMMER SDS-MAX 1300W - HR4510C - ROTARY HAMMER SDS-MAX...
Last items in stock €10.14
Details
Makita HR4511C Crank Housing Cover
Makita SKU: 450036-3
Makita HR4511C Crank Housing Cover
Makita HR4511C Crank Housing Cover Genuine part Makita, Crank Housing Coverfor Rotary Hammer SDS-MAX HR4510C - HR4511C. Part for the following products: - HR4510C - ROTARY HAMMER SDS-MAX 1300W - HR4511C - ROTARY...
Last items in stock €9.23
Details
Makita HR4501C Chuck Cover
Makita SKU: 450064-8
Makita HR4501C Chuck Cover
Makita HR4501C Chuck Cover Genuine part Makita, Chuck Cover for Rotary Hammer SDS-MAX HR4501C - HR4510C - HR4511C. Part for the following products: - HR4501C - ROTARY HAMMER SDS-MAX 1300W - HR4510C - ROTARY HAMMER...
Last items in stock €3.07
Details
Comments (0)
