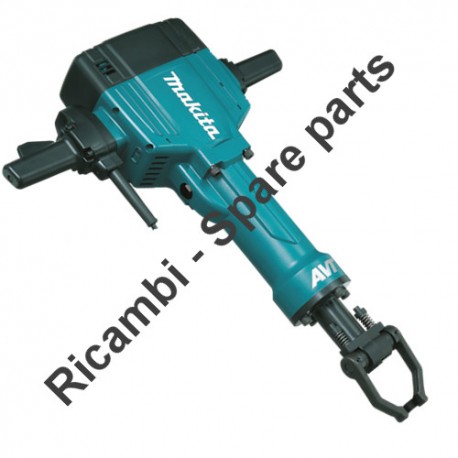

Makita Spare Parts for Breaker Hammer HM1810

SKU: Makita HM1810
€79.10
VAT included

Makita Spare Parts for Breaker Hammer HM1810

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for HM1810 70 lb. AVT® Breaker Hammer 1900 W 1‑1/8" Hex bits.
Makita Spare Parts for Breaker Hammer HM1810
  • Makita Spare Parts for Breaker Hammer HM1810
  • Makita Spare Parts for Breaker Hammer HM1810 - Drawing
  • Makita Spare Parts for Breaker Hammer HM1810 - Drawing - 1

Makita Spare Parts for Breaker Hammer HM1810

SKU: Makita HM1810 Condition: New
€79.10
VAT included

Makita Spare Parts for Breaker Hammer HM1810

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for HM1810 70 lb. AVT® Breaker Hammer 1900 W 1‑1/8" Hex bits.
settings 118 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

115 spare parts

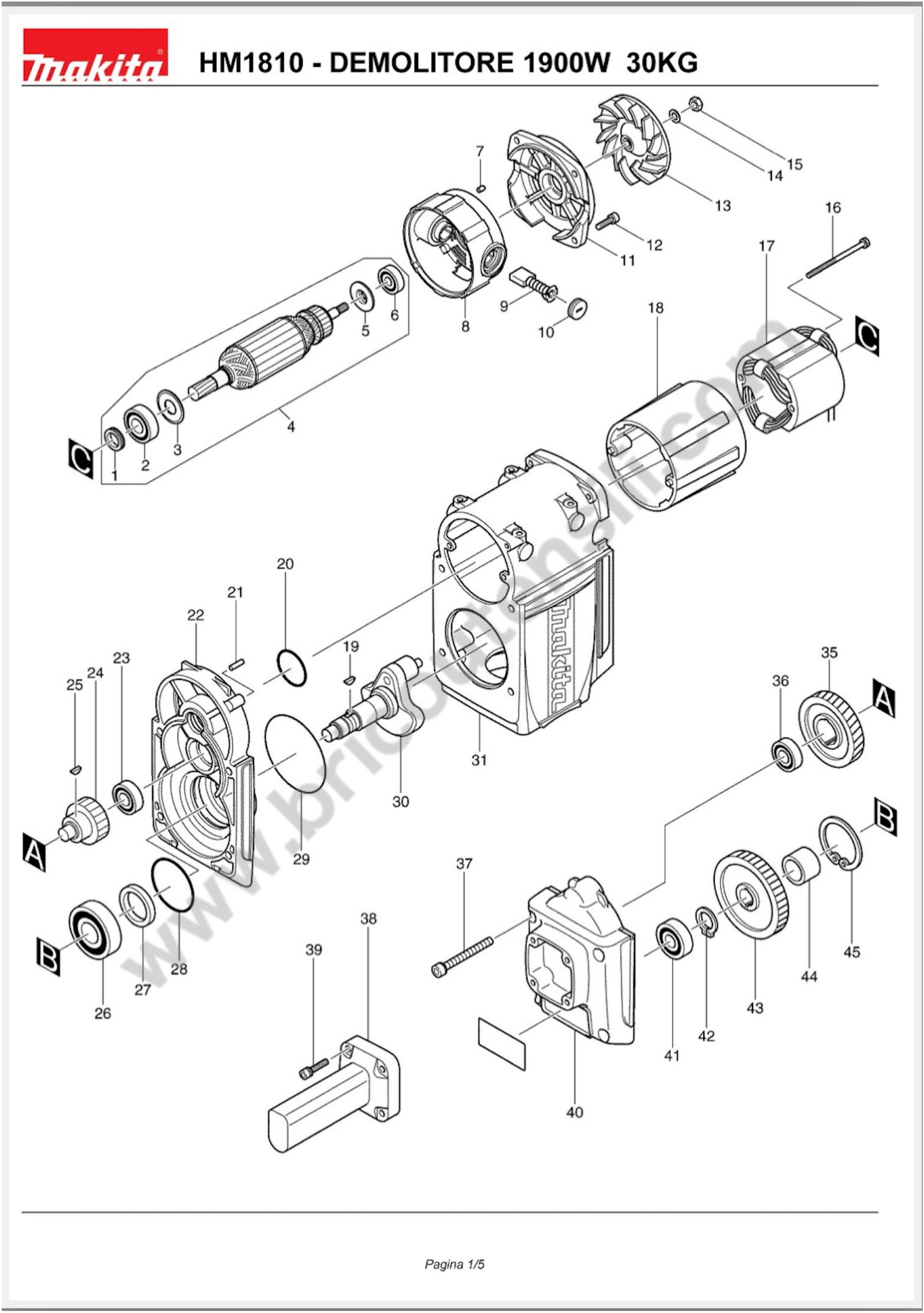

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322566-3 SEAL RING X HM1800 €12.33
2
photo_cameraImage coming soon 211256-2 BEARING X AM4024LG €12.69
3
photo_cameraImage coming soon 267706-5 WASHER 17 X HM1800 €4.17
4
photo_cameraImage coming soon 516922-9 ARMATURE X HM1810 €137.73
5
Armature Washer for Demolition Hammer Makita HR3850K 681646-7 Armature Washer for Demolition Hammer Makita HR3850K €8.71
6
photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
7
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
8
photo_cameraImage coming soon 154586-7 MOTOR HOUSING B X HM1810 €44.02
9
Carbon Brushes CB-204 Makita for Hammers and Angle Grinders 191957-7 Carbon Brushes CB-204 Makita for Hammers and Angle Grinders €9.15
10
Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 643710-2 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 €2.01
11
photo_cameraImage coming soon 317899-9 BALL BEARING BOX X HM1810 €35.07
12
photo_cameraImage coming soon 265366-7 BOLT M5 X 22 X HM1500 €3.13
13
Armature Fan for Demolition Hammer Makita HM1800 240024-6 Armature Fan for Demolition Hammer Makita HM1800 €20.01
14
photo_cameraImage coming soon 253165-9 FLAT WASHER 8 €1.42
15
photo_cameraImage coming soon 931402-8 NUT M8 €3.18
16
photo_cameraImage coming soon 265344-7 HEXAGONAL BOLT X HM1800 €4.17
17
photo_cameraImage coming soon 628943-0 FIELD STATOR 240V X HM1810 €74.57
18
photo_cameraImage coming soon 414787-2 HOUSING MOTOR X HM1800 €44.02
19
photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
20
photo_cameraImage coming soon 213507-9 GASKET. 40 HR1800 / 2210/20 €2.73
21
photo_cameraImage coming soon 256151-9 PIN 5 X HM1800 €2.86
22
photo_cameraImage coming soon 154585-9 GEAR BOX HM1810 €74.57
23
photo_cameraImage coming soon 211209-1 BEARING 6202 X HM1810 €7.28
24
photo_cameraImage coming soon 226251-9 GEAR 22 X HM1800 €111.32
26
photo_cameraImage coming soon 211361-5 BALL BEARINGS 6305LLB XHM1800 €32.08
27
photo_cameraImage coming soon 213476-4 OIL SEAL X HM1800 €10.72
28
photo_cameraImage coming soon 213721-7 RING OR 61 X HM1400 €2.08
29
photo_cameraImage coming soon 213806-9 GASKET 90 XHR2510 €4.72
30
photo_cameraImage coming soon 154588-3 SHAFT X HM1810 €35.07
31
photo_cameraImage coming soon 318027-9 CONROD HOUSING HM1810 €440.91
35
photo_cameraImage coming soon 221793-8 GEAR 50 X HM1400 €111.32
37
photo_cameraImage coming soon 922496-4 HEXAGONAL BOLT X HM1800 €4.86
38
photo_cameraImage coming soon 418415-1 SIDE HANDLE X HM1800 €18.53
39
photo_cameraImage coming soon 922353-6 SCREW M6x30 HM1202C €1.46
40
photo_cameraImage coming soon 317902-6 GEAR BOX COVER HM1810 €60.56
41
photo_cameraImage coming soon 211214-8 BALL BEARING 6302 €8.50
42
photo_cameraImage coming soon 961060-6 RETAINING RING S20 €2.50
43
photo_cameraImage coming soon 226242-0 GEAR X HM1800 €137.73
44
photo_cameraImage coming soon 331416-1 SLEEVE 25 X HM1800 €9.57
45
photo_cameraImage coming soon 962301-3 RETAINING RING X HM1800 €3.60

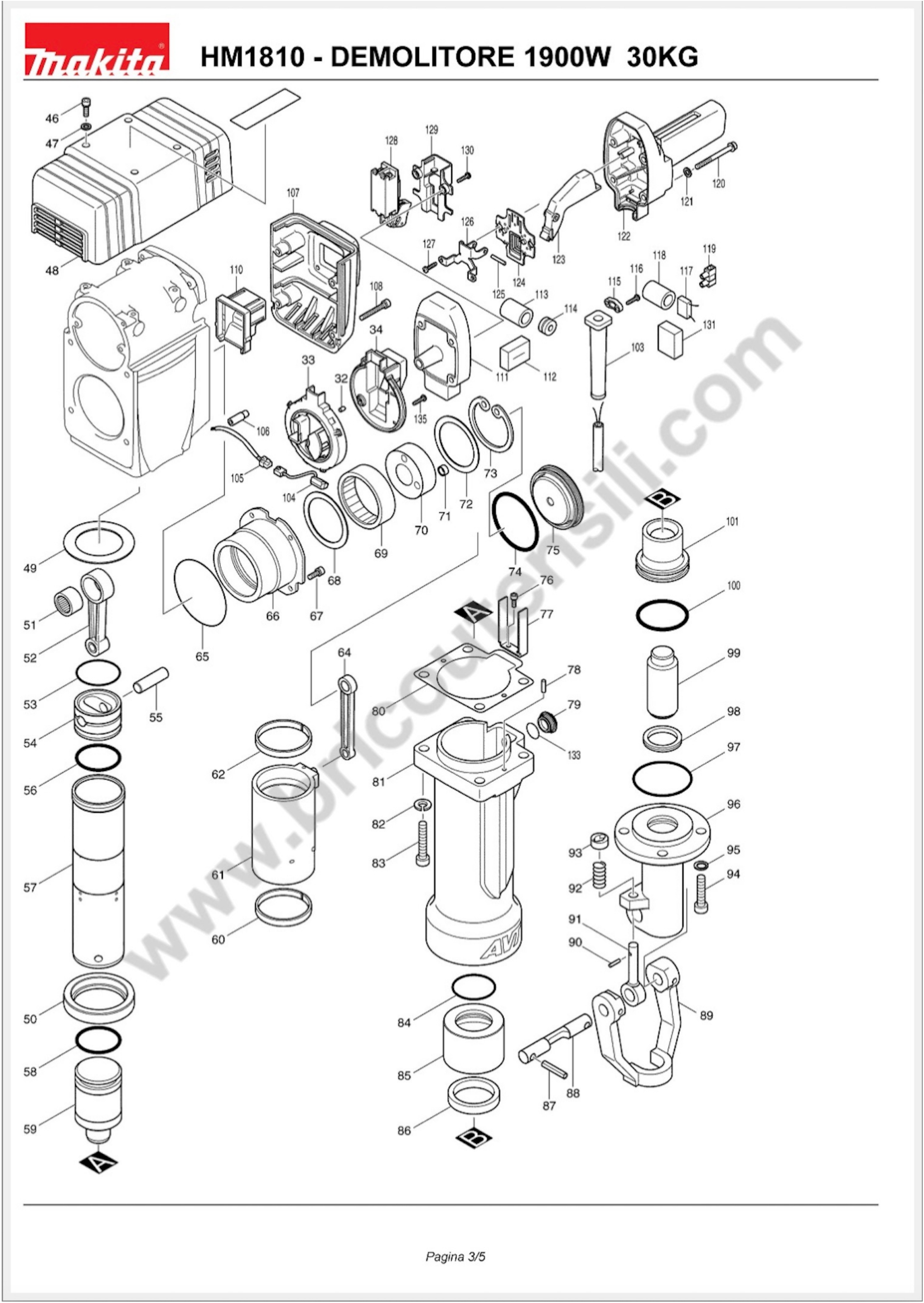

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
33
photo_cameraImage coming soon 419262-3 CONROD HOUSING COVER HM1810 €7.28
34
photo_cameraImage coming soon 419263-1 COVER HM1810 €8.19
46
photo_cameraImage coming soon 922331-6 BOLT ESAG. CUT. 6x20 €1.53
47
photo_cameraImage coming soon 941152-7 FLAT WASHER 6 €1.46
48
photo_cameraImage coming soon 419324-7 HOUSING COVER FOR MOTOR HM1810 €35.16
49
photo_cameraImage coming soon 267296-8 WASHER 63 X HM1810 €4.17
50
photo_cameraImage coming soon 324580-5 SPACER X HM1810 €27.72
51
photo_cameraImage coming soon 212358-7 NEEDLE BEARINGS 2520 X HM1800 €27.72
52
photo_cameraImage coming soon 322476-4 CONNECTING ROD X HM1800 €74.57
54
photo_cameraImage coming soon 324536-8 PISTON X HM1810 €55.05
55
photo_cameraImage coming soon 268130-5 PIN 15 X HM1810 €4.17
56
photo_cameraImage coming soon 213666-9 RING 52 X HM1800 €18.53
57
photo_cameraImage coming soon 331694-3 CYLINDER 62 HM1810 €344.44
59
photo_cameraImage coming soon 324546-5 STRIKER X HM1810 €67.68
60
photo_cameraImage coming soon 418949-4 SPACER 68 X HM1810 €2.91
61
photo_cameraImage coming soon 154589-1 BALANCER X HM1810 €172.18
64
photo_cameraImage coming soon 154946-3 CONNECTING ROD CPL HM1810 €23.81
65
photo_cameraImage coming soon 213855-6 SEAL 95 €4.86
66
photo_cameraImage coming soon 318028-7 CRANKSHAFT HOUSING HM1810 €35.07
68
photo_cameraImage coming soon 267297-6 WASHER 65 X HM1810 €4.17
69
photo_cameraImage coming soon 212701-0 NEEDLE BEARING 7025 X HM1810 €35.07
70
photo_cameraImage coming soon 154587-5 SHAFT X HM1810 €60.56
73
photo_cameraImage coming soon 962354-2 RETAINING RING R-80 HM1810 €3.60
74
photo_cameraImage coming soon 213765-7 RING 78 X HM1810 €1.88
75
photo_cameraImage coming soon 418952-5 BUMPER HM1810 €8.19
76
photo_cameraImage coming soon 266464-0 BOLT HEX.5X20 AN9000 €1.40
77
photo_cameraImage coming soon 345569-0 PLATE X CANNON HM1810 €9.57
79
photo_cameraImage coming soon 450347-6 CAP X HM1801 / HM1810 €7.28
80
photo_cameraImage coming soon 162241-7 GASKET HM1810 €12.33
81
photo_cameraImage coming soon 318354-4 BARREL X HM1810 €344.44
82
photo_cameraImage coming soon 942301-9 SPRING WASHER 12 €1.29
83
photo_cameraImage coming soon 922677-0 HEXAGONAL BOLT X HM1800 €3.60
84
photo_cameraImage coming soon 213660-1 GASKET 53 AN7000 €4.86
85
photo_cameraImage coming soon 322548-5 CYLINDER B X HM1800 €137.73
86
photo_cameraImage coming soon 262050-5 RUBBER GASKET X HM1500 €8.19
87
photo_cameraImage coming soon 951272-9 SPRING 8-40 X HM1800 €2.08
88
photo_cameraImage coming soon 324238-6 TOOL RETAINER SHAFT HM1800 €32.08
89
photo_cameraImage coming soon 324236-0 TOOL RETAINER HM1800 €1,368.40
90
photo_cameraImage coming soon 256219-1 PIN 4 X HM 1500 €1.40
91
photo_cameraImage coming soon 322477-2 TOOL RETAINER HM1800 €61.62
92
photo_cameraImage coming soon 233083-7 COMPRESSION SPRING 12 €2.69
93
photo_cameraImage coming soon 322560-5 RETAINING RING HM1810 €6.02
94
photo_cameraImage coming soon 265989-1 HEX BOLT X HM1800 €4.86
95
photo_cameraImage coming soon 253989-3 SPRING WASHER 12 X HM1500 €1.88
96
photo_cameraImage coming soon 324539-2 TOOL HOLDER 29 HM1810 €344.44
97
Base Cover O-Ring 75 for Sander Makita 9046 213755-0 Base Cover O-Ring 75 for Sander Makita 9046 €4.62
98
photo_cameraImage coming soon 213517-6 RING 40 €30.04
99
photo_cameraImage coming soon 324545-7 IMPACT BOLT HM1810 €32.08
100
photo_cameraImage coming soon 213667-7 RING X HM1800 €18.53
101
photo_cameraImage coming soon 324541-5 IMPACT BOLT HOLDER X HM1810 €67.68
103
photo_cameraImage coming soon 682546-4 CORD GUARD 12-125 HM1800 €5.67
104
photo_cameraImage coming soon 631671-8 PILOT LAMP 240V HM1810 €10.72
105
photo_cameraImage coming soon 638378-7 LEAD UNIT HM1810 €3.60
106
photo_cameraImage coming soon 418951-7 LENS X HM1810 €2.91
107
photo_cameraImage coming soon 317901-8 REAR COVER X HM1810 €55.05
110
photo_cameraImage coming soon 418954-1 TOP COVER X HM1810 €4.86
111
photo_cameraImage coming soon 419044-3 HANDLE COVER X HM1800 €12.33
112
Sponge for Hammers Makita M802 - HR3850B 685700-9 Sponge for Hammers Makita M802 - HR3850B €2.00
113
photo_cameraImage coming soon 685722-9 SPONGE 4302C €1.36
114
photo_cameraImage coming soon 688131-1 FILTER LINE X MT240 €1.40
115
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
116
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
117
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
119
photo_cameraImage coming soon 654554-5 CLAMP X HM1810 €6.36
120
photo_cameraImage coming soon 265535-0 SCREW M6 X 65 HM1810 €1.88
122
photo_cameraImage coming soon 418333-3 COMPLETE HANDLE X HM1800 €23.81
123
photo_cameraImage coming soon 418332-5 LEVER SWITCH X HM1800 €8.19
124
photo_cameraImage coming soon 421850-4 DUST PARA X HM1800 €7.28
125
photo_cameraImage coming soon 256206-0 PIN X 4399DW €1.43
126
photo_cameraImage coming soon 345355-9 SWITCH SUPPORT X HM1800 €9.57
128
Switch C3D-15MS for Hammer Breaker Makita HM1400 651131-4 Switch C3D-15MS for Hammer Breaker Makita HM1400 €37.21
129
photo_cameraImage coming soon 419045-1 COVER X SWITCH HM1810 €5.67
131
photo_cameraImage coming soon 685718-0 SPONGE X JR3000V / 9035N €1.37
133
photo_cameraImage coming soon 213953-6 RING 24 HR2430 €1.40
Page 3 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
999
photo_cameraImage coming soon 188015-8 SERVICE KIT HM1810 €74.57

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Breaker Hammer HM1810

We are MAKITA original spare parts Worldwide Dealers

at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for HM1810 70 lb. AVT® Breaker Hammer 1900 W 1‑1/8" Hex bits.

In the following table, look for the model of the Hammer and the respective parts of the code.
Makita HM1810

Demolition Hammer Makita HM1810 Pag.1
# Part Num. Description
1 322566-3 SEAL RING X HM1800
2 211256-2 BEARING X AM4024LG
3 267706-5 WASHER 17 X HM1800
4 516922-9 ARMATURE X HM1810
5 681646-7 INSULATING WASHER HM1200 / 3612BR
6 211087-9 BALL BEARING 6200DDW NSK
7 263002-9 RUBBER PIN 4
8 154586-7 MOTOR HOUSING B X HM1810
9 191957-7 CARBON BRUSHE SET CB-204 (201,202)
10 643710-2 CARBON BRUSH HOLDER CAP XHM1500
11 317899-9 BALL BEARING BOX X HM1810
12 265366-7 BOLT M5 X 22 X HM1500
13 240024-6 FAN 10 X HM1800
14 253165-9 FLAT WASHER 8
15 931402-8 NUT M8 X LS1013
16 265344-7 HEXAGONAL BOLT X HM1800
17 628943-0 FIELD STATOR 240V X HM1810
18 414787-2 HOUSING MOTOR X HM1800
19 254001-2 KEY 4
20 213507-9 GASKET. 40 HR1800 / 2210/20
21 256151-9 PIN 5 X HM1800
22 154585-9 GEAR BOX HM1810
23 211209-1 BEARING 6202 X HM1810
24 226251-9 GEAR 22 X HM1800
25 254001-2 KEY 4
26 211361-5 BALL BEARINGS 6305LLB XHM1800
27 213476-4 OIL SEAL X HM1800
28 213721-7 RING OR 61 X HM1400
29 213806-9 GASKET 90 XHR2510
30 154588-3 SHAFT X HM1810
31 318027-9 CONROD HOUSING HM1810
35 221793-8 GEAR 50 X HM1400
36 211209-1 BEARING 6202 X HM1810
37 922496-4 HEXAGONAL BOLT X HM1800
38 418415-1 SIDE HANDLE X HM1800
39 922353-6 SCREW M6 X30 X HM1202C
40 317902-6 GEAR BOX COVER HM1810
41 211214-8 BALL BEARING 6302
42 961060-6 RETAINING RING S20
43 226242-0 GEAR X HM1800
44 331416-1 SLEEVE 25 X HM1800
45 962301-3 RETAINING RING X HM1800
Demolition Hammer Makita HM1810 Pag.2
32 263002-9 RUBBER PIN 4
33 419262-3 CONROD HOUSING COVER HM1810
34 419263-1 COVER HM1810
46 922331-6 HEXAGONAL BOLT 6X20
47 941152-7 FLAT WASHER 6
48 419324-7 HOUSING COVER FOR MOTOR HM1810
49 267296-8 WASHER 63 X HM1810
50 324580-5 SPACER X HM1810
51 212358-7 NEEDLE BEARINGS 2520 X HM1800
52 322476-4 CONNECTING ROD X HM1800
53 213662-7 RING 55 HM1810
54 324536-8 PISTON X HM1810
55 268130-5 PIN 15 X HM1810
56 213666-9 RING 52 X HM1800
57 331694-3 CYLINDER 62 HM1810
58 213666-9 RING 52 X HM1800
59 324546-5 STRIKER X HM1810
60 418949-4 SPACER 68 X HM1810
61 154589-1 BALANCER X HM1810
62 418949-4 SPACER 68 X HM1810
64 154946-3 CONNECTING ROD CPL HM1810
65 213855-6 GASKET 95 X HM1400
66 318028-7 CRANKSHAFT HOUSING HM1810
67 922331-6 HEXAGONAL BOLT CUT. 6X20
68 267297-6 WASHER 65 X HM1810
69 212701-0 NEEDLE BEARING 7025 X HM1810
70 154587-5 SHAFT X HM1810
71 331718-5 RING 10 X HM1810
72 267297-6 WASHER 65 X HM1810
73 962354-2 RETAINING RING R-80 HM1810
74 213765-7 RING 78 X HM1810
75 418952-5 BUMPER HM1810
76 266464-0 BOLT HEX.5X20 AN9000
77 345569-0 PLATE X CANNON HM1810
78 256151-9 PIN 5 X HM1800
79 450347-6 CAP X HM1801 / HM1810
80 162241-7 GASKET HM1810
81 318354-4 BARREL X HM1810
82 942301-9 SPRING WASHER 12
83 922677-0 HEXAGONAL BOLT X HM1800
84 213660-1 GASKET 53 AN7000
85 322548-5 CYLINDER B X HM1800
86 262050-5 RUBBER GASKET X HM1500
87 951272-9 SPRING 8-40 X HM1800
88 324238-6 TOOL RETAINER SHAFT HM1800
89 324236-0 TOOL RETAINER HM1800
90 256219-1 PIN 4 X HM 1500
91 322477-2 TOOL RETAINER HM1800
92 233083-7 COMPRESSION SPRING 12
93 322560-5 RETAINING RING HM1810
94 265989-1 HEX BOLT X HM1800
95 253989-3 SPRING WASHER 12 X HM1500
96 324539-2 TOOL HOLDER 29 HM1810
97 213755-0 GASKET 75 X HM1400
98 213517-6 RING 40 X HM1300
99 324545-7 IMPACT BOLT HM1810
100 213667-7 RING X HM1800
101 324541-5 IMPACT BOLT HOLDER X HM1810
103 682546-4 CORD GUARD 12-125 HM1800
104 631671-8 PILOT LAMP 240V HM1810
105 638378-7 LEAD UNIT HM1810
106 418951-7 LENS X HM1810
107 317901-8 REAR COVER X HM1810
108 922366-7 BOLT M6X45
110 418954-1 TOP COVER X HM1810
111 419044-3 HANDLE COVER X HM1800
112 685700-9 SPONGE X M802 / HR3850B
113 685722-9 SPONGE X 4302C
114 688131-1 LINE FILTER MT240
115 687052-4 STRAIN RELIEFE 6408
116 265995-6 SCREW M4X18 X 6408 / 6221DW
117 645200-1 CAPACITOR
118 685722-9 SPONGE X 4302C
119 654554-5 CLAMP X HM1810
120 265535-0 SCREW M6 X 65 HM1810
121 941152-7 FLAT WASHER 6
122 418333-3 COMPLETE HANDLE X HM1800
123 418332-5 LEVER SWITCH X HM1800
124 421850-4 DUST PARA X HM1800
125 256206-0 PIN X 4399DW
126 345355-9 SWITCH SUPPORT X HM1800
127 265995-6 SCREW M4X18 X 6408 / 6221DW
128 651131-4 SWITCH C3D-15MS
129 419045-1 COVER X SWITCH HM1810
130 265995-6 SCREW M4X18 X 6408 / 6221DW
131 685718-0 SPONGE X JR3000V / 9035N
133 213953-6 RING 24 HR2430
135 265995-6 SCREW M4X18 X 6408 / 6221DW
Accessories Pag.3
999 188015-8 SERVICE KIT HM1810
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HM1810
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Makita HM1810 Drawing

Makita HM1810 Drawing

Download (874.27KB)

You might also like

Makita SKU: 181048-2
Carbon Brushes CB-155 for Hammer Makita HM1400 Makita genuine spare part, Carbon Brusches CB-155 for Hammer Breaker HM1400 Exagonal 30 mm 1240 W Part for the following products: - Hammer Breaker HM1400 Exagonal 30 mm 1240 W Technical...
Last items in stock €13.26
Makita SKU: 240024-6
Armature Fan for Demolition Hammer Makita HM1800 Original spare Makita, Armature Fan for Demolition Hammer 29KG 1700W HM1800 - Demolition Hammer 30KG 2000W HM1810 Part for the following products: -...
AVAILABLE €20.01
Makita SKU: 216004-4
Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T  Genuine spare Makita, Steel Ball 7,9 mm Diameter for Bench Saw 2712 - LF1000 - Hammer HR3850 - Hammers HM1400-HM1810 - Circular Saws 5104S-5143R - Hammer HR3850B. Part for the...
AVAILABLE €1.50
Makita SKU: 681646-7
Armature Washer for Demolition Hammer Makita HR3850K Genuine spare part Makita, Armature Protection Washer for Demolition Hammers HM1200 - HM1200K - HM1300 - HM1303 - HM1304 - HM1800 - HM1810 - HR3850 - HR3850K Part for the following...
AVAILABLE €8.71
Makita SKU: 685700-9
Sponge for Hammers Makita M802 - HR3850B Original spare part Makita, Sponge Sheet for Hammers M802/HR3850B - HM0810 - HM1400 - HM1200. Part for the following products: - 410 - DUST COLLECTORS - 4105KB - Dustless Cutter Dry Cutting 125...
AVAILABLE €2.00
Makita SKU: 651131-4
Switch C3D-15MS for Hammer Breaker Makita HM1400 Makita genuine spare part, Switch C3D-15MS for Hammer Breaker HM1400 Exagonal 30 mm 1240 W 18KG 29.5J. Part for the following products: - HM1400 - HAMMER HEX 30mm 18KG 29.5J - HM1800 -...
Last items in stock €37.21
Makita SKU: 213755-0
Base Cover O-Ring 75 for Sander Makita 9046 Genuine spare part Makita, Aluminium Rectangular Base Cover O-Ring 75 for Orbital Sander 9046 Part for the following products: -  Orbital Sander...
AVAILABLE €4.62
Comments (0)
