Makita

Makita Spare Parts for Trimmer 3707FC

SKU: Makita 3707FC
€17.21
VAT included

Makita Spare Parts for Trimmer 3707FC

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Trimmer 3707FC
Makita Spare Parts for Trimmer 3707FC
  • Makita Spare Parts for Trimmer 3707FC
  • Makita Spare Parts for Trimmer 3707FC
Makita

Makita Spare Parts for Trimmer 3707FC

SKU: Makita 3707FC Condition: New
€17.21
VAT included

Makita Spare Parts for Trimmer 3707FC

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Trimmer 3707FC
settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts

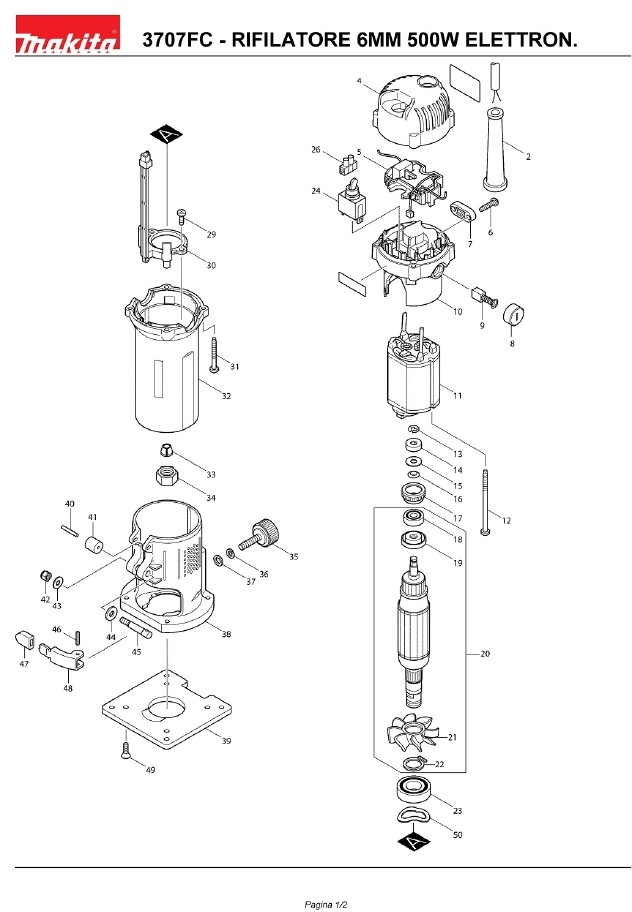

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
4
 photo_cameraImage coming soon 417747-3 TOP COVER X 3707 €4.81
5
 photo_cameraImage coming soon 631487-1 REGULATOR X 3708FC €49.42
6
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
7
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
8
 Carbon Brush Holder Cap for Power Trimmers Makita 3707-3708 643928-5 Carbon Brush Holder Cap for Power Trimmers Makita 3707-3708 €1.50
9
 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC 191940-4 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC €8.17
10
 photo_cameraImage coming soon 183417-3 HOUSING UPPER MOT. X 3707 €20.87
11
 Stator for Laminate Trimmer Makita 3707FC-3708FC 595064-2 Stator for Laminate Trimmer Makita 3707FC-3708FC €36.84
12
 photo_cameraImage coming soon 266004-4 SCREW 4x70 €1.87
13
 photo_cameraImage coming soon 259039-2 LOCKING 6 X 9566CV €3.76
14
 Magnet Sleeve for Angle Grinder Makita GA4540C 688117-5 Magnet Sleeve for Angle Grinder Makita GA4540C €4.20
15
 photo_cameraImage coming soon 253332-6 FLAT WASHER 6 €1.42
16
 photo_cameraImage coming soon 267756-0 WAVY WASHER X BO6040 €3.76
17
 photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
18
 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 210017-7 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 €8.46
19
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
20
 photo_cameraImage coming soon 517619-3 ARMATURE X 3708FC €60.07
21
 photo_cameraImage coming soon 240049-0 FAN 48 X 3707 €3.17
22
 Ext DIN471 Circlip-15 for Makita Power Tools 961055-9 Ext DIN471 Circlip-15 for Makita Power Tools €1.47
23
 photo_cameraImage coming soon 211236-8 BEARING 6002DDW X 5705R €9.72
24
 photo_cameraImage coming soon 651423-1 SWITCH X 3706 €14.34
26
 photo_cameraImage coming soon 654544-8 CLAMP CABLES X X 3707 €1.87
29
 photo_cameraImage coming soon 251991-0 SCREW M 4 X 12 X 3707 €1.28
30
 photo_cameraImage coming soon 631480-5 CIRCUIT LIGHT X 3708FC €26.30
31
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
32
 Motor Housing Complete for Rotary Trimmers Makita 3707-3708 153347-2 Motor Housing Complete for Rotary Trimmers Makita 3707-3708 €17.22
33
 Collet Cone 6 mm for Trimmer Makita 3700B-3706-3707 763607-0 Collet Cone 6 mm for Trimmer Makita 3700B-3706-3707 €6.55
34
 Clamp Nut for Trimmer Makita 3700B-3706-3707 763606-2 Clamp Nut for Trimmer Makita 3700B-3706-3707 €11.60
35
 photo_cameraImage coming soon 251815-0 KNOB SCREW M6 €2.06
36
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
37
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
38
 Base Housing for Trimmer Makita 3707-3707FC 417748-1 Base Housing for Trimmer Makita 3707-3707FC €25.06
39
 Housing Base for Trimmers Makita 3707-3707FC 417749-9 Housing Base for Trimmers Makita 3707-3707FC €6.55
40
 photo_cameraImage coming soon 256221-4 PIN 3 X JR3020 €1.36
41
 photo_cameraImage coming soon 421566-1 ROLLER X 3707 €1.44
42
 photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €3.18
43
 photo_cameraImage coming soon 941101-4 FLAT WASHER 5 €1.47
45
 photo_cameraImage coming soon 324243-3 SCREW HOLDER X 3707 €3.17
47
 photo_cameraImage coming soon 421818-0 HOOD RUBBER X 3707 €1.44
48
 photo_cameraImage coming soon 345229-4 LEVER BLOCK X 3707 €2.74

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Trimmer 3707FC

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Trimmer 3707FC

In the following table, look for the model of Power Trimmer and the respective parts of the code.


Trimmer 3707FC
2 682502-4 CABLE SLEEVE 8/85 6408
4 417747-3 TOP COVER X 3707
5 631487-1 REGULATOR X 3708FC
6 265995-6 SCREW M4X18 X 6408 / 6221DW
7 687063-9 RELIEF X 4304T
8 643928-5 PLUG BRUSH X9524NB
9 191940-4 CARBON BRUSHES CB-411 X N500
10 183417-3 HOUSING UPPER MOT. X 3707
11 595064-2 STATOR X 3708FC
12 266004-4 SCREW 4x70
13 259039-2 LOCKING 6 X 9566CV
14 688117-5 MAGNET SLEEVE X GD0800C
15 253332-6 FLAT WASHER 6
16 267756-0 WAVY WASHER X BO6040
17 421494-0 RUBBER 19 X 9521NB
18 210017-7 BEARING 607DDW
19 681636-0 INSULATION WASHER
20 517619-3 ARMATURE X 3708FC
21 240049-0 FAN 48 X 3707
22 961055-9 RETAINING RING S15
23 211236-8 BEARING 6002DDW X 5705R
24 651423-1 SWITCH X 3706
26 654544-8 CLAMP CABLES X X 3707
29 251991-0 SCREW M 4 X 12 X 3707
30 631480-5 CIRCUIT LIGHT X 3708FC
31 266048-4 SCREW M 4 X 40 X 4334D
32 153347-2 HOUSING COMPLEX X 3707
33 763607-0 CALIPER 6 X 3700B / D / 3705
34 763606-2 NUT CLAMP X 3700B
35 251815-0 KNOB SCREW M6
36 942151-2 WASHER 6 4101R
37 941151-9 WASHER 6 X HM1303
38 417748-1 HOUSING BASE X 3707
39 417749-9 BASE PROTECTOR 3707
40 256221-4 PIN 3 X JR3020
41 421566-1 ROLLER X 3707
42 252103-8 NUT X JR3020
43 941101-4 FLAT WASHER 5
44 267214-6 FLAT WASHER X 3707
45 324243-3 SCREW HOLDER X 3707
46 951060-4 JACK BAND 3/14
47 421818-0 HOOD RUBBER X 3707
48 345229-4 LEVER BLOCK X 3707
49 912122-3 COUNTERSUNK HEAD SCREW M4x14
50 253905-5 WASHER 23 X 8035NB

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita 3707FC
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita 3707FC

Diagram Makita 3707FC

Download (227KB)
