Makita Spare Parts for Impact Wrench 6906

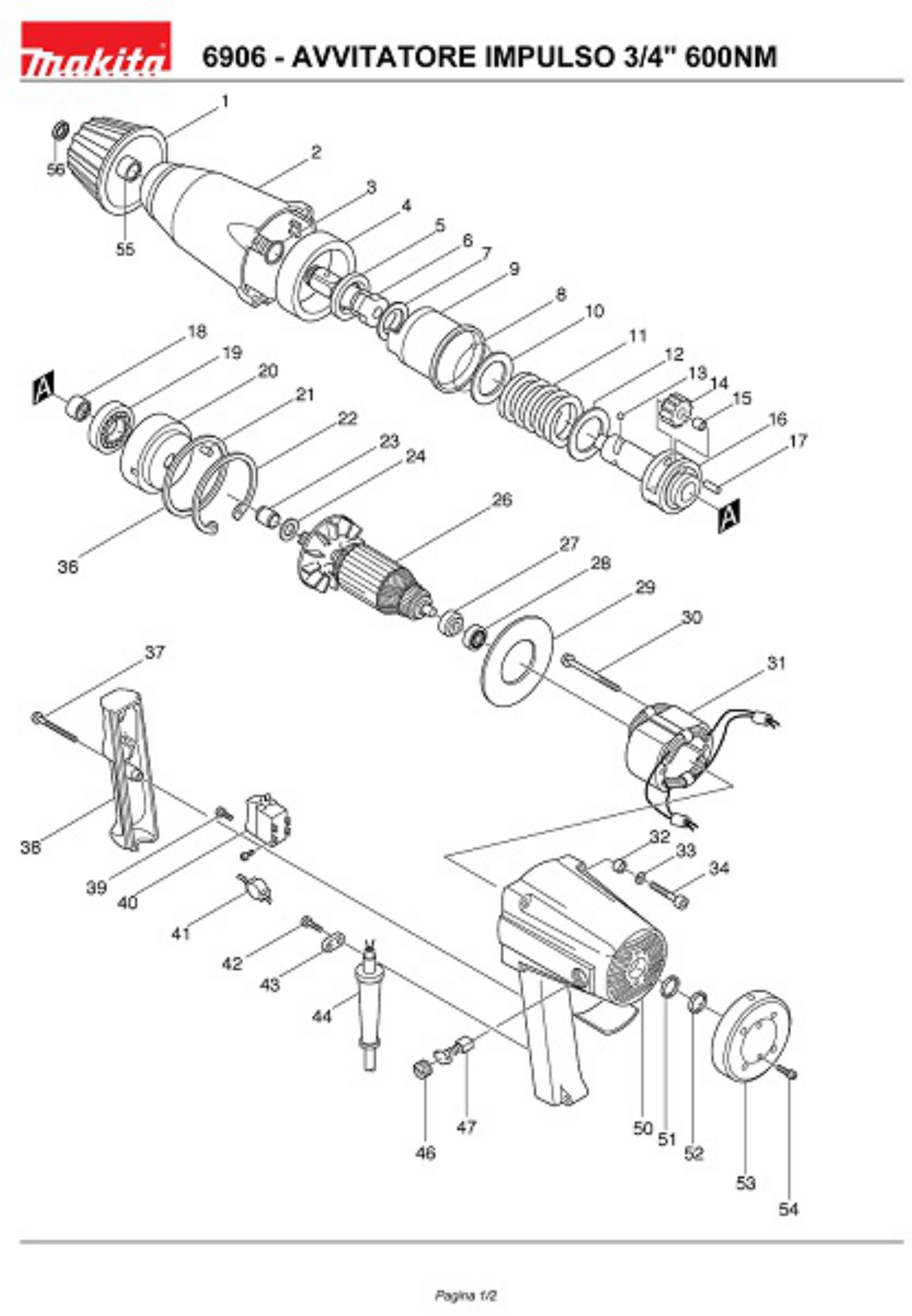

We have the original Spares MAKITA for Impact Wrench 6906, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Impact Wrench 6906. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.6
In the following table, look for the model of Impact Wrench and the respective parts of the code.
| Impact Wrench 6906 |
| # |
Part Num. |
Description |
| 1 |
421112-0 |
PROTECTION RUBBER |
| 2 |
156087-1 |
ELASTIC RING BOX |
| 3 |
231920-9 |
CIRCLIP 16 X 6906 |
| 4 |
257040-1 |
RING 65 |
| 5 |
253939-8 |
WASHER 25 |
| 6 |
134946-9 |
ANVIL COMPLETE 6906 |
| 7 |
261023-5 |
WASHER 27 |
| 8 |
216008-6 |
BALL 4 |
| 9 |
325318-1 |
ELASTIC RING |
| 10 |
253764-7 |
WASHER 36 |
| 11 |
231135-8 |
SPRING 37 |
| 12 |
253765-5 |
WASHER 36 |
| 13 |
216009-4 |
BALL 7.1 |
| 14 |
221243-3 |
GEAR 29 |
| 15 |
212011-5 |
ROLLER BEARING 609 |
| 16 |
325322-0 |
TREE |
| 17 |
256041-6 |
PIN 6 |
| 18 |
212151-9 |
BEARING ROLLER 1412 |
| 19 |
211441-7 |
BALL BEARING 3009 |
| 20 |
221242-5 |
GEAR 65 |
| 21 |
256040-8 |
PIN 5 |
| 22 |
962352-6 |
RETAINING RING R32 |
| 23 |
216103-2 |
BEARING 1016 |
| 24 |
253180-3 |
FLAT WASHER 10 |
| 26 |
512883-1 |
ARMATURE |
| 27 |
681613-2 |
INSULATION WASHER |
| 28 |
211031-6 |
BEARING 608 |
| 29 |
413008-9 |
FAN GUIDE |
| 30 |
911691-1 |
SCREW M5x70 |
| 31 |
527419-3 |
STATOR |
| 32 |
253929-1 |
WASHER 5 |
| 33 |
262001-8 |
RING 5 |
| 34 |
922262-9 |
SCREW ESAG. INC. M5x40 |
| 36 |
253774-4 |
WASHER 65 |
| 37 |
911173-3 |
HEAD SCREW CILIND. type M4x45 |
| 38 |
414959-9 |
COVER HANDLE |
| 39 |
911106-8 |
SCREW M4X8 |
| 40 |
651558-8 |
SWITCH |
| 41 |
646342-4 |
COIL X 6807 |
| 42 |
911133-5 |
SCREW M4X18 |
| 43 |
687001-1 |
CLAMP cable tie |
| 44 |
682504-0 |
CABLE SLEEVE 10/85 |
| 46 |
643600-9 |
PLUG BRUSH |
| 47 |
181030-1 |
CARBON BRUSHES CB 100 |
| 50 |
159414-1 |
HOUSING MOTOR |
| 51 |
262010-7 |
RING 18 |
| 52 |
253314-8 |
WASHER 15 |
| 53 |
284065-2 |
BACK COVER |
| 54 |
922221-3 |
SCREW M5X16 |
| 55 |
257535-4 |
RING 25 X6906 |
| 56 |
213360-3 |
SEAL OIL 25 X6906 |
