Makita Spare Parts for Impact Wrench TW0200
Makita Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Wrench TW0200.

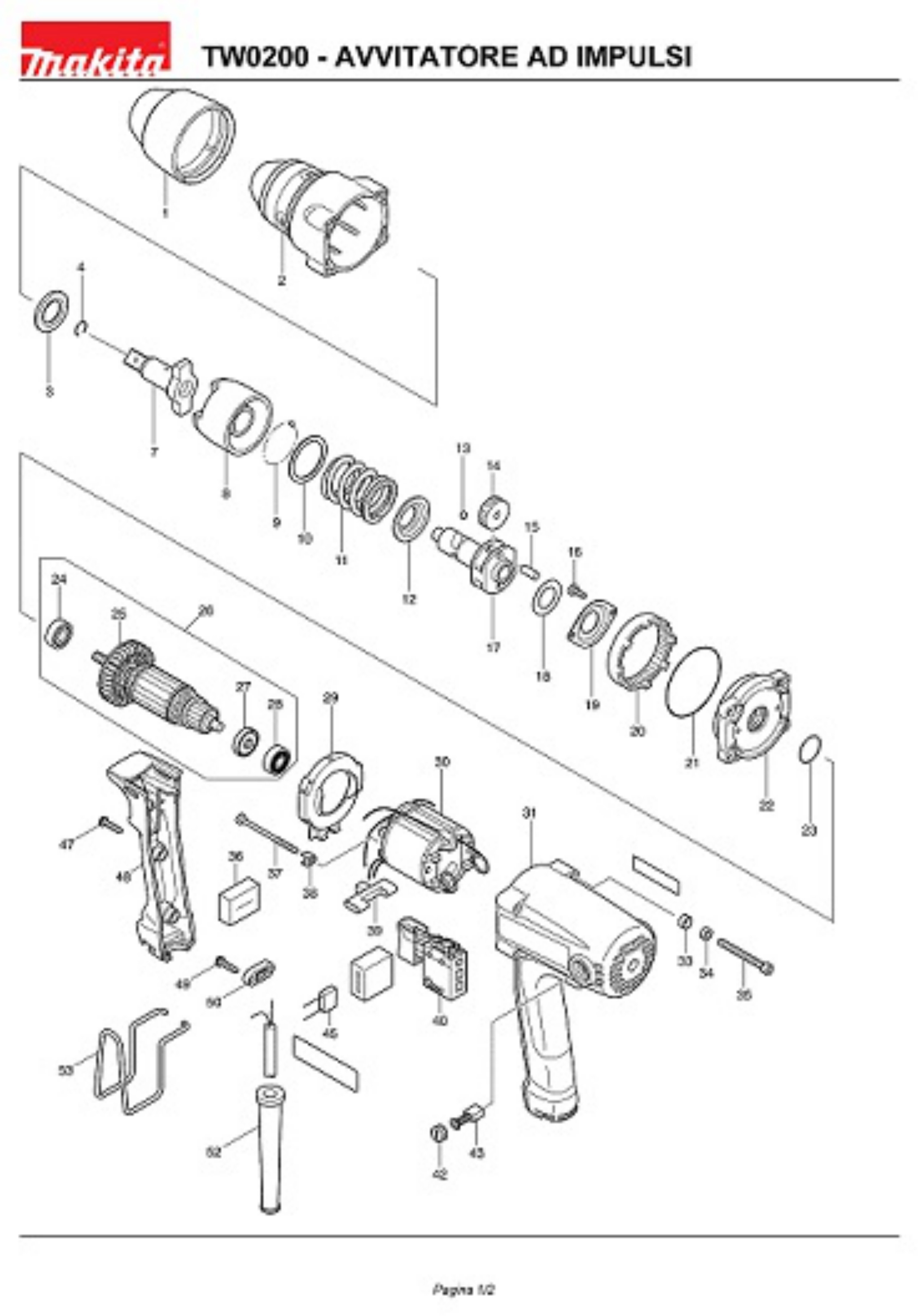

In the following table, look for the model of Impact Wrench and the respective parts of the code.
| Impact Wrench TW0200 |
| # |
Part Num. |
Description |
| 1 |
421839-2 |
PROTECTION X TW0200 |
| 2 |
153581-4 |
CARCASS ELASTIC RING X TW0200 |
| 3 |
267268-3 |
WASHER 19 X TW0200 |
| 4 |
231907-1 |
RING 6900DW |
| 7 |
324344-7 |
ANVIL X TW0200 |
| 8 |
324341-3 |
ELASTIC RING X TW0200 |
| 9 |
216040-0 |
BALL 3.5 |
| 10 |
267269-1 |
WASHER 32 X TW0200 |
| 11 |
233377-0 |
SPRING COMPRES. 30 X TW0200 |
| 12 |
267777-2 |
BELLEVILLE WASHER 19 X TW0200 |
| 13 |
216007-8 |
BALL 6.4 |
| 14 |
227092-6 |
GEAR 32 X TW0200 |
| 15 |
256002-6 |
PIN 6 X TW0200 |
| 16 |
266026-4 |
SCREW M4 X 12 |
| 17 |
324339-0 |
POST X TW0200 |
| 18 |
253794-8 |
WASHER P.18 6905B / 2708 |
| 19 |
285709-7 |
RETAINING BEARING 44 X TW0200 |
| 20 |
227093-4 |
GEAR 71 X TW0200 |
| 21 |
213670-8 |
RING 58 HM1202C |
| 22 |
153583-0 |
GEAR BOX X TW0200 |
| 23 |
213373-4 |
RING 22 X 6821 |
| 24 |
210005-4 |
BALL BEARING 608DDW |
| 25 |
241881-5 |
FAN 52 X 6408 |
| 26 |
517448-4 |
ARMATURE X TW0200 |
| 27 |
681652-2 |
INSULATING WASHER X JR180D |
| 28 |
211021-9 |
BEARING 607LLB |
| 29 |
418187-8 |
VANE X TW0200 |
| 30 |
599354-5 |
STATOR 220/240 X TW0200 |
| 31 |
140021-1 |
HOUSING MOT. X TW0200 |
| 33 |
253929-1 |
WASHER 5 |
| 34 |
262001-8 |
RING 5 X 6906 / 6905B |
| 35 |
266331-9 |
SCREW M5x50 X TW0200 |
| 36 |
685700-9 |
SPONGE X M802 / HR3850B |
| 37 |
266091-3 |
SPECIAL SCREW 4 X 50 |
| 38 |
417237-6 |
COVER INSULATION X GD0800C |
| 39 |
418186-0 |
LEVER X TW0200 |
| 40 |
650523-4 |
SWITCH X TW0200 |
| 42 |
643550-8 |
TAP. BRUSH |
| 43 |
191940-4 |
CARBON BRUSHES CB-411 X N500 |
| 45 |
645253-0 |
CAPACITOR X 6408 |
| 47 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 48 |
418189-4 |
COVER HANDLE X TW0200 |
| 49 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 50 |
687052-4 |
CLAMP Cable tie X 6408 |
| 52 |
682566-8 |
PASS CABLE X HR2450 |
| 53 |
324284-9 |
HOOK X TW0200 |
