Makita Spare Parts for Impact Wrench TW0350
We are Dealers of MAKITA original spare parts at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Impact Wrench TW0350.

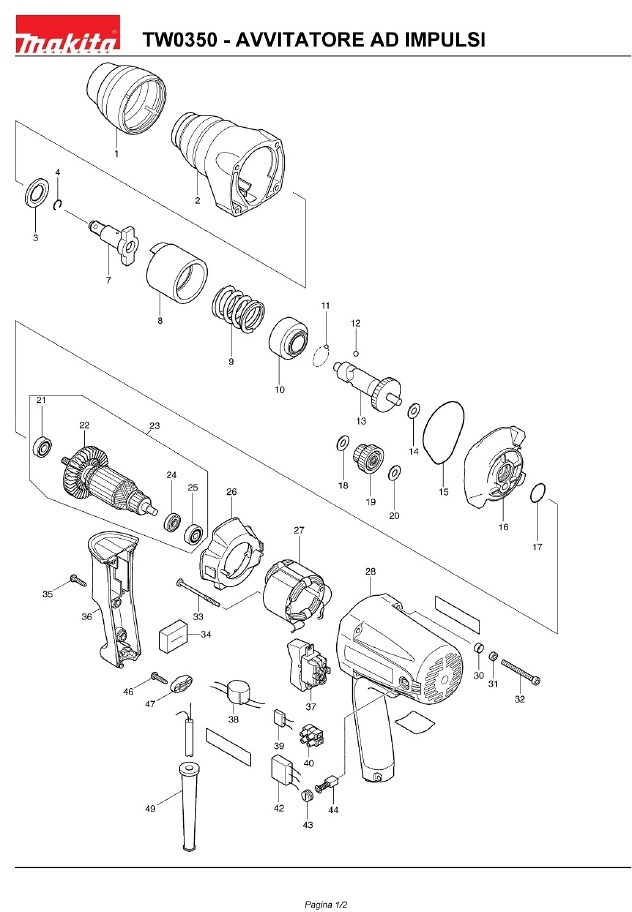

In the following table, look for the model of Impact Wrench and the respective parts of the code.
| Impact Wrench TW0350 |
| # |
Part Num. |
Description |
| 1 |
421837-6 |
PROTECTION FOR TW0350 |
| 2 |
153623-4 |
CARCASS for TW0350 |
| 3 |
267268-3 |
WASHER 19 for TW0200 |
| 4 |
231907-1 |
RING 6900DW |
| 7 |
324406-1 |
ANVIL for TW0350 |
| 8 |
324336-6 |
ELASTIC RING for TW0350 |
| 9 |
233383-5 |
SPRING COMP. 28 for TW0350 |
| 10 |
313115-7 |
HOLDER SPRING for TW0350 |
| 11 |
216008-6 |
BALL 4 |
| 12 |
216007-8 |
BALL 6.4 |
| 13 |
324338-2 |
POST for TW0350 |
| 14 |
253139-0 |
FLAT WASHER 8 |
| 15 |
421838-4 |
SEAL X TW03500 |
| 16 |
153624-2 |
HOUSING COVER ELASTIC RING TW0350 |
| 17 |
213373-4 |
RING 22 X 6821 |
| 18 |
253139-0 |
FLAT WASHER 8 |
| 19 |
153626-8 |
GEAR 19-41 X TW0350 |
| 20 |
253139-0 |
FLAT WASHER 8 |
| 21 |
210024-0 |
BEARING X HR5001C |
| 22 |
241884-9 |
FAN 60 9031 |
| 23 |
515263-0 |
ARMATURE X TW0350 |
| 24 |
681614-0 |
INSULATION WASHER |
| 25 |
210025-8 |
BEARING X 4324 |
| 26 |
418180-2 |
VANE X TW0350 |
| 27 |
528179-0 |
STATOR 220-240V X TW0350 |
| 28 |
153625-0 |
HOUSING MOTOR X TW0350 |
| 30 |
253929-1 |
WASHER 5 |
| 31 |
262001-8 |
RING 5 X 6906 / 6905B |
| 32 |
266331-9 |
SCREW M5x50 X TW0200 |
| 33 |
266091-3 |
SPECIAL SCREW 4 X 50 |
| 34 |
685700-9 |
SPONGE X M802 / HR3850B |
| 35 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 36 |
418179-7 |
COVER GRIP. X TW0350 |
| 37 |
651572-4 |
SWITCH SL220SD-19 |
| 38 |
646325-4 |
CAPACITOR HR2220 |
| 39 |
646755-9 |
RESISTANCE X DA6301 |
| 40 |
654531-7 |
CLAMP X 420S |
| 42 |
645253-0 |
CAPACITOR X 6408 |
| 43 |
643550-8 |
PLUG BRUSH |
| 44 |
191940-4 |
CARBON BRUSHE SET CB-411 X N500 |
| 46 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 47 |
687052-4 |
CLAMP Cable tie X 6408 |
| 49 |
682566-8 |
PASS CABLE X HR2450 |
