Makita Spare Parts for SDS-Plus Rotary Hammer HR2470FT

Name: Makita Spare Parts for SDS-Plus Rotary Hammer HR2470FT
Brand: Makita
SKU: Makita HR2470FT
Availability: InStock

SKU: Makita HR2470FT

€7.97

VAT included

Makita Spare Parts for SDS-Plus Rotary Hammer HR2470FT

Makita genuine spare parts for replacement or for to repair Rotary Hammer SDS-PLUS 780 W 24 mm W/Led HR2470FT.

97 spare parts

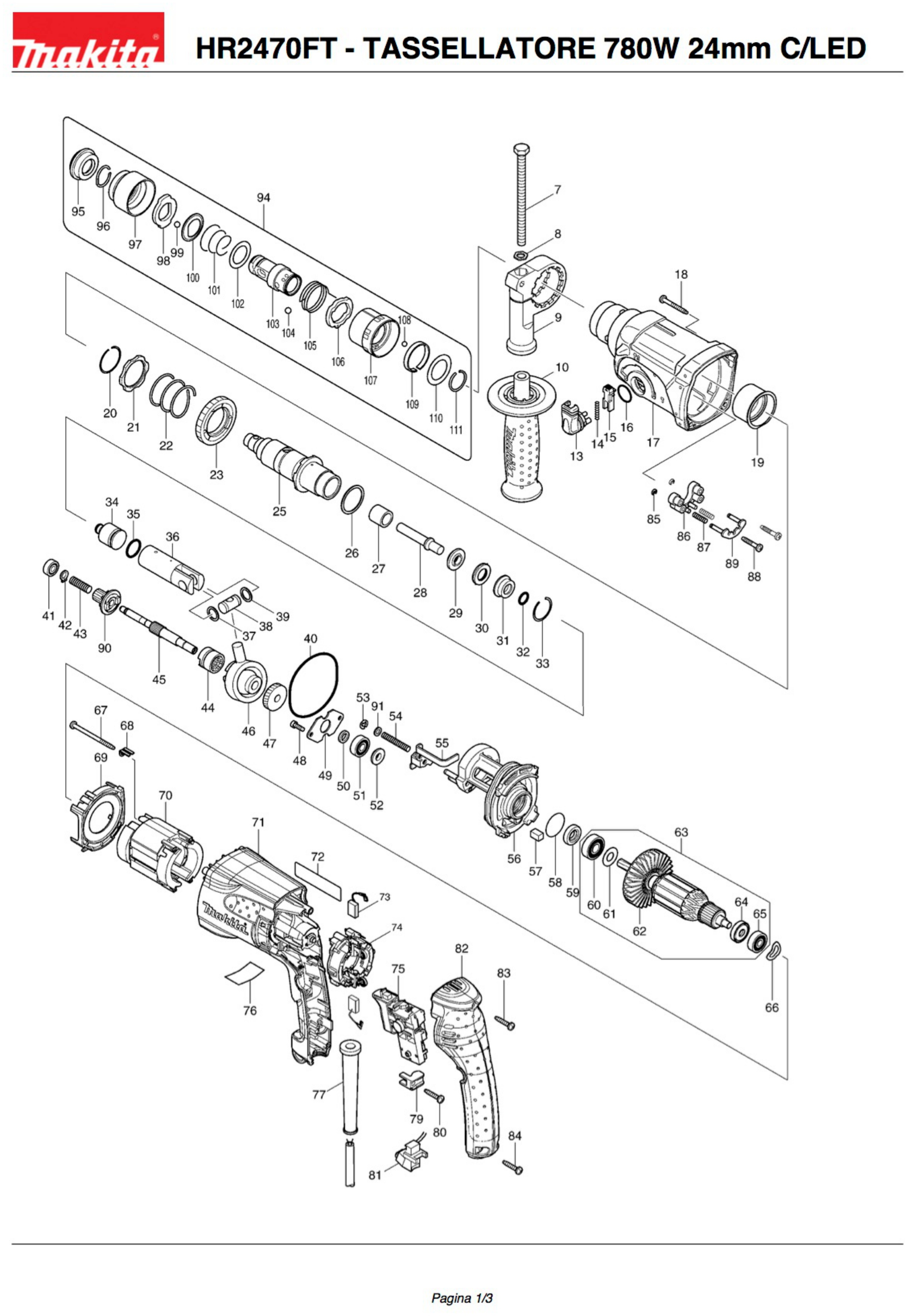

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
7		921923-8 Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631	€2.22
8	Image coming soon	345280-4 WASHER HEXAGON	€1.40
9		417630-4 Handle Base for Hammer Drills Makita HP1630-HP1631	€4.41
10	Image coming soon	158057-6 HANDLE 36 CPL HR2230	€10.01
13	Image coming soon	162245-9 LEVER HR2470F / FT	€4.86
14		233459-8 Compression Spring 3 for Rotary Hammer Makita HR1830	€1.43
15	Image coming soon	419192-8 KEY LOCK HR1830	€1.26
16	Image coming soon	213278-8 RING 13 X HR2020	€1.40
17	Image coming soon	158216-2 GEAR BOX HR2470F / FT	€28.91
18	Image coming soon	266351-3 SCREW 4 X 35 X 9557PB	€1.38
19		153290-5 Needle Bearing for Cordless Hammers Makita BHR202-240RFE	€9.91
20	Image coming soon	233929-7 SNAP RING 29 X HR2450FT	€1.34
21	Image coming soon	267460-1 WASHER 31 X BHR240	€2.66
22	Image coming soon	233401-9 SPRING COMPRESSION 32 HR2450FT	€2.57
23		227109-5 Gear 51 for Cordless Hammer Makita HR2450FT	€21.86
25	Image coming soon	158307-9 DOOR TIPS X HR2470FT	€42.59
26	Image coming soon	267229-3 WASHER 28 X HR2020	€1.40
27	Image coming soon	331769-8 9 COMPASS HR2230	€4.86
28	Image coming soon	324796-2 SWING HR2811FT	€2.98
29	Image coming soon	324402-9 RING 10 HR2450FT	€2.03
30	Image coming soon	421955-0 CUSHIONING RING 13	€4.86
31	Image coming soon	324216-6 RING HR2020	€7.58
32	Image coming soon	213073-6 9 RING HR2020	€2.21
33	Image coming soon	233917-4 SNAP RING 28 HR2020	€1.40
34	Image coming soon	324733-6 STRIKER HR2460	€7.02
35		213227-5 Ring 16 O-Ring for Hammers Makita	€4.19
36	Image coming soon	318132-2 CYLINDER PISTON X HR2470F / FT	€21.73
37	Image coming soon	267104-3 FLAT WASHER 12 X HR2400	€2.15
38	Image coming soon	324215-8 PISTON PIN X X HR2020	€3.31
39	Image coming soon	267104-3 FLAT WASHER 12 X HR2400	€2.15
40	Image coming soon	213727-5 RING FOR 63 BHR240	€6.32
41		211012-0 Bearing for Angle Grinder Makita 9524NB	€8.23
42	Image coming soon	961003-8 RETAINING RING S7	€1.47
43	Image coming soon	233343-7 SPRING COMPRESSION X HR2450	€1.40
44		331992-5 Gear Clutch for Cordless Hammer Makita BHR262RDE	€20.01
45	Image coming soon	324668-1 POST BHR240	€18.79
46	Image coming soon	219014-0 ECCENTRIC 10 X HR2020	€16.65
47	Image coming soon	226656-3 GEAR 26 X HR2230	€9.26
48	Image coming soon	266273-7 SCREW 4 X 12 X 4604D	€1.40
49	Image coming soon	345179-3 RETAINING BEARING X HR2020	€1.36
50	Image coming soon	267234-0 FLAT WASHER 8 X HR2020	€1.36
51	Image coming soon	211032-4 BEARING X 1902	€5.87
52	Image coming soon	324212-4 RING 8 X HR2020	€7.02
53	Image coming soon	961011-9 RETAINING RING E4	€1.44
54	Image coming soon	233342-9 SPRING COMPRES. 6 X HR2450	€1.40
55	Image coming soon	345363-0 PLATE CHANGE X HR2450	€2.03
56	Image coming soon	158215-4 INNER HOUSING HR2470F / FT	€18.79
57	Image coming soon	443126-9 FELT X BHR240	€4.86
58	Image coming soon	213407-3 SEAL 26 X 3901	€2.18
59	Image coming soon	213077-8 SEAL OIL X HR2230	€9.03
60	Image coming soon	210059-1 BEARING 6000 HR2010	€12.89
61	Image coming soon	267213-8 FLAT WASHER 10 HR2430	€2.95
62	Image coming soon	240092-9 FAN 64 HR2230	€4.12
63		515289-2 Armature for Hammer 24mm Makita HR2460	€48.26
64	Image coming soon	681670-0 INSULATION WASHER X JR180D	€1.34
65	Image coming soon	210023-2 9910/11 BEARING	€7.16
66	Image coming soon	267804-5 WAVY WASHER 15 HR2230	€1.25
67	Image coming soon	266334-3 SCREW 4X60 HR2460	€2.95
68	Image coming soon	344871-8 RETAINING X GD0800C	€3.24
69		419716-0 Baffle Plate for Rotary Hammers Makita HR2230	€1.66
70		626579-9 Stator for Hammer 24mm Makita HR2460	€37.85
71	Image coming soon	419718-6 HOUSING MOTOR HR2470F / FT	€22.00
72	Image coming soon	863556-2 LABEL HR2470FT	€2.18
73		194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB	€4.19
74	Image coming soon	638500-6 BRUSHE HOLDER HR2230	€20.53
75		650588-6 Switch for Rotary Hammer Makita HR2230	€25.45
76	Image coming soon	814966-6 LABEL HR2470FT	€2.18
77	Image coming soon	682566-8 CORD GUARD X HR2450	€2.15
79	Image coming soon	687260-7 FIXED CABLE X GA5010	€3.76
80	Image coming soon	266324-6 SCREW M 4 X 22 X MT601	€2.95
81	Image coming soon	631746-3 CIRCUIT LIGHT HR2470FT	€14.39
82	Image coming soon	419717-8 COVER HANDLE HR2230	€10.72
83	Image coming soon	266324-6 SCREW M 4 X 22 X MT601	€2.95
84	Image coming soon	266324-6 SCREW M 4 X 22 X MT601	€2.95
85	Image coming soon	961017-7 RING E-3 X 4305T	€3.76
86	Image coming soon	417796-0 BASIC GUIDE X X HR2450	€1.40
87	Image coming soon	233344-5 SPRING COMPRESSION 4	€1.40
88	Image coming soon	266374-1 SCREW 4X25 GA9020	€1.43
89	Image coming soon	163430-7 PLATE LOCK X HR2450	€2.69
90		227179-4 Spur Gear 10 for Hammers Makita HR2470	€31.96
91	Image coming soon	941102-2 FLAT WASHER 5	€1.40
94		194080-7 SDS-PLUS Quick Keyless Chuck for Hammers Makita HR2610T-2611FT-2800	€61.70
95		286263-4 Cover Cap Bits for Rotary Hammer MAKITA HR2020	€4.86
96		233940-9 Elastic Ring 19 for HAMMER Makita HR2020	€1.50
97	Image coming soon	418217-5 CHUCK COVER HR2450FT	€2.03
98	Image coming soon	345333-9 STOPPER HR2450FT	€1.36
99		216022-2 Steel Ball 7 mm for Hammers Makita	€1.47
100		345187-4 Guide Washer for HAMMER Makita HR2020	€1.50
101		233916-6 Spring 21-29 for 20 mm Hammer Makita HR2020	€3.18
102	Image coming soon	267279-8 FLAT WASHER 21 X HR2450FT	€1.36
103		324355-2 Tool Holder for Cordless Hammer Makita HR2450FT	€26.50
104		216013-3 Steel Ball 6 mm for Hammers Makita	€1.41
105	Image coming soon	231669-1 TORSION SPRING 31 X HR2450FT	€1.38
106	Image coming soon	345334-7 RING GEAR X HR2450FT	€2.67
107	Image coming soon	418218-3 RING GEAR COVER X HR2450FT	€2.07
108	Image coming soon	216018-3 STEEL BALL 5 HP2030	€1.40
109	Image coming soon	345335-5 SPRING BAND X HR2450FT	€1.38
110	Image coming soon	267270-6 WASHER 24 X HR2450FT	€1.38
111	Image coming soon	233924-7 RETAINING RING 21 X HR2450FT	€1.38
999	Image coming soon	195263-2 SERVICE KIT HR2230 / 2470	€28.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for SDS-Plus Rotary Hammer HR2470FT

Makita genuine spare parts for replacement or for to repair Rotary Hammer SDS-PLUS 780 W 24 mm W/Led HR2470FT.

In the following table, look for the model of the hammerr and the respective parts of the code.

ROTARY HAMMER 780 W 24 mm W/Led HR2470FT
#	Part Num.	Description
7	921923-8	SCREW M8 X 120 X HR2020
8	345280-4	WASHER X HP2051F
9	417630-4	BASE HANDLE X X HR2020
10	158057-6	HANDLE 36 CPL HR2230
13	162245-9	LEVER HR2470F / FT
14	233459-8	COMPRESSION SPRING 3 HR1830
15	419192-8	KEY LOCK HR1830
16	213278-8	RING 13 X HR2020
17	158216-2	GEAR CASE HR2470F / FT
18	266351-3	SCREW 4 X 35 X 9557PB
19	153290-5	BEARING X HR2020
20	233929-7	SPRING RING 29 X HR2450FT
21	267460-1	WASHER 31 X BHR240
22	233401-9	COMPRESSION SPRING 32 HR2450FT
23	227109-5	GEAR 51 X HR2450FT
25	158307-9	TOOL HOLDER X HR2470FT
26	267229-3	WASHER 28 X HR2020
27	331769-8	SLEEVE 9 FOR HR2230
28	324796-2	IMPACT BOLT HR2811FT
29	324402-9	O-RING 10 X HR2450FT
30	421955-0	CUSHION RING 13
31	324216-6	O-RING CASE X HR2020
32	213073-6	O-RING 9 X HR2020
33	233917-4	SNAP RING 28 X HR2020
34	324733-6	STRIKER X HR2460
35	213227-5	O-RING 16 X HK0500
36	318132-2	CYLINDER PISTON X HR2470F / FT
37	267104-3	FLAT WASHER 12 X HR2400
38	324215-8	PISTON PIN X HR2020
39	267104-3	FLAT WASHER 12 X HR2400
40	213727-5	O-RING 63 BHR240
41	211012-0	BALL BEARING 606ZZ X 9524NB
42	961003-8	RETAINING RING S7
43	233343-7	COMPRESSION SPRING X HR2450
44	331992-5	CLUTCH CAM BHR262RDE
45	324668-1	CAM SHAFT BHR240
46	219014-0	SWASH BEARING 10 BHR200S/HR202
47	226656-3	GEAR 26 X HR2230
48	266273-7	SCREW 4 X 12 X 4604D
49	345179-3	BEARING RETAINING X HR2020
50	267234-0	FLAT WASHER 8 X HR2020
51	211032-4	BALL BEARING 608ZZCNM/2A BUR18
52	324212-4	O-RING 8 X HR2020
53	961011-9	RETAINING RING E4
54	233342-9	COMPRESSION SPRING 6 X HR2450
55	345363-0	CHANGE PLATE X HR2450
56	158215-4	INNER HOUSING HR2470F / FT
57	443126-9	FELT X BHR240
58	213407-3	SEAL 26 X 3901
59	213077-8	OIL SEAL X HR2230
60	210059-1	BALL BEARING 6000 HR2010
61	267213-8	FLAT WASHER 10 HR2430
62	240092-9	HR2230 FAN 64
63	515289-2	ARMATURE 240V HR2460
64	681670-0	INSULATION WASHER X JR180D
65	210023-2	BALL BEARING 9910/11
66	267804-5	WAVY WASHER 15 HR2230
67	266334-3	SCREW 4X60 HR2460
68	344871-8	RETAINING X GD0800C
69	419716-0	BAFFLE PLATE HR2230
70	626579-9	STATOR ASSY HR2460 240V
71	419718-6	MOTOR HOUSING HR2470F / FT
72	863556-2	LABEL HR2470FT
73	194074-2	CARBON BRUSH SET CB-325 X-9554NB
74	638500-6	BRUSH HOLDER HR2230
75	650588-6	SWITCH C3VA-2L-C HR2230
76	814966-6	LABEL HR2470FT
77	682566-8	CORD GUARD 10 X HR2450
79	687260-7	CORD CLAMP X GA5010
80	266324-6	SCREW M 4 X 22 X MT601
81	631746-3	CIRCUIT LIGHT HR2470FT
82	419717-8	HANDLE COVER HR2230
83	266324-6	SCREW M 4 X 22 X MT601
84	266324-6	SCREW M 4 X 22 X MT601
85	961017-7	O-RING-3 X 4305T
86	417796-0	GUIDE BASE X X HR2450
87	233344-5	COMPRESSION SPRING 4
88	266374-1	SCREW 4X25 FOR GA9020
89	163430-7	LOCKING PLATE X HR2450
90	227179-4	GEAR 10 X HR2470FT
91	941102-2	FLAT WASHER 5
94	194080-7	SDS CHUCK SDS-PLUS
95	286263-4	CAP 35 X HR2020
96	233940-9	SNAP RING 19 TO HR2432
97	418217-5	CHUCK COVER HR2450FT
98	345333-9	STOPPER HR2450FT
99	216022-2	STEEL BALL 7
100	345187-4	GUIDE WASHER X HR2020
101	233916-6	SPRING 21-29 X HR2020
102	267279-8	FLAT WASHER 21 X HR2450FT
103	324355-2	TOOL HOLDER X HR2450FT
104	216013-3	BALL 6
105	231669-1	SPRING TORSION 31 X HR2450FT
106	345334-7	RING GEAR X HR2450FT
107	418218-3	RING GEAR COVER X HR2450FT
108	216018-3	BALL 5 HP2030
109	345335-5	LEAF SPRING X HR2450FT
110	267270-6	WASHER 24 X HR2450FT
111	233924-7	RETAINING RING 21 X HR2450FT
999	195263-2	SERVICE KIT HR2230 / 2470

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita HR2470FT

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Makita HR2470FT

Download (627.96KB)
