Makita Spare Parts for Electric Percussion Drill HP1640

SKU: Makita HP1640
€6.40
VAT included

Makita Spare Parts for Electric Percussion Drill HP1640

We have the original MAKITA parts and tool repair help you need to get your tools running like new again.

Fix Your Electric Percussion Drill HP1640. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Electric Percussion Drill HP1640
  • Makita Spare Parts for Electric Percussion Drill HP1640
  • Makita Spare Parts for Hammers HR 4001 C - HR 4002

Makita Spare Parts for Electric Percussion Drill HP1640

SKU: Makita HP1640 Condition: New
€6.40
VAT included

Makita Spare Parts for Electric Percussion Drill HP1640

We have the original MAKITA parts and tool repair help you need to get your tools running like new again.

Fix Your Electric Percussion Drill HP1640. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 29 spare parts

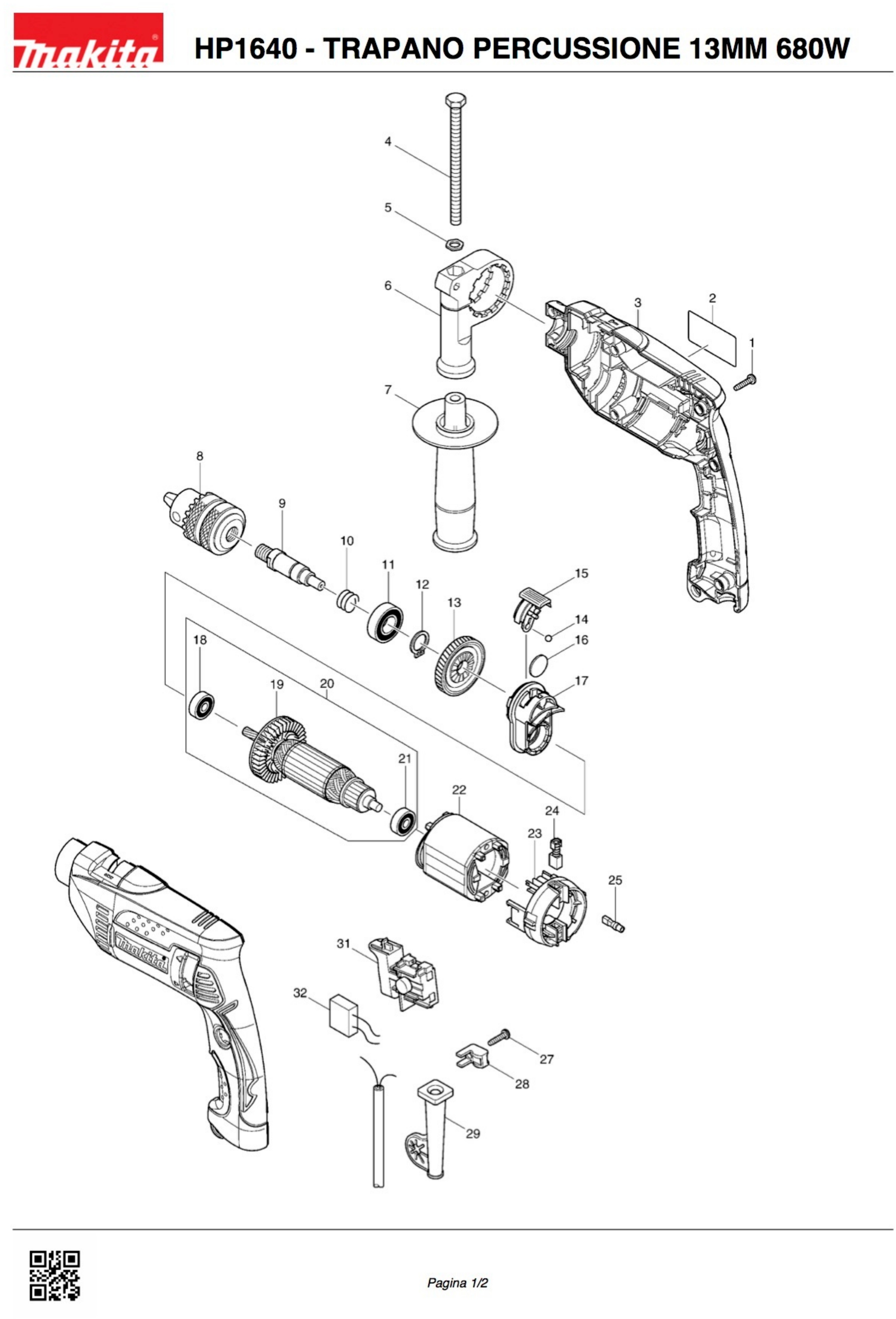

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

28 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 866001-6 LABEL X HP1640 €2.86
3
photo_cameraImage coming soon 188611-2 HOUSING MOT. X HP1640 €36.53
4
photo_cameraImage coming soon 265583-9 SCREW M8 X 120 €4.09
5
photo_cameraImage coming soon 345280-4 WASHER HEXAGON €1.40
6
Handle Base for Hammer Drills Makita HP1630-HP1631 417630-4 Handle Base for Hammer Drills Makita HP1630-HP1631 €4.41
7
Handle for Hammer Drills Makita HP1630-HP1631 153503-4 Handle for Hammer Drills Makita HP1630-HP1631 €4.41
8
photo_cameraImage coming soon 763142-8 CHUCK S13 X HP1640 €21.66
9
photo_cameraImage coming soon 324397-6 POST HP1620 €6.73
10
photo_cameraImage coming soon 233389-3 SPRING COMP. 15 X HP1620 €1.30
11
photo_cameraImage coming soon 211201-7 BEARING 6002 PER 8416 €15.65
12
Ext DIN471 Circlip-15 for Makita Power Tools 961055-9 Ext DIN471 Circlip-15 for Makita Power Tools €1.47
13
Gear 45 for Hammer Drills Makita HP1620-HP1640 226579-5 Gear 45 for Hammer Drills Makita HP1620-HP1640 €5.90
14
photo_cameraImage coming soon 216018-3 STEEL BALL 5 HP2030 €1.40
15
photo_cameraImage coming soon 418319-7 LEVER X HP1620 €1.38
16
photo_cameraImage coming soon 345354-1 PLATE 19 X HP1620 €2.18
17
photo_cameraImage coming soon 141165-0 SUPPORT CAM X HP1620 €5.34
18
photo_cameraImage coming soon 210023-2 9910/11 BEARING €7.16
19
photo_cameraImage coming soon 240067-8 FAN 55 X HP1620 €2.18
20
Armature for Hammer Drill Makita HP1620-HP1640 517458-1 Armature for Hammer Drill Makita HP1620-HP1640 €67.13
21
photo_cameraImage coming soon 211028-5 BEARING BALLS 627 €10.09
22
photo_cameraImage coming soon 633568-7 STATOR 220-240 X HP1620 €15.24
23
photo_cameraImage coming soon 638237-5 BRUSHES SUPPORT X HP1620 €10.21
24
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
27
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
28
photo_cameraImage coming soon 687260-7 FIXED CABLE X GA5010 €3.76
29
photo_cameraImage coming soon 682549-8 CABLE SLEEVE X HP1500 €2.08
31
photo_cameraImage coming soon 650570-5 SWITCH TG843TB-2 HP1830 €30.51
32
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Electric Percussion Drill HP1640

We have the original MAKITA parts and tool repair help you need to get your tools running like new again.

Fix Your Electric Percussion Drill HP1640. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Drill and the respective parts of the code.


DRILL 13MM 680W HP1640
1 265995-6 SCREW M4X18 X 6408/6221 DW
2 866001-6 LABEL X HP1640
3 188611-2 HOUSING MOT. X HP1640
4 265583-9 SCREW M8 X 120
5 345280-4 WASHER X HP2051F
6 417630-4 HANDLE BASE X X HR2020
7 153503-4 GRIP X MT811
8 763142-8 CHUCK S13 X HP1640
9 324397-6 POST HP1620
10 233389-3 SPRING COMP. 15 X HP1620
11 211201-7 BEARING 6002 PER 8416
12 961055-9 RETAINING RING S15
13 226579-5 GEAR 45 X HP1620
14 216018-3 BALL 5 HP2030
15 418319-7 LEVER X HP1620
16 345354-1 PLATE 19 X HP1620
17 141165-0 SUPPORT CAM X HP1620
18 210023-2 9910/11 BEARING
19 240067-8 FAN 55 X HP1620
20 517458-1 ARMATURE HP1620
21 211028-5 BALL BEARING 627
22 633568-7 STATOR 220-240 X HP1620
23 638237-5 BRUSHES SUPPORT X HP1620
24 191962-4 CARBON BRUSHES CB-419 (406.407) 6408
25 686038-5 PIN SUPPORT X HP2071F
27 265995-6 SCREW M4X18 X 6408 / 6221DW
28 687260-7 FIXED CABLE X GA5010
29 682549-8 CABLE SLEEVE X HP1500
31 650570-5 SWITCH TG843TB-2 HP1830
32 645200-1 CAPACITOR

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita HP1640
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HP1640

Diagram Makita HP1640

Download (229.98KB)
