Makita

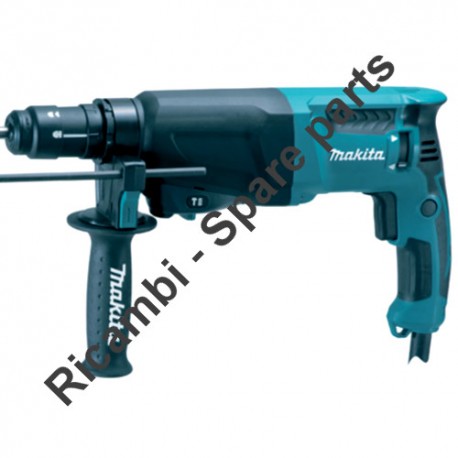

Makita Spare Parts for Hammer HR2610T

SKU: Makita HR2610T
€40.54
VAT included

Makita Spare Parts for Rotary Hammer HR2610T

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Rotary Hammer HR2610T.
Makita Spare Parts for Hammer HR2610T
  • Makita Spare Parts for Hammer HR2610T
  • Makita Spare Parts for SDS-Plus Hammers HR2470-2610T-2611F
Makita

Makita Spare Parts for Hammer HR2610T

SKU: Makita HR2610T Condition: New
€40.54
VAT included

Makita Spare Parts for Rotary Hammer HR2610T

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Rotary Hammer HR2610T.
settings 100 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
100 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

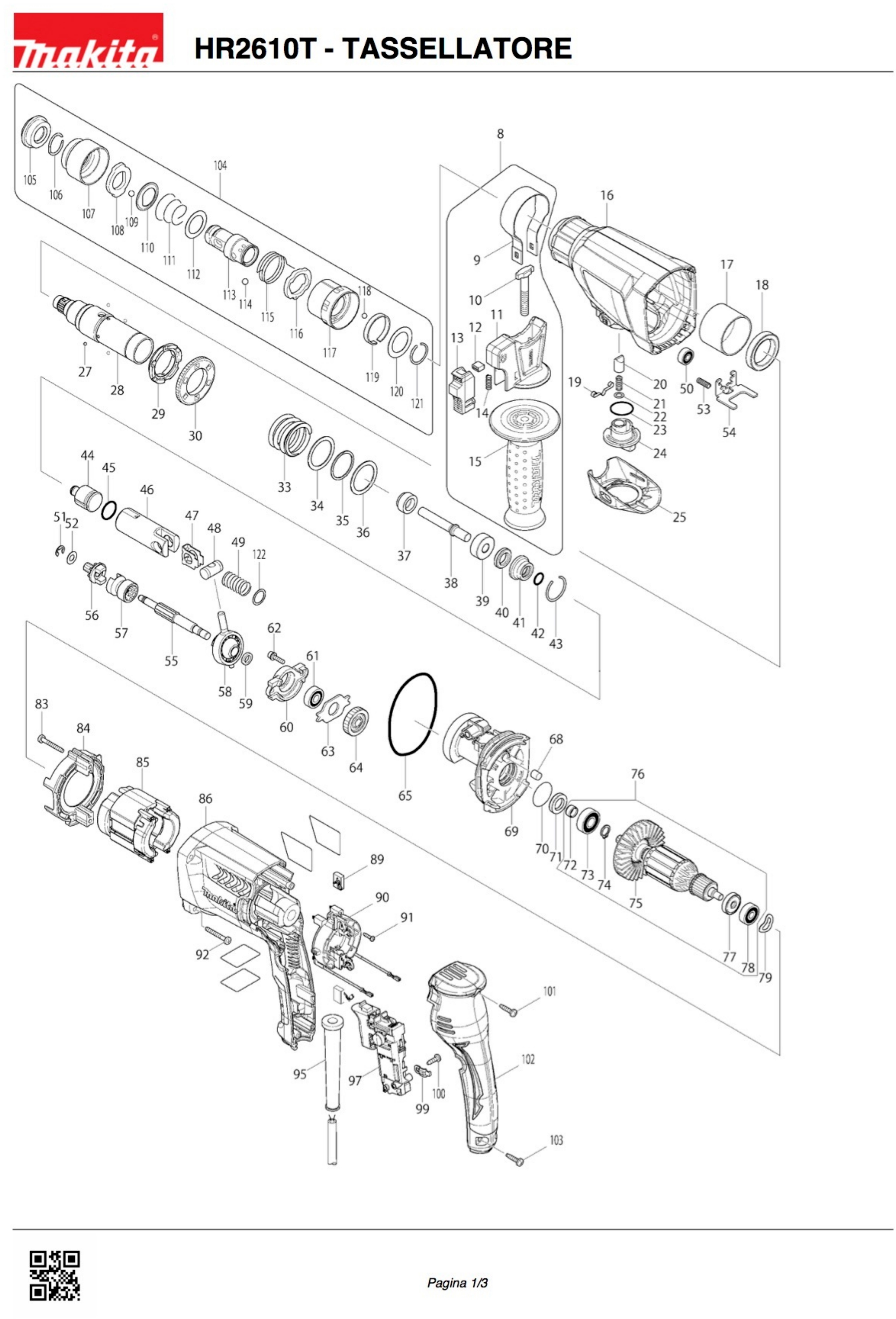

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
8
 photo_cameraImage coming soon 122878-2 GRIP ASSEMBLY HR2601 €17.13
9
 photo_cameraImage coming soon 346181-9 GRIP SPRING 50 HR2601 €2.88
10
 photo_cameraImage coming soon 266349-0 SCREW M8x50 HR2601 €2.43
11
 photo_cameraImage coming soon 451539-0 GRIP BASE HR2601 €1.92
12
 photo_cameraImage coming soon 313179-1 RACK HR2601 €2.66
13
 photo_cameraImage coming soon 451540-5 LOCK BUTTON HR2601 €2.95
14
 photo_cameraImage coming soon 233360-7 COMPRESSION SPRING 4 X MT952 €1.47
15
 photo_cameraImage coming soon 154935-8 GRIP 36 HR2601 €6.84
16
 photo_cameraImage coming soon 140422-3 GEAR BOX €18.22
17
 photo_cameraImage coming soon 331890-3 SLEEVE HR2601 €1.62
18
 photo_cameraImage coming soon 211294-4 BALL BEARING 6806LLU HR2601 €14.19
19
 Leaf Spring for Rotary Hammer Makita HR2610T 232152-1 Leaf Spring for Rotary Hammer Makita HR2610T €3.08
20
 Push Corn for Rotary Hammer Makita HR2610T 325785-0 Push Corn for Rotary Hammer Makita HR2610T €1.35
21
 Compression Spring 5 for Rotary Hammer Makita DHR242RMJ 234147-0 Compression Spring 5 for Rotary Hammer Makita DHR242RMJ €1.46
22
 Thin Washer 6 for Rotary Hammer Makita HR2611F 253308-3 Thin Washer 6 for Rotary Hammer Makita HR2611F €1.22
23
 O-Ring 21 for Rotary Hammer Makita HR260 213381-5 O-Ring 21 for Rotary Hammer Makita HR260 €2.12
24
 Change Lever A for Rotary Hammer Makita HR2610T 451529-3 Change Lever A for Rotary Hammer Makita HR2610T €3.37
25
 photo_cameraImage coming soon 451530-8 COVER LEVER A HR2611FT €4.86
27
 photo_cameraImage coming soon 216019-1 STEEL BALL 3 X 6960DW €1.42
28
 photo_cameraImage coming soon 140266-1 TOOL HOLDER HR2611FT €40.54
29
 photo_cameraImage coming soon 313149-0 FLANGE HR2601 €7.52
30
 photo_cameraImage coming soon 227232-6 GEAR 51 HR2601 REPLACED BY 227360-7 €8.25
31
 photo_cameraImage coming soon 268226-2 PIN 6 X HK1820 / L €3.75
32
 photo_cameraImage coming soon 267414-8 WASHER 30 HR2601 €1.36
33
 photo_cameraImage coming soon 234148-8 COMPRESSION SPRING 31 HR2601 €2.07
34
 photo_cameraImage coming soon 267153-0 WASHER 30 HR2601 €1.47
35
 photo_cameraImage coming soon 257932-4 WASHER RETAINING 30 HR2601 €3.80
36
 photo_cameraImage coming soon 267153-0 WASHER 30 HR2601 €1.47
37
 photo_cameraImage coming soon 325783-4 SOCKET 9B HR2601 €2.07
38
 photo_cameraImage coming soon 325791-5 SWING B HR2611FT €2.67
39
 photo_cameraImage coming soon 325795-7 RING 10B €1.92
40
 photo_cameraImage coming soon 424267-0 CUSHION RING 12 €1.92
41
 photo_cameraImage coming soon 325798-1 O-RING CASE A MT870 €2.47
42
 photo_cameraImage coming soon 213073-6 9 RING HR2020 €2.21
43
 photo_cameraImage coming soon 233979-2 CIRCLIP 28 HR2601 €1.38
44
 Striker for Rotary Hammer Makita HR2600 325784-2 Striker for Rotary Hammer Makita HR2600 €4.57
45
 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 213258-4 Gasket 17,5 X HR2210/20 for Rotary Hammer Makita HR2600-HR2601 €5.87
46
 Piston Cylinder for Rotary Hammer Makita DHR242RMJ 310345-1 Piston Cylinder for Rotary Hammer Makita DHR242RMJ €12.95
47
 photo_cameraImage coming soon 346036-8 PLATE PIN BHR261D €1.38
48
 photo_cameraImage coming soon 324215-8 PISTON PIN X X HR2020 €3.31
49
 photo_cameraImage coming soon 234098-7 COMPRESSION SPRING 14 BHR261D €1.36
50
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
51
 photo_cameraImage coming soon 961012-7 RETAINING RING E6 €2.17
52
 photo_cameraImage coming soon 267449-9 WASHER 7 HR2611FT €2.24
53
 photo_cameraImage coming soon 233360-7 COMPRESSION SPRING 4 X MT952 €1.47
54
 photo_cameraImage coming soon 346176-2 PLATE LOCK HR2611FT €2.24
55
 photo_cameraImage coming soon 325786-8 POST HR2611FT €2.24
56
 photo_cameraImage coming soon 227231-8 GEAR 10 HR2611FT €31.93
57
 photo_cameraImage coming soon 331814-9 CAM CLUTCH HR2611FT €7.46
58
 photo_cameraImage coming soon 219020-5 SWASH BEARING 10 HR2601 €43.74
59
 photo_cameraImage coming soon 267234-0 FLAT WASHER 8 X HR2020 €1.36
60
 photo_cameraImage coming soon 310344-3 BEARING BOX HR2601 €6.84
61
 photo_cameraImage coming soon 211032-4 BEARING X 1902 €5.87
62
 photo_cameraImage coming soon 266437-3 SCREW M4x16 FRENA THREAD HR4001C €3.39
63
 photo_cameraImage coming soon 285735-6 RETAINING BEARING HR2601 €1.27
64
 photo_cameraImage coming soon 227719-8 GEAR 26 HR2601 €5.37
65
 photo_cameraImage coming soon 213728-3 RING 68 X BHR261D €2.04
68
 photo_cameraImage coming soon 443153-6 FELT HR2601 €1.38
69
 photo_cameraImage coming soon 141572-7 INNER HOUSING HR2300 €15.25
70
 photo_cameraImage coming soon 213407-3 SEAL 26 X 3901 €2.18
71
 photo_cameraImage coming soon 213133-4 SEAL OIL 12 HR2800 €8.52
72
 photo_cameraImage coming soon 262569-4 SOCKET 9 HR2601 €1.27
73
 photo_cameraImage coming soon 211097-6 BEARING 5604R €9.66
74
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €1.32
75
 photo_cameraImage coming soon 240121-8 FAN 65 HR2601 €1.90
76
 photo_cameraImage coming soon 515359-7 ARMATURE 240V €41.08
77
 photo_cameraImage coming soon 681652-2 INSULATING WASHER X JR180D €3.51
78
 photo_cameraImage coming soon 210023-2 9910/11 BEARING €7.16
79
 photo_cameraImage coming soon 267804-5 WAVY WASHER 15 HR2230 €1.25
83
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
84
 photo_cameraImage coming soon 451527-7 BAFFLE HR2601 €2.95
85
 photo_cameraImage coming soon 626634-7 STATOR HR2601 €27.92
86
 photo_cameraImage coming soon 451536-6 MOTOR HOUSING HR2601 €13.14
89
 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB 194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB €4.19
90
 photo_cameraImage coming soon 638655-7 BRUSHES HOLDER HR2601 €15.86
91
 photo_cameraImage coming soon 266556-5 SCREW 3X12 HR26001 €2.95
92
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
95
 photo_cameraImage coming soon 682566-8 CORD GUARD X HR2450 €2.15
97
 photo_cameraImage coming soon 650625-6 SWITCH HR2601 €26.13
99
 photo_cameraImage coming soon 687682-1 CLAMP Cable tie X JS1000 €2.95
100
 photo_cameraImage coming soon 266385-6 SCREW 4x14 GA9020 €1.44
101
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
102
 photo_cameraImage coming soon 451528-5 COVER HANDLE HR2601 €6.08
103
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
104
 SDS-PLUS Quick Keyless Chuck for Hammers Makita HR2610T-2611FT-2800 194080-7 SDS-PLUS Quick Keyless Chuck for Hammers Makita HR2610T-2611FT-2800 €61.70
105
 Cover Cap Bits for Rotary Hammer MAKITA HR2020 286263-4 Cover Cap Bits for Rotary Hammer MAKITA HR2020 €4.86
106
 Elastic Ring 19 for HAMMER Makita HR2020 233940-9 Elastic Ring 19 for HAMMER Makita HR2020 €1.50
107
 photo_cameraImage coming soon 418217-5 CHUCK COVER HR2450FT €2.03
108
 photo_cameraImage coming soon 345333-9 STOPPER HR2450FT €1.36
109
 Steel Ball 7 mm for Hammers Makita 216022-2 Steel Ball 7 mm for Hammers Makita €1.47
110
 Guide Washer for HAMMER Makita HR2020 345187-4 Guide Washer for HAMMER Makita HR2020 €1.50
111
 Spring 21-29 for 20 mm Hammer Makita HR2020 233916-6 Spring 21-29 for 20 mm Hammer Makita HR2020 €3.18
112
 photo_cameraImage coming soon 267279-8 FLAT WASHER 21 X HR2450FT €1.36
113
 Tool Holder for Cordless Hammer Makita HR2450FT 324355-2 Tool Holder for Cordless Hammer Makita HR2450FT €26.50
114
 Steel Ball 6 mm for Hammers Makita 216013-3 Steel Ball 6 mm for Hammers Makita €1.41
115
 photo_cameraImage coming soon 231669-1 TORSION SPRING 31 X HR2450FT €1.38
116
 photo_cameraImage coming soon 345334-7 RING GEAR X HR2450FT €2.67
117
 photo_cameraImage coming soon 418218-3 RING GEAR COVER X HR2450FT €2.07
118
 photo_cameraImage coming soon 216018-3 STEEL BALL 5 HP2030 €1.40
119
 photo_cameraImage coming soon 345335-5 SPRING BAND X HR2450FT €1.38
120
 photo_cameraImage coming soon 267270-6 WASHER 24 X HR2450FT €1.38
121
 photo_cameraImage coming soon 233924-7 RETAINING RING 21 X HR2450FT €1.38
122
 photo_cameraImage coming soon 267447-3 WASHER 14 HR2601 €1.36
999
 photo_cameraImage coming soon 195105-0 SERVICE KIT HR2300 €25.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rotary Hammer HR2610T

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Rotary Hammer HR2610T.

In the following table, look for the model of Hammer and the respective parts of the code.
Makita HR2610T

Rotary Hammer HR2610T
8 122878-2 GRIP ASSEMBLY HR2601
9 346181-9 GRIP SPRING 50 HR2601
10 266349-0 SCREW M8x50 HR2601
11 451539-0 GRIP BASE HR2601
12 313179-1 RACK HR2601
13 451540-5 LOCK BUTTON HR2601
14 233360-7 COMPRESSION SPRING 4 X MT952
15 154935-8 HANDLE 36 HR2601
16 140422-3 GEAR BOX
17 331890-3 SLEEVE HR2601
18 211294-4 BALL BEARING 6806LLU HR2601
19 232152-1 LEAF SPRING X 6832
20 325785-0 PUSH CORN HR2601
21 234147-0 COMPRESSION SPRING 5 HR2601
22 253308-3 FLAT WASHER 6 43SB / 6510B-2 / 5016N
23 213381-5 O-RING 21 NEW HR3510 / 20
24 451529-3 CHANGE LEVER A HR2611FT
25 451530-8 COVER LEVER A HR2611FT
27 216019-1 STEEL BALL 3 X 6960DW
28 140266-1 TOOL HOLDER HR2611FT
29 313149-0 FLANGE HR2601
30 227232-6 GEAR 51 HR2601
31 268226-2 PIN 6 X HK1820 / L
32 267414-8 WASHER 30 HR2601
33 234148-8 COMPRESSION SPRING 31 HR2601
34 267153-0 WASHER 30 HR2601
35 257932-4 WASHER RETAINING 30 HR2601
36 267153-0 WASHER 30 HR2601
37 325783-4 SLEEVE 9B HR2601
38 325791-5 IMPACT BOLT B HR2611FT
39 325795-7 RING 10B
40 424267-0 CUSHION RING 12
41 325798-1 O-RING CASE A MT870
42 213073-6 O-RING 9 X HR2020
43 233979-2 CIRCLIP 28 HR2601
44 325784-2 STRIKER HR2601
45 213258-4 O-RING 17.5 X HR2210 / 20
46 310345-1 PISTON CYLINDER HR2601
47 346036-8 GUIDE PLATE BHR261D
48 324215-8 PISTON PIN X X HR2020
49 234098-7 COMPRESSION SPRING 14 BHR261D
50 211012-0 BEARING X 9524NB
51 961012-7 RETAINING RING E6
52 267449-9 WASHER 7 HR2611FT
53 233360-7 325791-5 SPRING 4 X MT952
54 346176-2 LOCK PLATE HR2611FT
55 325786-8 CAM SHAFT HR2611FT
56 227231-8 GEAR 10 HR2611FT
57 331814-9 CAM CLUTCH HR2611FT
58 219020-5 SWASH BEARING 10 HR2601
59 267234-0 FLAT WASHER 8 X HR2020
60 310344-3 BOX BEARING HR2601
61 211032-4 BEARING X 1902
62 266437-3 SCREW M4x16 HR4001C
63 285735-6 RETAINING BEARING HR2601
64 227719-8 GEAR 26 HR2601
65 213728-3 RING 68 X BHR261D
68 443153-6 FELT HR2601
69 141572-7 INNER HOUSING HR2300
70 213407-3 SEAL 26 X 3901
71 213133-4 SEAL OIL 12 X HR2800
72 262569-4 SLEEVE 9 HR2601
73 211097-6 BEARING 5604R
74 961006-2 RETAINING RING S10
75 240121-8 FAN 65 HR2601
76 515359-7 ARMATURE 240V
77 681652-2 INSULATION WASHER X JR180D
78 210023-2 BEARING 9910/11
79 267804-5 WASHER 15 HR2230
83 266361-0 SCREW 4 X 30 X 9554NB
84 451527-7 BAFFLE HR2601
85 626634-7 STATOR FIELD HR2601
86 451536-6 MOTOR HOUSING HR2601
89 194074-2 CARBON BRUSHE CB-325 X 9554NB
90 638655-7 BRUSHE HOLDER HR2601
91 266556-5 SCREW 3X12 HR26001
92 266361-0 SCREW 4 X 30 X 9554NB
95 682566-8 CORD GUARD X HR2450
97 650625-6 SWITCH HR2601
99 687682-1 CORD CLAMP X JS1000
100 266385-6 4x14 SCREW FOR GA9020
101 266326-2 SCREW 4x18 X MT601
102 451528-5 COVER HANDLE HR2601
103 266326-2 SCREW 4x18 X MT601
104 194080-7 CHUCK RAPID SDS-PLUS
105 286263-4 CAP 35 X HR2020
106 233940-9 SNAP RING 19 FOR HR2432
107 418217-5 CHUCK COVER HR2450FT
108 345333-9 STOPPER HR2450FT
109 216022-2 STEEL BALL 7
110 345187-4 GUIDE WASHER X HR2020
111 233916-6 SPRING 21-29 X HR2020
112 267279-8 FLAT WASHER 21 X HR2450FT
113 324355-2 CHUCK SDS-PLUS X HR2450FT
114 216013-3 STEEL BALL 6
115 231669-1 TORSION SPRING 31 X HR2450FT
116 345334-7 RING GEAR X HR2450FT
117 418218-3 CHANGE COVER X HR2450FT
118 216018-3 STEEL BALL 5 HP2030
119 345335-5 LEAF SPRING X HR2450FT
120 267270-6 WASHER 24 X HR2450FT
121 233924-7 RETAINING RING 21 X HR2450FT
122 267447-3 WASHER 14 HR2601
999 195105-0 SERVICE KIT HR2300
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR2610T
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HR2610T

Diagram Makita HR2610T

Download (311.01KB)

You might also like

Tool Holder for Cordless Hammer Makita HR2450FT
Makita SKU: 324355-2
Tool Holder for Cordless Hammer Makita HR2450FT
Tool Holder for Cordless Hammer Makita HR2450FT Genuine spare part Makita, Tool Holder for Rotary Hammers HR2450FT - BHR243RFE - BHR261TDP1 - BHR262TRDE - DHR243RMJ. Part for the Following Items: - BHR243RFE - ROTARY HAMMER SDS PLUS...
AVAILABLE €26.50
Details
Piston Cylinder for Rotary Hammer Makita DHR242RMJ
Makita SKU: 310345-1
Piston Cylinder for Rotary Hammer Makita DHR242RMJ
Piston Cylinder for Rotary Hammer Makita DHR242RMJ Genuine spare part Makita, Piston Cylinder for SDS-Plus Cordless Rotary Hammers DHR242RMJ - DHR243RMJ - BHR242RFE - BHR243RFE. Parts for the following products: -  DHR242RMJ -...
on 7/10 Business Days Approx €12.95
Details
Striker for Rotary Hammer Makita HR2600
Makita SKU: 325784-2
Striker for Rotary Hammer Makita HR2600
Striker for Rotary Hammer Makita HR2600 Genuine spare part Makita, Striker for SDS-PLUS Makita HR2300 - HR2600 - HR2601 - HR2610T Part For the Following Items: -  HR2300 - ROTARY HAMMER 720W 23mm -  HR2600 - ROTARY HAMMER 800W 26mm...
on 7/10 Business Days Approx €4.57
Details
O-Ring 21 for Rotary Hammer Makita HR260
Makita SKU: 213381-5
O-Ring 21 for Rotary Hammer Makita HR260
O-Ring 21 for Rotary Hammer Makita HR2600 Genuine spare part Makita, O-Ring 21 for SDS-PLUS Makita HR2300 - HR2600 - HR2601 - HR2610T Part For the Following Items: -  HR2300 - ROTARY HAMMER...
on 7/10 Business Days Approx €2.12
Details
Change Lever A for Rotary Hammer Makita HR2610T
Makita SKU: 451529-3
Change Lever A for Rotary Hammer Makita HR2610T
Change Lever A for Rotary Hammer Makita HR2610T Original spare Makita, Change Lever A for Rotary Hammers, 2610T - HR2611FT - HR2611F. Parts for the following products: -  HR2610T - ROTARY HAMMER...
AVAILABLE €3.37
Details
Leaf Spring for Rotary Hammer Makita HR2610T
Makita SKU: 232152-1
Leaf Spring for Rotary Hammer Makita HR2610T
Change Lever A Leaf Spring for Rotary Hammer Makita HR2610T Original spare Makita, Change Lever A Leaf Spring for Rotary Hammers, 2610T - HR2611FT - HR2611F. Parts for the following products: - ...
AVAILABLE €3.08
Details
Push Corn for Rotary Hammer Makita HR2610T
Makita SKU: 325785-0
Push Corn for Rotary Hammer Makita HR2610T
Push Corn for Rotary Hammer Makita HR2610T Original spare Makita, Change Lever A Push Corn for Rotary Hammers, 2610T - HR2611FT - HR2611F. Parts for the following products: -  HR2610T - ROTARY...
AVAILABLE €1.35
Details
Comments (0)
