at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Power Planer N1923B - 82 mm.

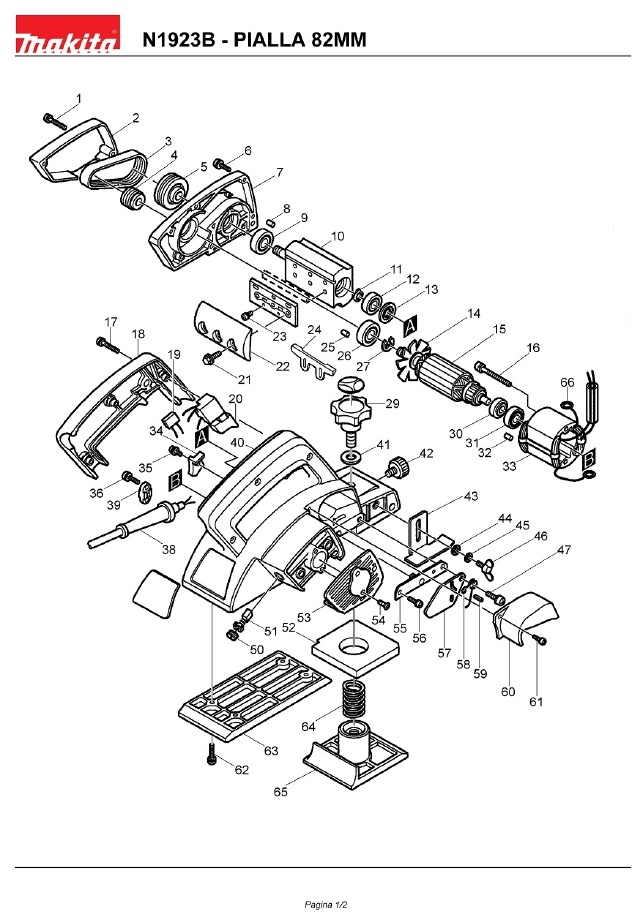

In the following table, look for the model of Power Planer and the respective parts of the code.
| Planer Makita N1923B | ||
| 1 | 911546-0 | PAN HEAD SCREW M4X25 |
| 2 | 411019-8 | BELT COVER |
| 3 | 225071-8 | BELT 4-241 |
| 4 | 222125-2 | PULLEY 4-20L |
| 5 | 222126-0 | PULLEY 4-37 |
| 6 | 911136-9 | HEAD SCREW CILIND. M4x20 |
| 7 | 152198-0 | BRACKET COMPLETE |
| 8 | 263002-9 | PIN RUBBER 4 |
| 9 | 211062-5 | BEARING 6000 |
| 10 | 161045-4 | ROLL OUT |
| 11 | 961003-8 | RETAINING RING S7 |
| 12 | 210025-8 | BEARING X 4324 |
| 13 | 285637-6 | ARMATURE BEARING. RETAINER 7-21 |
| 14 | 241510-0 | FAN X 1902 |
| 15 | 511938-9 | ARMATURE |
| 16 | 911586-8 | SCREW M4x60 |
| 17 | 911153-9 | SCREW M4X28 |
| 18 | 411304-9 | COVER HANDLE |
| 19 | 645208-5 | CAPACITOR |
| 20 | 651239-4 | SWITCH |
| 21 | 251609-3 | BOLT M6X17 |
| 22 | 187676-1 | PLATE ROLL |
| 23 | 251246-3 | HEAD SCREW CILIND. M4x5 |
| 24 | 342430-2 | PLATE KNIFE |
| 25 | 263002-9 | PIN RUBBER 4 |
| 26 | 211061-7 | BALL BEARING 6000DD |
| 27 | 961015-1 | RING RETAINING E9 |
| 29 | 271231-0 | KNOB ADJUSTMENT |
| 30 | 681614-0 | INSULATION WASHER |
| 31 | 211028-5 | BALL BEARING 627 |
| 32 | 263014-2 | PIN RUBBER 4 |
| 33 | 599322-8 | STATOR |
| 34 | 411306-5 | PLATE |
| 35 | 911128-8 | SCREW M4x16 |
| 36 | 911133-5 | SCREW M4X18 |
| 38 | 682504-0 | CABLE SLEEVE 10/85 |
| 39 | 687001-1 | CLAMP cable tie |
| 40 | 156592-8 | HOUSING MOTOR |
| 41 | 941251-5 | FLAT WASHER 10 |
| 42 | 251812-6 | SCREW M5x10 |
| 43 | 342390-8 | DEPTH GUIDE |
| 44 | 941101-4 | FLAT WASHER 5 |
| 45 | 942101-7 | SPRING WASHER 5 |
| 46 | 924206-5 | BUTTERFLY SCREW M5x10 |
| 47 | 251228-5 | SCREW M5 |
| 50 | 643550-8 | PLUG BRUSH |
| 51 | 181021-2 | CARBON BRUSHE SET CB-51 |
| 52 | 421007-7 | BASE RUBBER |
| 53 | 411305-7 | SIDE COVER |
| 54 | 912117-6 | SCREW M4X12 |
| 55 | 164372-8 | HOLDER ROLLER |
| 56 | 911226-8 | HEAD SCREW CILIND. M5X18 |
| 57 | 341342-6 | COVER ROLLER |
| 58 | 231504-3 | SPRING 10 |
| 59 | 951051-5 | PIN FLEXIBLE 3/8 |
| 60 | 411650-0 | COVER CHIPS |
| 61 | 911128-8 | SCREW M4x16 |
| 62 | 911226-8 | HEAD SCREW CILIND. M5X18 |
| 63 | 312023-9 | BASE REAR |
| 64 | 231004-3 | SPRING 18 |
| 65 | 316587-5 | UP FRONT |
| 66 | 654018-9 | RING TERMINAL 72 |
| 500 | 122230-4 | DUST BAG |
