Makita Spare Parts for Power Planer KP0800K
Fix Your Power Planer 82 mm 620 W KP0800K. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

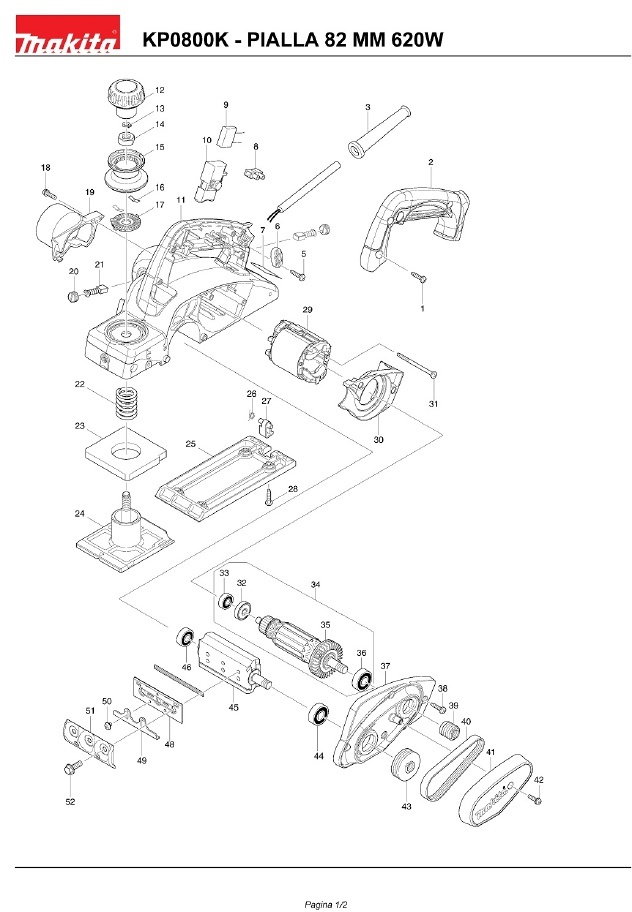

In the following table, look for the model of Power Planer and the respective parts of the code.
| Planer Makita KP0800K |
| # |
Part Num. |
Description |
| 1 |
266326-2 |
SCREW 4x18 X MT601 |
| 2 |
451314-4 |
I covered HANDLE KP0800K |
| 3 |
682569-2 |
CABLE SLEEVE MT601 |
| 5 |
266326-2 |
SCREW 4x18 X MT601 |
| 6 |
687124-5 |
Cable tie CLAMP MT953 |
| 7 |
867138-2 |
LABEL KP0800K |
| 8 |
654532-5 |
TERMINAL BLOCK 6E / 1DS |
| 9 |
645200-1 |
CAPACITOR |
| 10 |
650236-7 |
SWITCH SGEL115CDY-13 |
| 11 |
140197-4 |
HOUSING MOTOR KP0800K |
| 12 |
451328-3 |
COVER KNOB KP0800K |
| 13 |
961004-6 |
RETAINING RING S8 |
| 14 |
264028-4 |
NUT M10 KP0800K |
| 15 |
451324-1 |
KNOB FRONT KP0800K |
| 16 |
232185-6 |
SPRING CROSSBOW X 1050DW |
| 17 |
346110-2 |
CAM KP0800K |
| 18 |
911128-8 |
SCREW M4x16 X HR4000C |
| 19 |
451329-1 |
CONVOGLIATORE KP0800K |
| 20 |
643550-8 |
TAP. BRUSH |
| 21 |
191940-4 |
CARBON BRUSHES CB-411 X EX 422/421 |
| 22 |
231004-3 |
SPRING 18 1923B / 1901 / 1911B |
| 23 |
421007-7 |
RUBBER BASE 1901 / 1923B |
| 24 |
318491-4 |
BASE FRONT KP0800K |
| 25 |
318499-8 |
BASE KP0800K |
| 26 |
231698-4 |
SPRING TWIST 7 X KP0810K |
| 27 |
451392-4 |
FOOT KP0800K |
| 28 |
266326-2 |
SCREW 4x18 X MT601 |
| 29 |
593718-5 |
STATOR KP0800K |
| 30 |
451327-5 |
BAFFLE KP0800K |
| 31 |
266334-3 |
SCREW 4X60 HR2460 |
| 32 |
681652-2 |
INSULATOR X JR180D |
| 33 |
210017-7 |
BEARING 607DDW |
| 34 |
515793-1 |
ARMATURE KP0800K |
| 35 |
240052-1 |
FAN 46 X BJR240 |
| 36 |
211088-7 |
BEARING 6000-9527PB 9528PB |
| 37 |
140201-9 |
MOTOR HOLDER KP0800K |
| 38 |
266326-2 |
SCREW 4x18 X MT601 |
| 39 |
222163-4 |
PULLEY 4-20L KP0800K |
| 40 |
225007-7 |
BELT 4-241 KP0810K |
| 41 |
451326-7 |
COVER BELT KP0800K |
| 42 |
911128-8 |
SCREW M4x16 X HR4000C |
| 43 |
222164-2 |
PULLEY 4-37 KP0800K |
| 44 |
211088-7 |
BEARING 6000-9527PB 9528PB |
| 45 |
161061-6 |
ROLL OUT 1900B / 1901 |
| 46 |
211032-4 |
BEARING X 1902 |
| 48 |
343433-9 |
KNIVE LOCK PLATE |
| 49 |
345644-2 |
STOP KNIVES X KP0810K |
| 50 |
265132-2 |
SCREW M 4X5 X KP0800K |
| 51 |
187679-5 |
PLATE DRUM |
| 52 |
251609-3 |
BOLT M6X17 |
