Makita Spare Parts for Jigsaw 4350CT

SKU: Makita 4350CT
€82.13
VAT included

Makita Spare Parts for Jigsaw 4350CT

Makita Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Jigsaw 4350CT.

Makita Spare Parts for Jigsaw 4350CT
  • Makita Spare Parts for Jigsaw 4350CT
  • Makita Spare Parts for Jigsaw 4350CT

Makita Spare Parts for Jigsaw 4350CT

SKU: Makita 4350CT Condition: New
€82.13
VAT included

Makita Spare Parts for Jigsaw 4350CT

Makita Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Jigsaw 4350CT.

settings 74 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

74 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 188286-7 COMPLETE HANDLE 4350CT €32.20
3
photo_cameraImage coming soon 266091-3 SPECIAL SCREW 4 X 50 €1.32
4
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
5
Packing for Jigsaw Makita 4341FCT 442138-9 Packing for Jigsaw Makita 4341FCT €1.44
6
Plane Bearing 40 for Jigsaw Makita 4341FCT 214031-5 Plane Bearing 40 for Jigsaw Makita 4341FCT €1.38
7
Flat Spring for Jigsaw Makita 4341FCT 232207-2 Flat Spring for Jigsaw Makita 4341FCT €1.83
8
photo_cameraImage coming soon 256117-9 PIN X 4324 €1.40
9
photo_cameraImage coming soon 911111-5 HEAD SCREW CILIND. M4X10 €3.76
10
photo_cameraImage coming soon 911111-5 HEAD SCREW CILIND. M4X10 €3.76
11
photo_cameraImage coming soon 345240-6 GUIDE FOR STRAIGHT 4341FCT €7.85
12
photo_cameraImage coming soon 345240-6 GUIDE FOR STRAIGHT 4341FCT €7.85
13
photo_cameraImage coming soon 153338-3 COVER GEAR BOX 4341FCT €51.97
14
photo_cameraImage coming soon 417839-8 SEALING PLATE FOR 4341FCT €2.95
15
Torsion Spring for Jigsaw Makita 4341FCT 231659-4 Torsion Spring for Jigsaw Makita 4341FCT €3.19
16
photo_cameraImage coming soon 265026-1 BOLT M4 €7.85
17
photo_cameraImage coming soon 419820-5 RELEASE BLADE BJV140R €7.69
18
photo_cameraImage coming soon 421817-2 DUST FOR 4341FCT €3.76
19
photo_cameraImage coming soon 962068-3 RETAINING RING R-18 FOR 4341F €3.76
20
photo_cameraImage coming soon 135060-4 CONNECTING ROD COMPLETE 4350CT €79.75
21
photo_cameraImage coming soon 231660-9 TORSION SPRING FOR 15 4341FCT €3.76
22
photo_cameraImage coming soon 310136-0 Blade holder FOR 4341FCT €20.92
23
photo_cameraImage coming soon 310135-2 PLUG FOR 4341FCT €7.85
25
Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
26
photo_cameraImage coming soon 687260-7 FIXED CABLE X GA5010 €3.76
27
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
28
photo_cameraImage coming soon 645149-5 CAPACITOR X 4350CT €1.61
29
photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
30
photo_cameraImage coming soon 324233-6 PROTECTION SECURITY FOR 4341FCT €4.58
32
photo_cameraImage coming soon 631768-3 REGULATOR FOR 4350CT €57.69
33
photo_cameraImage coming soon 650202-4 SWITCH FOR 4340CT €20.92
34
photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
36
photo_cameraImage coming soon 310134-4 SLEIGH FOR 4341FCT €30.56
37
photo_cameraImage coming soon 961017-7 RING E-3 X 4305T €3.76
38
photo_cameraImage coming soon 961004-6 RETAINING RING S8 €3.76
39
photo_cameraImage coming soon 212014-9 BEARING ROLLER 407 €16.02
40
photo_cameraImage coming soon 268090-1 PLUG FOR 4 4341FCT €5.40
41
photo_cameraImage coming soon 265353-6 SCREW M 4 X 12 X 4341FCT €3.76
42
photo_cameraImage coming soon 153336-7 ECCENTRIC FOR 4341FCT €11.12
43
photo_cameraImage coming soon 313108-4 PLATE FOR BALANCE 4341FCT €14.38
44
photo_cameraImage coming soon 153335-9 GEAR CPL. FOR 4341FCT €47.06
45
photo_cameraImage coming soon 345235-9 PLATE 4341FCT €6.21
46
photo_cameraImage coming soon 253877-4 FLAT WASHER 8 PER4301BV €3.76
47
photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
48
photo_cameraImage coming soon 961018-5 RETAINING RING E5 €3.76
49
photo_cameraImage coming soon 286032-3 PLUG FOR 5 4341FCT €2.95
50
photo_cameraImage coming soon 233139-6 COMPRESSION SPRING 4341FCT €2.95
51
photo_cameraImage coming soon 272244-4 17 LEVER FOR 4341FCT €12.75
52
photo_cameraImage coming soon 268063-4 PLUG FOR 4 4341FCT €3.76
53
Complete Blade Guide for Jigsaw Makita 4341FCT 153334-1 Complete Blade Guide for Jigsaw Makita 4341FCT €31.96
54
photo_cameraImage coming soon 252171-1 NUT PANEL M 5-8 FOR 4341FCT €3.76
55
photo_cameraImage coming soon 421816-4 PARA POWDER FOR BLADE 4341FCT €3.76
56
photo_cameraImage coming soon 153337-5 GEAR BOX FOR 4341FCT €86.28
57
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
58
photo_cameraImage coming soon 241881-5 FAN 52 6408 €7.85
59
photo_cameraImage coming soon 266052-3 PT SCREW 4X60 €7.03
60
photo_cameraImage coming soon 417838-0 DEFLECTOR FOR 4341FCT €3.27
61
photo_cameraImage coming soon 593508-6 STATOR FOR 4340CT €43.80
62
photo_cameraImage coming soon 517398-3 ARMATURE FOR 4341FCT €89.55
63
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
64
photo_cameraImage coming soon 643936-6 BRUSH 8450 €5.40
66
photo_cameraImage coming soon 863664-9 LABEL MOD. 4350CT €3.76
68
photo_cameraImage coming soon 419886-5 HOUSING FOR MOTOR 4350CT €11.12
69
photo_cameraImage coming soon 259039-2 LOCKING 6 X 9566CV €3.76
70
Magnet Sleeve for Angle Grinder Makita GA4540C 688117-5 Magnet Sleeve for Angle Grinder Makita GA4540C €4.20
71
photo_cameraImage coming soon 267756-0 WAVY WASHER X BO6040 €3.76
72
photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
73
photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
74
Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
75
photo_cameraImage coming soon 232208-0 SPRING FLAT FOR 4341FCT €4.58
76
photo_cameraImage coming soon 922226-3 SCREW M 5 X 18 X 4341FCT €3.76
77
photo_cameraImage coming soon 345237-5 SHAPED PLATE FOR 4341FCT €2.95
78
Base for Jigsaw Makita 4341FCT 317565-8 Base for Jigsaw Makita 4341FCT €31.79
79
photo_cameraImage coming soon 912107-9 SCREW M4 x 8 €3.76
80
Base Plate for Jigsaw Makita 4350CT 345238-3 Base Plate for Jigsaw Makita 4350CT €30.28

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Jigsaw 4350CT

Makita Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Jigsaw 4350CT.

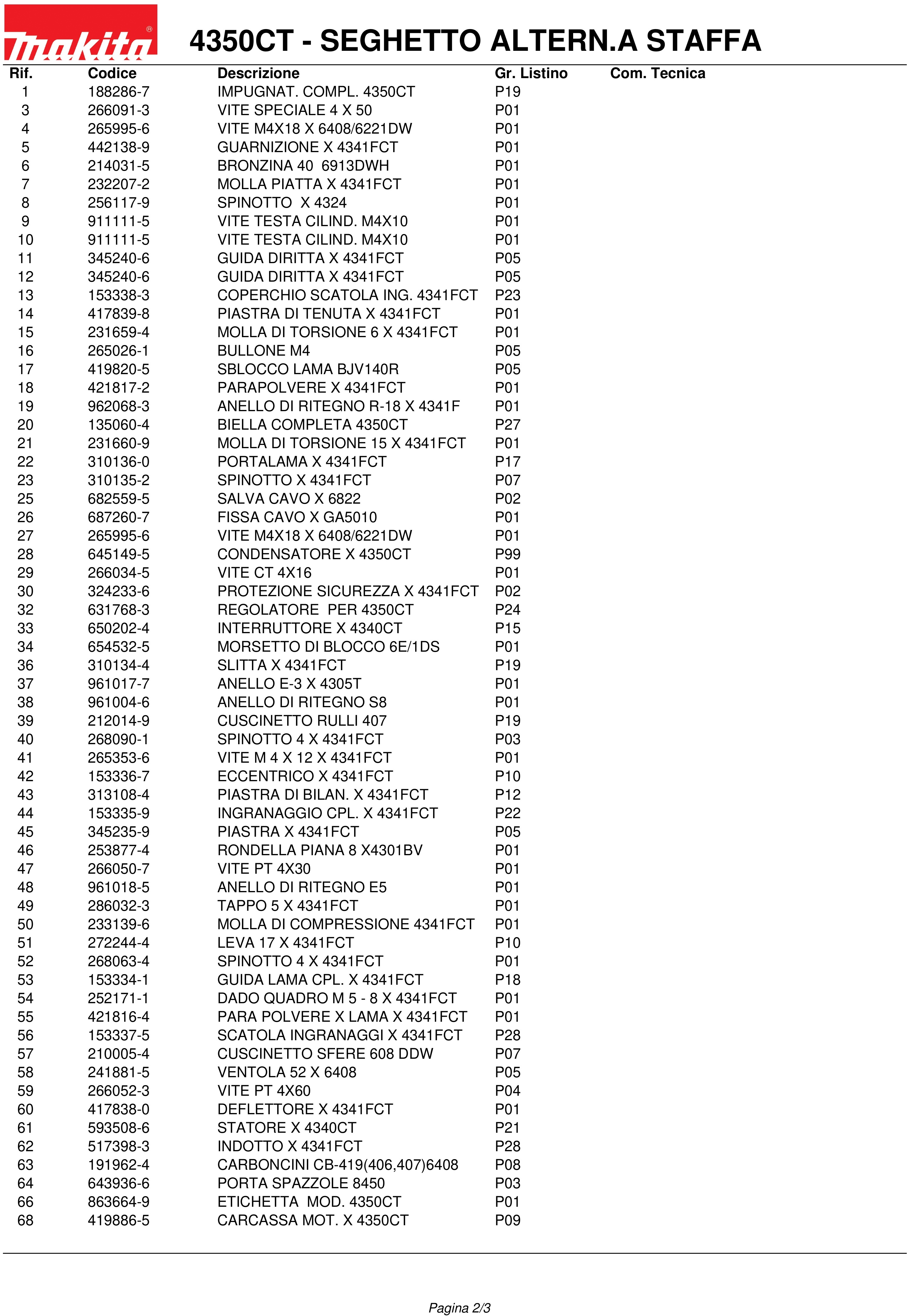

In the following table, look for the model of jackhammers and the respective parts of the code.
Makita 4350CT

JIGSAW 4350CT
# Part Num. Description
1 188286-7 COMPLETE HANDLE 4350CT
3 266091-3 SCREW FOR SPECIAL 4 50
4 265995-6 SCREW M4PER18 FOR 6408 / 6221DW
5 442138-9 PACKING 4341FCT
6 214031-5 BUSH 40 6913DWH
7 232207-2 SPRING FLAT FOR 4341FCT
8 256117-9 PLUG FOR 4324
9 911111-5 HEAD SCREW CILIND. M4X10
10 911111-5 HEAD SCREW CILIND. M4X10
11 345240-6 GUIDE FOR STRAIGHT 4341FCT
12 345240-6 GUIDE FOR STRAIGHT 4341FCT
13 153338-3 COVER GEAR BOX 4341FCT
14 417839-8 SEALING PLATE FOR 4341FCT
15 231659-4 TORSION SPRING FOR 6 4341FCT
16 265026-1 BOLT M4
17 419820-5 RELEASE BLADE BJV140R
18 421817-2 DUST FOR 4341FCT
19 962068-3 RETAINING RING R-18 FOR 4341F
20 135060-4 CONNECTING ROD COMPLETE 4350CT
21 231660-9 TORSION SPRING FOR 15 4341FCT
22 310136-0 Blade holder FOR 4341FCT
23 310135-2 PLUG FOR 4341FCT
25 682559-5 SAVE CABLE FOR 6822
26 687260-7 FIXED CABLE FOR GA5010
27 265995-6 SCREW M4PER18 FOR 6408 / 6221DW
28 645149-5 CONDENSER 4350CT
29 266034-5 SCREW CT 4PER16
30 324233-6 PROTECTION SECURITY FOR 4341FCT
32 631768-3 REGULATOR FOR 4350CT
33 650202-4 SWITCH FOR 4340CT
34 654532-5 TERMINAL BLOCK 6E / 1DS
36 310134-4 SLEIGH FOR 4341FCT
37 961017-7 RING FOR 3-4305T
38 961004-6 RETAINING RING S8
39 212014-9 BEARING ROLLER 407
40 268090-1 PLUG FOR 4 4341FCT
41 265353-6 SCREW M 4 TO 12 TO 4341FCT
42 153336-7 ECCENTRIC FOR 4341FCT
43 313108-4 PLATE FOR BALANCE 4341FCT
44 153335-9 GEAR CPL. FOR 4341FCT
45 345235-9 PLATE 4341FCT
46 253877-4 FLAT WASHER 8 PER4301BV
47 266050-7 SCREW PT 4PER30
48 961018-5 RETAINING RING E5
49 286032-3 PLUG FOR 5 4341FCT
50 233139-6 COMPRESSION SPRING 4341FCT
51 272244-4 17 LEVER FOR 4341FCT
52 268063-4 PLUG FOR 4 4341FCT
53 153334-1 BLADE COMPLETE GUIDE TO 4341FCT
54 252171-1 NUT PANEL M 5-8 FOR 4341FCT
55 421816-4 PARA POWDER FOR BLADE 4341FCT
56 153337-5 GEAR BOX FOR 4341FCT
57 210005-4 BALL BEARING 608 DDW
58 241881-5 FAN 52 PER 6408
59 266052-3 SCREW PT 4PER60
60 417838-0 DEFLECTOR FOR 4341FCT
61 593508-6 STATOR FOR 4340CT
62 517398-3 ARMATURE FOR 4341FCT
63 191962-4 CHARCOALS CB-419 (406.407) 6408
64 643936-6 BRUSH 8450
66 863664-9 LABEL MOD. 4350CT
68 419886-5 HOUSING FOR MOTOR 4350CT
69 259039-2 6 FOR LOCKING 9566CV
70 688117-5 MAGNETIC COMPASS FOR GD0800C
71 267756-0 WAVY WASHER FOR BO6040
72 421494-0 RUBBER 19 PER 9521NB
73 211021-9 BEARING 607LLB
74 681636-0 INSULATING WASHER
75 232208-0 SPRING FLAT FOR 4341FCT
76 922226-3 SCREW M 5 x 18 FOR 4341FCT
77 345237-5 SHAPED PLATE FOR 4341FCT
78 317565-8 BASE 4341FCT
79 912107-9 SCREW M4 x 8
80 345238-3 BASE PLATE FOR 4341FCT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 4350CT
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

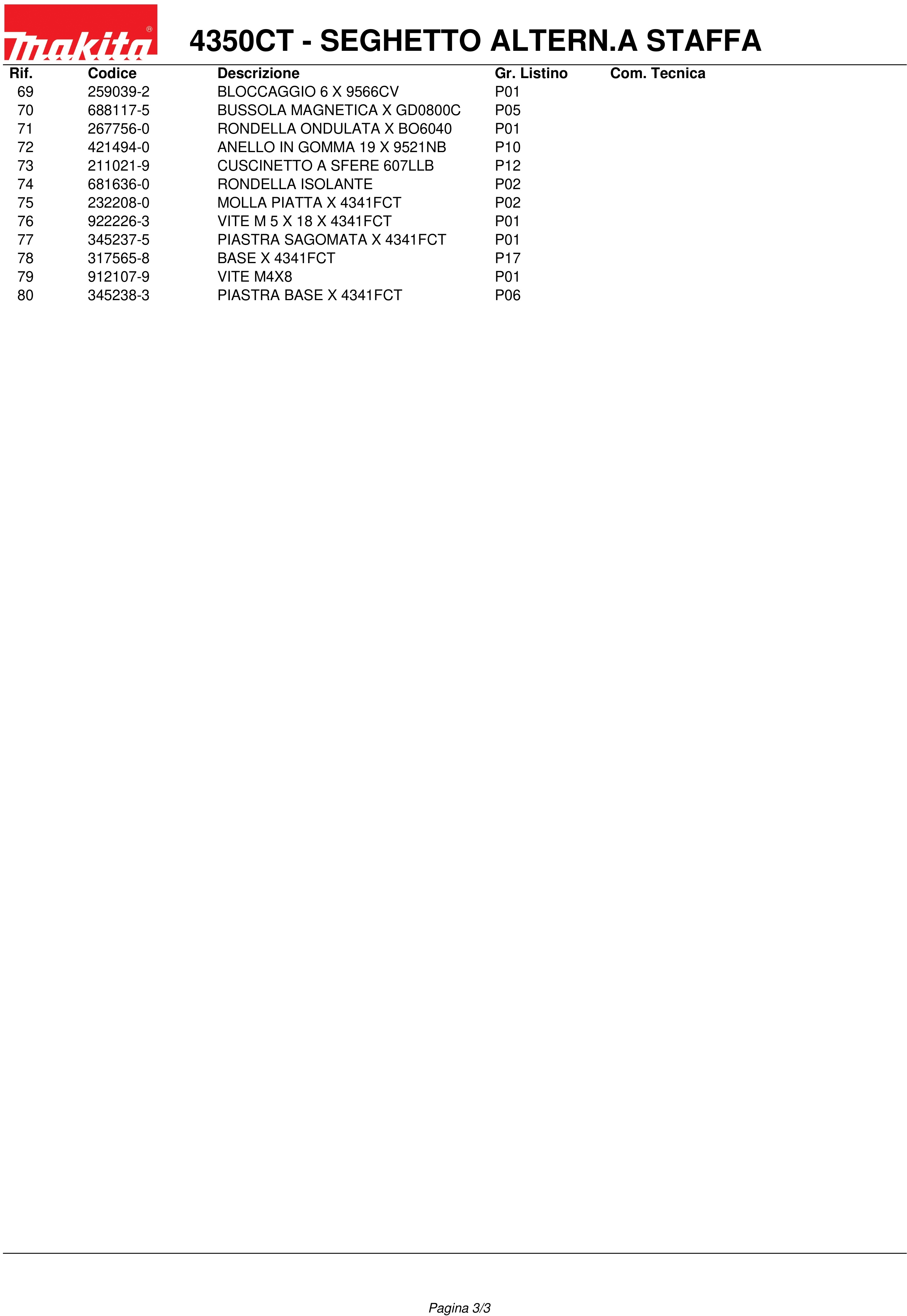

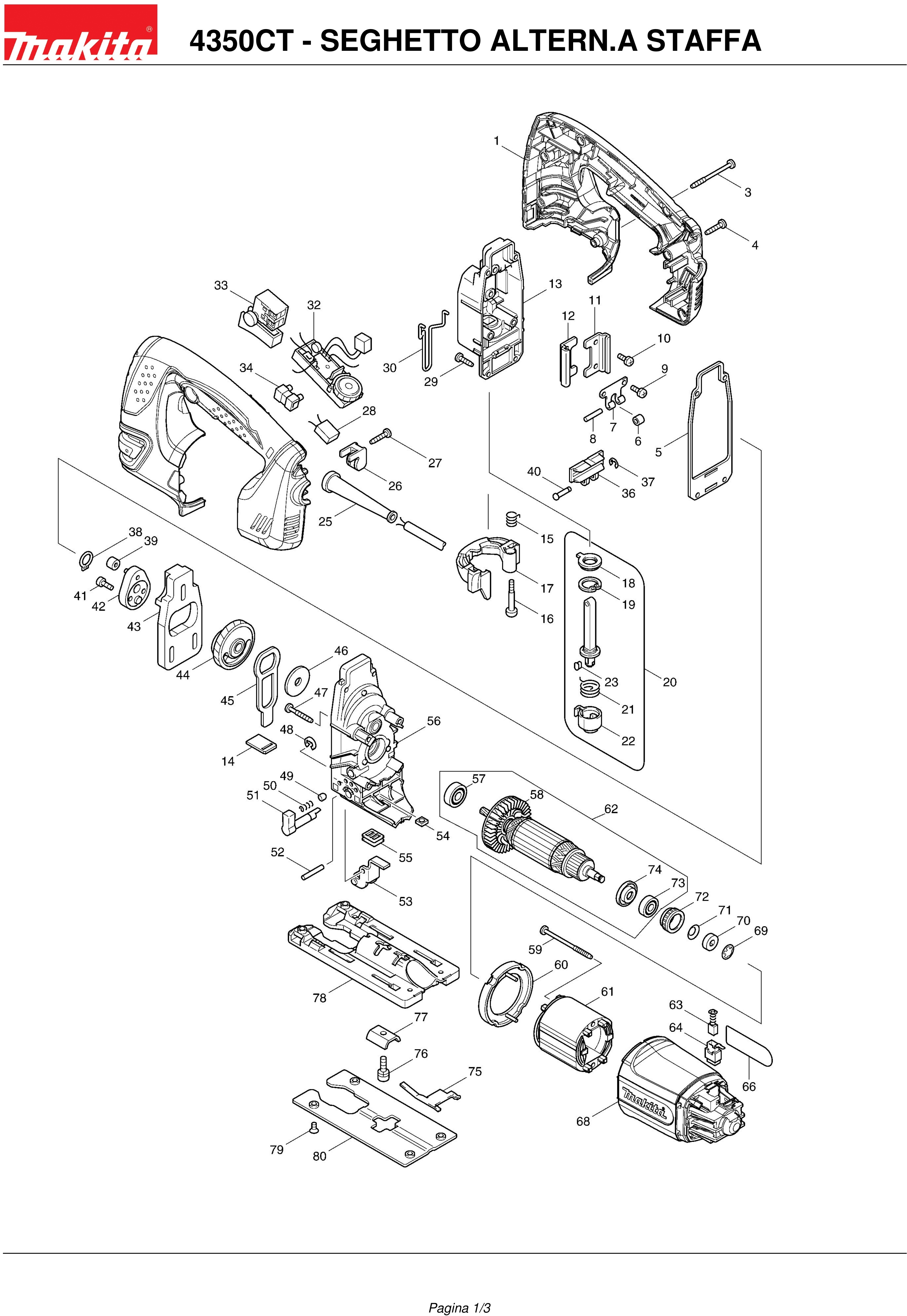

Diagram Makita 4350CT
