Makita Spare Parts for Sander SA5040C

SKU: Makita SA5040C
€22.33
VAT included

Makita Spare Parts for Sander SA5040C

We have the Makita original Spares for Sander 125 mm SA5040C, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Sander 125 mm SA5040C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Sander SA5040C
  • Makita Spare Parts for Sander SA5040C
  • Makita Spare Parts for Sander SA5040C

Makita Spare Parts for Sander SA5040C

SKU: Makita SA5040C Condition: New
€22.33
VAT included

Makita Spare Parts for Sander SA5040C

We have the Makita original Spares for Sander 125 mm SA5040C, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Sander 125 mm SA5040C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 59 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 168705-9 GEAR BOX FOR GA €23.75
4
photo_cameraImage coming soon 227595-0 GEAR FOR 7 GA €8.20
5
photo_cameraImage coming soon 211142-7 BEARING 6001LLB X GD0800C €11.39
6
photo_cameraImage coming soon 318835-8 COVER GEAR BOX €9.48
10
Flat Washer 12 for Angle Grinder Makita GA4540 253084-9 Flat Washer 12 for Angle Grinder Makita GA4540 €1.39
11
photo_cameraImage coming soon 240134-9 FAN FOR 60 GA €3.13
12
photo_cameraImage coming soon 515383-0 ARMATURE €40.14
13
Armature Washer for Angle Grinders Makita 9561-9562CV 681656-4 Armature Washer for Angle Grinders Makita 9561-9562CV €1.50
14
photo_cameraImage coming soon 253823-7 ROND. FLAT 7 X JS1600 €2.40
15
photo_cameraImage coming soon 210027-4 BEARING 627DDW X 9561CV €6.30
16
photo_cameraImage coming soon 421738-8 RING LABYRINTH 22 X 9561CV €14.23
17
photo_cameraImage coming soon 267756-0 WAVY WASHER X BO6040 €3.76
18
Magnet Sleeve for Angle Grinder Makita GA4540C 688117-5 Magnet Sleeve for Angle Grinder Makita GA4540C €4.20
19
photo_cameraImage coming soon 259039-2 LOCKING 6 X 9566CV €3.76
22
photo_cameraImage coming soon 453367-9 BAFFLE €2.34
23
photo_cameraImage coming soon 266258-3 SCREW 4 X 70 X 9564 €2.34
24
photo_cameraImage coming soon 344871-8 RETAINING X GD0800C €3.24
25
photo_cameraImage coming soon 626653-3 STATOR 220-240V €47.39
27
Carbon Brushes CB-318 for Angle Grinder Makita 9564 191978-9 Carbon Brushes CB-318 for Angle Grinder Makita 9564 €11.55
28
Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
29
Carbon Brushes Holder for Grinders Makita GA4540-4541-5040-5041 643769-9 Carbon Brushes Holder for Grinders Makita GA4540-4541-5040-5041 €2.51
30
photo_cameraImage coming soon 453366-1 HOUSING MOTOR €12.65
31
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
32
photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
33
photo_cameraImage coming soon 638947-4 SWITCH SUPPORT €11.06
35
Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
38
photo_cameraImage coming soon 453365-3 BACK COVER C €4.72
39
photo_cameraImage coming soon 620127-6 CONTROLLER €60.12
40
Switch Makita Makita ST115A-40 651418-4 Switch Makita Makita ST115A-40 €10.80
42
photo_cameraImage coming soon 233071-4 SPRING COMPRESSION 4 X 9541 €2.34
43
photo_cameraImage coming soon 453847-5 LEVER SWITCH €2.34
44
photo_cameraImage coming soon 453368-7 KEY SWITCH €2.34
46
photo_cameraImage coming soon 453369-5 BUTTON €2.34
47
Pin Disc Block Sping for Angle Grinder Makita GA4530 234057-1 Pin Disc Block Sping for Angle Grinder Makita GA4530 €1.83
48
photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
49
photo_cameraImage coming soon 213032-0 RING 4 X GA4530 €2.34
50
photo_cameraImage coming soon 256535-1 PLUG FOR 6 GA €2.34
51
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
52
photo_cameraImage coming soon 210026-6 BALL BEARING 696ZZ €4.06
53
photo_cameraImage coming soon 961005-4 RETAINING RING S9 €2.34
54
photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
55
photo_cameraImage coming soon 310508-9 SOCKET FOR GA €8.64
56
photo_cameraImage coming soon 346556-2 C PLATE FOR GA €4.72
57
photo_cameraImage coming soon 227596-8 GEAR FOR 37 GA €6.38
58
photo_cameraImage coming soon 313228-4 JUNCTION FOR GA €12.65
59
photo_cameraImage coming soon 210302-8 BEARING 6903ZZ FOR GA €11.06
60
Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
62
photo_cameraImage coming soon 213641-5 RING FOR 51 GA €1.36
63
photo_cameraImage coming soon 318837-4 BEARING BOX €7.89
64
photo_cameraImage coming soon 265490-6 SCREW M4 X 16 X 9561CV €1.40
65
Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
66
photo_cameraImage coming soon 267279-8 FLAT WASHER 21 X HR2450FT €1.36
67
photo_cameraImage coming soon 443124-3 FELT RING 17 GD0600 €2.34
68
photo_cameraImage coming soon 285854-8 RETAINING BEARING 20-33 €2.34
70
photo_cameraImage coming soon 326130-2 POST FOR GA €12.65
72
photo_cameraImage coming soon 453378-4 COVER COVER HEAD €9.27
73
photo_cameraImage coming soon 265083-9 SCREW M8 X 11 X 9565CVL €2.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Sander SA5040C

Fix Your Sander 125 mm SA5040C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Sander and the respective parts of the code.
Makita SA5040C

Sander SA5040C
# Part Num. Description
1 168705-9 GEAR BOX FOR GA
2 252137-1 NUT M5X8
3 267034-8 FLAT WASHER 5 X 4302C
4 227595-0 GEAR FOR 7 GA
5 211142-7 BEARING 6001LLB X GD0800C
6 318835-8 COVER GEAR BOX
10 253084-9 ROND.P.12 8419B / 5016NB
11 240134-9 FAN FOR 60 GA
12 515383-0 ARMATURE
13 681656-4 INSULATING WASHER X GD0810C
14 253823-7 ROND. FLAT 7 X JS1600
15 210027-4 BEARING 627DDW X 9561CV
16 421738-8 RING LABYRINTH 22 X 9561CV
17 267756-0 WAVY WASHER X BO6040
18 688117-5 SOCKET X GD0800C
19 259039-2 LOCKING 6 X 9566CV
22 453367-9 FLAP
23 266258-3 SCREW 4 X 70 X 9564
24 344871-8 RETAINING X GD0800C
25 626653-3 STATOR 220-240V
27 191978-9 CARBON BRUSHES CB 318 (EX 310)
28 266007-8 SCREW M3 X10 HP2030
29 643769-9 HOLDER BRUSHES
30 453366-1 HOUSING MOTOR
31 266326-2 SCREW 4x18 X MT601
32 687169-3 CLAMP cable tie HP1620
33 638947-4 HOLDER SWITCH
35 682559-5 SAVE CABLE X 6822
36 266326-2 SCREW 4x18 X MT601
38 453365-3 BACK COVER C
39 620127-6 REGULATOR
40 651418-4 SWITCH ST115A-40 X 9541
42 233071-4 SPRING COMPRESSION 4 X 9541
43 453847-5 LEVER SWITCH
44 453368-7 KEY SWITCH
46 453369-5 BUTTON
47 234057-1 SPRING COMPRRESSIONE 6 GA5021C
48 266361-0 SCREW 4 X 30 X 9554NB
49 213032-0 RING 4 X GA4530
50 256535-1 PLUG FOR 6 GA
51 263002-9 PIN RUBBER 4
52 210026-6 BEARING 696ZZ
53 961005-4 RETAINING RING S9
54 253180-3 FLAT WASHER 10 X 6221DW
55 310508-9 SOCKET FOR GA
56 346556-2 C PLATE FOR GA
57 227596-8 GEAR FOR 37 GA
58 313228-4 JUNCTION FOR GA
59 210302-8 BEARING 6903ZZ FOR GA
60 253744-3 ROND.PIANA 12 24B / 12N / 14
61 263002-9 PIN RUBBER 4
62 213641-5 RING FOR 51 GA
63 318837-4 BEARING BOX
64 265490-6 SCREW M4 X 16 X 9561CV
65 211129-9 BALL BEARING NSK 6201DD
66 267279-8 FLAT WASHER 21 X HR2450FT
67 443124-3 FELT RING 17 GD0600
68 285854-8 RETAINING BEARING 20-33
70 326130-2 POST FOR GA
72 453378-4 COVER COVER HEAD
73 265083-9 SCREW M8 X 11 X 9565CVL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s MAKITA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to MAKITA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita SA5040C
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

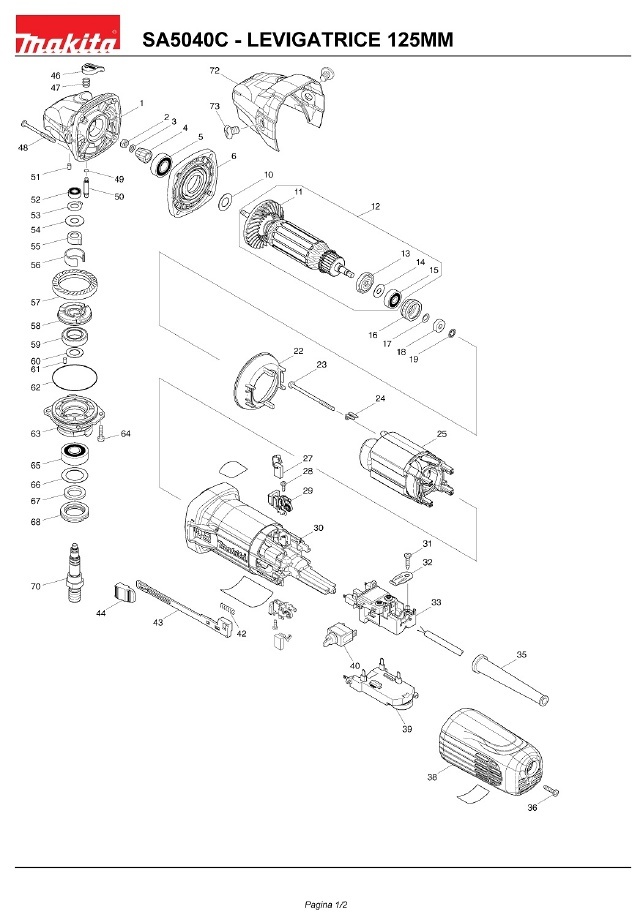

Diagram Makita SA5040C

Diagram Makita SA5040C

Download (260.14KB)
