Makita Spare Parts for SDS-Plus Rotary Hammer HR2300
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Rotary Hammer SDS-PLUS 720W SDS-PLUS HR2300.

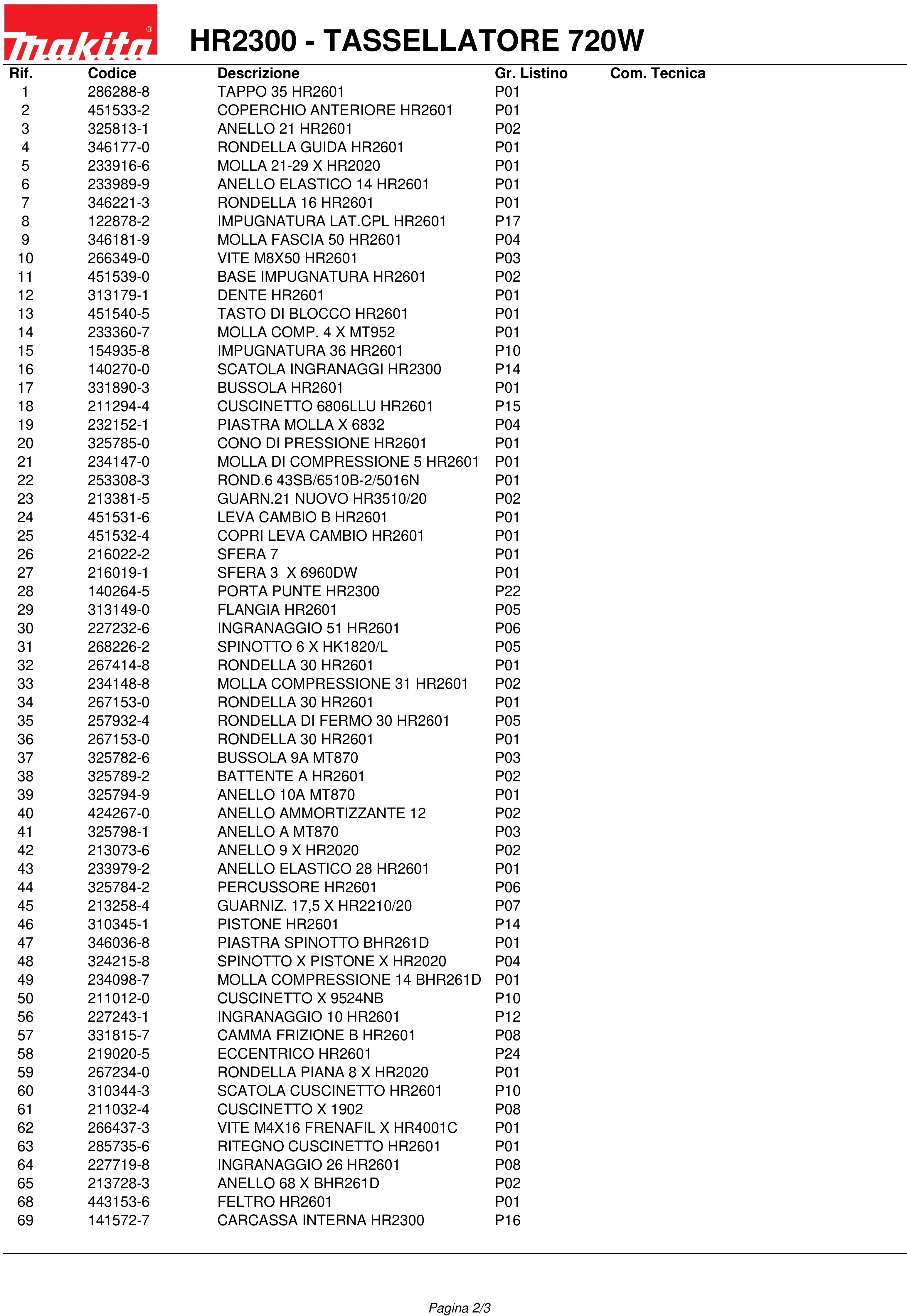

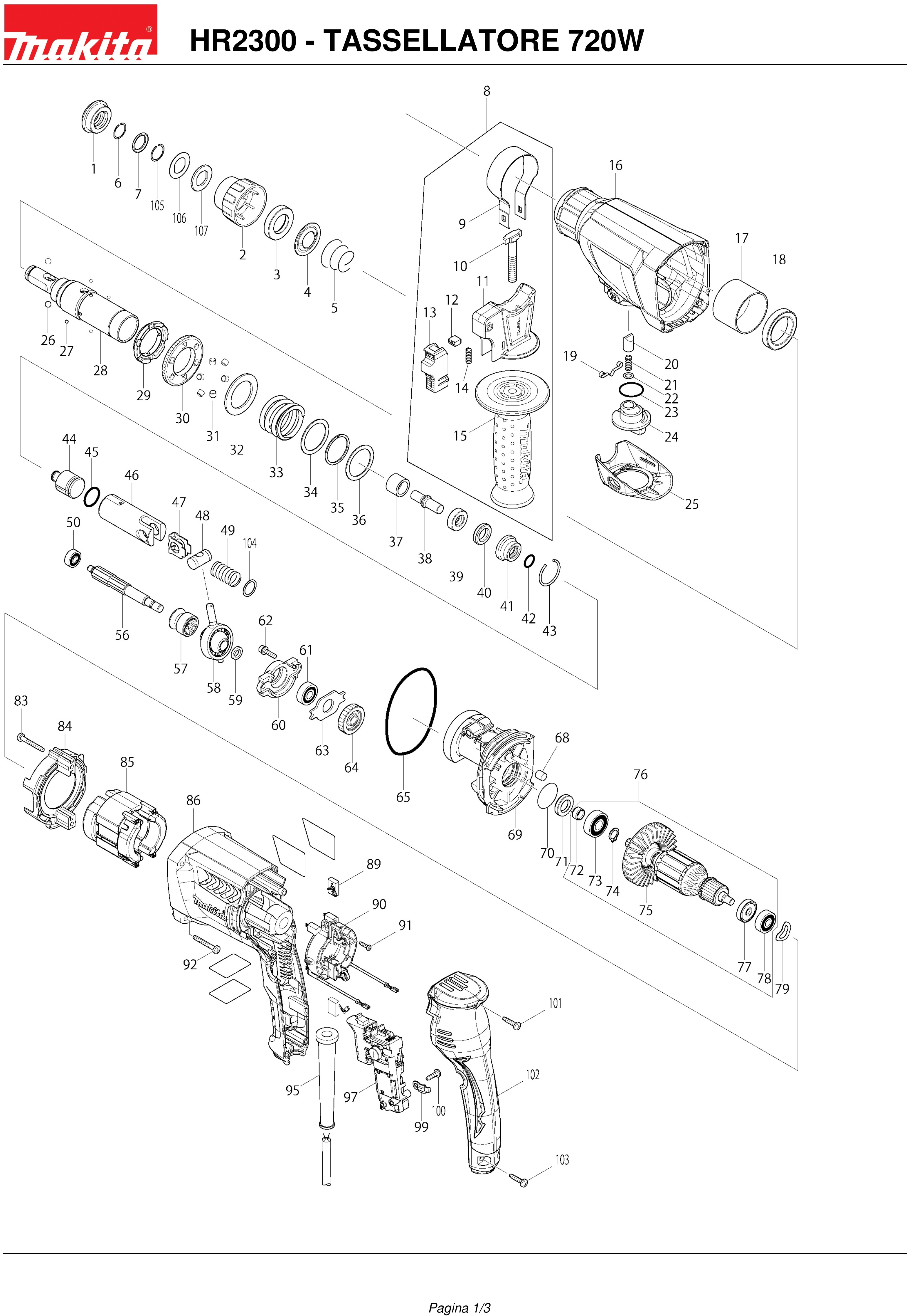

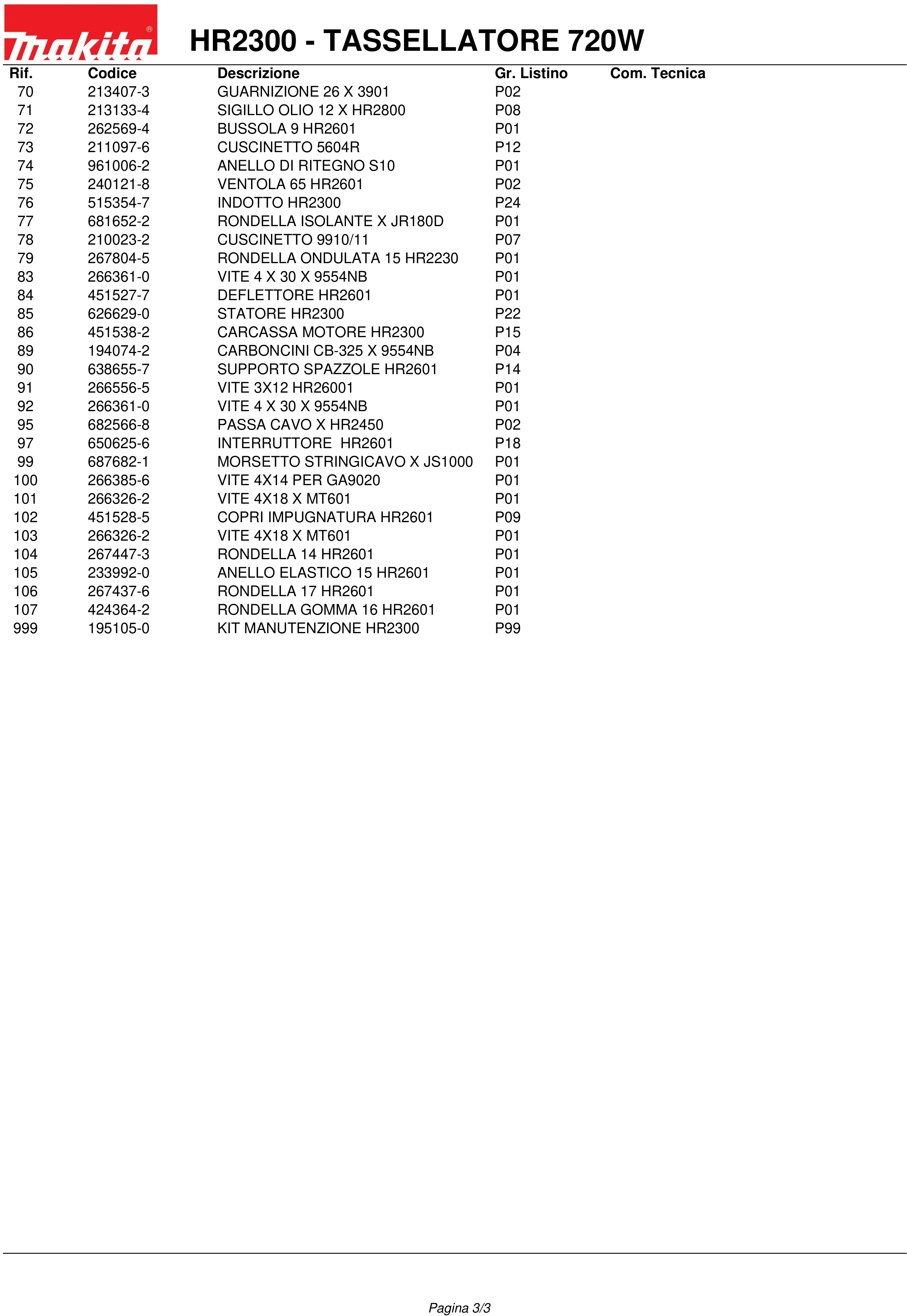

In the following table, look for the model of Hammer and the respective parts of the code.
| ROTARY HAMMER 720W SDS-PLUS 2300 |
| # |
Part Num. |
Description |
| 1 |
286288-8 |
CAP 35 HR2601 |
| 2 |
451533-2 |
FRONT COVER HR2601 |
| 3 |
325813-1 |
RING 21 HR2601 |
| 4 |
346177-0 |
GUIDE WASHER HR2601 |
| 5 |
233916-6 |
SPRING 21-29 X HR2020 |
| 6 |
233989-9 |
CIRCLIP 14 HR2601 |
| 7 |
346221-3 |
WASHER 16 HR2601 |
| 8 |
122878-2 |
SIDE HANDLE CPL HR2601 |
| 9 |
346181-9 |
GRIP SPRING 50 HR2601 |
| 10 |
266349-0 |
SCREW M8x50 HR2601 |
| 11 |
451539-0 |
GRIP BASE HR2601 |
| 12 |
313179-1 |
RACK HR2601 |
| 13 |
451540-5 |
LOCK BUTTON HR2601 |
| 14 |
233360-7 |
COMPRESSION SPRING 4 X MT952 |
| 15 |
154935-8 |
HANDLE 36 HR2601 |
| 16 |
140270-0 |
GEAR BOX HR2300 |
| 17 |
331890-3 |
CUP SLEEVE HR2601 |
| 18 |
211294-4 |
BALL BEARING 6806LLU HR2601 |
| 19 |
232152-1 |
LEAF SPRING X 6832 |
| 20 |
325785-0 |
PUSH CORN HR2601 |
| 21 |
234147-0 |
COMPRESSION SPRING 5 HR2601 |
| 22 |
253308-3 |
WASHER 6 43SB / 6510B-2 / 5016N |
| 23 |
213381-5 |
O-RING 21 NEW HR3510 / 20 |
| 24 |
451531-6 |
LEVER B HR2601 |
| 25 |
451532-4 |
COVER LEVER HR2601 |
| 26 |
216022-2 |
STEEL BALL 7 |
| 27 |
216019-1 |
STEEL BALL 3 X 6960DW |
| 28 |
140264-5 |
TOOL HOLDER HR2300 |
| 29 |
313149-0 |
FLANGE HR2601 |
| 30 |
227232-6 |
GEAR 51 HR2601 |
| 31 |
268226-2 |
PIN 6 X HK1820 / L |
| 32 |
267414-8 |
WASHER 30 HR2601 |
| 33 |
234148-8 |
COMPRESSION SPRING 31 HR2601 |
| 34 |
267153-0 |
WASHER 30 HR2601 |
| 35 |
257932-4 |
SPIRO LOCK WASHER 30 HR2601 |
| 36 |
267153-0 |
WASHER 30 HR2601 |
| 37 |
325782-6 |
SLEEVE 9A MT870 |
| 38 |
325789-2 |
IMPACT BOLT HR2601 |
| 39 |
325794-9 |
O RING 10A MT870 |
| 40 |
424267-0 |
O-RING SHOCK 12 |
| 41 |
325798-1 |
O-RING CASE A MT870 |
| 42 |
213073-6 |
O-RING 9 X HR2020 |
| 43 |
233979-2 |
CIRCLIP 28 HR2601 |
| 44 |
325784-2 |
STRIKER HR2601 |
| 45 |
213258-4 |
O-RING 17.5 X HR2210 / 20 |
| 46 |
310345-1 |
PISTON CYLINDER HR2601 |
| 47 |
346036-8 |
GUIDE PLATE BHR261D |
| 48 |
324215-8 |
PISTON PIN X X HR2020 |
| 49 |
234098-7 |
COMPRESSION SPRING 14 BHR261D |
| 50 |
211012-0 |
BEARING X 9524NB |
| 56 |
227243-1 |
GEAR 10 HR2601 |
| 57 |
331815-7 |
CAM CLUTCH B HR2601 |
| 58 |
219020-5 |
SWASH BEARING 10 HR2601 |
| 59 |
267234-0 |
FLAT WASHER 8 X HR2020 |
| 60 |
310344-3 |
BEARING BOX HR2601 |
| 61 |
211032-4 |
BEARING X 1902 |
| 62 |
266437-3 |
SCREW M4x16 FRENAFIL X HR4001C |
| 63 |
285735-6 |
RETAINING BEARING HR2601 |
| 64 |
227719-8 |
GEAR 26 HR2601 |
| 65 |
213728-3 |
RING 68 X BHR261D |
| 68 |
443153-6 |
FELT HR2601 |
| 69 |
141572-7 |
INNER HOUSING HR2300 |
| 70 |
213407-3 |
SEAL 26 X 3901 |
| 71 |
213133-4 |
SEAL OIL 12 X HR2800 |
| 72 |
262569-4 |
SLEEVE 9 HR2601 |
| 73 |
211097-6 |
BEARING 5604R |
| 74 |
961006-2 |
RETAINING RING S10 |
| 75 |
240121-8 |
FAN 65 HR2601 |
| 76 |
515354-7 |
ARMATURE HR2300 |
| 77 |
681652-2 |
INSULATION WASHER X JR180D |
| 78 |
210023-2 |
BEARING 9910/11 |
| 79 |
267804-5 |
WASHER 15 HR2230 |
| 83 |
266361-0 |
SCREW 4 X 30 X 9554NB |
| 84 |
451527-7 |
BUFFLE HR2601 |
| 85 |
626629-0 |
STATOR FIELD HR2300 |
| 86 |
451538-2 |
MOTOR HOUSING HR2300 |
| 89 |
194074-2 |
CARBON BRUSHE CB-325 X 9554NB |
| 90 |
638655-7 |
BRUSHE HOLDER HR2601 |
| 91 |
266556-5 |
SCREW 3X12 HR26001 |
| 92 |
266361-0 |
SCREW 4 X 30 X 9554NB |
| 95 |
682566-8 |
CORD GUARD X HR2450 |
| 97 |
650625-6 |
SWITCH HR2601 |
| 99 |
687682-1 |
CORD CLAMP X JS1000 |
| 100 |
266385-6 |
4x14 SCREW FOR GA9020 |
| 101 |
266326-2 |
SCREW 4x18 X MT601 |
| 102 |
451528-5 |
COVER HANDLE HR2601 |
| 103 |
266326-2 |
SCREW 4x18 X MT601 |
| 104 |
267447-3 |
WASHER 14 HR2601 |
| 105 |
233992-0 |
CIRCLIP 15 HR2601 |
| 106 |
267437-6 |
WASHER 17 HR2601 |
| 107 |
424364-2 |
WASHER RUBBER 16 HR2601 |
| 999 |
195105-0 |
SERVICE KIT HR2300 |
