Makita

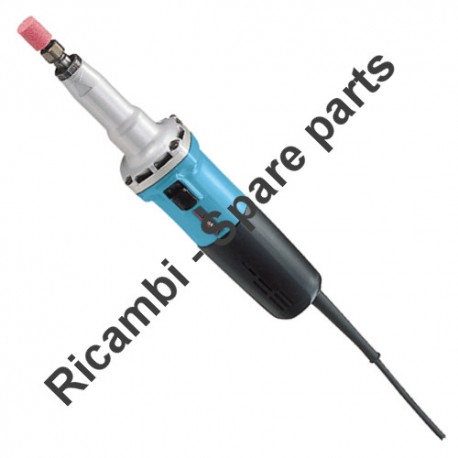

Makita Spare Parts for Die Grinder GD0801C

SKU: Makita GD0801C
€3.31
VAT included

Makita Spare Parts for Die Grinder GD0801C

We have the original Spares MAKITA for Die Grinder GD0801C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Die Grinder GD0801C All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Makita Spare Parts for Die Grinder GD0801C
  • Makita Spare Parts for Die Grinder GD0801C
  • Makita Spare Parts for Die Grinder GD0801C
Makita

Makita Spare Parts for Die Grinder GD0801C

SKU: Makita GD0801C Condition: New
€3.31
VAT included

Makita Spare Parts for Die Grinder GD0801C

We have the original Spares MAKITA for Die Grinder GD0801C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Die Grinder GD0801C All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 74 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
74 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Pin Button for Angle Grinder Flex L10-10 125 387096 Pin Button for Angle Grinder Flex L10-10 125 €1.14
1
 Motor for Cordless Valex Hammer 14,4 V 7400559 Motor for Cordless Valex Hammer 14,4 V €43.88
1
 photo_cameraImage coming soon 763645-2 LOCK NUT X GD0810C €2.94
2
 Spring Pin Lock Disc for Angle Grinder Flex L10-10 125 387118 Spring Pin Lock Disc for Angle Grinder Flex L10-10 125 €0.86
2
 Switch for Cordless Hammer Valex Hammer 14,4V 7400560 Switch for Cordless Hammer Valex Hammer 14,4V €29.07
2
 photo_cameraImage coming soon 763646-0 BUSH HOLDER 6 X GD0800C €19.31
3
 photo_cameraImage coming soon 213209-7 RING 16 X 6510SB €3.42
4
 photo_cameraImage coming soon 285700-5 RETAINING BEARING X GD0800C €9.72
4
 photo_cameraImage coming soon 387126 GEAR BOX L 10-10125 €22.17
5
 photo_cameraImage coming soon 324042-3 SHAFT X GD0800C €30.65
5
 photo_cameraImage coming soon 5951270 CYLINDER ASSY €36.82
6
 photo_cameraImage coming soon 211141-9 BEARING 6901LLB X GD0800C €7.49
6
 Pin Lock Disc for Angle Grinder Flex L10-10 125 387142 Pin Lock Disc for Angle Grinder Flex L10-10 125 €4.44
7
 Needle Bearing for Angle Grinder Flex L10-10 125 387150 Needle Bearing for Angle Grinder Flex L10-10 125 €8.33
7
 Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
8
 photo_cameraImage coming soon 317368-0 CANNON X GD0800C €38.31
8
 photo_cameraImage coming soon 317369-8 CANNON X GD0810C €44.86
8
 Crown for Angle Grinder Flex L 10-10 387169 Crown for Angle Grinder Flex L 10-10 €24.49
9
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
10
 photo_cameraImage coming soon 119482 BEARING 6201 RS 2 €17.05
10
 photo_cameraImage coming soon 7400551 STATOR €20.20
11
 photo_cameraImage coming soon 211148-5 BALL BEARING 6001LLB X GD0800C €7.78
12
 photo_cameraImage coming soon 962106-1 RETAINING RING R28 €1.40
13
 photo_cameraImage coming soon 233901-9 STOP RING 12 X GD0800C €4.05
14
 photo_cameraImage coming soon 226531-3 GEAR 25 X GD0810C €15.81
14
 photo_cameraImage coming soon 323989-8 RING STOP X GD0800C €16.59
14
 photo_cameraImage coming soon 387207 DRIVE SHAFT L 10-10125 €14.85
15
 photo_cameraImage coming soon 387215 O-RING L 10-10125 €1.46
16
 photo_cameraImage coming soon 387223 SEAL L 10-10125 €1.46
16
 photo_cameraImage coming soon 417363-1 COVER GEAR X GD0810C €2.80
17
 photo_cameraImage coming soon 387231 GEAR BOX L 10-10125 €21.85
20
 Flat Washer 12 for Angle Grinder Makita GA4540 253084-9 Flat Washer 12 for Angle Grinder Makita GA4540 €1.39
20
 Flat Washer for Angle Grinder Flex L 3709 335282 Flat Washer for Angle Grinder Flex L 3709 €7.10
21
 Nut M14 Lock Disc for Angle Grinder Flex L 3709 100080 Nut M14 Lock Disc for Angle Grinder Flex L 3709 €9.71
21
 photo_cameraImage coming soon 213611-4 RING 46 X GD0810C €1.88
22
 photo_cameraImage coming soon 100110 KEY, BL 5 €8.89
22
 photo_cameraImage coming soon 317367-2 BEARING BOX X GD0800C €19.31
23
 photo_cameraImage coming soon 240036-9 FAN 57 X GD0800C €4.45
23
 photo_cameraImage coming soon 335274 HANDLE L3709 €10.57
24
 photo_cameraImage coming soon 387258 NUT L10-10 125 €1.46
25
 Pinion for Angle Grinder Flex L 10-10 387266 Pinion for Angle Grinder Flex L 10-10 €15.21
25
 Armature Washer for Angle Grinders Makita 9561-9562CV 681656-4 Armature Washer for Angle Grinders Makita 9561-9562CV €1.50
26
 photo_cameraImage coming soon 253823-7 ROND. FLAT 7 X JS1600 €2.40
26
 photo_cameraImage coming soon 387274 SWITCH FLOW L 10-10125 €1.83
27
 photo_cameraImage coming soon 210023-2 9910/11 BEARING €7.16
27
 photo_cameraImage coming soon 387282 SEAL L 10-10125 €5.52
28
 photo_cameraImage coming soon 387290 BEARING L 10-10125 €7.24
28
 photo_cameraImage coming soon 421770-2 RUBBER RING 22 X GD0800C €8.61
29
 photo_cameraImage coming soon 387304 RUBBER RING L 10-10125 €1.22
29
 Magnet Sleeve for Angle Grinder Makita GA4540C 688117-5 Magnet Sleeve for Angle Grinder Makita GA4540C €4.20
30
 photo_cameraImage coming soon 259039-2 LOCKING 6 X 9566CV €3.76
32
 photo_cameraImage coming soon 344871-8 RETAINING X GD0800C €3.24
32
 Armature for Angle Grinder Flex L 10-10 387320 Armature for Angle Grinder Flex L 10-10 €57.84
33
 photo_cameraImage coming soon 417237-6 COVER INSULATION FOR GD0800C €2.17
34
 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR 254443 Ball Bering 607 2RS LTN9 for Angle Grinder Flex L 1506 VR €14.17
36
 photo_cameraImage coming soon 387355 BAFFLE L 10-10125 €3.43
37
 Stator for Angle Grinder Flex L 10-10 387363 Stator for Angle Grinder Flex L 10-10 €52.11
38
 photo_cameraImage coming soon 387371 BODY OF MOTOR L 10-10125 €16.94
39
 Capacitor for Angle Grinder FLEX L 10-10 125 387398 Capacitor for Angle Grinder FLEX L 10-10 125 €6.08
40
 Carbon Brushes CB-318 for Angle Grinder Makita 9564 191978-9 Carbon Brushes CB-318 for Angle Grinder Makita 9564 €11.55
40
 Switch for Angle Grinder Flex L 3709 336769 Switch for Angle Grinder Flex L 3709 €42.66
41
 photo_cameraImage coming soon 266256-7 SCREW 3 X 10 X GD0800C €2.17
42
 photo_cameraImage coming soon 643760-7 BRUSH HOLDER FOR BO6040 €6.31
43
 photo_cameraImage coming soon 387428 BRUSHES HOLDER L 10-10125 €4.05
43
 photo_cameraImage coming soon 650579-7 SWITCH 1246.3223 €15.35
44
 photo_cameraImage coming soon 266492-5 SCREW M4X25-9527PB 9528PB €2.47
45
 photo_cameraImage coming soon 345504-8 PLATE LEVER INTER. X GD0600 €1.79
46
 photo_cameraImage coming soon 154584-1 LEVER SWITCH B 9557PB €2.69
46
 photo_cameraImage coming soon 387436 ROD L 10-10125 €1.83
47
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
48
 photo_cameraImage coming soon 266385-6 SCREW 4x14 GA9020 €1.44
49
 Capacitor for Die Grinder Makita GD0801C 645089-7 Capacitor for Die Grinder Makita GD0801C €1.47
52
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
56
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Die Grinder GD0801C

We have the original Spares MAKITA for Die Grinder GD0801C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Die Grinder GD0801C All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Die Grinder and the respective parts of the code.
MAKITA

Die Grinder GD0801C
1 763645-2 COLLET NUT X GD0810C
2 763646-0 COLLET CONE 6 X GD0800C
3 213209-7 O-RING 16 X 6510SB
4 285700-5 BEARING RETAINER X GD0800C
5 324042-3 SPINDLE X GD0800C
6 211141-9 BALL BEARING 6901LLB X GD0800C
7 961052-5 EXT DIN 471 CIRCLIP-S12
8 317368-0 BARREL X GD0800C
9 265999-8 SCREW 4X25
10 961052-5 EXT DIN 471 CIRCLIP-12
11 211148-5 BALL BEARING 6001LLB X GD0800C
12 962106-1 INTERNAL RETAINING RING-R28
13 233901-9 LOCK SPRING 12 X GD0800C
14 323989-8 COUPLING X GD0800C
15 265082-1 SCREW M4 X 8 X GD0800C
17 962106-1 INTERNAL RETAINING RING-2*
18 961052-5 EXT DIN 471 CIRCLIP-12
19 211148-5 BALL BEARING 6001LLB X GD0800C
20 253084-9 FLAT WASHER 12 8419B / 5016NB
22 317367-2 BALL BEARING BOX X GD0800C
23 240036-9 FAN 57 X GD0800C
24 515409-8 ARMATURE
25 681656-4 INSULATION WASHER X GD0810C
26 253823-7 FLAT WASHER 7 X JS1600
27 210023-2 BALL BEARING 627 9910/11
28 421770-2 RUBBER RING 22 X GD0800C
29 688117-5 MAGNET SLEEVE X GD0800C
30 259039-2 SELF LOCK 6 X 9566CV
31 266259-1 SCREW M 4 X 60 X GD0800C
32 344871-8 RETAINER X GD0800C
33 417237-6 INSULATION COVER GD0800C
34 455367-5 BAFFLE PLATE
35 626669-8 STATOR
36 455358-6 MOTOR HOUSING
40 191978-9 CARBON BRUSHE SET CB 318 (EX 310)
41 266256-7 SCREW 3 X 10 X GD0800C
42 643760-7 BRUSH HOLDER X BO6040
43 650579-7 SWITCH 1246.3223
44 266492-5 SCREW M4x25-9527PB 9528PB
45 345504-8 PLATE LEVER GD0600
46 154584-1 SWITCH LEVER B 9557PB
47 687169-3 STRAIN RELIEF HP1620
48 266385-6 SCREW 4x14 GA9020
49 645089-7 CAPACITOR
50 188365-1 REAR COVER SET
52 682559-5 CORD GUARD 8 6822
53 620340-6 CONTROLLER
56 266048-4 SCREW M 4 X 40 X 4334D
57 643771-2 HOLDER BRUSHES

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
