Makita

Makita Spare Parts for Die Grinder GD0600

SKU: Makita GD0600
€3.31
VAT included

Makita Spare Parts for Die Grinder GD0600

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Die Grinder GD0600.
Makita Spare Parts for Die Grinder GD0600
  • Makita Spare Parts for Die Grinder GD0600
  • Makita Spare Parts for Die Grinder GD0600
Makita

Makita Spare Parts for Die Grinder GD0600

SKU: Makita GD0600 Condition: New
€3.31
VAT included

Makita Spare Parts for Die Grinder GD0600

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Die Grinder GD0600.
settings 42 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

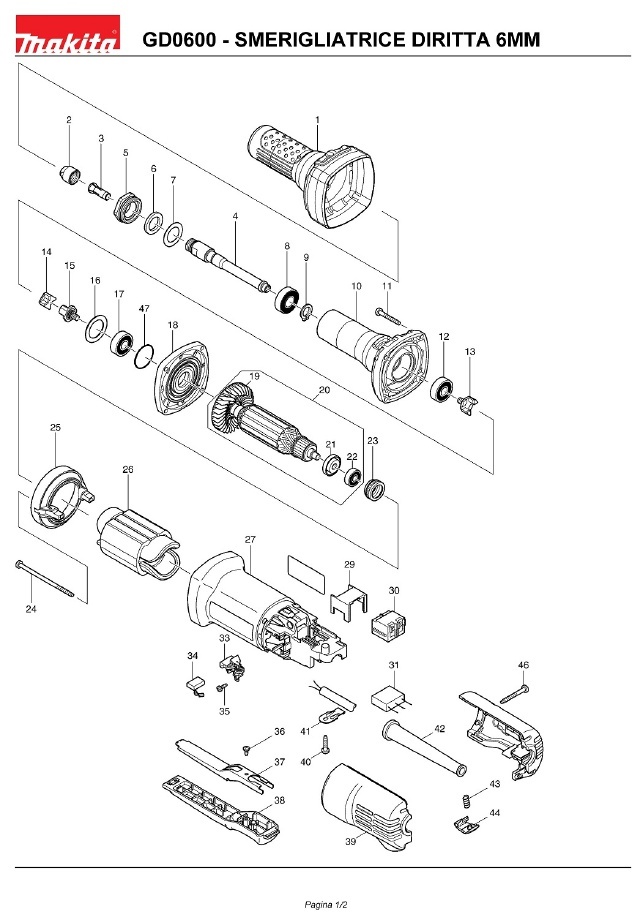

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 421943-7 PROTECTION INSULATION GD0600 €3.42
2
 photo_cameraImage coming soon 763664-8 Dad0 6 GD0600 €1.74
3
 photo_cameraImage coming soon 763620-8 CLAMP 6MM X 906 €12.76
4
 photo_cameraImage coming soon 324638-0 SHAFT GD0600 €6.69
5
 photo_cameraImage coming soon 317999-5 RETAINING BEARING GD0600 €2.06
6
 photo_cameraImage coming soon 443124-3 FELT RING 17 GD0600 €2.34
8
 photo_cameraImage coming soon 210106-8 BEARING 6001LLB €2.47
9
 Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
10
 photo_cameraImage coming soon 318000-9 CASING FRONT GD0600 €9.72
11
 photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
12
 photo_cameraImage coming soon 210042-8 BEARING FOR 629LLB GD0600 €5.93
13
 photo_cameraImage coming soon 324639-8 SCREW WING GD0600 €3.42
18
 photo_cameraImage coming soon 317821-6 COVER SCAT.INGR. FOR 9554NB €8.12
19
 photo_cameraImage coming soon 240076-7 FAN FOR 56 9554NB €2.27
20
 photo_cameraImage coming soon 515679-9 ARMATURE GD0600 €19.31
21
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
22
 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB 210034-7 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB €3.34
23
 Ball Bearing Protection for Angle Grinder Makita GA4530 421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530 €2.00
25
 photo_cameraImage coming soon 418770-1 AIR BAFFLE X 9557NB €2.39
26
 photo_cameraImage coming soon 621724-1 STATOR GD0600 €14.68
27
 photo_cameraImage coming soon 418838-3 HOUSING MOTOR X 9557PB €9.54
29
 photo_cameraImage coming soon 418729-8 SPACER X 9557NB €2.39
30
 Switch for Angle Grinder Makita 710 W 9554HN/NB 651947-7 Switch for Angle Grinder Makita 710 W 9554HN/NB €14.96
31
 Capacitor for Angle Grinder Makita 9554NB 645233-6 Capacitor for Angle Grinder Makita 9554NB €3.35
33
 photo_cameraImage coming soon 643760-7 BRUSH HOLDER FOR BO6040 €6.31
34
 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB 194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB €4.19
35
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
36
 photo_cameraImage coming soon 266492-5 SCREW M4X25-9527PB 9528PB €2.47
37
 photo_cameraImage coming soon 345504-8 PLATE LEVER INTER. X GD0600 €1.79
38
 photo_cameraImage coming soon 154584-1 LEVER SWITCH B 9557PB €2.69
39
 photo_cameraImage coming soon 183943-2 COVER POST. X 9557PB €5.41
40
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
41
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
42
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
43
 photo_cameraImage coming soon 231252-4 SPRING 6-9527PB 9528PB €2.01
44
 photo_cameraImage coming soon 418842-2 BUTTON LOCK X 9557PB €1.79
46
 photo_cameraImage coming soon 266351-3 SCREW 4 X 35 X 9557PB €1.38
47
 O-Ring 26 for Powertools Makita 213445-5 O-Ring 26 for Powertools Makita €1.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Die Grinder GD0600

We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Die Grinder GD0600.

In the following table, look for the model of the Die Grinder and the respective parts of the code.
Makita GD0600

Die Grinder GD0600
# Part Num. Description
1 421943-7 PROTECTION INSULATION GD0600
2 763664-8 Dad0 6 GD0600
3 763620-8 CLAMP 6MM X 906
4 324638-0 SHAFT GD0600
5 317999-5 RETAINING BEARING GD0600
6 443124-3 FELT RING 17 GD0600
7 267329-9 WASHER 18 GD0600
8 210106-8 BEARING 6001LLB
9 961052-5 RETAINING RING S12
10 318000-9 CASING FRONT GD0600
11 266361-0 SCREW 4 X 30 X 9554NB
12 210042-8 BEARING FOR 629LLB GD0600
13 324639-8 SCREW WING GD0600
14 421942-9 DISTANCE GD0600
15 324639-8 SCREW WING GD0600
16 267126-3 FLAT WASHER 22
17 210042-8 BEARING 629 LLB FOR GD0600
18 317821-6 COVER SCAT.INGR. X 9554NB
19 240076-7 FAN 56 X 9554NB
20 515679-9 ARMATURE GD0600
21 681636-0 INSULATION WASHER
22 210034-7 BEARING 607LLB X 9554NB
23 421868-5 RING RUBBER X 9554NB
24 266345-8 SCREW 4x80 X 9557NB
25 418770-1 BAFFLE X 9557NB
26 621724-1 STATOR GD0600
27 418838-3 CASING MOTOR X 9557PB
29 418729-8 DISTANCE X 9557NB
30 651947-7 SWITCH-9527PB 9528PB
31 645233-6 CAPACITOR X 9554NB
33 643760-7 BRUSH X BO6040
34 194074-2 CARBON BRUSHES CB-325 X 9554NB
35 266007-8 SCREW M3 X10 HP2030
36 266492-5 SCREW M4x25-9527PB 9528PB
37 345504-8 X PLATE LEVER INTER.GD0600
38 154584-1 LEVER B SWITCH 9557PB
39 183943-2 COVER POST. X 9557PB
40 266326-2 SCREW 4x18 X MT601
41 687169-3 CLAMP CABLE stringy HP1620
42 682559-5 SAVE CABLE X 6822
43 231252-4 SPRING 6-9527PB 9528PB
44 418842-2 BUTTON LOCK X 9557PB
46 266351-3 SCREW 4 X 35 X 9557PB
47 213445-5 RING 26 X 9554NB

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita GD0600
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita GD0600

Diagram Makita GD0600

Download (277.63KB)
