at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Polisher PV7000C.

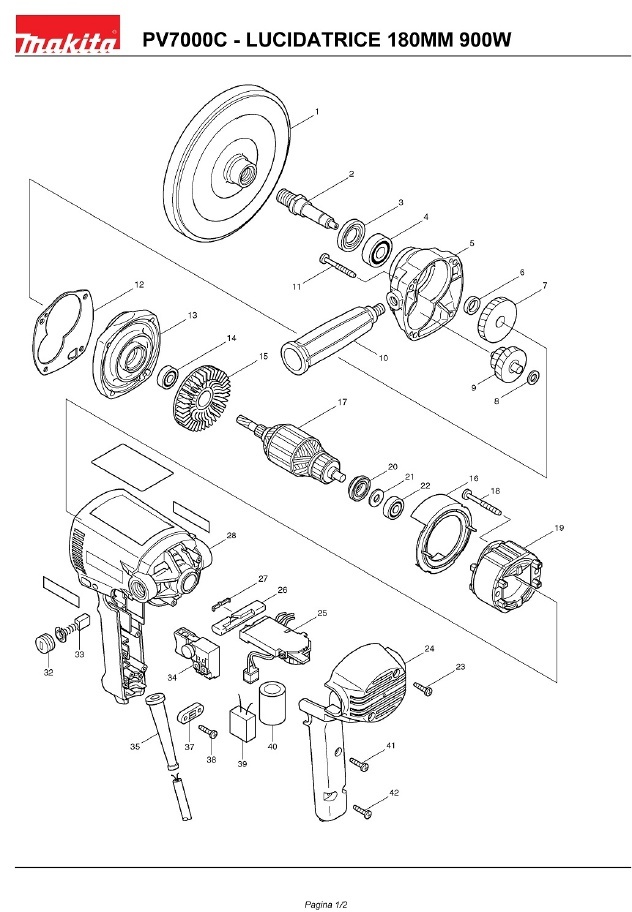

In the following table, look for the model of Polsher and the respective parts of the code.
| Polisher Makita PV7000C | ||
| Pos. | Codice | Descrizione |
| 1 | 743053-3 | PAD 165 X 9227CB |
| 2 | 324079-0 | POST X PV7000C |
| 3 | 152690-6 | RETAINING BEARING X PV7000C |
| 4 | 211129-9 | BALL BEARING 6201DD |
| 5 | 152691-4 | GEAR BOX CPL PV7000C |
| 6 | 257707-1 | SOCKET temporary locking X PV7000C |
| 7 | 226536-3 | GEAR TWISTED PV7000C |
| 8 | 253215-0 | ROND. FLAT 8 6510PBL / LVR |
| 9 | 226141-6 | GEAR CPL X PV7000C |
| 10 | 273649-1 | KNOB SIDE X PV7000C |
| 11 | 266211-9 | SCREW 5 X 40 X HK0500 |
| 12 | 442132-1 | SEAL X PV7000C |
| 13 | 152692-2 | COVER CARC. CPL X PV7000C |
| 14 | 210005-4 | BALL BEARING 608DDW |
| 15 | 240020-4 | FAN 65 X PV7000C |
| 16 | 419721-7 | VANE X PV7000C |
| 17 | 516433-4 | ARMATURE X PV7000C |
| 18 | 266056-5 | SCREW M 5 X 45 |
| 19 | 599013-1 | STATOR 220 X PV7000C |
| 20 | 681660-3 | INSULATING WASHER X PV7000C |
| 21 | 253139-0 | FLAT WASHER 8 |
| 22 | 210005-4 | BALL BEARING 608DDW |
| 23 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 24 | 417450-6 | COVER HANDLE X PV7000C |
| 25 | 631427-9 | CONTROL X PV7000C |
| 26 | 417449-1 | LEVER X PV7000C |
| 27 | 232201-4 | SPRING FLAT X PV7000C |
| 28 | 183300-4 | HOUSING MOTOR X PV7000C |
| 32 | 643750-0 | PLUG BRUSH HOLDER |
| 33 | 191963-2 | CARBON BRUSHES CB-303 |
| 34 | 651297-0 | SWITCH X PV7000C |
| 35 | 682559-5 | SAVE CABLE X 6822 |
| 37 | 687063-9 | RETAINER X 4304T |
| 38 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 39 | 645253-0 | CAPACITOR X 6408 |
| 40 | 685722-9 | SPONGE X 4302C |
| 41 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 42 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
