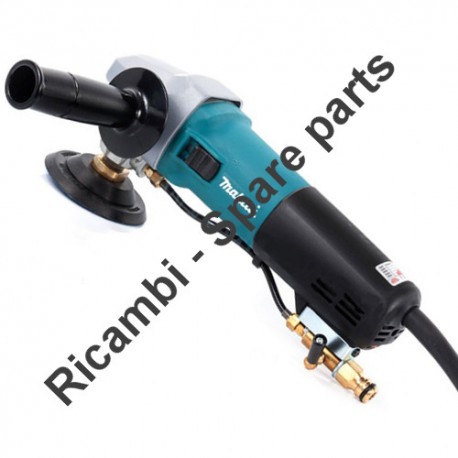

We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues fo Polisher PW5000CH
In the following table, look for the model of Polsher and the respective parts of the code.
| Polisher Makita PW5000CH | ||
| # | Part Num. | Description |
| 1 | 418067-8 | PLUG PLUG FOR SG1250 |
| 2 | 233072-2 | SPRING COMPRESSION 8 X 9541 |
| 3 | 153488-4 | RECEIVER INPUT. CPL FOR SG1250 |
| 4 | 961052-5 | RETAINING RING S12 |
| 5 | 210105-0 | BEARING 6001LLU X PW5000CH |
| 6 | 253084-9 | ROND.P.12 8419B / 5016NB |
| 8 | 317359-1 | COVER BOX INPUT. X 9561 |
| 9 | 240033-5 | FAN 57 X 9561CV |
| 10 | 515268-0 | ARMATURE FOR PW5000CH |
| 11 | 681656-4 | INSULATING WASHER X GD0810C |
| 12 | 253823-7 | ROND. FLAT 7 X JS1600 |
| 13 | 210027-4 | BEARING 627DDW X 9561CV |
| 14 | 421738-8 | RING LABYRINTH 22 X 9561CV |
| 15 | 267756-0 | WAVY WASHER X BO6040 |
| 16 | 688117-5 | SOCKET X GD0800C |
| 17 | 259039-2 | LOCKING 6 X 9566CV |
| 18 | 413076-2 | VANE X GD0800C |
| 19 | 266258-3 | SCREW 4 X 70 X 9564 |
| 20 | 344871-8 | RETAINING X GD0800C |
| 21 | 417237-6 | COVER INSULATION X GD0800C |
| 22 | 626548-0 | STATOR FOR PW5000CH |
| 23 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 24 | 687052-4 | CLAMP Cable tie X 6408 |
| 25 | 632945-0 | LOCK SWITCH X GD0800C |
| 27 | 651418-4 | SWITCH ST115A-40 X 9541 |
| 28 | 687113-0 | COVER X GD0800C |
| 29 | 682566-8 | PASS CABLE X HR2450 |
| 32 | 418453-3 | BACK COVER X PW5001C |
| 33 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 35 | 266256-7 | SCREW 3 X 10 X GD0800C |
| 36 | 643765-7 | BRUSH X PW5000C |
| 37 | 191978-9 | CARBON BRUSHES CB 318 (EX 310) |
| 38 | 417813-6 | CONTROL SWITCH X GD0800C |
| 40 | 453276-2 | HOUSING MOTOR |
| 41 | 643805-1 | BRUSH X PW5000C |
| 42 | 233071-4 | SPRING COMPRESSION 4 X 9541 |
| 43 | 417186-7 | LEVER SWITCH X 9564 |
| 44 | 631700-7 | REGULATOR FOR PW5000CH |
| 45 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 46 | 345372-9 | PLATE HOLDER X PW5000C |
| 47 | 245031-4 | TUBE X PW5001C |
| 48 | 154649-9 | COMPLETE TAP X PW5001C |
| 49 | 331669-2 | FITTING X PW5001C |
| 50 | 213107-5 | SEAL 12 JR3000 / V |
| 51 | 743080-0 | PAD RUBBER 100 X PW5000C |
| 52 | 324407-9 | REDUCTION X PW5001C |
| 53 | 324409-5 | SPINDLE X PW5000C |
| 54 | 254202-2 | KEY 4 |
| 55 | 265490-6 | SCREW M4 X 16 X 9561CV |
| 56 | 153717-5 | BEARING BOX CPL X PW5001C |
| 57 | 211129-9 | BALL BEARING NSK 6201DD |
| 58 | 285841-7 | RETAINING BEARING X 9566CV |
| 59 | 213673-2 | RING 52 X 9561CV |
| 60 | 227455-6 | GEAR 38 X PW5001C |
| 61 | 961052-5 | RETAINING RING S12 |
| 62 | 256459-1 | PIN X 9561CV |
| 63 | 213048-5 | RING 6 X 9561CV |
| 64 | 266257-5 | SCREW M4 X 28 X 9561CV |
| 65 | 655033-6 | PLUG X PW5000C |
| 66 | 267126-3 | FLAT WASHER 22 |
| 67 | 261128-1 | WASHER RUBBER FOR 12 PW5000CH |
| 68 | 261127-3 | TEFLON WASHER 10 X PW5000CH |
