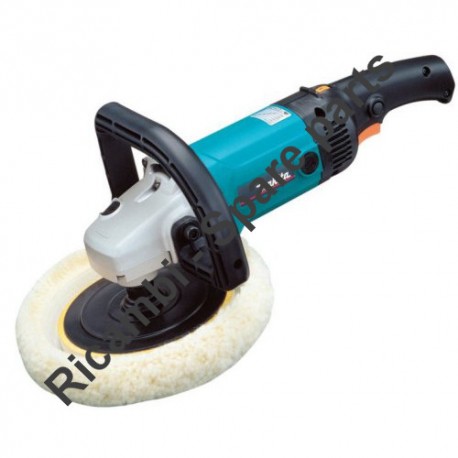

Makita Spare Parts for Polisher 9237CB

SKU: Makita 9237CB
€37.19
VAT included

Makita Spare Parts for Polisher 9237CB

We supply MAKITA original spare parts on offer at lower prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Polisher 9237CB.

- Key pad locks
- Electronic Features: antiriavvio accidental, start slow, constant speed under load
Makita Spare Parts for Polisher 9237CB
  • Makita Spare Parts for Polisher 9237CB
  • Makita Spare Parts for Polisher 9237CB

Makita Spare Parts for Polisher 9237CB

SKU: Makita 9237CB Condition: New
€37.19
VAT included

Makita Spare Parts for Polisher 9237CB

We supply MAKITA original spare parts on offer at lower prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Polisher 9237CB.

- Key pad locks
- Electronic Features: antiriavvio accidental, start slow, constant speed under load
settings 43 spare parts

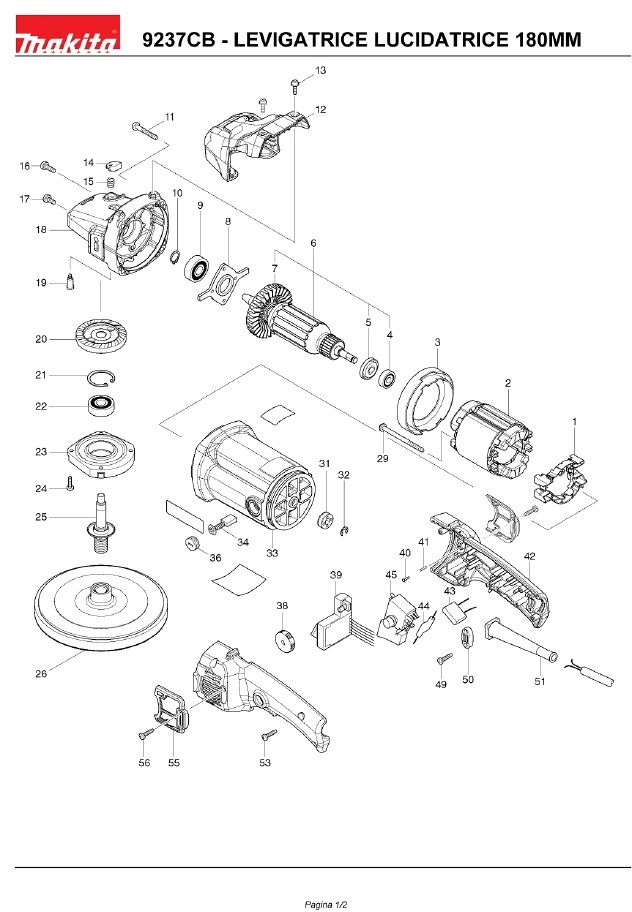

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 539168-0 SUPPORT COMPLETE 9227CB  €3.98
2
220/240 V Stator for Sander Polisher Makita 9227CB 634293-3 220/240 V Stator for Sander Polisher Makita 9227CB €30.34
3
photo_cameraImage coming soon 416253-5 FLAP €2.91
4
photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
5
photo_cameraImage coming soon 681644-1 INSULATED WASHER for 9227CB €2.74
6
Armature for Sander Polisher 180MM 9227-9237CB 516308-7 Armature for Sander Polisher 180MM 9227-9237CB €134.46
7
Armature Fan for Sander Polisher 180MM 9227-9237CB 240002-6 Armature Fan for Sander Polisher 180MM 9227-9237CB €6.55
8
photo_cameraImage coming soon 285687-1 RETAINING BEARING €2.91
9
Ball Bearing 6201LLB NSK for Sander Makita SA7000 211106-1 Ball Bearing 6201LLB NSK for Sander Makita SA7000 €8.69
10
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
11
Screw M5 X 35 for Angle Grinder Makita GA9050R 266012-5 Screw M5 X 35 for Angle Grinder Makita GA9050R €2.01
12
photo_cameraImage coming soon 455291-2 HEAD COVER €9.82
13
photo_cameraImage coming soon 911118-1 M4PER12 SCREW €2.74
14
photo_cameraImage coming soon 415491-6 DISC-LOCK BUTTON €1.25
15
photo_cameraImage coming soon 233072-2 COMPRESSION SPRING 8 X 9541 €1.40
16
photo_cameraImage coming soon 911221-8 SCREW M5X16 X HM1303 €1.40
17
photo_cameraImage coming soon 911211-1 SCREW M5X12 €1.36
18
photo_cameraImage coming soon 142747-1 GEAR HOUSING COMPLETE €24.42
19
photo_cameraImage coming soon 256504-2 PIN 9 X 9227CB €1.88
20
photo_cameraImage coming soon 227512-0 GEAR 52 X 9227CB €35.07
21
Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
23
photo_cameraImage coming soon 316896-2 BEARING HOUSING €18.53
24
photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
25
photo_cameraImage coming soon 152551-0 SHAFT CPL €23.81
26
photo_cameraImage coming soon 743053-3 PAD €31.79
29
photo_cameraImage coming soon 266038-7 SCREW M5 X 70 €3.84
31
photo_cameraImage coming soon 688110-9 SOCKET €5.67
32
photo_cameraImage coming soon 961012-7 RETAINING RING E6 €2.17
33
photo_cameraImage coming soon 187958-1 MOTOR HOUSING SET €19.31
34
Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
36
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
38
photo_cameraImage coming soon 271417-6 SOCKET 28 €3.60
39
photo_cameraImage coming soon 631227-7 CONTROL €111.32
40
photo_cameraImage coming soon 255058-6 SOLID RIVET 2-9 9227CB €3.41
41
photo_cameraImage coming soon 233002-3 SPRING COMPRES. €3.41
42
photo_cameraImage coming soon 187917-5 HANDLE SET €11.32
43
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
44
photo_cameraImage coming soon 646077-7 COIL 5604R €6.36
45
photo_cameraImage coming soon 651282-3 SWITCH €39.66
49
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
50
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
51
photo_cameraImage coming soon 682573-1 CORD ARMOR 10 X GA9010C €3.41
55
photo_cameraImage coming soon 455288-1 DUST COVER €2.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Polisher 9237CB

We supply MAKITA original spare parts on offer at lower prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Polisher 9237CB.

In the following table, look for the model of Polsher and the respective parts of the code.
Makita 9237CB

Polisher Makita 9237CB
# Part Num. Description
1 539168-0 SUPPORT COMPLETE 9227CB
2 634293-3 FIELD 240V 9227CB
3 416253-5 BAFFLE PLATE 9227CB
4 211031-6 BALL BEARING 608LLB X 4304T
5 681644-1 INSULATED WASHER X 9227CB
6 516308-7 ARMATURE ASSY 9227CB
7 240002-6 FAN 70 X 9227CB
8 285687-1 BEARING RETAINER 9227CB
9 211106-1 BEARING 6201LLB
10 961052-5 EXT DIN 471 CIRCLIP-12
11 266012-5 PT SCREW 5X35 HR160D - HR160DW
12 455291-2 HEAD COVER
13 911118-1 PAN HEAD SCREW M4X12
14 415491-6 PIN CAP 9020NB/9522NB/9526NB
15 233072-2 COMPRESSION SPRING 8 X 9541
16 911221-8 PAN HD SCREW 5X16 W/SP HM1303
17 911211-1 PAN HD SCREW 5X12 W/SP
18 142747-1 GEAR HOUSING COMPLETE
19 256504-2 SHOULDER PIN 9 9227CB
20 227512-0 SPIRAL BEVEL GEAR 52 9227CB
21 962151-6 RETAINING RING R-32 BPJ141/81
22 211106-1 BALL BEARING 6201LLB
23 316896-2 BEARING BOX 9227CB
24 266034-5 CT SCREW M4X16
25 152551-0 SPINDLE COMPLETE 9227CB
26 743053-3 PAD 165 X 9227CB
29 266038-7 PT SCREW 5X70 HP2032 HP2030
31 688110-9 MAGNET SLEEVE 9227CB
32 961012-7 EXT E-RING JIS JE-6
33 187958-1 MOTOR HOUSING SET
34 191963-2 CARBON BRUSHE PAIR CB-303
36 643750-0 BRUSH HOLDER CAP
38 271417-6 DIAL 28 X 9227CB
39 631227-7 CONTROLLER 240V 9227CB
40 255058-6 SOLID RIVET 2-9 9227CB
41 233002-3 COMPRESSION SPRING T221DW
42 187917-5 HANDLE SET
43 645200-1 NOISE SUPPRESSOR
44 646077-7 CHOKE COIL 9046/5604R
45 651282-3 SWITCH 9227CB
49 265995-6 PT SCREW 4X18 KP0810C 6408 / 6221DW
50 687052-4 STRAIN RELIEF HS7100/BO5041 6408
51 682573-1 CORD GUARD 10 GA7010/9010/SA7 GA9010C
53 265995-6 PT SCREW 4X18 KP0810C 6408 / 6221DW
55 455288-1 DUST COVER
56 265995-6 PT SCREW 4X18 KP0810C 6408 / 6221DW

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita 9237CB
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita 9237CB

Diagram Makita 9237CB

Download (276.1KB)
